For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
When the indicator in thebutton is on, the SYNC
indicator also comes on. The f ront
passenger’s temperature cannot be
set separately f rom the driver’s.
Your vehicle has two temperature
control switches and two mode
control buttons, one f or the driver,
and one f or the f ront passenger.
Thedriver’ssideandthepassenger’s
side temperature and mode can be
controlled independently.
Climate Control System
Dual Temperature
and Mode Control
232
DRIVER’S SIDE
TEMPERATURE
CONTROL SWITCH
SYNC BUTTON PASSENGER’S SIDE
TEMPERATURE
CONTROL SWITCH
U.S. model with navigation system is shown. DRIVER’S SIDE
MODE CONTROL
BUTTON
PASSENGER’S
SIDE MODE
CONTROL
BUTTON
12/07/20 10:59:21 31TK4640_237
Features
2013 TL

The selected temperatures and
mode appear in the display (in the
center display on models with
navigation system). When the
indicator in the SYNC button is on,
you can adjust both sides to the
same temperature and mode by
pushing the driver’s side
temperature and mode controls.
When you set the temperature to its
upper or lower limit, it is displayed asor .
Synchronized Cont rol
Climate Control System
Features
233
Driver’s Side Passenger’s Side
REAR FLOOR AIR DUCTS
12/07/20 10:59:27 31TK4640_238
2013 TL

An audio system is standard on all
models. Read the appropriate pages
(as shown below) to use your
vehicle’s audio system.
For vehicles without navigation
system, see pages through .
For vehicles with navigation system,
see pages through .236 284
285 380
Audio System
Features
235
Models Without navigation system Models With navigation system
12/07/20 10:59:41 31TK4640_240
2013 TL

Most audio system f unctions can be
controlled by standard buttons, bars,
and knobs. In addition, you can
access some f unctions by using the
selector knob on the audio system.The knob turns lef t and right. Use it
to scroll through lists, or to make
selections or adjustments to a list or
menu item on the display. When you
make a selection, push the center of
the selector (ENTER) to go to that
selection.
When the audio system is in XM
Radio mode or playing discs, pushing
the selector (ENTER) knob switches
the display between the normal
display and the extended display.
The extended display has three
segments to display the detailed
inf ormation.
To select any setting such as the
clock or sound adjustment, press the
SETUP button. To use any audio
system f unction, the ignition switch
must be in the ACCESSORY (I) or
ON (II) position. You can select the
item by turning the selector knob.
To go back to the previous display,
press the RETURN button.
Pressing the SETUP button
again will also cancel the setup
display mode.
When you unlock the doors with
your remote transmitter and turn the
audio system on with the ignition
switch in the ACCESSORY (I) or ON
(II) position, the driver’s ID (Driver
1 or Driver 2) is detected, and the
radio presets and sound level
settings (see page ) are turned to
the respective memorized mode
automatically.
243
Selector K nob
SET UP Display
Personalization Setting
Audio System (Models without navigation system)
236
RETURN
BUTTON SELECTOR
KNOBSETUP BUTTON
12/07/20 10:59:49 31TK4640_241
Features
2013 TL

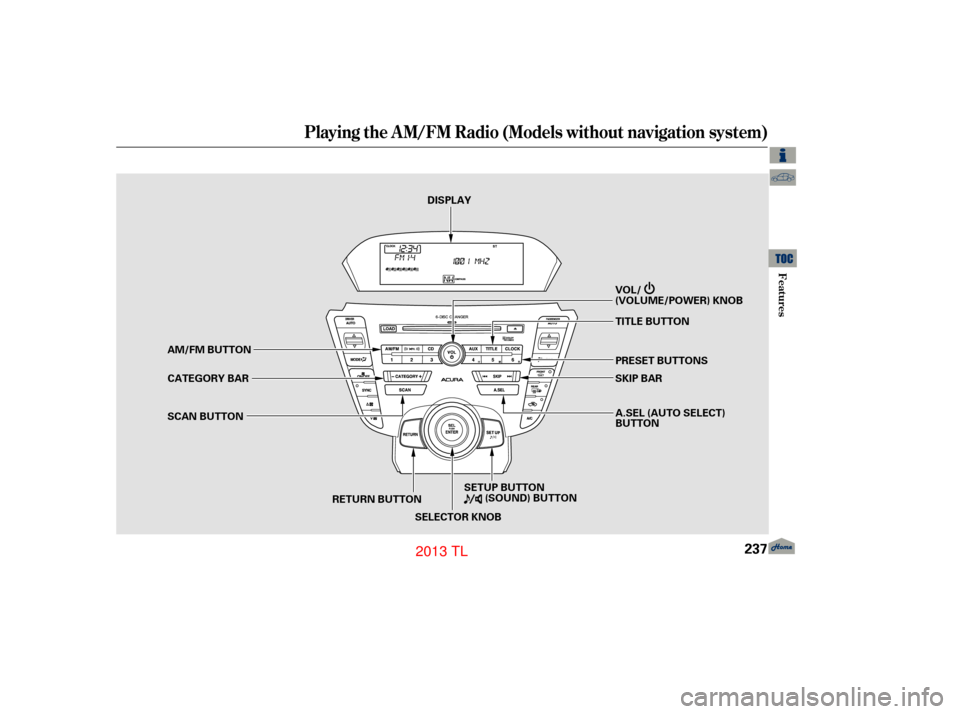

Playing the A M/FM Radio (Models without navigation system)
Features
237
RETURN BUTTON
SCAN BUTTON
SKIP BAR
A.SEL (AUTO SELECT)
BUTTON
VOL/
(VOLUME/POWER) KNOB
SELECTOR KNOB TITLE BUTTON
PRESET BUTTONS
AM/FM BUTTON
CATEGORY BAR DISPLAY
(SOUND) BUTTON
SETUP BUTTON
12/07/20 10:59:55 31TK4640_242
2013 TL

µ
µ µ
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
VOL/ (power/volume) knob or
the AM/FM button. Adjust the
volume by turning the VOL/ knob.
The band and f requency that the
radio was last tuned to are displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is
broadcasting in stereo. Stereo
reproduction in AM is not available.
On the AM band, AM noise
reduction turns on automatically. You can use any of f ive methods to
f ind radio stations on the selected
band: tune, skip, scan, the preset
buttons, and auto select.
On the FM band, you can also use
the features provided by the radio
data system (RDS). For more
information on the RDS, see page
.
Use the selector knob to
tune the radio to a desired f requency.
Turn the knob right to tune to a
higher f requency, or lef t to tune to a
lower f requency.
The skip f unction searches
up and down f rom the current
f requency to f ind a station with a
strong signal. To activate it, press
and hold the or side of the
SKIP bar until you hear a beep, then
release it. The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
When the system finds a strong
signal, it will stop and play that
station f or about 10 seconds.
If you do nothing, the system will
scan f or the next strong station and
play it f or 10 seconds. When it plays
a station that you want to listen to,
press the SCAN button again.
240
To Play the Radio
To Select a Station
TUNE
SK IP SCAN
Playing the A M/FM Radio (Models without navigation system)
238
12/07/20 11:00:04 31TK4640_243
Features
2013 TL

µµEach preset button can
store one f requency on AM and two
f requencies on FM. If you are
traveling and can no longer receive
your preset stations, you can use the
auto select feature to find stations in
the local area.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
that preset button.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons as previously described. ,pressthe
A. SEL (auto select) button. This
restores the presets you originally set.
For inf ormation on AM/FM radio
f requencies and reception, see page .
Select the desired band, AM or
FM. FM1 and FM2 let you store
six stations each.
Usethetune,skip,scan,orRDS
function to tune the radio to a
desired station.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM. Press the A. SEL button. ‘‘A-SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM and twelve FM stations in
the preset buttons.
Pick a preset button, then press
and hold it until you hear a beep.
1.
2.
3.
4.
385To turn of f auto select
CONT INUED
Playing the A M/FM Radio (Models without navigation system)
Preset
A UT O SEL ECT
Features
239
12/07/20 11:00:13 31TK4640_244
2013 TL

You can also select the auto select
mode by using the SETUP button
and the selector knob. Push the
SETUP button to display the menu
items, then turn the selector
knob to select ‘‘AUTO SELECT.’’
Press the selector knob (ENTER)
to set the selection.To start the auto select mode, press
the selector knob (ENTER) to select
‘‘PUSHTOSTART.’’
To cancel the auto select mode,
press the A. SEL (auto select) button,
or press the SETUP button to show
‘‘AUTO SELECT,’’ then press the
selector knob (ENTER). When you
see ‘‘PUSH TO CANCEL,’’ press
ENTER again.
On the FM band, you can select a
favorite station and display the
program service name provided by
the radio data system (RDS).
The RDS inf ormation display
f unction shows the name of the RDS
station you are listening to. With the
audio system on and the FM band
selected, you can turn this f unction
on or of f .
Playing the A M/FM Radio (Models without navigation system)
Radio Data System (RDS)
RDS INFO Display
240
AUTO SELECT
12/07/20 11:00:21 31TK4640_245
