System Setup
Start-up
The navigation system starts automatically when you set the power mode to
ACCESSORY or ON. At start-up, the following Confirmation screen is displayed.
1.Move y to select CHANGE
LANGUAGE.
If you do not need to change
the system language, proceed to
step 3.
2.Rotate i to change the system
language. Press u.
3.Press u to select OK.
Your current position is
displayed on the map screen.
If you have set any calendar
event reminders, they are
displayed. Proceed to step 4.
1Start-up
If the navigation system loses power at any time, you may need to press and hold the VOL 9
(Volume/Power) button for more than two
seconds, or you may be prompted for the five-digit security code.
2System Initialization P. 230
At start-up, the driver’s fob key is automatically detected and the address book settings, setup
preferences, wallpapers, and audio settings for
that driver (e.g., Driver 1) are loaded.
AcuraLink® Message Icon
If you have any unread messages, the
(AcuraLink® message) icon is displayed at the bottom left side of the screen.
2AcuraLink® Messages P. 202
You can change the system language at any time.
2Language P. 31
“OK” on the Confirmation screen cannot be selected by using a voice command. If you do not
press u within 30 seconds, the screen goes
blank (or displays your wallpaper screen and you cannot use voice commands). Press any
navigation or voice control button to continue.
2Wallpapers Setting P. 32
RDX_KA-31TX4800.book Page 20 Monday, January 30, 2012 11:32 PM
QRG

42
Personal InformationPIN Numbers
System Setup
PIN Numbers
HINFO button  Set up  Personal Information  PIN Number
Set a four-digit PIN for protecting pers onal addresses and your home addresses.
Once you set a PIN, you are prompted to enter it whenever you access a personal
address or a home address.
1.Rotate i to select the PIN to
create. Press u.
2. Rotate i to select a digit to
enter. Press u. Repeat to enter a
new four-digit PIN.
3. Re-enter the new PIN, when
prompted, to confirm the number
you just entered.
If you have not entered the
same number both times, an
“INCORRECT PIN” message is
displayed. Enter your PIN again.
1PIN Numbers
PIN
Personal Identification Number (PIN) is a
password used to access personal data.
PINs are optional. If you choose to use a PIN,
keep a note of the number in a secure location. If
you forget your PIN, a dealer will have to reset
the navigation system a nd all of your stored
information will be erased . The factory default is
no PIN.
Go Home PIN
Go Home PINs are shared with Driver 1 and
Driver 2. If either Driver 1 or Driver 2 sets a Go
Home PIN, both of them need to enter the PIN
when:
•selecting Go Home for a destination
•selecting Home Address for editing
If you want to stop using a PIN, move
r to select
DO NOT USE PIN .
RDX_KA-31TX4800.book Page 42 Monday, January 30, 2012 11:32 PM
QRG

137
Audio SystemSystem Theft Protection
Audio
System Theft Protection
The system is disabled when it is disconnected from the power source, such as when
the battery is disconnected or goes dead.
■Reactivating the System
1.
If you set the power mode to ACCESSORY, you will be requested to enter
the security code. See step 3.
2.Press and hold the VOL 9 (Volume/Power) button again for more than two
seconds.
The system is reactivated when the system’s control unit recognizes that the
system is in your vehicle.
If the control unit fails to recognize, “ENTER CODE” appears on the navigation
screen.
3.Enter the security code.
If you do not enter the code correctly after 10 tries, leave the system for one
hour before trying again, or visit a dealer to have the system reset.
1Audio System Theft Protection
Find the audio system’s security code and serial number label in your Owner’s Manual kit.
Do not store the label in your vehicle. If you lose
the label, you must first retrieve the serial number, and then obtain the code from a dealer.
U.S. Only
You can register the security code at My Acura (owners.acura.com.), and find information on
how to retrieve the serial number and obtain the
code at radio-navicode.acura.com.2Entering the Security Code P. 230
RDX_KA-31TX4800.book Page 137 Monday, January 30, 2012 11:32 PM
QRG
Set the power mode to ON and turn on the system.

170
Audio
Playing a USB Flash Drive
1.Unclip the USB connector in the front console and loosen the adapter cable.
2. Install the USB flash drive to the USB connector.
Use a recommended USB flash drive of 256 MB or higher.
Some digital audio players may not be compatible.
Some USB flash drives (e.g., a device with security lockout) may not work.
Some software files may not allow for audio play or text data display.
Some versions of MP3, WMA, or AAC formats may be unsupported.
■ Connecting a USB Flash Drive1 Connecting a USB Flash Drive
•Do not use an extension cable with the USB
adapter cable.
•Do not connect your US B flash drive using a
hub.
•Do not use a device such as a card reader or
hard disk drive, as th e device or your tracks
may be damaged.
•We recommend backing up your data before
using the device in your vehicle.
■ USB Flash Drives1 USB Flash Drives
Digital music tracks, such as MP3, WMA, AAC,
etc., in USB flash drives cannot be copied to
HDD. Likewise, digital music tracks recorded to
HDD cannot be copied to USB flash drives.
RDX_KA-31TX4800.book Page 170 Monday, January 30, 2012 11:32 PM
QRG

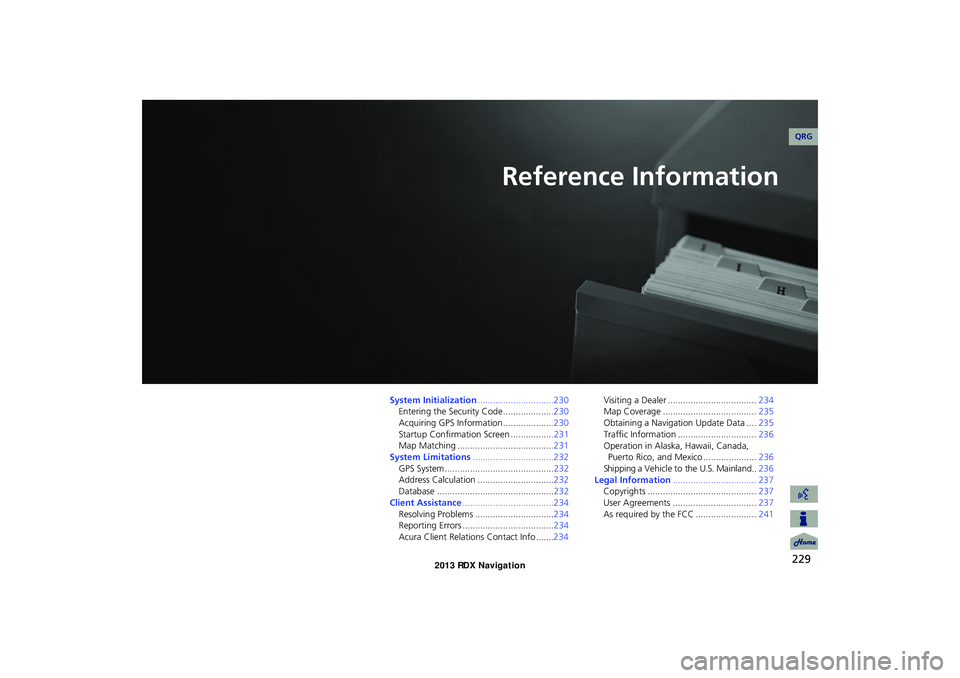

229
Reference Information
System Initialization..............................230
Entering the Security Code ....................230
Acquiring GPS Information ....................230
Startup Confirmation Screen .................231
Map Matching ......................................231
System Limitations ................................232
GPS System........................................... 232
Address Calculation .............................. 232
Database .............................................. 232
Client Assistance ....................................234
Resolving Problems ............................... 234
Reporting Errors .................................... 234
Acura Client Relations Contact Info 234Visiting a Dealer ...................................
234
Map Coverage ..................................... 235
Obtaining a Navigation Update Data .... 235
Traffic Information ............................... 236
Operation in Alaska, Hawaii, Canada, Puerto Rico, and Mexico ..................... 236
Shi p pi ng a V e h i c l e t o th e U .S. M a i nl a n d 236
Legal Information ................................. 237
Copyrights ........................................... 237
User Agreements ................................. 237
As required by the FCC ........................ 241
RDX_KA-31TX4800.book Page 229 Monday, January 30, 2012 11:32 PM
QRG
....... ..

230
Reference Information
System Initialization
The navigation system must be initialized if
power to the navigation system is
interrupted for any reason (e.g., the
battery was disconnected).
Entering the Security Code
Find the navigation system’s security code
and serial number label in your Owner’s
Manual kit. Do not store the label in your
vehicle. If you lose the label, you must first
retrieve the serial number, and then obtain
the code. You can find out about your
serial number and security code from a
dealer.
1.
on the audio system.
If you set the power mode to
ACCESSORY, you will be
requested to enter the security code.
See step 3.
2.Press and hold the VOL 9 (Volume/
Power) button for more than two
seconds.
The system is reactivated when the
system’s control unit recognizes that
the system is in your vehicle.
If the control unit fails to recognize,
“ENTER CODE” appears on the
navigation screen.
3.Enter the security code.
If you do not enter the security code
correctly after 10 tries, leave the
system for one hour before trying
again, or visit a dealer to have the
system reset.
NOTE:
In the U.S. you can register the security
code at My Acura (owners.acura.com.),
and find information on how to retrieve
the serial number and obtain the code at
radio-navicode.acura.com.
Acquiring GPS Information
Depending on the length of time the
power was interrupted, your system may
require GPS initialization.
If initialization is not necessary, the system
proceeds directly to the Startup
Confirmation screen.
If the system fails to locate a sufficient
number of satellites to locate your position
within 10 minutes, the following screen is
displayed.
RDX_KA-31TX4800.book Page 230 Monday, January 30, 2012 11:32 PM
QRG
Set the power mode to ON, and turn

232
Reference Information
System Limitations
GPS System
The signals received from the GPS satellites
are extremely weak (less than a millionth
of the strength of a local FM station) and
require an unobstructed view of the sky.
The GPS antenna is located in the
dashboard. The signal reception can easily
be interrupted or interfered with by the
following:
• Metallic window tint on the front or side
windows
• Cell phones, PDAs, or other electronic
devices docked in a cradle or lying loose
on the dashboard
• Remote starters or “hidden” vehicle
tracking systems mounted near the
navigation unit
• Audio electronic devices mounted near
the navigation unit
• Trees, tall buildings, freeway overpasses,
tunnels, or overhead electrical power
wires
The GPS is operated by the U.S.
Department of Defense. For security
reasons, there are certain inaccuracies built into the GPS for wh
ich the navigation
system must constantly compensate. This
can cause occasional positioning errors of
up to several hundred feet.
Address Calculation
The destination icon shows only the
approximate location of a destination
address. This occurs if the number of
possible addresses is different from the
number of actual addresses on a block. For
example, the address 1425 on a 1400
block with 100 possible addresses
(because it is followed by the 1500 block)
will be shown a quarter of the way down
the block by the system. If there are only
25 actual addresses on the block, the
actual location of address 1425 would be
at the end of the block.
Database
The digitized map database reflects
conditions as they existed at various points
in time before production. Accordingly,
your database may contain inaccurate or
incomplete data or information due to the
passage of time, road construction,
changing conditions, or other causes.
For example, some places/landmarks may
be missing when you search the database
because the name was misspelled, the
place was improperly categorized, or a
place/landmark is not yet in the database.
This is also true for police stations,
hospitals, and other public institutions. Do
not rely on the navigation system if you
need law enforcement or hospital services.
Always check with local information
sources.
RDX_KA-31TX4800.book Page 232 Monday, January 30, 2012 11:32 PM
QRG

258
Place Phone No.Editing Address Book ................................. 39
Setting Destination ..................................... 84
Preset Buttons ................................................ 6Previous Destinations
Deleting
...................................................... 43
Editing Address Book .................................39Setting Destination ..................................... 76
Q
Quick Tips .................................................... 203
QuickMix ..................................................... 169
R
Radar Map .................................................. 119
Radio
FM/AM
...................................................... 138XM® ......................................................... 142
Random
Disc
........................................................... 148HDD ..........................................................153
Pass-Key ....................................................184
USB Flash Drive .........................................172RDS Search .................................................. 140
Read Radio Text ......................................... 141
Rearview Camera ....................................... 216Recalculation .......................................... 49, 96
Recalls/Campaigns ..................................... 204
Record CD ................................................... 155Reminder ...............................................21, 209
Repeat
Disc ........................................................... 148
HDD ..........................................................153
iPod® .......................................................163USB Flash Drive ........................................172
Rerouting ..................................................... 49
Reset Clock Settings .................................... 58Reset Factory Default .................................64
Restaurant (Place Category) ......................80
Roadside Assistance .................................. 213Route (Menu) ............................................ 122
Route Pref. ................................................... 92
Routing & Guidance ................................... 48
S
Scan
Disc
........................................................... 149
FM/AM Radio ...........................................139HDD .......................................................... 153
USB Flash Drive ........................................172
SCAN/A.SEL Bar .............................................. 6Scenic Road Information ..........................212
Schedule
Calendar
................................................... 208Dealer Appointments ...............................205
Search a Next Connected Phone .............186
Search Along .............................................. 125Search Around ........................................... 125
Search by Keyword ..................................... 81
Search Phonebook ....................................193Security PIN Code ...................................... 230
Shopping (Place Category) ........................80
Show Icon on Map .................................... 107Show Wallpaper ........................................ 215
Shuffle ......................................................... 163Single Screen ..............................................104
SKIP Bar ........................................................... 6
Song By Voice
Searching Music ....................................... 165
Setting ........................................................ 45
Voice Commands List ...............................250Sort by Distance to Travel ..........................81
Sound Setup ............................................... 176
Speed Dial
Making a Call ........................................... 194
Registering ................................................ 187
Split Screen ................................................. 105Street ............................................................. 73
Street Name Guidance ................................56
System/Device Information ......................212
T
Text Message
Receiving
.................................................. 199
Replying .................................................... 200Voice Commands List ...............................250
Text Message Notice .................................191
TITLE Button ................................................... 6Traffic & Weather Status ............................63
Traffic Detail .............................................. 121
Traffic Incidents ......................................... 120Traffic List ................................................... 120
Traffic Rerouting ....................................... 120
Transfer ....................................................... 195Travel (Place Category) ...............................80
Tune
FM/AM Radio
........................................... 139XM® Radio ............................................... 143
RDX_KA-31TX4800.book Page 258 Monday, January 30, 2012 11:32 PM
QRGIndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
