2013 Acura MDX bluetooth

NOTE:●Avoid using duplicate name
entries.●Avoid using‘‘home’’as a name
entry.●It is easier for HFL to recognize a
multisyllabic or longer name. For
example, use‘‘Peter’’instead of
‘‘Pete,’’or‘‘John Smith’’instead of
‘‘John.’’
To edit the number stored in a name:Press and release the HFL Talk
button before a command.
1. Say‘‘Phonebook.’’
2. Say‘‘Edit’’after the prompts.
3. Follow the HFL prompts and say
the name entry you want to edit.
4. When asked, say the new number
for that name.
5. Follow the HFL prompts to
complete the edit.
To delete a name:Press and release the HFL Talk
button before a command.
1. Say‘‘Phonebook.’’
2. Say‘‘Delete’’after the prompts.
3. Say the name you want to delete
and follow the HFL prompts to
complete the deletion.
CONTINUED
Bluetooth
®HandsFreeLink
®(Models without navigation system)
377
Features
12/07/17 18:10:57 13 ACURA MDX MMC North America Owner's M 50 31STX660 enu

To list all names in the phonebook:Press and release the HFL Talk
button before a command.
1. Say‘‘Phonebook.’’
2. Say‘‘List’’after the prompts.
3. HFL begins reading the names in
the order they were stored.
4. If you hear a name you want to
call, immediately press the HFL
Talk button and say‘‘Call.’’
To store a specific phone number
from your cell phone directly to the
HFL phonebook (available on some
phones):Press and release the HFL Talk
button before a command.
1. Say‘‘Phonebook.’’
2. Say‘‘Receive contact’’after the
prompts.
3. Follow the HFL prompts, select a
number from your cell phone, and
send it to HFL.
4. Follow the HFL prompts and name
the number, or say‘‘Discard’’if it
is not the number you want to
store.
5. Follow the HFL prompts if you
want to store another number.System Setup
This command group allows you to
change or customize HFL basic
settings.
Bluetooth
®HandsFreeLink
®(Models without navigation system)
37812/07/17 18:10:57 13 ACURA MDX MMC North America Owner's M 50 31STX660 enu

To set a 4-digit passcode to lock the
HFL system for security purposes:Press and release the HFL Talk
button before a command.
1. Say‘‘System setup.’’
2. Say‘‘Security’’after the prompts.
3. Follow the HFL prompts and say
the 4-digit passcode you want to
set.
4. Follow the HFL prompts to
confirm the number.NOTE:Once a passcode is set, you
will need to enter it to use HFL each
time you start the vehicle. If you
forget the code, your dealer will have
to reset it for you, or you will have to
clear the entire system (see page
380).
To change your security pass code:Press and release the HFL Talk
button before a command.
1. Say‘‘System setup.’’
2. Say‘‘Change passcode’’after the
prompts.
3. Follow the HFL prompts and say
the new 4-digit passcode.
4. Follow the HFL prompts to
confirm the number.
CONTINUED
Bluetooth
®HandsFreeLink
®(Models without navigation system)
379
Features
12/07/17 18:10:57 13 ACURA MDX MMC North America Owner's M 50 31STX660 enu

To select either a ring tone or a
prompt as the incoming call
notification
ᤳ:
Press and release the HFL Talk
button before a command.
1. Say‘‘System setup.’’
2. Say‘‘Call notification’’after the
prompts.
3. Follow the HFL prompts and say
‘‘Ring tone’’or‘‘Prompt.’’You can
also say‘‘Off’’for no audible
incoming call notification.
ᤳ: The default setting is a ring tone.
To activate or deactivate the auto
transfer function:If you get into the vehicle while you
are on the phone, the call can be
automatically transferred to HFL
with the ignition switch in the
ACCESSORY (I) or ON (II) position.
Press and release the HFL Talk
button before a command.
1. Say‘‘System setup.’’
2. Say‘‘Auto transfer’’after the
prompts.
3. HFL will let you know if auto
transfer is on or off, depending on
the previous setting. Follow the
HFL prompts to change the
setting.
To clear the system:This operation clears the passcodes,
paired phones, and all names in the
HFL phonebook data.
Press and release the HFL Talk
button before a command.
1. Say‘‘System setup.’’
2. Say‘‘Clear’’after the prompts.
3. Follow the HFL prompts to
continue to complete the clearing
procedure.
You can also clear the system when
you have forgotten the passcode and
cannot access HFL. When HFL asks
you for the passcode, say‘‘System
clear.’’Paired phones, all names in
the HFL phonebook data will be lost.
Bluetooth
®HandsFreeLink
®(Models without navigation system)
38012/07/17 18:10:57 13 ACURA MDX MMC North America Owner's M 50 31STX660 enu

Quick Language Selection
Canadian models onlyTo quickly change the language:Press and release the HFL Talk
button before a command.
1. Say the language you want to
change to in that language.
2. Follow the HFL prompts.Change Language
Canadian models only
To change the system language
between English and French:Press and release the HFL Talk
button before a command.
1. Say‘‘Change language.’’
2. Follow the HFL prompts to change
the language to English or French.
If you have not named your paired
phone in the language you just
selected, HFL will ask you to name it
in the current language.
When French is your currently
selected language, you can give voice
commands in French.
Bluetooth
®Wireless Technology
The
Bluetooth
®word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc. and any use of
such marks by Honda Motor Co.,
Ltd. is under license. Other
trademarks and trade names are
those of their respective owners.
CONTINUED
Bluetooth
®HandsFreeLink
®(Models without navigation system)
381
Features
12/07/17 18:10:57 13 ACURA MDX MMC North America Owner's M 50 31STX660 enu

This device complies with the
appropriate requirements or the
required standards. See page 592 for
more information.Bluetooth
®HandsFreeLink
®(Models without navigation system)
38212/07/17 18:10:57 13 ACURA MDX MMC North America Owner's M 50 31STX660 enu

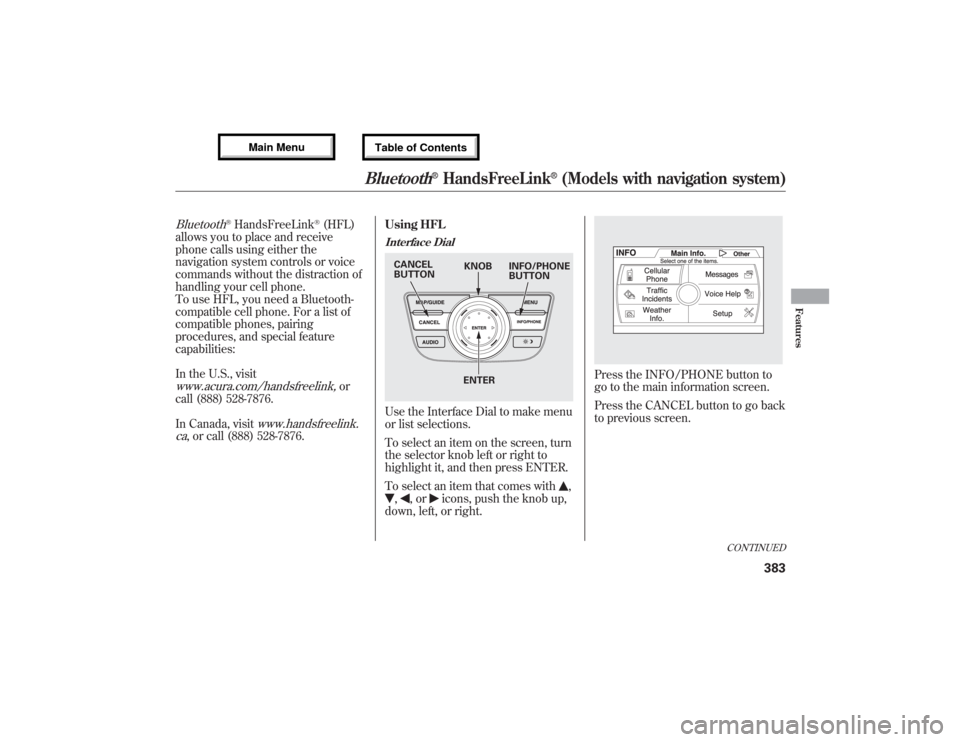

Bluetooth
®HandsFreeLink
®(HFL)
allows you to place and receive
phone calls using either the
navigation system controls or voice
commands without the distraction of
handling your cell phone.
To use HFL, you need a Bluetooth-
compatible cell phone. For a list of
compatible phones, pairing
procedures, and special feature
capabilities:
In the U.S., visit
www.acura.com/handsfreelink,
or
call (888) 528-7876.
In Canada, visit
www.handsfreelink.
ca
, or call (888) 528-7876.Using HFL
Interface DialUse the Interface Dial to make menu
or list selections.
To select an item on the screen, turn
the selector knob left or right to
highlight it, and then press ENTER.
To select an item that comes with
,
,
,or
icons, push the knob up,
down, left, or right.
Press the INFO/PHONE button to
go to the main information screen.
Press the CANCEL button to go back
to previous screen.
KNOB CANCEL
BUTTONINFO/PHONE
BUTTON
ENTER
CONTINUED
Bluetooth
®HandsFreeLink
®(Models with navigation system)
383
Features
12/07/17 18:10:57 13 ACURA MDX MMC North America Owner's M 50 31STX660 enu

HFL ButtonsPICK-UP Button－Press and
release to answer a call, or press to
go directly to the Cellular Phone
screen.
HANG-UP Button－Press and
release to end or decline a call.
TALK Button－Press and release
to give a command.
BACK Button－Press and release
to go back to the previous command,
or cancel the command.
Voice Control Tips●Air or wind noise from the
dashboard and side vents, and all
windows may interfere with the
microphone. Adjust or close them
as necessary.●Press and release the Talk button
each time you want to make a
command. After the beep, speak in
a clear, natural tone.
●Try to reduce all background
noise. If the microphone picks up
voices other than yours,
commands may be misinterpreted.●To change the volume level of
HFL, use the audio system volume
knob or the steering wheel volume
controls.Help FeatureFor help at any time, including a list
of available options, say‘‘Help.’’LanguageRefer to the navigation system
manual for how to change the
system's language between English,
French, and Spanish.
PICK-UP
BUTTONHANG-UP
BUTTON
BACK
BUTTON TALK
BUTTON
MICROPHONE
Bluetooth
®HandsFreeLink
®(Models with navigation system)
38412/07/17 18:10:57 13 ACURA MDX MMC North America Owner's M 50 31STX660 enu
