2013 Abarth 500 technical data

12
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR

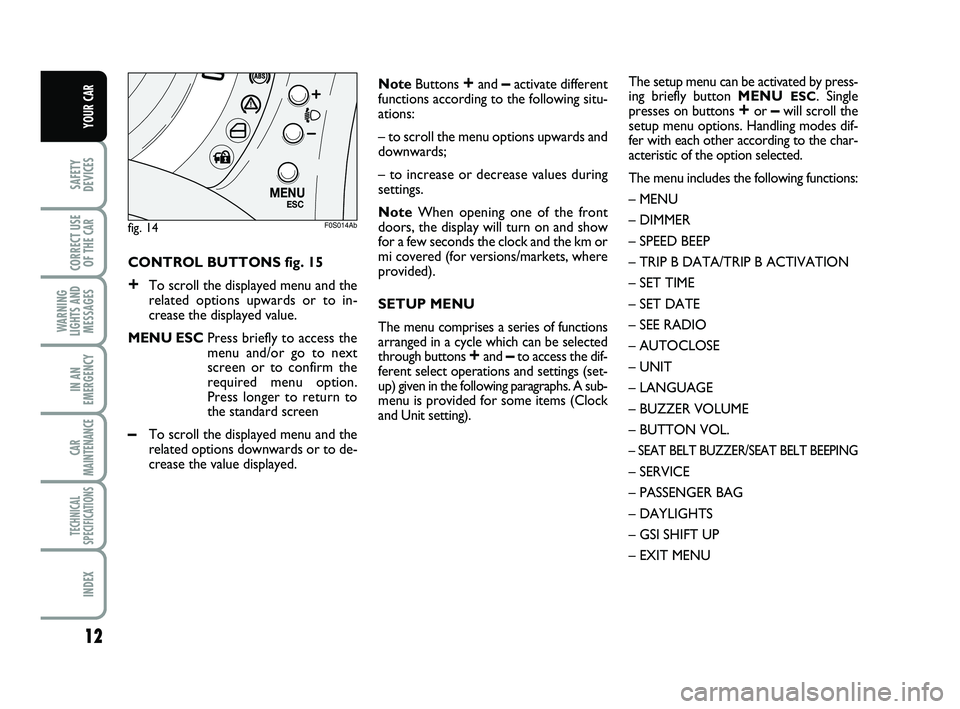

CONTROL BUTTONS fig. 15
+To scroll the displayed menu and the
related options upwards or to in-
crease the displayed value.
MENU ESCPress briefly to access the
menu and/or go to next
screen or to confirm the
required menu option.
Press longer to return to
the standard screen
–To scroll the displayed menu and the
related options downwards or to de-
crease the value displayed.NoteButtons
+and –activate different
functions according to the following situ-
ations:
– to scroll the menu options upwards and
downwards;
– to increase or decrease values during
settings.
NoteWhen opening one of the front
doors, the display will turn on and show
for a few seconds the clock and the km or
mi covered (for versions/markets, where
provided).
SETUP MENU
The menu comprises a series of functions
arranged in a cycle which can be selected
through buttons
+and –to access the dif-
ferent select operations and settings (set-
up) given in the following paragraphs. A sub-
menu is provided for some items (Clock
and Unit setting).
fig. 14
M E N UE S C
F0S014Ab
The setup menu can be activated by press-
ing briefly button MENU ESC. Single
presses on buttons +or –will scroll the
setup menu options. Handling modes dif-
fer with each other according to the char-
acteristic of the option selected.
The menu includes the following functions:
– MENU
– DIMMER
– SPEED BEEP
– TRIP B DATA/TRIP B ACTIVATION
– SET TIME
– SET DATE
– SEE RADIO
– AUTOCLOSE
– UNIT
– LANGUAGE
– BUZZER VOLUME
– BUTTON VOL.
– SEAT BELT BUZZER/SEAT BELT BEEPING
– SERVICE
– PASSENGER BAG
– DAYLIGHTS
– GSI SHIFT UP
– EXIT MENU
001-022 ABARTH 500 1ed GB:001-022 ABARTH 500 GB 24-05-2012 14:53 Pagina 12

14
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
To adjust the brightness, proceed as fol-
lows:
– briefly press button MENU
ESC, the
previously set level will flash on the dis-
play;
– press button
+or –to set the required
brightness level;
– briefly press button MENU
ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
Speed beep (Speed limit)
With this function it is possible to set the
car speed limit (km/h or mph); when this
limit is exceeded the driver is immediate-
ly alerted (see section “Warning lights and
messages”).
To set the speed limit, proceed as follows:
– briefly press button MENU
ESC, the
display will show the message (Speed
Buzz);
– press button
+or –to select speed lim-
it activation (On) or deactivation (Off);
– when the function is activated (On)
pressing buttons
+or –select the speed
limit and press MENU ESCto confirm
selection.NoteSelection is possible between 30
and 200 km/h, or 20 and 125 mph de-
pending on the selected unit, see para-
graph “Unit of measure”. The setting will
increase/decrease by five units each time
button
+/–is pressed. Hold button +/–pressed to increase/decrease the setting
rapidly. Complete the setting by briefly
pressing the button when you approach
the required setting.
– briefly press button MENU
ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
To cancel the setting, proceed as follows:
– briefly press button MENU
ESC: (On)
will flash on the display;
– press button
–: (Off) will flash on the dis-
play;
– briefly press button MENU
ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.Trip B data (Trip B on)
Through this option it is possible to acti-
vate (On) or deactivate (Off) the Trip B
(partial trip) display.
For further information see “Trip com-
puter”.
For activation / deactivation, proceed as
follows:
– briefly press button MENU
ESC: (On)
or (Off) will flash on the display (accord-
ing to previous setting);
– press button
+or –for setting;
– briefly press button MENU
ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
001-022 ABARTH 500 1ed GB:001-022 ABARTH 500 GB 24-05-2012 14:53 Pagina 14

68
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
SAFETY
DEVICES
All restraint devices must bear the certi-
fication data, together with the control
mark, on a solidly fixed label which must
absolutely never be removed.
Over 1.50 m in height, from the point of
view of restraint systems, children are
considered as adults and wear the seat
belts normally. Lineaccessori Abarth in-
cludes child restraint systems for each
weight group.
These devices are recommended having
been specifically designed for Abarth cars.
GROUP 0 and 0+
Babies up to 13 kg must be carried facing
backwards on a cradle seat, which, sup-
porting the head, does not induce stress
on the neck in the event of sharp decel-
eration.
The cradle is restrained by the car seat
belts, as shown in fig. 5and in turn it must
restrain the child with its own belts.
fig. 5F0S064Ab
GROUP 1
Starting from 9 kg to 18 kg in weight, chil-
dren may be carried facing forwards, with
seat fitted with front cushion, through
which the car seat belt restrains both child
and seat fig. 6.
fig. 6F0S065Ab
The figures are indicative for assembly purposes only. Refer to the
instructions supplied with the child restraint.
Some child restraint systems for weight group 0 and 1 have a rear attachment to
the car seat belts and its own seat belts for securing the child. Due to their weight,
they may be dangerous if incorrectly mounted (e.g. if fastened to the car seat belts
with a cushion in between). Follow the assembly instructions carefully.
WARNING
063-078 ABARTH 500 1ed GB:063-078 ABARTH 500 GBdx 24-05-2012 9:51 Pagina 68

141
WARNING
LIGHTS AND
MESSAGES
INDEX
YOU CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IDENTIFICATION DATA ................................................. 142
ENGINE CODE - BODYWORK VERSION ...................144
ENGINE .................................................................................. 145
FUEL FEED/IGNITION ....................................................... 146
TRANSMISSION .................................................................. 146
BRAKES................................................................................... 147
SUSPENSIONS ....................................................................... 147
STEERING ............................................................................... 147
WHEELS.................................................................................. 148
DIMENSIONS......................................................................... 151
PERFORMANCE ................................................................... 152
WEIGHTS............................................................................... 153
CAPACITIES ...........................................................................154
FLUIDS AND LUBRICANTS .............................................. 155
FUEL CONSUMPTION .......................................................157
CO
2EMISSIONS .................................................................. 158
RADIO FREQUENCY REMOTE CONTROL
(Declaration of conformity) ................................................159
T T
E E
C C
H H
N N
I I
C C
A A
L L

S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S
141-159 ABARTH 500 1ed GB:141-159 ABARTH 500 GB 24-05-2012 14:36 Pagina 141

142
WARNING
LIGHTS AND
MESSAGES
INDEX
YOUR CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
MODEL PLATE fig. 1
The plate is to be found on the left side of
the boot floor and it bears the following
identification data:
BHomologation number.
CVehicle type code.
DChassis number.
EMaximum vehicle weight fully loaded.
FMaximum vehicle weight fully loaded
with trailer.
GMaximum vehicle weight on front axle.HMaximum vehicle weight on rear axle.
IEngine type.
LBody version code.
MSpare part code.
IDENTIFICATION DATA
Take note of the identification codes. The
following identification codes are printed
and shown on the plates:
❒Model plate.
❒Chassis marking.
❒Bodywork paint identification plate.
❒Engine marking.fig. 1F0S124Ab
141-159 ABARTH 500 1ed GB:141-159 ABARTH 500 GB 24-05-2012 14:36 Pagina 142

143
WARNING
LIGHTS AND
MESSAGES
INDEX
YOU CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CHASSIS MARKING fig. 3
The plate is to be found on the right side
of the boot floor and it bears the follow-
ing identification data:
❒car model ;
❒chassis number.ENGINE MARKING
Engine marking is stamped on the cylinder
block and includes the model and the
chassis number.
BODYWORK PAINT
IDENTIFICATION PLATE fig. 2
The plate is applied on the external tail-
gate post (left side) and it bears the fol-
lowing data:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.
fig. 2F0S125Abfig. 3F0S126Ab
141-159 ABARTH 500 1ed GB:141-159 ABARTH 500 GB 24-05-2012 14:36 Pagina 143

161
WARNING
LIGHTS AND
MESSAGES
YOU CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Fog lights .............................................. 37
– activation ..................................37-38
– bulb replacement .......................... 113
Follow Me Home device ................... 35
Front seats ........................................... 23
– cleaning ........................................... 140
Fuel cap ................................................. 62
Fuel cut-off system ............................. 38
Fuel filler cap ....................................... 62
Fuel level gauge ................................... 10
Fuel......................................................... 154
– tank capacity .................................. 154
– fuel consumption .......................... 157
– fuel level gauge .............................. 10
– refuelling ......................................... 154
– fuel cut-off system ....................... 38
Functions menu ................................... 13
Fuse positions ...................................... 117
Fuse replacement ............................... 116
Glove compartment ......................... 40
GSI Shift up ........................................... 19
Handbrake .......................................... 81
Hazard lights ........................................ 37
Headlights .............................................50
– beam aim control ........................ 51
– beam orientation ......................... 50– orientation of fog lights ............... 51
– beam orientation abroad ............51
Heated rear window ................28-29-31
Heating/ventilation system ............... 28
Heating/ventilation system.................28
Hill Holder system ............................. 53
Identification data .............................. 142
Ignition switch .................................... 7
In an emergency .................................. 95
Installing electrical/electronic
devices ................................................ 60
Instrument panel ................................. 8
Instruments .......................................... 8
Intelligent washing .............................. 35
Interior fittings .................................... 39
Interiors ................................................ 139
Isofix child seat ................................. 71
Jacking the car .................................... 121
Key with remote control ................ 5
Key without remote control .......... 5
Levels ................................................... 128
Lighting (replacing a light bulb) ........107
– general indications ........................ 108
– types of lights ................................ 109
Load limiters ........................................ 65 – side bulb replacement ................. 112
– rear bulb replacement ................. 113
Doors .................................................... 43
Dualdrive
(electric power steering system) .. 56
Engine compartment (washing) ...... 139
Engine Cooling Circuit ...................... 10
Engine cooling system fluid level ..... 130
Engine oil level. .................................... 129
Engine..................................................... 145
– identification code ........................144
– specifications ................................. 145
– branding .......................................... 143
EOBD (system) ...................................55
ESP system ....................................... 52
External lights ...................................... 34
Fiat CODE system ........................... 4
Fix & Go (quick repair kit) .............. 98
Fixed glass roof ................................... 41
Flashing the headlights .......................34
Fluids and lubricants ........................... 155
160-168 ABARTH 500 1ed GB:160-170 ABARTH 500 GB 24-05-2012 14:39 Pagina 161

162
WARNING
LIGHTS AND
MESSAGES
YOUR CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Rear fog lights ...................................... 38
– activation ........................................ 38
– bulb replacement .......................... 113
Rear head restraints............................ 24
Rear screen washer ........................... 36
– activation ........................................ 36
– fluid level ........................................ 130
Rear screen wiper .............................. 36
– activation ........................................ 36
– brushes ...........................................136
– sprayers .......................................... 137
Rear seats ............................................. 24
Rear view mirrors .............................. 26
– exterior .......................................... 26
– interior ........................................... 26
Refuelling the car ................................ 62
Rev counter ......................................... 10
Reversing light ..................................... 113
Roof rack/ski rack .............................. 50
Rubber hoses ....................................... 135
Safety ................................................... 63
Saving on fuel ....................................... 82
SBR (system) ........................................ 64
Seat adjustment ................................... 23
Seat belts ............................................... 64
– warnings .........................................65
– use of .............................................. 64
– load limiters ................................... 65
– maintenance .................................. 67
– seatbelt tensioners ....................... 65Seatbelt tensioners ............................. 65
Seats ...................................................... 23
Sidelights ............................................... 34
– rear bulb replacement ................. 113
Snow chains ......................................... 85
Spark plugs ............................................ 145
Speedometer (tachometer) ............... 10
Sport functions activation ................. 37
Starting the engine ........................80-96
– jump starting with battery .......... 96
– bump starting ............................... 97
– ignition switch .............................. 7
– how to warm up the engine
that has just started ..................... 81
– engine turn off ............................... 81
Starting the engine and driving ........ 79
Steering ................................................. 147
Steering column lock ......................... 7
Steering wheel adjustment ............... 25
Storing the car .................................... 85
Sun roof ................................................ 41
– emergency action ......................... 43
Sun visors ............................................. 39
Suspension ........................................... 147
Symbols ................................................. 4
Tachometer (speedometer) ........... 10
TTC System ....................................... 54
Technical data ..................................... 141
Main beam headlights ....................... 34
– activation ........................................ 34
– flashing the headlights .................. 34
– bulb replacement .......................... 112
Manual climate control system ........ 29
Motor oil
– technical specifications ................ 155
– consumption .................................. 129
– checking fluid levels ...................... 129
MSR (system) .......................................54
Multifunctional and reconfigurable
multifunctional display...................... 11
Number plate light ............................ 114
Oddment compartment .................. 39
Paint ..................................................... 138
Parking .................................................. 81
Parking sensors .................................... 57
Particulate Filter (DPF) ...................... 132
Performance ........................................ 152
Plates...................................................... 142
Power supply ....................................... 146
Power windows .................................. 44
Protecting the environment ............. 62
Radio .................................................... 60
Radio and cell phone transmitters .. 61
Radio frequency remote control .... 159
160-168 ABARTH 500 1ed GB:160-170 ABARTH 500 GB 24-05-2012 14:39 Pagina 162
