2013.5 PEUGEOT 5008 tailgate

1
Monitoring37

Engine oil pressure fixed. There is a fault with the engine lubrication system. You must stop as soon it is safe to do so. Park, switch off the ignition and contact a PEUGEOT dealer or a qualified workshop.

Battery charge fixed. The battery charging circuit has a fault (dirty or loose terminals, slack or
cut alternator belt, ...).
The warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a qualified workshop.
Warning lampis onCauseAction/Observations

Front seat belt not fastened/unfastened
fixed then flashing accompanied by an increasing audible
signal.
The driver and/or the front passenger has not fastened or has unfastened their seat belt.
Pull the strap then insert the tongue in the buckle.
Rear seat belt not fastened/unfastened
fixed then flashing accompanied by an audible signal.
One or more rear passengers have unfastened their seat belt.

Door(s) open fixed if the speed is below 6 mph (10 km/h). A door, the boot, the lower tailgate or the bonnet (with alarm only) is still open.
Close the door or boot.
fixed and accompanied by an audible signal if the speed is above 6 mph (10 km/h).

Access
94
BOOT
 After unlocking the vehicle using the remote control or the key, pull the handle and raise the tailgate.
- when the engine is running , this warning lamp comes on, accompanied by a message in the multifunction screen for a few seconds, - when the vehicle is moving (speed above 6 mph (10 km/h)), this warning lamp comes on, accompanied by an audible signal and a message in the multifunction screen for a few seconds.
 Lower the tailgate using the interior grab handle.
When selective unlocking is activated, the boot can also be opened by a second press on the open padlock on the remote control.
Opening Closing
If the tailgate is not closed correctly:

4
Access95

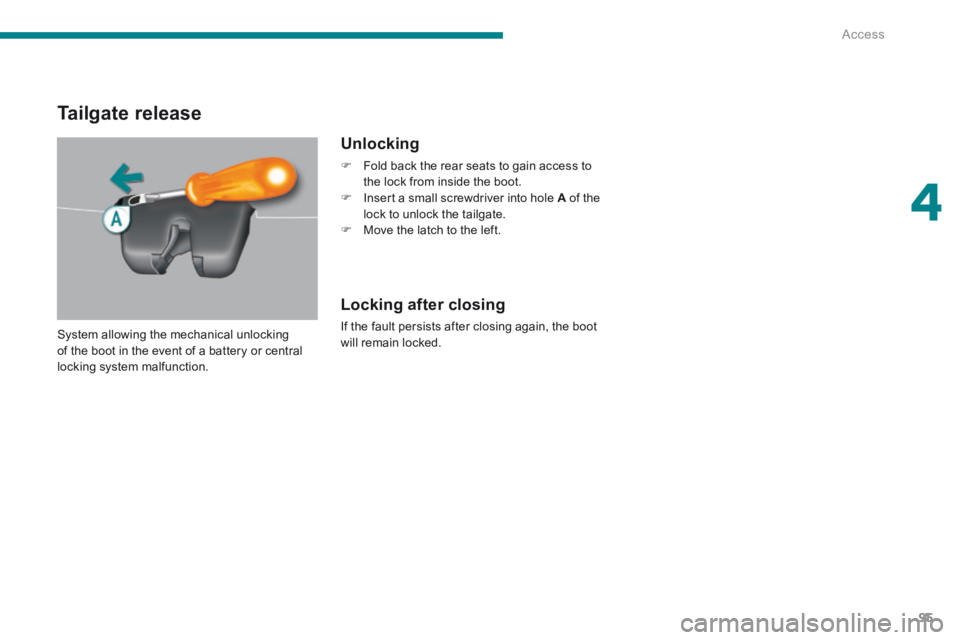

Tailgate release
Unlocking
 Fold back the rear seats to gain access to the lock from inside the boot.  Insert a small screwdriver into hole A of the lock to unlock the tailgate.  Move the latch to the left.
Locking after closing
If the fault persists after closing again, the boot will remain locked. System allowing the mechanical unlocking of the boot in the event of a battery or central locking system malfunction.

Practical information
236

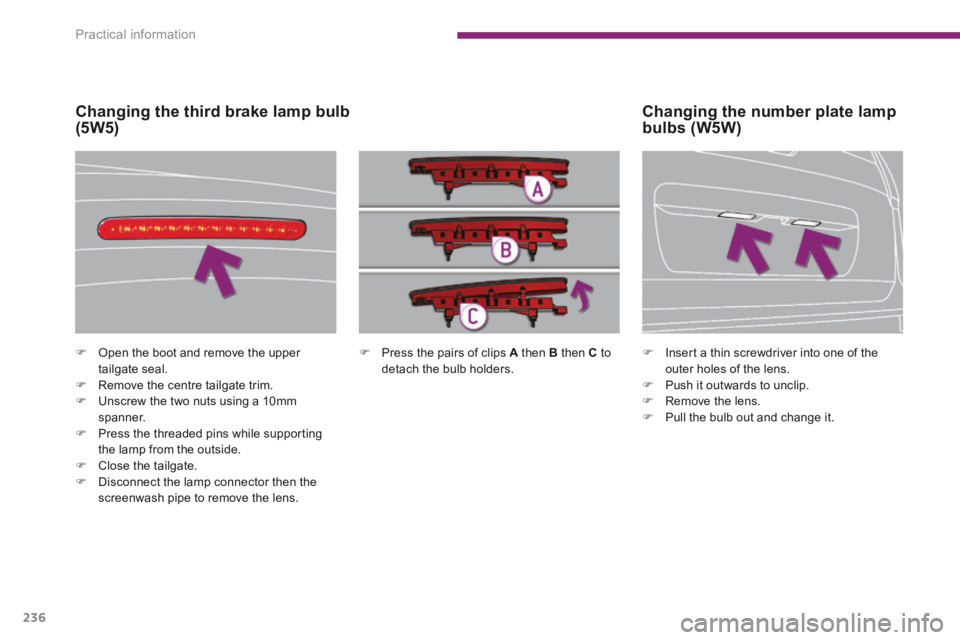

 Press the pairs of clips A then B then C to detach the bulb holders.  Open the boot and remove the upper tailgate seal.  Remove the centre tailgate trim.  Unscrew the two nuts using a 10mm spanner.  Press the threaded pins while supporting the lamp from the outside.  Close the tailgate.  Disconnect the lamp connector then the screenwash pipe to remove the lens.
Changing the third brake lamp bulb (5W5)
 Insert a thin screwdriver into one of the outer holes of the lens.  Push it outwards to unclip.  Remove the lens.  Pull the bulb out and change it.
Changing the number plate lamp bulbs (W5W)
