2013.5 PEUGEOT 5008 window

3
Comfort63
The air conditioning only operates when the engine is running.
The driver and front passenger can each adjust the temperature to their requirements.
 Turn control 2 or 3 to the left or to the right respectively to decrease or increase this value. A setting around the value 21 provides optimum comfort. However, depending on your requirements, a setting between 18 and 24 is normal. You are advised to avoid a left / right setting difference of more than 3.
4. Automatic visibility programme
The automatic comfort programme may not be sufficient to quickly demist or defrost the windscreen and side windows (humidity, several passengers, ice, etc.).
 In this case, select the automatic visibility programme. The system automatically controls the air conditioning, the air flow and the air intake and provides optimum distribution of the ventilation to the windscreen and side windows.
Automatic operation
 Press the "AUTO" button. The indicator lamp on the button comes on.

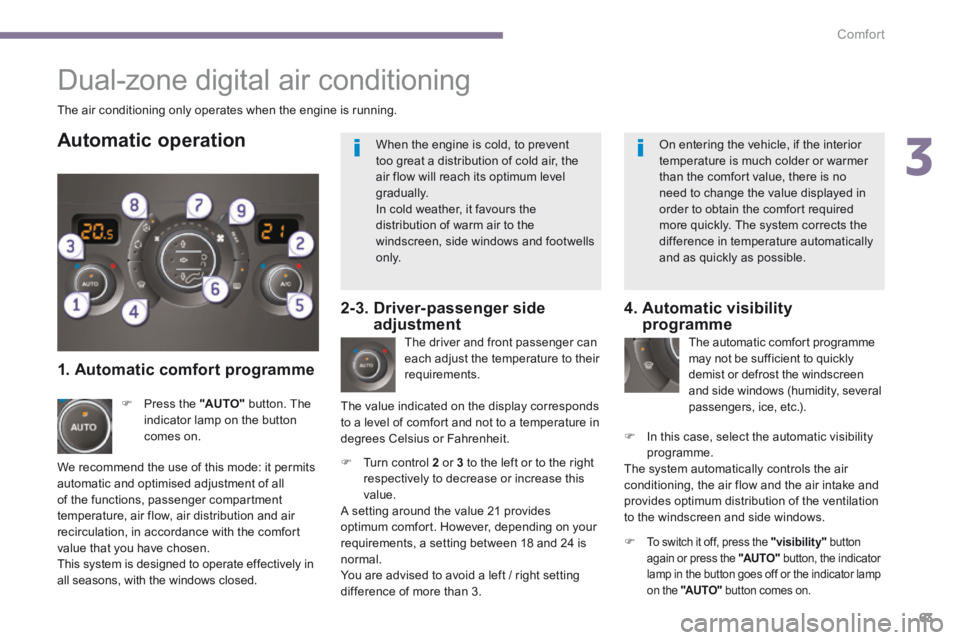

Dual-zone digital air conditioning
We recommend the use of this mode: it permits automatic and optimised adjustment of all of the functions, passenger compartment temperature, air flow, air distribution and air recirculation, in accordance with the comfort
value that you have chosen. This system is designed to operate effectively in all seasons, with the windows closed.
The value indicated on the display corresponds to a level of comfort and not to a temperature in degrees Celsius or Fahrenheit.
To switch it off, press the "visibility" button again or press the "AUTO" button, the indicator lamp in the button goes off or the indicator lamp
on the "AUTO" button comes on.
1. Automatic comfort programme
2-3. Driver-passenger side adjustment
When the engine is cold, to prevent too great a distribution of cold air, the air flow will reach its optimum level gradually. In cold weather, it favours the
distribution of warm air to the windscreen, side windows and footwells o n l y.
On entering the vehicle, if the interior temperature is much colder or warmer than the comfort value, there is no need to change the value displayed in order to obtain the comfort required
more quickly. The system corrects the difference in temperature automatically and as quickly as possible.

Comfort
64

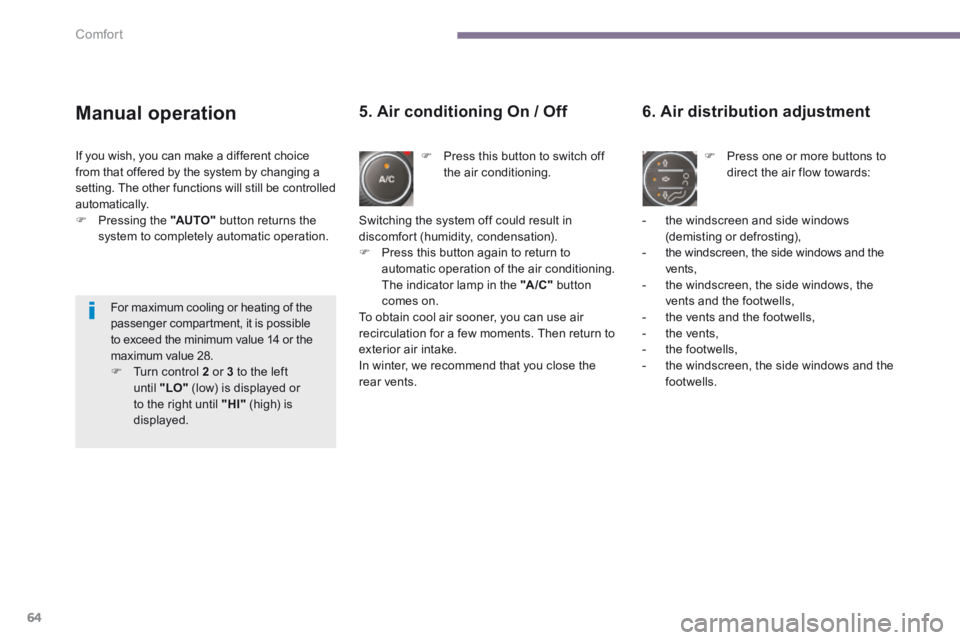

Manual operation
 Press this button to switch off the air conditioning.
6. Air distribution adjustment
 Press one or more buttons to direct the air flow towards:
5. Air conditioning On / Off
- the windscreen and side windows
(demisting or defrosting), - the windscreen, the side windows and the vents, - the windscreen, the side windows, the vents and the footwells, - the vents and the footwells, - the vents, - the footwells, - the windscreen, the side windows and the footwells.
Switching the system off could result in
discomfort (humidity, condensation).  Press this button again to return to automatic operation of the air conditioning. The indicator lamp in the "A /C " button comes on. To obtain cool air sooner, you can use air recirculation for a few moments. Then return to exterior air intake. In winter, we recommend that you close the rear vents.
If you wish, you can make a different choice
from that offered by the system by changing a setting. The other functions will still be controlled automatically.  Pressing the "AUTO" button returns the system to completely automatic operation.
For maximum cooling or heating of the passenger compartment, it is possible to exceed the minimum value 14 or the maximum value 28.  Turn control 2 or 3 to the left until "LO" (low) is displayed or to the right until "HI" (high) is displayed.

3
Comfort65
Switching the system off/on
 Turn the air flow control to the left until all of the indicator lamps go off. This action switches off all of the functions of the system. Temperature related comfort is no longer guaranteed but a slight flow of air, due to the movement of the vehicle, can still be felt.  Turn the air flow dial to the right or press the "AUTO" button to reactivate the system with the values set before it was switched off.
9. Rear ventilation (Rear)
Press this button to allow the air to circulate towards the rear. The temperature will be equal to the left-hand comfort value for the rear left passengers and equal to the right-hand comfort value for the rear right passengers. The indicator lamp in the button comes on.
8. Air recirculation
 Press this button to recirculate the interior air. The indicator lamp comes on.
- Air closed/intake (automatic mode). Press this button, the warning lamp comes on.
7. Air fl ow adjustment
 Turn this control to the left to decrease the air flow or to the right to increase the air flow.
The air flow indicator lamps, between the two fans, come on progressively according to the value requested.
With Stop & Start, when demisting has been activated, the STOP mode is not available.
Avoid driving for prolonged periods with the system off.
- Forced closing of the air intake (manual mode). Press this button to recirculate the interior air, the warning lamp come on.
Air recirculation enables the passenger compartment to be isolated from exterior odours and smoke.
 As soon as possible, press the "auto" button to allow the intake of exterior air and avoid the misting of windows.

Access
82
Deadlocking using the remote control
 Press the closed padlock to lock the vehicle completely or press the closed padlock for more than two seconds to close the windows automatically in addition to locking (according to version).
Normal locking using the key
 Turn the key to the right in the driver's door lock to lock the vehicle completely.
Locking the vehicle
 Press the closed padlock to lock the vehicle completely.
Press the closed padlock for more than two seconds to close the windows automatically in addition to locking (according to version).
Normal locking using the remote control
 Press the closed padlock again within five seconds to deadlock the vehicle.
The direction indicators come on for a few seconds. According to version, the door mirrors fold at the same time, the alarm is activated.
The folding and unfolding of the door mirrors using the remote control can be deactivated by a PEUGEOT dealer or a qualified workshop.
If one of the doors or the boot is not fully closed, locking does not take place. However, the alarm (if fitted) will be fully activated after about 45 seconds. If the vehicle is unlocked inadvertently
and with no action then on the doors or boot, it will relock automatically after about thirty seconds. if the alarm had been activated previously, it will not be reactivated automatically.

4
Access83
Locating your vehicle Folding the key
 First press this button to fold the key.
If you do not press the button when folding the key, there is a risk of damage to the mechanism.
Deadlocking using the key
 Turn the key to the right in the driver's door lock to lock the vehicle completely and hold it in this position for more than two seconds to close the windows automatically in addition to locking (according to version).  Turn the key to the right again within five seconds to deadlock the vehicle. Deadlocking is confirmed by fixed lighting of the direction indicators for approximately two seconds.
According to version, the door mirrors fold at the same time. Deadlocking renders the exterior and interior door controls inoperative. It also deactivates the manual central control button. Therefore, never leave anyone inside the vehicle when it is deadlocked.
 Press the closed padlock to locate your locked vehicle in a car park.
This is indicated by lighting of the direction indicators for a few seconds.

4
Access87

Alarm
Locking the vehicle with full
alarm
Exterior perimiter protection
The system detects opening of the vehicle. The alarm is triggered if anyone tries to enter the vehicle by forcing a door, the boot or the
bonnet.
Interior volumetric protection
The system detects any variation in the volume in the passenger compartment. The alarm is triggered if anyone breaks a window or moves inside the vehicle. If you wish to leave a pet in the vehicle or a window partially open, deactivate the interior volumetric protection.
Anti-tamper function
The system detects the putting out of service of its components. The alarm is triggered if anyone tries to put the wires of the siren, the central control or the battery out of service.
Activation
 Switch off the ignition and get out of the
vehicle.  Lock or deadlock the vehicle using the locking button on the remote control. The alarm is activated; the indicator lamp in button A flashes once per second.
System which protects and provides a deterrent against the theft of your vehicle. It provides two types of protection, exterior and interior, as well as an anti-tamper function.
Do not make any modifications to the alarm system, this could cause malfunctions.
If a door, the boot or the bonnet is not fully closed, the vehicle is then not locked, but perimeter monitoring will be active after a period of 45 seconds, at the same time as the volumetric monitoring.
In the event of automatic relocking
of the vehicle (occurs after an unintentional unlocking followed by a period of 30 seconds without opening a door or the boot), the monitoring system is not reactivated automatically. To reactivate the system, it is necessary to unlock the vehicle and then lock it again using the key or the remote control.
Deactivation
 Unlock the vehicle using the unlocking button on the remote control. The alarm is deactivated; the indicator lamp in button A switches off.

4
Access89

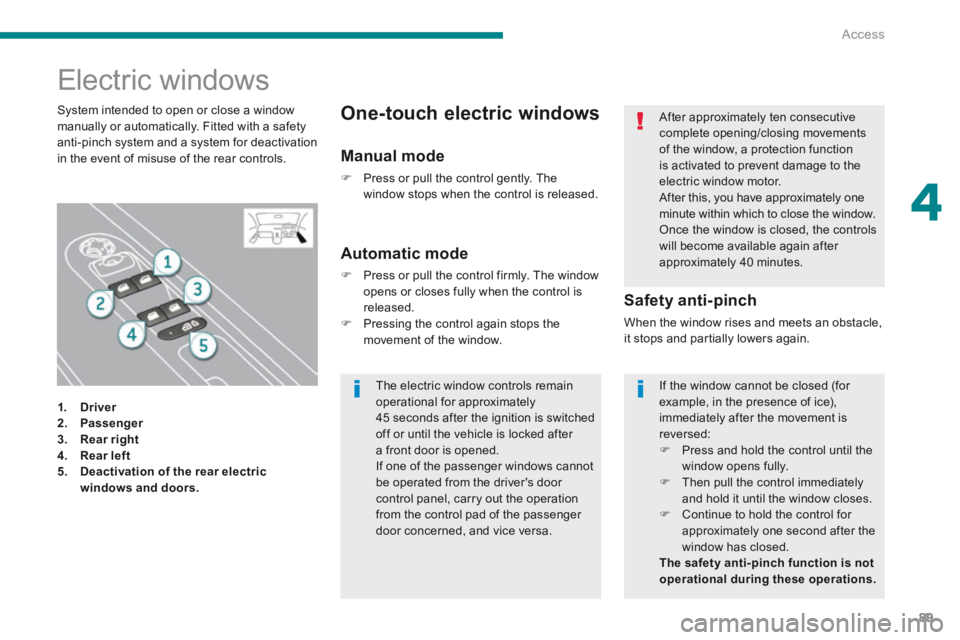

Electric windows
1. Driver2. Passenger3. Rear right4. Rear left5. Deactivation of the rear electric windows and doors.
Safety anti-pinch
When the window rises and meets an obstacle, it stops and partially lowers again.
Automatic mode
 Press or pull the control firmly. The window opens or closes fully when the control is released.  Pressing the control again stops the movement of the window.
One-touch electric windows System intended to open or close a window manually or automatically. Fitted with a safety anti-pinch system and a system for deactivation in the event of misuse of the rear controls. Manual mode
 Press or pull the control gently. The window stops when the control is released.
After approximately ten consecutive complete opening/closing movements of the window, a protection function is activated to prevent damage to the electric window motor. After this, you have approximately one minute within which to close the window. Once the window is closed, the controls will become available again after approximately 40 minutes.
If the window cannot be closed (for example, in the presence of ice), immediately after the movement is reversed:  Press and hold the control until the window opens fully.  Then pull the control immediately and hold it until the window closes.  Continue to hold the control for approximately one second after the window has closed. The safety anti-pinch function is not operational during these operations.
The electric window controls remain operational for approximately 45 seconds after the ignition is switched off or until the vehicle is locked after a front door is opened. If one of the passenger windows cannot be operated from the driver's door control panel, carry out the operation from the control pad of the passenger door concerned, and vice versa.

Access
90
Reinitialisation
If a window does not rise automatically or following disconnection of the battery, the anti-pinch function must be reinitialised: For each window:  Pull the control until the window stops.  Release the control and pull it again, repeat these operations until the window closes fully.  Continue to hold the control for approximately one second after the window has closed.  Press the control to lower the window automatically to the low position.  Once the window has reached the low position, press the control again for approximately one second.
Deactivation of the rear
electric windows and doors
 For the safety of your children, with the ignition on, press control 5 to deactivate the rear electric window controls regardless of their position. It is still possible to open the doors from the outside and operate the rear electric windows from the driver's control panel.
The safety anti-pinch function is not operational during these operations.
This control also deactivates the interior controls for the rear doors (see "Child lock").
Indicator lamp on, the rear controls are deactivated. Indicator lamp off, the rear controls are activated.
Any other status of the indicator lamp indicates a malfunction of the electric child lock. Have it checked by a PEUGEOT dealer or a qualified workshop. Always remove the key from the ignition when leaving the vehicle, even for a short time. If an obstacle is encountered during operation of the electric windows, you must reverse the movement of the window. To do this, press the control concerned. When the driver operates the controls for the passengers' electric windows, they must ensure that no one is preventing correct closing of the
windows. The driver must ensure that the passengers use the electric windows c o r r e c t l y. Be aware of children when operating the windows.
