2013.5 PEUGEOT 5008 fuse box

11
Practical information243
Fuse N° Rating (A) Functions
F25 Dual function brake switch.
F35 Battery charge unit.
F425 ABS/DSC electrovalves.
F615 Electronic / automatic gearbox.

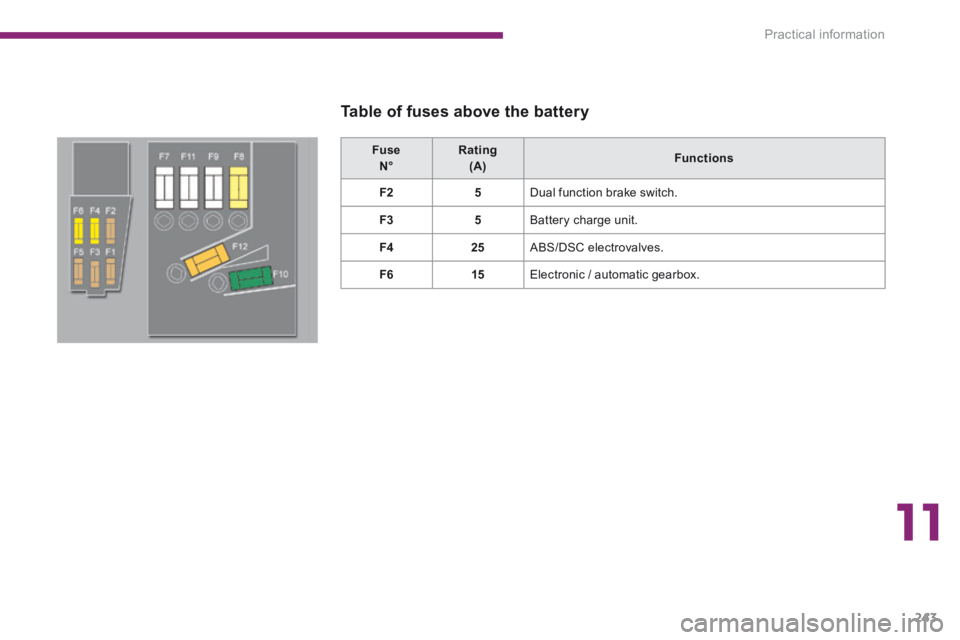

Table of fuses above the battery

Practical information
244

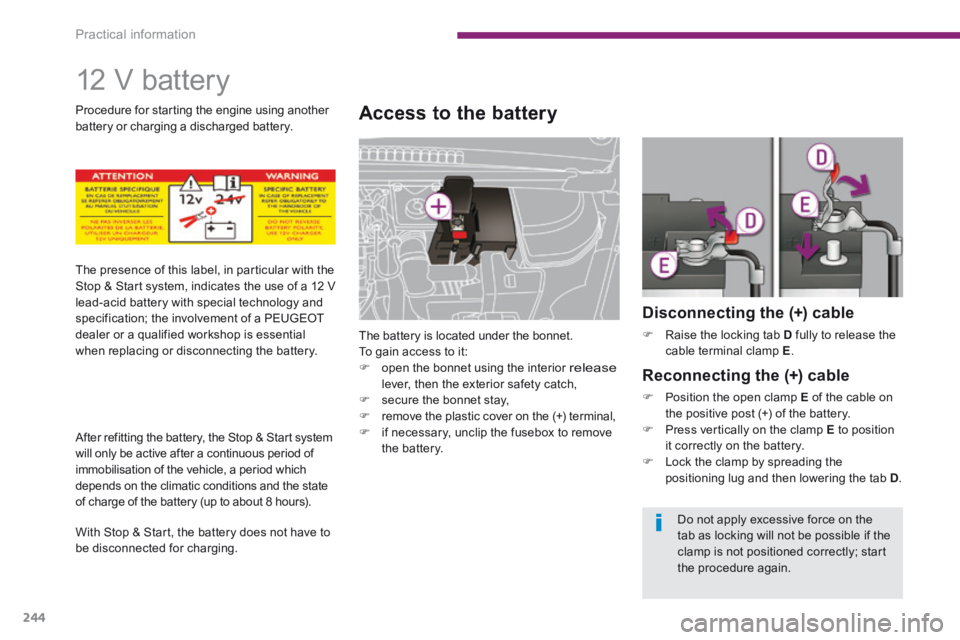

1 2 V b a t t e r y
Access to the battery
The battery is located under the bonnet. To gain access to it:  open the bonnet using the interior release lever, then the exterior safety catch,  secure the bonnet stay,  remove the plastic cover on the (+) terminal,  if necessary, unclip the fusebox to remove the battery.
Disconnecting the (+) cable
 Raise the locking tab D fully to release the cable terminal clamp E .
Reconnecting the (+) cable
 Position the open clamp E of the cable on the positive post (+) of the battery.  Press vertically on the clamp E to position it correctly on the battery.  Lock the clamp by spreading the positioning lug and then lowering the tab D .
The presence of this label, in particular with the Stop & Start system, indicates the use of a 12 V lead-acid battery with special technology and specification; the involvement of a PEUGEOT dealer or a qualified workshop is essential when replacing or disconnecting the battery.
After refitting the battery, the Stop & Start system will only be active after a continuous period of immobilisation of the vehicle, a period which depends on the climatic conditions and the state of charge of the battery (up to about 8 hours).
With Stop & Start, the battery does not have to be disconnected for charging.
Procedure for starting the engine using another battery or charging a discharged battery.
Do not apply excessive force on the
tab as locking will not be possible if the clamp is not positioned correctly; start the procedure again.

11
Practical information255
Installation of radio communication transmitters
Before installing any after-market radio communication transmitter, you can contact a PEUGEOT dealer for the specification of transmitters which can be fitted (frequency, maximum power, aerial position, specific installation requirements), in line with the Vehicle Electromagnetic Compatibility Directive ( 2 0 0 4 / 1 0 4 / E C ) .
The fitting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of your vehicle's electronic system and excessive electrical consumption. Please note this precaution. You are advised to contact a PEUGEOT representative to be shown the range of recommended equipment and accessories.
Depending on the legislation in force in the country, it may be compulsory to have a high visibility safety vest, warning triangle and spare bulbs and fuses available in the vehicle.
You can also obtain cleaning and maintenance products (exterior and interior), products for topping up (screenwash fluid...) and refills (sealant cartridge for the temporary puncture repair kit...) from PEUGEOT dealers.
"Multimedia"
Portable satellite navigation systems, mapping updates, Bluetooth hands-free system, DVD player, USB Box, additional Bluetooth wireless headphones, Bluetooth audio headphones mains charger, multimedia support...

.
Alphabetical index389
Eco-driving .....................................................25Eco-driving (advice) ........................................25Economical driving ........................................25Economy mode .............................................247Electric window controls .................................89Electronic engine immobiliser...................84, 86Electronic gearbox system ................25, 27, 32, 166, 169, 170, 186, 195, 212, 246Electronic stability control (ESC) ..........................................................155Emergency boot release .................................95Emergency call .....................................265 -267Emergency warning lamps ...........................152Energy economy mode .................................247Engine compartment ............................206, 207Engine compartment fusebox .......................................................237Engine, Diesel ........98, 205, 207, 258, 259, 262Engine oil level indicator .........................Engine oil level indicator .........................Engine oil level indicator42, 208Engine, petrol .........................98, 206, 256, 257Engines ................................................256, 258Environment ..............................................25, 86Equipment settings ................28, 44, 46, 48, 51ESC/ASR .......................................................155
Filling with fuel ...................................96, 98, 99Fitting a wheel ...............................................227Fitting roof bars .............................................252Fittings, boot .........................................125, 126Flashing indicators ........................................152Foglamps, rear ..............................................Foglamps, rear ..............................................Foglamps, rear102Folding the rear seats .........................72, 74, 75Folding/unfolding the door mirrors .................78Front foglamps ..............................102, 231, 233Front seats ..........................................66, 67, 70Fuel.....................................................25, 96, 98Fuel consumption ............................................25Fuel filler cap ...................................................96Fuel filler flap .............................................96, 99Fuel gauge ......................................................96Fuel tank....................................................96, 99Fusebox, dashboard .....................................237Fuses .............................................................237
Gearbox, automatic .........................27, 32, 166, 169, 170, 191, 212, 246Gearbox, manual .........................166, 169, 170, 184, 185, 195, 212Gear lever .......................................................Gear lever .......................................................Gear lever25Gear lever, automatic gearbox .....................191Gear lever, manual gearbox .........................18 4Gear shift indicator .......................................Gear shift indicator .......................................Gear shift indicator185Glove box ...............................................117, 118G . P. S . ....................................................280, 322Grab handles ................................................117Guidance ......................................280, 320, 327Guide-me-home ............................................10 6
Identification plates .......................................264Indicator lamps, status ....................................31Indicators, direction ......................................152Inflating accessories (using the kit) ..............................................213Inflating tyres ..................................................25Inputs for audio system .................................296, 353, 374, 376Instrument panel lighting ................................43Instrument panels .....................................27, 28Instrument panel screen .........................27, 185Intelligent Traction Control ............................155Interior fittings ...............................................117
E
F
GI
Direction indicators ...............152, 231, 232, 234Distance alert ................................................175Doors ...............................................................91Doors emergency control ...............................93Door trays ......................................................117Dynamic emergency braking ........................169Dynamic stability control (DSC) ......36, 156, 169
H
Halogen headlamps ..............................231, 232Hands-free kit .......................................336, 377Hazard warning lamps ..................................152Headlamp adjustment ...................................107Headlamps, directional .........................108, 231Headlamp wash ............................................111Headlamp wash reservoir .............................Headlamp wash reservoir .............................Headlamp wash reservoir210Head restraints, front ......................................68Head restraints, rear .......................................Head restraints, rear .......................................Head restraints, rear71Head-up display ............................173, 178, 181Heated seats ...................................................69Heating ................................................25, 59, 60Height and reach adjustment, steering wheel ..............................................80High load retaining net ..................................128Hill start assist ...............................................170Hooks ....................................................126, 130Horn...............................................................152

.
Alphabetical index391
Screen, monochrome ..................370, 380, 382Screen, monochrome C ..................................55Screen, multifunction (with audio equipment) ...............46, 48, 51, 53Screen, multifunction (without audio equipment) ............................44Screenwash fluid level ...........................111, 2 1 0Screenwash, front .........................................111Screen-wash reservoir .................................Screen-wash reservoir .................................Screen-wash reservoir210Seat adjustment ..................................66, 67, 72Seat belts ..............................126, 158, 160, 161Seat configurations .........................................77Seats, electric .................................................67Seats, rear ...........................................Seats, rear ...........................................Seats, rear72, 74, 75Serial number, vehicle ..................................264Service indicator .............................................Service indicator .............................................Service indicator40Service warning light ......................................34Servicing .........................................................25Setting the clock ................................44, 46, 48Short-cut menus ...................................276, 318Sidelamps .............................100, 231, 232, 234Side repeater ................................................Side repeater ................................................Side repeater233SIM card ................................................118, 300Snow chains ..................................................230Spare wheel .................................223, 225, 226Spectacles storage .......................................117Speed limiter .................................................Speed limiter .................................................Speed limiter178Speedometer ..................................................Speedometer ..................................................Speedometer27Spotlamps, side ............................................115Start ...............................................................245Starting the vehicle .........................84, 186, 191Steering mounted controls, audio ........274, 369Stopping the vehicle .......................84, 186, 191Stop & Start ...57, 61, 65, 97, 195, 204, 211, 244Storage ...........................117, 119, 121, 125, 126Storage box ...................................................118
Radio ....................................291, 345, 346, 371RCA sockets .................................................296Reading lamps, rear ......................................Reading lamps, rear ......................................Reading lamps, rear114Rear foglamp........................................234, 235Rear screen (demisting) ............................62, 78Recharging the battery .................................246
Safety for children ...........................89, 140, 151Screen, colour 16/9 ...............................275, 302Screen, colour and mapping.................317, 356Screen menu map ................302, 356, 380, 382
Reduction of electrical load ..........................247Regeneration of the particle emissions filter ...Regeneration of the particle emissions filter ...Regeneration of the particle emissions filter2 11Reinitialising the electric windows ..................89Reinitialising the remote control .....................85Remote control ....................................81, 82, 86Removable screen (snow shield)..................253Removing a wheel ........................................227Removing the mat .........................................120Repair kit, puncture ...............................213, 219Replacing bulbs ............................231, 234-236Replacing fuses ............................................237Replacing the air filter ...................................Replacing the air filter ...................................Replacing the air filter2 11Replacing the oil filter ...................................Replacing the oil filter ...................................Replacing the oil filter2 11Replacing the passenger compartment filter ......................................compartment filter ......................................compartment filter2 11Replacing wiper blades.........................113, 248Resetting the service indicator .......................Resetting the service indicator .......................Resetting the service indicator41Resetting the trip recorder ..............................Resetting the trip recorder ..............................Resetting the trip recorder43Rev counter .....................................................Rev counter .....................................................Rev counter27Reversing camera .........................................200Reversing lamp .............................................234Rigid panel ......................................................74Risk areas (update) ...............................287, 324Roof bars .......................................................252Routine checks .....................................211, 212Running out of fuel (Diesel) ..........................205
R
S
Parking sensors, audible and visual .............198Parking sensors, front ...................................198Parking sensors, rear....................................198Parking space sensor ..................................201Particle emission filter ..................Particle emission filter ..................Particle emission filter204, 210, 211Passenger compartment filter ......................Passenger compartment filter ......................Passenger compartment filter2 11PEUGEOT call button ...................................267PEUGEOT Connect Assistance ..........266, 267PEUGEOT Connect Media Navigation (NG4 3D) ............................269, 272, 275, 302PEUGEOT Connect Navigation (RT6) ....51, 313PEUGEOT Connect SOS ....................266, 267PEUGEOT CONNECT SOS .........................267PEUGEOT Connect Sound (RD5) ...................................48, 367, 380, 382PEUGEOT services ......................................267PIN code .......................................................300Player, CD MP3 .............................................373POIs (updating) .............................................287Port, USB ..............................119, 353, 374, 376Priming the fuel system ................................205Protecting children ........................132, 133, 137, 140, 145, 146, 150, 162Puncture ................................................213, 219

.
Visual search395
Instruments and controls
Courtesy lamps 114, 115 Seat belt / passenger's front airbag warning lamps display 159 -160, 163 Rear view mirror 78
Centre console 11 9 PEUGEOT Connect USB 119, 292, 348, 374
Sun visor 118
Electric parking brake 166 -169, 171-172
Dashboard fuses 237-240
Opening the bonnet 204 6 -speed manual gearbox 184 Gear shift indicator 185 Electronic gear control gearbox 186 -190 Automatic gearbox 191-194 Stop & Start 195 -197 Hill start assist 170 E c o - d r i v i n g 2 5 - 2 6
PEUGEOT Connect Media navigation (RT6) 269 -312 Setting the date/time 52
PEUGEOT Connect Navigation (RT6) 313 -366 Setting the date/time 52
PEUGEOT Connect Sound (RD5) 367-387 Setting the date/time 50
Ventilation 58-59 Rear ventilation 59 Manual air conditioning 60 - 61 Digital air conditioning 63 - 65 Demisting-defrosting the rear screen 62
Interior fittings 117-118, 120 - sun visor - driver's storage compartments - glove box - mat
12 V accessory socket 120
