2013.5 Citroen DS5 ECU

Central locking control


Automatic central locking of the
doors
(anti-intrusion security)
The doors and boot can lock automatically
while driving (speed above 6 mph (10 km/h)).
To activate or deactivate this function (activated
by default:
If the vehicle is deadlocked or locked
from the outside, the button is not
active. In this case, use the remote
control to unlock the vehicle or pull an
interior door handle to open a door.
If one of the doors is open, central
locking from the inside does not take
place.
Driving with the doors locked may make
access to the passenger compartment
by the emergency ser vices more
difficult in an emergency.


Operate the button.
This allows the doors and the boot to be locked
or unlocked.


Operate this button until a
message appears in the
instrument panel screen.



Transporting long or voluminous
objects

If you want to drive with the boot open,
press the central locking control button
to lock the doors.








Emergency control

System allowing the doors to be locked and
unlocked manually in the event of a malfunction
of the central locking system or battery failure.

Locking the driver's door




Insert the key in the door lock, then turn it
to the rear.
You can also apply the procedure described for
the passenger doors.


Unlocking the driver's door




Insert the key in the door lock, then turn it
to the front.

Repositioning the seat
backrest and cushion




Keep the seat belt guide 2
held against the
vehicle to avoid trapping the seat belt when
repositioning the seat.


Straighten the seat back 4
while refitting
the head restraints and secure it.


Check that the red indicator, located next to
the control 3
, is no longer visible.




Reposition the cushion 1
.


Release the seat belt guide 2
.


Put the seat belt back in place in the guide.
When repositioning the seat backrest,
take care not to trap the seat belts.

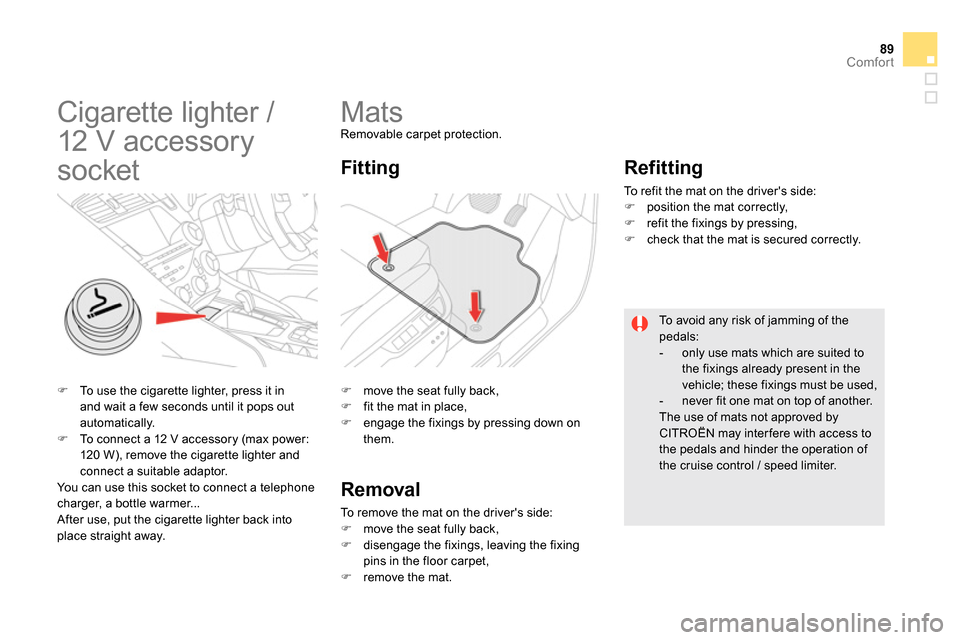

89Comfort








Mats
Removable carpet protection.



move the seat fully back,


fit the mat in place,


engage the fixings by pressing down on
them.



Fitting

Removal

To remove the mat on the driver's side:



move the seat fully back,


disengage the fixings, leaving the fixing
pins in the floor carpet,


remove the mat.



Refitting

To refit the mat on the driver's side:



position the mat correctly,


refit the fixings by pressing,


check that the mat is secured correctly.

To avoid any risk of jamming of the
pedals:


- only use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,

- never fit one mat on top of another.
The use of mats not approved by
CITROËN may inter fere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.



To use the cigarette lighter, press it in
and wait a few seconds until it pops out
automatically.


To connect a 12 V accessory (max power:
120 W), remove the cigarette lighter and
connect a suitable adaptor.
You can use this socket to connect a telephone
charger, a bottle warmer...
After use, put the cigarette lighter back into
place straight away.








Cigarette lighter /
12 V accessory
socket

Group 0+: from bir th to 13 kg



Groups 1, 2 and 3: from 9 to 36 kg






L1

"RÖMER Baby-Safe Plus"
Installed in the rear wards-
facing position.



L2

"KIDDY Comfort Pro"
The impact shield must be
used for carrying young
children (from 9 to 18 kg).


Groups 2 and 3: from 15 to 36 kg






L4

"KLIPPAN Optima"
From approxmately 6 years (from 22 kg), the booster is used on its own.




L5

"RÖMER KIDFIX"
Can be fitted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.












Child seats recommended by CITROËN
CITROËN offers a complete range of recommended child seats which are secured using a three point
seat belt
.

171Child safety














Installing child seats attached using the seat belt
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved
(a)
according to the weight of the child and the seating position in the vehicle:


Weight of the child and indicative age




Seat



Under 13 kg

(groups 0 ( b ) and 0+)
Up to approx 1 year

From 9 to 18 kg

(group 1)
1 to 3 years approx

From 15 to 25 kg

(group 2)
3 to 6 years approx

From 22 to 36 kg

(group 3)
6 to 10 years approx
Front passenger seat ( c ) with
height adjustment



U (R)



U (R)



U (R)



U (R)


Outer rear seats (d)





U



U



U



U


Centre rear seat




X



X



X



X




(a)
Universal child seat: child seat that can be installed in all vehicles using a seat belt.

(b)
Group 0, from birth to 10 kg. Shells seats and baby carriers cannot be installed in the front passenger seat.
When installed in the 2
nd row, they prevent use of the other seats.

(c)
Refer to the legislation in force in your country before installing your child on this seat.


(d)
To install a child seat at the rear, "rear ward facing" or "for ward facing", move the front seat for wards, then straighten the backrest to allow sufficient space for the child seat and the child's legs.


Remove and stow the head restraint
before installing a child seat with a
backrest on a passenger seat. Refit the
head restraint once the child seat has
been removed.
U:
seat suitable for the installation of a child seat secured using a seat belt and universally
approved, "rear ward facing" and/or "for ward facing".

U (R):
same as U
, with the passenger seat adjusted to the highest position and as far back as possible.

X:
seat position not suitable for installation of a child seat for the weight class indicated.

Your vehicle has been approved in accordance with the latest ISOFIX regulations
.
The seats, represented below, are fitted with regulation ISOFIX mountings:












"ISOFIX" mountings



- two rings A
, located between the vehicle
seat back and cushion, indicated by a
marking,

This ISOFIX mounting system ensures fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seats
are fitted with
two latches which are secured easily on the
two rings A
.
Some also have an upper strap
(or top tether)
which is attached to ring B
.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Obser ve strictly the fitting instructions
provided with the child seat.


- a ring B
, located under a cover on the back of
the top of the seat backrest, referred to as the
TOP TETHER
for fixing the upper strap.
Its position is indicated by a marking.
To secure the child seat to the TOP TETHER
:


- remove and stow the head restraint before
installing the child seat on this seat (refit it
after the child seat has been removed),

- open the TOP TETHER
cover by pulling its
cut-out,

- pass the child seat strap behind the seat
backrest, centred between the holes for the
head restraint rods,

- secure the upper strap fixing to the ring B
,

- tighten the upper strap.



The ISOFIX mountings are three rings for each seat:
Located on the back of the seat backrest, the
top tether is used to secure the upper strap of
child seats that have one. This device limits
for ward tipping of the child seat, in the event of
a front impact.

For information on the possibilities
for fitting ISOFIX child seats to your
vehicle, refer to the table of seating
positions.

173Child safety
















ISOFIX child seats recommended by CITROËN and approved
for your vehicle



Follow the instructions for fitting the child seats given in the seat manufacturer's installation guide.




RÖMER
Duo Plus ISOFIX

(size category B1
)


Group 1: from 9 to 18 kg





Installed only in the "for ward facing" position.
Attached to the rings A
, as well as the ring B
, referred to as the TOP TETHER, using a top strap.
Three seat body angles: sitting, reclining, lying.
This child seat can also be used on seats which are not fitted with ISOFIX mountings. In this case,
it must be attached to the vehicle seat using the three point seat belt.


Baby P2C Midi and its ISOFIX base

(size categories: D, C, A, B, B1
)


Group 1: from 9 to 18 kg



Installed rear ward facing using an ISOFIX base which is attached to the rings A
.
The base includes a support leg, adjustable for height, which rests
on the vehicle's floor.
This child seat can also be used for ward facing.
This child seat can
not
be secured with a seat belt.
We recommend that it be used rear ward facing up to 3 years.

175Child safety


IUF:
seat suitable for the installation of an I
sofix
U
niversal seat, " F
or ward-facing" secured
using the top belt secured to the upper
ring on ISOFIX seating positions.

IL-SU:
seat suitable for the installation of an
I
sofix S
emi- U
niversal seat either:


- "rear ward facing" fitted with a top belt or a
support leg,

- "for ward facing" fitted with a support leg,

- a sleeper cot fitted with an upper strap or a
support leg.
*
Sleeper cots cannot be fitted to the front
passenger's seat.

**
The ISOFIX sleeper cot, fixed to the lower
ISOFIX rings, occupies all of the rear seats.
Remove and stow the head restraint
before installing a child seat with a
backrest on a passenger seat. Refit the
head restraint once the child seat has
been removed. For advice on securing of the top belt, refer to
the "Isofix mountings" section.

X:
seat not suitable for the installation of a child
seat or shell for the weight group indicated.
