2013.5 Citroen DS5 navigation

05
287

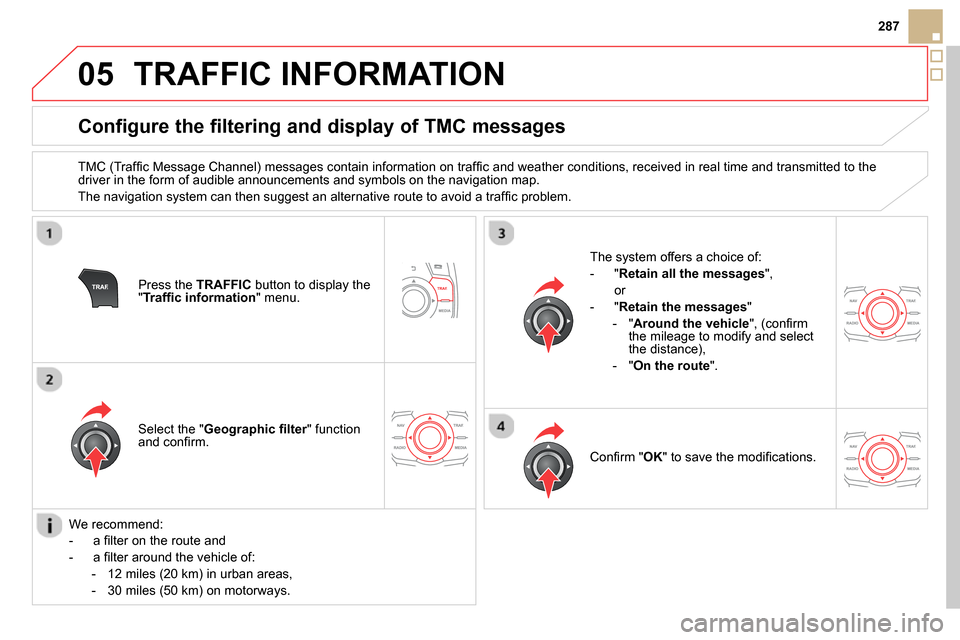

TRAFFIC INFORMATION










Configure the filtering and display of TMC messages


TMC (Traffi c Message Channel) messages contain information on traffi c and weather conditions, received in real time and transmitted to the
driver in the form of audible announcements and symbols on the navigation map.
The navigation system can then suggest an alternative route to avoid a traffi c problem.

Press the TRAFFIC
button to display the
" Traffi c information
" menu.

Select the " Geographic fi lter
" function
and confi rm.
The system offers a choice of:


- " Retain all the messages
",
or

- " Retain the messages
"



- " Around the vehicle
", (confi rm
the mileage to modify and select
the distance),

- " On the route
".



Confi rm " OK
" to save the modifi cations.


We recommend:


- a fi lter on the route and

- a fi lter around the vehicle of:


- 12 miles (20 km) in urban areas,

- 30 miles (50 km) on motorways.

12
313

"NAVIGATION - GUIDANCE"
MENU


Enter an address


Select destination


Directory


GPS coordinates (Archive)





Journey leg and route



Add a stage


Enter an address

Directory
Previous destinations

Order/delete journey legs


Divert route


Chosen destination





Guidance options



Defi ne calculation criteria


Set speech synthesis


Delete last destinations



Map management



Map orientation



Select TMC station



Automatic TMC


Manual TMC


List of TMC stations





Display / Do not display
messages

SCREEN MENU MAP(S)







MAIN FUNCTION



Option A1

Option A11


Option A

Option B...


Map details


Move the map / "Vehicle monitoring"


Mapping and updating


Description of risk areas database





Stop / Restore guidance
"TRAFFIC INFORMATION"
MENU
Geographic filter



Retain all the messages:


Retain the messages:


Around the vehicle


On the route




Set parameters for risk areas



1
2
1
2
2
2
1
2
2
3
3
1
1
3
3
2
2
2
2
1
3
1
1
2
2
2
2
2
2
2
2
2
2
2
1
2
1
2

FREQUENTLY ASKED QUESTIONS


The following table groups together the answers to the most frequently asked questions concerning your audio system.


QUESTION


ANSWER


SOLUTION



The route calculation is
not successful. The guidance criteria may confl ict with the current location (exclusion of
toll roads on a toll motorway). Check the guidance criteria on the Navigation
Menu, "Guidance options" "Defi ne calculation
criteria".
I am unable to enter my
post code. The system only accepts post codes of up to 5 characters.
The POIs do not appear. The POIs have not been selected. Select the POIs in the list of POIs.
The risk areas audible
warning does not work. The audible warning is not active. Activate audible warnings in the Guidance options
menu, "Navigation - guidance", "Set parameters
for risk areas".
The system does not
suggest a detour around
an incident on the route. The guidance criteria do not take account of TMC messages. Select the "Traffi c info" function in the list of
guidance criteria.
I receive a Risk area alert
which is not on my route. Other than guidance, the system announces all Risk areas positioned in a
cone located in front of the vehicle. It may provide an alert for a Risk area
located on nearby or parallel roads. Zoom in on the map to view the exact position of
the Risk area. Select "On the route" to no longer
receive alerts other than guidance or to reduce the
time for the announcement.

01


On / Off.

FIRST STEPS


Volume adjustment.

Select screen display
between modes:
Full screen: Audio (or
telephone if call in progress) /
In a window: Audio (or
telephone if call in progress) -
Time or Trip computer.
Long press: black screen
(DARK).


Selection of AM / FM
wavebands.

Select preset radio
station.
Long press: store a
station.
Display the list of stations received,
CD/MP3 tracks or folders.
Long press: managing the
classifi cation of MP3/WMA fi les /
update the list of stations received.

TA (Traffi c Announcement)
function On / Off.
Long press: access to type of
information.

Confi rmation
or display of
contextual menu.
Automatic search up / down for
radio frequencies.
Select previous / next CD, USB,
streaming track.
Navigation in a list.
Abandon the current
operation.
Up one level (menu or folder).

Manual step by step search up / down for radio
frequencies.
Select previous / next MP3 folder.
Select previous / next folder / genre / artist /
playlist in the USB device.
Navigation in a list.
Select source:
Radio, CD, AUX, USB,
Streaming.
Accept an incoming call.
Access to main menu.
Audio settings:
audio ambiences, treble, bass,
loudness, distribution, left/right
balance, front/rear fader, automatic
volume.

Jack ............................................................. 202
JACK socket ................................. 90, 305, 335
JN
O
Keeping children safe .......... 162-177, 188, 190
Key .......................................................... 54- 61
Key, electronic ................................... 54-57, 59
Keyless Entry and Starting ..................... 56, 61
KM
Main beam ............................. 32, 144, 211-213
Maintenance ................................................. 25
Map reading lamps ..................................... 159
Markings, identification ...............................260
Massage function ......................................... 82
Mat ................................................................ 89
Menu, main ................................................. 326
Mirror, rear view ............................................ 87
Mirrors, door.................................................. 86
Misfuel prevention ......................................... 73
Motorway function
(direction indicators) ................................. 180
Mountings for ISOFIX seats ....................... 172
MP3 CD .......................................305, 331, 332
Music media players .......................... 304, 330
Navigation ................................................... 273
Number plate lamps .................................... 218 Labels, identification ...................................260
Lamps, warning and indicator ................. 31- 41
Lane Departure Warning System
(LDWS) ..................................................... 130
LED daytime running lamps ....................... 147
Level, brake fluid ......................................... 242
Level, headlamp wash ................................ 243
Level, power steering fluid .......................... 242
Levels and checks .............................. 234-247
Lighting ........................................................ 160
Lighting bulbs (replacement) ............... 211-218
Lighting control stalk ........................... 144, 150
Lighting dimmer ............................................ 46
Lighting, guide-me home .................... 148, 150
Lighting, interior .................................. 159, 160
Lighting on reminder ................................... 147
Loading .................................................25, 230
Load reduction mode .................................. 225
Locating your vehicle .................................... 57
Locking from the inside ................................. 62
Locking the doors ......................................... 62
Long objects, transporting ............................ 91
Low fuel level .................................... 19, 40, 72
Lumbar .......................................................... 82
LIdentification plates .....................................260
Ignition on.................................................... 105
Indicator lamps, status ............................. 31- 41
Indicators, direction .................................... 180
Inflating accessories
(using the kit) ............................................ 201
Inflating tyres ................................................ 25
Inputs for audio system ................ 90, 305, 335
Instrument panel lighting .............................. 46
Instrument panel ........................................... 30
Instrument panel screen ............................... 30
Intelligent Traction Control .......................... 183
Interior fittings ............................................... 88
Interior mood lighting .................................. 160
ISOFIX ........................................................ 173
ISOFIX child seats ............................... 172-174
ISOFIX mountings....................................... 172
I
Heating .......................................................... 96
Height and reach adjustment,
steering wheel ............................................ 87
Hill start assist ............................................. 114
Oil filter ........................................................ 246
Oil level.................................................. 45, 241
Opening the boot .............................. 54-56, 64
Opening the doors ..................................54, 56
Operation indicator lamps ....................... 31- 41

359Alphabetical index
Radio ...................................................300, 327
Rear foglamp............................... 146, 216, 217
Rear screen (demisting) ........................86, 100
Recharging the battery .......................223, 224
Reduction of electrical load ........................ 225
Regeneration of the particle emissions filter ... 246
Reinitialising the remote control ................... 60
Remote control ........................................ 54- 61
Removing a wheel ......................................206
Removing the mat ......................................... 89
Repair kit, puncture ..................................... 196
Replacing bulbs ................................... 211-218
Replacing fuses .......................................... 219
Replacing the air filter ................................. 246
Replacing the oil filter ................................. 246
R P
Replacing the passenger
compartment filter .................................... 246
Replacing wiper blades.......................158, 226
Resetting the ser vice indicator ..................... 44
Resetting the trip recorder ............................ 46
Reversing camera ....................................... 140
Reversing lamp ................................... 216, 217
Risk areas (update) ..................................... 278
Roof bars ..................................................... 230
Routine checks ................................... 234-247
Running out of fuel (Diesel) ........................ 240
Screen, colour and mapping....................... 271
Screen, instrument panel ........................30, 50
Screen menu map .......................313, 346, 347
Screen, multifunction
(with audio system) ...........................326, 346
Screenwash ................................................ 243
Screenwash fluid level ................................ 243
Screenwash, front ....................................... 156
Seat adjustment ...................................... 78, 79
Seat belts .....................................170, 186 -188
Seat, rear bench .....................................83, 85
Seats, rear ...............................................83, 85
Selector lever,
electronic gearbox .................................... 120
Serial number, vehicle ................................260
Ser vice indicator ........................................... 43
Ser vice warning lamp ................................... 37
S
T
Paint colour code ........................................260
Parking brake, electric ........... 38, 107-113, 247
Parking lamps ............................................. 150
Parking sensors, front ................................. 139
Parking sensors, rear.................................. 138
Particle emission filter ................243, 244, 246
Passenger
compartment filter .................................... 246
Player, CD MP3 ...........................305, 331, 332
Port, USB ..................................... 90, 305, 333
Priming the fuel system .............................. 240
Protecting children ............... 162-177, 188, 190
Puncture ...................................................... 196Ser vicing ....................................................... 25
Setting the clock ..................... 48, 49, 312, 347
Short-cut menus ......................................... 272
Sidelamps .............144, 147, 150, 211, 213 -216
Side repeater .............................................. 215
Ski flap .......................................................... 91
Snow chains ................................................ 210
Spare wheel ................................................ 202
Speed limiter ....................................... 133, 134
Spotlamps, side .................................. 151, 215
Start ............................................................. 223
Starting the vehicle ............. 104, 106, 116, 120
Steering mounted controls,
audio ................................................. 270, 325
Stopping the vehicle ........... 104, 106, 116, 120
Stop & Start .............................. 51, 72, 97, 100,
127, 222, 237, 245
Storage .............................................. 88, 90 -92
Storing driving positions ............................... 80
Stowing rings ................................................ 92
Synchronising the remote control ................. 60
Synthesiser, voice .......................................284
System, navigation...................................... 273
Table of weights .................................. 251, 255
Tables of engines ................................250, 253
Tables of fuses ............................................ 219
Tank, fuel ....................................................... 73
Technical data ..................................... 248 -260
Telephone ...........................................290, 337
