2013.5 Citroen DS5 HYBRID4 RHD key

Contents
6 FAMILIARISATION
364 ALPHABETICAL INDEX
369 VISUAL SEARCH
Key
safety warning
additional information
contributes to the protection of the environment
programming a function with the configuration menu
refer to the page indicated

58 Instrument panel
59 Indicator and warning lamps
70 Gauges and indicators
74 Adjustment buttons
76 Setting the date and time
76 Clock
78 Trip computer
82 Electronic key - remote control
84 "Keyless Entry and Starting"
93 Boot
94 Alarm
97 Electric windows
99 Cockpit glass roof
101 Fuel tank
102 Misfuel prevention (Diesel)
106 Front seats
111 Rear seats
114 Mirrors
115 Steering wheel adjustment
116 Interior fi ttings
120 Boot fi ttings
121 Triangle (stowing)
122 Heating and Ventilation
124 Dual-zone digital air conditioning
128 Rear screen demist - defrost
28 Presentation
31 Starting / switching off
35 Ready lamp
35 Hybrid4 mode selector
38 Energy consumption / generation indicator
40 Display of hybrid power fl ow
43 Hybrid4 frequently asked questions
46 Eco off
47 Eco-driving
49 Consumption
50 High voltage battery
54 Car washing machine or tunnel
55 Recovery on a fl at-bed
001002003COMFORT
ACCESS
MONITORING
HYBRID SYSTEM

Electronic key: Keyless Entry and Starting
This system allows you to unlock, lock and start your vehicle while keeping the key on your person and in the recognition zone around the vehicle.
82

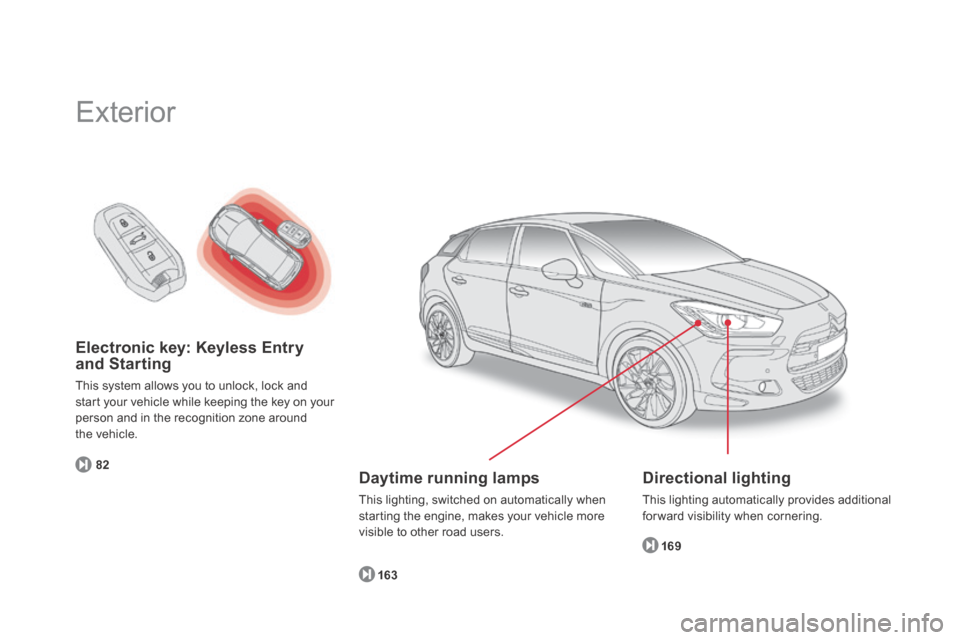

Exterior
Directional lighting
This lighting automatically provides additional forward visibility when cornering.
169
Daytime running lamps
This lighting, switched on automatically when starting the engine, makes your vehicle more visible to other road users.
163

Access
1. Opening the fuel filler flap. Tank capacity: approximately 60 litres.
Fuel tank
101
Unlocking
With the electronic key on your person and in the recognition zone A around the vehicle, pass A around the vehicle, pass Ayour hand behind the door handle to unlock the vehicle, then pull on the handle to open the door.
Locking
With the electronic key in the recognition zone A around the vehicle, press with a finger on the door handle (at the markings) to lock the vehicle.
Electronic key
82
A. Unlocking the vehicle. B. Locking the vehicle. C. Unlocking the boot and complete unlocking of the vehicle.
Keyless Entry and Starting
84
Boot
1. Unlocking the boot from inside: maintain pressure until the boot is heard to unlock.
93

14 . Controls for electric windows / electric child lock / central locking. 15. eMyWay controls. 16. Gear selector. 17. Hybrid4 mode selector.
18. Heating / air conditioning controls. 19. Audio system. 20. Hazard warning lamps. 21. Multifunction screen. 22. Central adjustable air vents. 23. Clock. 24. Starting with the START/STOP button. 25. Electronic key reader. 26. Wiper / screenwash / trip computer stalk.

Instruments and controls
1. Bonnet release lever. 2. Headlamp height adjustment. 3. Side adjustable air vents. 4. Front door window demisting/defrosting vents.
5. Quarter light demisting windows. 6. Head-up display. 7. Windscreen demisting/defrosting vent. 8. Passenger's airbag. 9. Glove box / Passenger's airbag deactivation inside. 10. 12 V accessory socket. 11. Rear electric window controls. 12 . Central armrest with storage. USB port / auxiliary socket. 13. Electric parking brake.
2 7. Audio equipment steering mounted controls. 28. Driver's airbag. Horn. 29. Cruise control / speed limiter controls.
30. Switch panel (see previous page). 31. Door mirror adjustment. 32. Lighting and direction indicator stalk 33. Instrument panel. 34. Seat belt and airbag warning lamps. 35. Courtesy lamp. 36. Head-up display controls. 3 7. Controls for cockpit glass roof blind. 38. CITROËN Localised Emergency Call - CITROËN Localised Assistance Call.

Passenger safety
1. Open the glove box. 2. Insert the key (integral with the electronic key). 3. Select position: "ON" (activation), with front passenger or "for wards facing" child seat, "OFF" (deactivation), with "rear facing" child seat. 4. Remove the key keeping the switch in the new position.
Front passenger's airbag Front seat belts and
passenger's front airbag
A. Left hand front seat belt not fastened or unfastened warning lamp. B. Right hand front seat belt not fastened or unfastened warning lamp. C. Right hand rear seat belt not fastened or unfastened warning lamp. D. Centre rear seat belt not fastened or unfastened warning lamp.
E. Left hand rear seat belt not fastened or unfastened warning lamp. F. Front passenger's airbag deactivated warning lamp. G. Front passenger's airbag activated warning lamp.
206
203

23Familiarisation
Starting - stopping the engine
Driving safely
Before starting Starting
- The instrument panel and the Ready lamp come on, confirmed by an audible signal. - The dial in the centre console is in AUTO mode.
- Place the gear selector in position N . - Insert the electronic key in the reader or keep the electronic key inside the vehicle.
- Press the brake pedal. - Make single short press (about 1 second) on the START/STOP button.
Moving off
- While maintaining pressure on the brake pedal, move the gear selector to position Ato go for wards or R for reverse. - Take your foot off the brake pedal, you can then move off.
31

31Hybrid system
Before starting
- Place the gear selector lever in position N . - If your vehicle has Keyless Entry and Starting, simply having the key inside the vehicle is sufficient. - If not, place the electronic key in the reader.
- Press the brake pedal. - Make a single short press (about a second) on the START/STOP button. - The steering column locks (noticeable noise and movement of the steering wheel). - Keep your foot on the brake pedal until the Hybrid4 system starts up (the instrument panel and the Ready lamp come on, confirmed by an audible signal).
Starting the Hybrid4 system
Starting - switching off the engine
The hybrid system determines whether it is necessary to start the Diesel engine.
When your vehicle vehicle moves off
in electric mode, it makes no noise. Be ver y careful of pedestrians and cyclists as they will not hear you coming.
