2013.5 Citroen DS4 RHD headlamp

MULTIFUNCTION
SCREENSCOMFORT ACCESS VISIBILITY
64 Monochrome screen C
68 Colour screen
70 Tr i p c o m p u t e r78 Ventilation
80 Manual air conditioning
82 Dual-zone digital air
conditioning
86 Front demist - defrost
87 Rear screen demist - defrost
88 Front seats
92 Rear seats
93 Steering wheel adjustment
94 Mirrors100 Remote control key
110 Alarm
113 Doors
115 Boot
116 Electric windows
118 Fuel tank
121 Misfuel prevention
(Diesel)124 Lighting controls
125 Daytime running lamps
128 Automatic illumination of
headlamps
129 Welcome lighting
130 Headlamp adjustment
131 Directional lighting
133 Wiper controls
13 4 Automatic rain sensitive
wipers
138 Courtesy lamps
139 Interior mood lighting
14 0 Boot lamp
004004005005002002003003

100



Opening



A.
Folding/unfolding the key
(first press this button).


3-button remote
control
When a sensor detects a low level of light,
the remote switching on of the dipped beam
headlamps, the sidelamps and the side spotlamps
makes your approach to the vehicle easier.

Welcome lighting

Complete or selective unlocking of
the vehicle
(rapid flashing of the direction
indicators).
Opening the windows
(hold until the desired position is reached).
Selective unlocking of the boot. Normal locking
(press once; fixed lighting of the
direction indicators).
Closing the windows
(hold until the desired position is reached).

129

In the same way, the passenger compartment
lighting, such as the courtesy lamps and the
footwell lamps, comes on.

Instruments and controls




1.
Controls for audio and telematic system.

2.
Controls for Bluetooth system or telephone.

3.
Steering lock and ignition.

4.
Wiper / screenwash / trip computer control
stalk.

5.
Instrument panel.

6.
Driver's airbag.
Horn.

7.
Cruise control / speed limiter controls.

8.
Controls for optional functions.

9.
Door mirror controls.
Electric window controls.

10.
Storage compartment.

11.
Manual headlamp height adjustment
Lower side switch panel.

12 .
Fuel filler flap opening switch.
Upper side switch panel.

13.
Side adjustable air vent.

14 .
Front side window demisting vent.

21Familiarisation

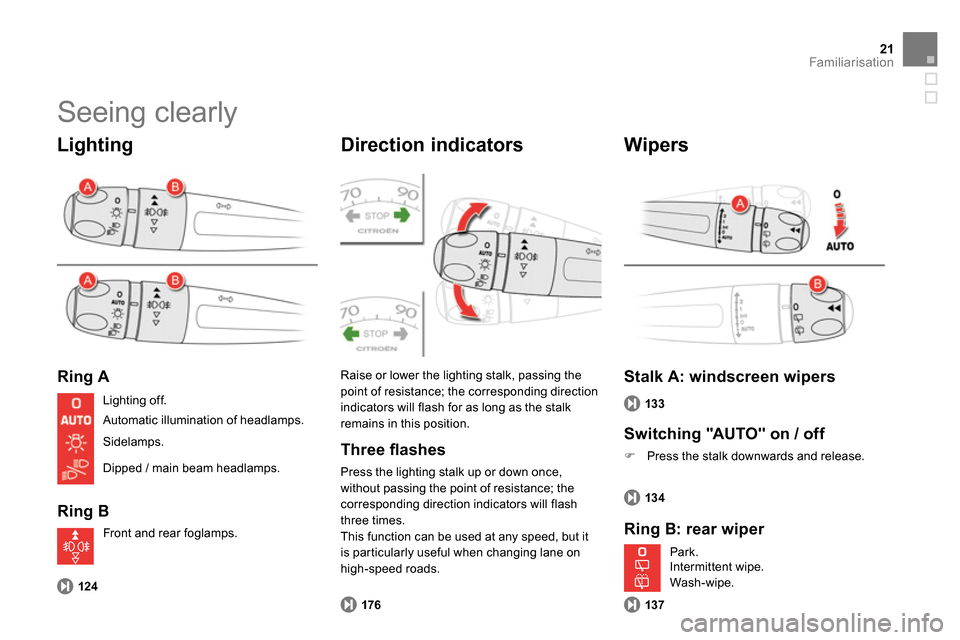

Seeing clearly


Lighting


Ring A

Ring B


Direction indicators


124


Raise or lower the lighting stalk, passing the
point of resistance; the corresponding direction
indicators will flash for as long as the stalk
remains in this position.

176





Stalk A: windscreen wipers

Switching "AUTO" on / off




Press the stalk downwards and release.


Ring B: rear wiper


13 4



137


Lighting off.
Automatic illumination of headlamps.
Sidelamps.
Dipped / main beam headlamps.
Front and rear foglamps.
Park.
Intermittent wipe.
Wash-wipe.


Three fl ashes

Press the lighting stalk up or down once,
without passing the point of resistance; the
corresponding direction indicators will flash
three times.
This function can be used at any speed, but it
is particularly useful when changing lane on
high-speed roads.

Wipers


133

35

As a passenger, if you avoid connecting
your multimedia devices (film, music, video
game...), you will contribute towards limiting
the consumption of electrical energy, and so
of fuel.
Disconnect your portable devices before
leaving the vehicle.



Limit the causes of excess
consumption

Spread loads throughout the vehicle; place the
heaviest items in the bottom of the boot, as
close as possible to the rear seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof rack,
bicycle carrier, trailer...). Use a roof box in
preference.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and
refit your summer tyres.



Observe the recommendations
on maintenance

Check the tyre pressures regularly, when
cold, referring to the label in the door
aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the tyres on
any trailer or caravan.

Have your vehicle ser viced regularly (engine
oil, oil filter, air filter...) and obser ve the
schedule of operations recommended by the
manufacturer.



When refuelling, do not continue after
the third cut-off of the nozzle to avoid any
over flow.
Switch off the headlamps and front foglamps
when the level of light does not require their
use.

Avoid running the engine before moving off,
particularly in winter; your vehicle will warm
up much faster while driving.

At the wheel of your new vehicle, it is only after
the first 1 800 miles (3 000 kilometres) that you
will see the fuel consumption settle down to a
consistent average.

41Monitoring



Press thumb wheel B
for access to the
main menu and select one of the following
functions:


- "Vehicle parameters",

- "Display adjustment",

- "Choice of sounds".


Turn the thumb wheel B
to move around in
the instrument panel central screen.


Press the thumb wheel B
again to confirm
the selection. This menu is used to activate or deactivate
certain driving and comfort systems, classified
in different categories:


- "Access to the vehicle" (see "Access"
section):


●
"Plip action" (Selective unlocking of the
driver's door),

●
"Unlocking only boot" (Selective
unlocking of the boot).



- "Driving assistance":


●
"Parking brake automatic" (Automatic
electric parking brake; see "Driving"
section),

●
"Rear wipe in reverse gear" (Rear wiper
coupled to reverse gear; see " Visibility"
section),

●
"Speeds memorised" (Memorising
speeds; see "Driving" section).


- " Vehicle lighting" (see " Visibility" section):


●
"Directional headlamps" (Main/additional
directional lighting),

●
"Daytime lights" (Daytime running
lamps).



- "Interior lighting" (see " Visibility" section):


●
"Follow-me-home" (Automatic timed
operation of headlamps),

●
" Welcome lighting" (Interior/exterior
welcome lighting).




Vehicle parameters

Main menu

The main menu and its associated
functions can only be accessed when
stationary.
A message appears in the instrument
panel central screen, above a certain
speed threshold, indicating that the
main menu cannot be displayed.

49Monitoring

Power steering
fixed. The power steering has a fault. Drive carefully at reduced speed.
Have it checked by a CITROËN dealer or a qualified
workshop.




Under-inflation


fixed. The pressure in one or more wheels
is too low. Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the
tyres are cold.

+
flashing then fixed,
accompanied by the
Ser vice warning lamp. The tyre pressure monitoring system
has a fault or no sensor is detected
on one of the wheels. Under-inflation detection is not assured.
Have the system checked by a CITROËN dealer or a
qualified workshop.




Directional
headlamps


flashing. The directional headlamps system
has a fault. Have it checked by a CITROËN dealer or a qualified
workshop.

Warning lamp



is on



Cause



Action/Observations






Foot on the brake
pedal


fixed. The brake pedal is not pressed. With an electronic gearbox, press the brake pedal to
start the engine (lever in position N
).
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will remain
on.

flashing. With an electronic gearbox, if you hold
the vehicle on a rising incline using
the accelerator for too long, the clutch
overheats. Use the brake pedal and/or the electric parking brake.




Airbags


temporarily. This lamp comes on for a few
seconds when you turn on the
ignition, then goes off. This lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.

fixed. One of the airbag or seat belt
pretensioner systems has a fault. Have it checked by a CITROËN dealer or a qualified
workshop.

Warning lamp



is on



Cause



Action/Observations






Left-hand
direction indicato

r


flashing with buzzer. The lighting stalk is pushed down.




Right-hand
direction indicator


flashing with buzzer. The lighting stalk is pushed up.






Sidelamps


fixed. The lighting control is in the
"Sidelamps" position. On vehicle where the daytime running lamps are deactivated,
if the lighting control is in the "AUTO" position, the sidelamps
come on as a luminous signature of the vehicle.





Dipped beam
headlamps


fixed. The lighting stalk is in the "Dipped beam
headlamps" position or in the "AUTO"
position in conditions of low light.






Main beam
headlamps


fixed. The lighting stalk is pulled towards
you. Pull the stalk again to return to dipped beam
headlamps.




Front foglamps


fixed. The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off
the front foglamps.




Rear foglamps


fixed. The rear foglamps are switched on. Turn the ring on the stalk rear wards to switch off the
rear foglamps.



Hazard warning
lamps


flashing with audible
signal. The hazard warning lamps switch,
located on the dashboard, has been
operated. The left-hand and right-hand direction indicators and
their associated indicator lamps flash simultaneously.










Operation indicator lamps

If one of the following indicator lamps comes on, this confirms that the corresponding system has come into operation.
It may be accompanied by an audible signal and a message in the screen.
