2013.5 Citroen C4 RHD key

06
257
USING THE TELEPHONE


Options during a call *


During a call, press the MODE
button
several times to select display of the
telephone screen, then press " OK
" to
open the contextual menu.

Select " Private mode
" and confi rm to
take the call on the handset.
Or select " Hands-free mode
" and
confi rm to take the call via the vehicle's
speakers.

Select " Put call on hold
" and confi rm to
put the current call on hold.
Or select " Resume the call
" and
confi rm to resume the call on hold.
Select " DTMF ring tones
" to use the
numerical keypad, so as to navigate
through the menu of an interactive vocal
server.

Select " Hang up
" to end the call.

*
Depending on the compatibility of the phone and your service plan.
it is possible to hold a 3-way conference
call by making 2 calls in succession*.
Select " Conference
mode call
" in the
contextual menu accessible using this
button.

Or make a short press on this button.

07
261
Press the button on the numerical
keypad to recall a preset station.
Or press then turn the thumb wheel at
the steering mounted controls.

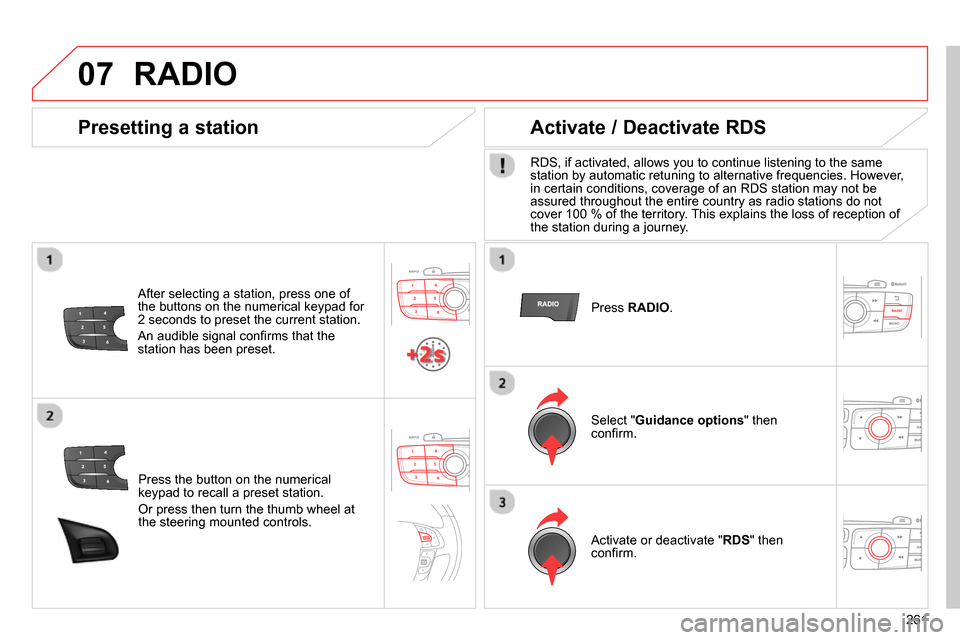

Presetting a station


After selecting a station, press one of
the buttons on the numerical keypad for
2 seconds to preset the current station.
An audible signal confi rms that the
station has been preset.
Press RADIO
.







Activate / Deactivate RDS


RDS, if activated, allows you to continue listening to the same
station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the entire country as radio stations do not
cover 100 % of the territory. This explains the loss of reception of
the station during a journey.

Select " Guidance options
" then
confi rm.

Activate or deactivate " RDS
" then
confi rm.


RADIO

08
264
MUSIC MEDIA PLAYERS


CD, MP3 CD / USB player


The audio equipment will only play audio fi les with ".wma, .aac, .fl ac,
.ogg and .mp3" fi le extensions and with a bit rate of between 32 Kbps
and 320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other type of fi le (.mp4, .m3u…) can be played.
WMA fi les must be of the standard wma 9 type.
The sampling rates supported are greater than 32 KHz.

It is advisable to restrict fi le names to 20 characters, without using of
special characters (e.g.: " " ? ; ù) to avoid any playing and displaying
problems.

In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select the ISO 9660 level 1, 2 or Joliet standard.
If the disc is recorded in another format (udf, …), it may not be played
correctly.
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.
Information and advice

The system supports USB mass storage or iPod
devices via the USB port (suitable cable not supplied).
If a partitioned USB memory key is connected to the
system, only the fi rst partition is recognised.
Control of the peripheral device is with the audio
system controls.
The number of tracks is limited to 2000 maximum,
999 tracks per folder.
If the current consumption at the USB port exceeds
500 mA, the system goes into protection mode and
deactivates the port.
Other peripherals, not recognised on connection, must
be connected to the auxiliary socket using a Jack cable
(not supplied).

In order to be read, a USB memory stick must be formatted FAT 16 or 32.



The system does not support the operation of an Apple
®
player and a
USB memory stick connected at the same time.

It is recommended that offi cial Apple
®
USB cables are used to ensure
correct operation.

05
Saisir code authentification
01
OK Del23456789 _
297
USING THE TELEPHONE


A virtual keypad is displayed on the
screen: enter a code with at least
4 digits and conform with OK
.

A message is displayed on the screen of the
telephone: enter the same code and confi rm.
A message appears in the screen to confi rm the result of the
connection.

Pairing can also be initiated from the telephone by searching for
detected Bluetooth devices.
Accept the connection to the telephone.

If pairing fails, try again; the number of attempts is not limited.
The directory and the calls list can be accessed after the
synchronisation period (if the telephone is compatible).
Automatic connection must be confi gured in the telephone to allow
the connection each time the vehicle is started.

In some cases, the reference number of the telephone or the
Bluetooth address may appear instead of the name of the telephone.

Pair/connect the telephone then listen: see the AUDIO section.








Streaming - Playing audio files via
Bluetooth

05
302
In the contextual menu:


- select " Telephone mode
" to
transfer the call to the telephone.

- deselect " Telephone mode
" to
transfer the call to the vehicle.


In certain cases, the combined mode has to activated from the
telephone.
If the contact has been cut off, when you reconnect on returning to
the vehicle, the Bluetooth connection will be restored automatically
(depending on the compatibility of the telephone).
Combined mode
(to leave the vehicle without ending the call)

USING THE TELEPHONE

From the contextual menu, select
" DTMF tones
" and confi rm to use
the digital keypad to navigate in the
interactive voice response menu.
From the contextual menu,
select " Switch
" and conform to return
to a call left on hold.

Interactive voice response

Consultation call

320
ALPHABETICAL INDEX
EDoor pockets ............................. 109
Driving economically ................... 26
Dynamic emergency
braking .................................... 148EBA
(Emergency braking assistance) ..... 135
Eco-driving .................................. 26
Economy mode.......................... 210
Electric window controls .............. 89
Electronic brake force distribution
(EBFD) .................................... 135
Electronic engine immobiliser ..... 80, 82
Electronic gearbox ..... 153, 163, 186
Electronic stability control (ESC) ..... 136
Emergency boot release.............. 88
Emergency braking system ....... 135
Emergency call .......... 137, 225, 226
Emergency starting.................... 207
Emergency warning lamps ........ 134
eMyWay ............................... 55, 227
Energy economy mode.............. 210
Engine compartment ......... 181, 182
Engine compartment fusebox .... 206
Engine, Diesel ..... 93, 180, 182, 220
Engine oil level indicator ...... 43, 183
Engine, petrol .............. 93, 181, 218
Engines.............................. 218, 220
Environment ..... 26, 62, 69, 82, 158,
160, 184
Equipment settings .......... 50, 52, 56
ESC/ASR ................................... 136
ESP ........................................... 136Fitting roof bars........................... 211
Fittings, boot ............................... 117
Fitting speakers ......................... 215
Flashing indicators.............. 98, 134,
198, 200
Foglamps, front.... 97, 103, 197, 200
Foglamps, rear ............ 97, 201, 202
Front seats............................. 70, 71
Fuel........................................ 26, 93
Fuel consumption ........................ 26
Fuel fi ller fl ap ......................... 92, 94
Fuel gauge............................. 28, 92
Fuel tank ................................ 92, 94
Fusebox, dashboard .................. 204
Fuses ......................................... 203Heated seats ............................... 72
Heating .................................. 63, 65
Height and reach adjustment,
steering wheel .......................... 77
Hill start assist ........................... 159
Hooks ......................................... 118
Gearbox, automatic .... 156, 186, 209
Gearbox, electronic ... 153, 186, 209
Gearbox, manual ....... 152, 163, 186
Gear effi ciency indicator ............ 160
Gear lever, automatic gearbox ..... 156
Gear lever, electronic gearbox... 153
Gear lever, manual gearbox ...... 152
Glove box ................................... 110
G.P.S. ........................................ 236
Grab handles ............................. 109
Guidance ................................... 233
FG
HI
JIgnition ......................................... 80
Indicator lamps, status............ 32-42
Indicators, direction ........... 134, 198
Infl ating accessories
(using the kit) .......................... 191
Infl ating tyres ............................... 26
Inputs for audio
system ..................... 111, 268, 294
Installing speakers ..................... 215
Instrument panel lighting ............. 47
Instrument panels ............. 28-30, 48
Instrument panel screen ..... 28-30, 160
Intelligent Traction Control ......... 136
Interior fi ttings .....................109, 110
Interior mood lighting ................. 108
ISOFIX ....................................... 129
ISOFIX child seats .............. 129-131
ISOFIX mountings ..................... 129
Keeping children
safe .................. 120-133, 140, 142
Key in ignition warning................. 80
Key with remote control .... 78-80, 82 K Halogen headlamps................... 197
Hands-free kit .................... 250, 296
Hazard warning lamps ............... 134
Headlamp adjustment................ 101
Headlamps,
directional ............... 101, 102, 197
Headlamp wash ......................... 105
Head restraints, front ................... 72
Head restraints, rear .................... 74Jack ........................................... 192
JACK socket ............... 111, 268, 294
Filling with fuel ........................ 92-94
Fitting a wheel ........................... 195
