MONITORING
41




Passenger's
airbag system
fi xed in the
seat belt and
passenger's front
airbag warning
lamps display. The control switch, located
in the glove box, has been
placed in the "ON"
position.
The passenger's front airbag
is activated.
In this case, do not install a
"rear facing" child seat. Move the control switch to the "OFF"

position to deactivate the passenger's
front airbag.
In this case, you can install a "rear
facing" child seat.

Warning lamp



is on



Cause



Action/Observations




Stop & Start


fi xed. When the vehicle stops (red
lights, traffi c jams, ...) the
Stop & Start system has put
the engine into STOP mode. The warning lamp goes off and the
engine restarts automatically in START
mode, as soon as you want to move off.

fl ashes for a few
seconds, then
goes off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. For more information on special cases
with STOP mode and START mode, refer
to the "Stop & Start" section.


Parking space
sensors


fi xed. The parking space sensors
function is selected. To start measurement, operate the direction
indicator on the side of the space to be
measured, and do not exceed 12 mph
(20 km/h). A message is displayed once the
measurement has been completed.





Automatic
wiping


fi xed. The wiper control is pushed
downwards. Automatic front wiping is activated.
To deactivate automatic wiping, operate
the control stalk downwards or put the
stalk into another position.


Lighting
dimmer


fi xed. The lighting dimmer is making
an adjustment. You can adjust the level of illumination of
the instruments between 1 and 16.

2
MULTIFUNCTION SCREENS
57
TRIP COMPUTER






Monochrome screen A


Information displays The trip computer provides the follow-
ing information:


- range,

- current fuel consumption,

- Stop & Start time counter,

- distance travelled,

- average fuel consumption,

- average speed.


Press the button, located at the end
of the wiper stalk
, to display the
various items of trip computer infor-
mation in succession.
System that gives you information on
the journey in progress (range, fuel
consumption…).



Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.


Zero reset


The next press then returns you to
the normal display.

2
MULTIFUNCTION SCREENS
58





Monochrome screen C

You can choose between two types of
display by pressing button A
:


-
the trip computer information appears
temporarily above the audio informa-
tion, displayed permanently in full
screen,
or

- the trip computer and audio infor-
mation both appear permanently in
a shared screen.
Information displays


- the current information tab
with:


●
the range,

●

the current fuel
consumption,

●
the Stop & Start time
counter,



- the trip "1"
tab with:


●
the distance travelled,

●
the average fuel
consumption,

●
the average speed,
for the fi rst trip.


- the trip "2"
tab with:


●
the distance travelled,

●
the average fuel
consumption,

●
the average speed,
for the second trip.






Press the button, located at the end
of the wiper stalk
, to display the
various trip computer tabs in suc-
cession.




When the trip required is displayed,
press the button on the end of the wiper
stalk for more than two seconds.

Trips "1"
and "2"
are independent but
their use is identical.
For example, trip "1"
can be used for
daily fi gures, and trip "2"
for monthly
fi gures.

Trip zero reset

2
MULTIFUNCTION SCREENS
59








Colour screen


Display modes

Information display



Press this button, located on the
end of the wiper stalk
, to display
the following information in turn:


●
current information,

●
trip "1"
,

●
trip "2"
,



- Current information is displayed in
the screen, depending on the con-
text:


●
the range,

●
the current fuel consumption,

●
Stop & Start time counter,
or

●
the remaining distance to go.

Trip zero reset




When the required trip is displayed, press
the button on the end of the wiper stalk

for more than two seconds.

Trips "1"
and "2"
are independent but
their use is identical.
For example, trip "1"
can be used for
daily fi gures and trip "2"
for monthly
fi gures.



Press the button on the end of the
wiper stalk
to display the trip com-
puter information temporarily in a
new window.


Press the button on the
eMyWay front panel,
to display continuously
the trip computer infor-
mation.


- The trip "1"
screen displays:


●
the distance travelled,

●
the average fuel consumption,

●
the average speed,
for the fi rst trip.



- The trip "2"
screen displays:


●
the distance travelled,

●
the average fuel consumption,

●
the average speed,
for the second trip.

2
MULTIFUNCTION SCREENS
60





A few definitions…

This value may vary following a
change in the style of driving or
the relief, resulting in a signifi -
cant change in the current fuel
consumption.
If dashes are displayed continu-
ously while driving in place of the
digits, contact a CITROËN dealer
or a qualifi ed workshop. This function is only displayed
from 20 mph (30 km/h).
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
When the range falls below 20 miles
(30 km), dashes are displayed. After
fi lling with at least 5 litres of fuel, the
range is recalculated and is displayed
when it exceeds 60 miles (100 km).
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.

Average fuel consumption
(mpg or l/100 km or km/l)


This is the average fuel con-
sumption since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed calcu-
lated since the last trip computer
zero reset (ignition on).

Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.








Stop & Start time counter
(minutes/seconds or hours/
minutes)
If your vehicle is fi tted with Stop & Start,
a time counter calculates the time spent
in STOP mode during a journey.
It resets to zero every time the ignition
is switched on with the key.

The fuel consumption of your
vehicle will be higher than
the offi cial fi gures obtained
by CITROËN during the fi rst
3 000 miles (5 000 km) of the
vehicle's life.

3
COMFORT
62










RECOMMENDATIONS FOR VENTILATION AND AIR
CONDITIONING
In order for these systems to be fully effective, follow the operation and
maintenance guidelines below:



To obtain an even air distribution, take care not to obstruct the exterior
air intake grilles located at the base of the windscreen, the nozzles, the
vents and the air outlets, as well as the air extractor located in the boot.


Do not cover the sunshine sensor, located on the dashboard; this is
used for regulation of the air conditioning system.


Operate the air conditioning system for at least 5 to 10 minutes, once or
twice a month to keep it in perfect working order.


Ensure that the passenger compartment fi lter is in good condition and
have the fi lter elements replaced regularly.
We recommend the use of a combined passenger compartment fi lter.
Thanks to its special active additive, it contributes to the purifi cation of
the air breathed by the occupants and the cleanliness of the passenger
compartment (reduction of allergic symptoms, bad odours and greasy
deposits).


To ensure correct operation of the air conditioning system, you are also
advised to have it checked regularly as recommended in the mainte-
nance and warranty guide.


If the system does not produce cold air, switch it off and contact a
CITROËN dealer or a qualifi ed workshop.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning increases the available engine power and
so improves the towing ability.
If after an extended stop in sun-
shine, the interior temperature is
very high, fi rst ventilate the pas-
senger compartment for a few
moments.
Put the air fl ow control at a set-
ting high enough to quickly
change the air in the passenger
compartment.
The air conditioning system
does not contain chlorine and
does not present any danger to
the ozone layer.

The condensation created by
the air conditioning results in a
discharge of water under the ve-
hicle which is perfectly normal.



Stop & Start
The heating and air conditioning systems only work when the engine is
running. To maintain a comfortable temperature in the passenger compart-
ment, you can temporarily deactivate the Stop & Start system (see the
corresponding section).

3
COMFORT
66
For maximum cooling or heating
of the passenger compartment,
it is possible to exceed the mini-
mum value 14 or the maximum
value 28.



Turn control 2
or 3
to the left
until "LO"
is displayed or
to the right until "HI"
is dis-
played.

See "Front demisting - defrosting".



4. Automatic visibility programme

Manual operation

If you wish, you can make a different
choice from that offered by the system
by changing a setting. The the "AUTO"

indicator lamps go off; the other func-
tions will still be controlled automati-
cally.



Pressing the "AUTO"
button returns
the system to completely automatic
operation.
2. Driver's side adjustment
The driver and front pas-
senger can each adjust the
temperature to their require-
ments.



Turn control 2
or 3
to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depend-
ing on your requirements, a setting be-
tween 18 and 24 is normal.
You are advised to avoid a left / right
setting difference of more than 3.
3. Passenger's side adjustment
The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.






With Stop & Start, when dem-
isting has been activated, the
STOP mode is not available.

3
COMFORT
68

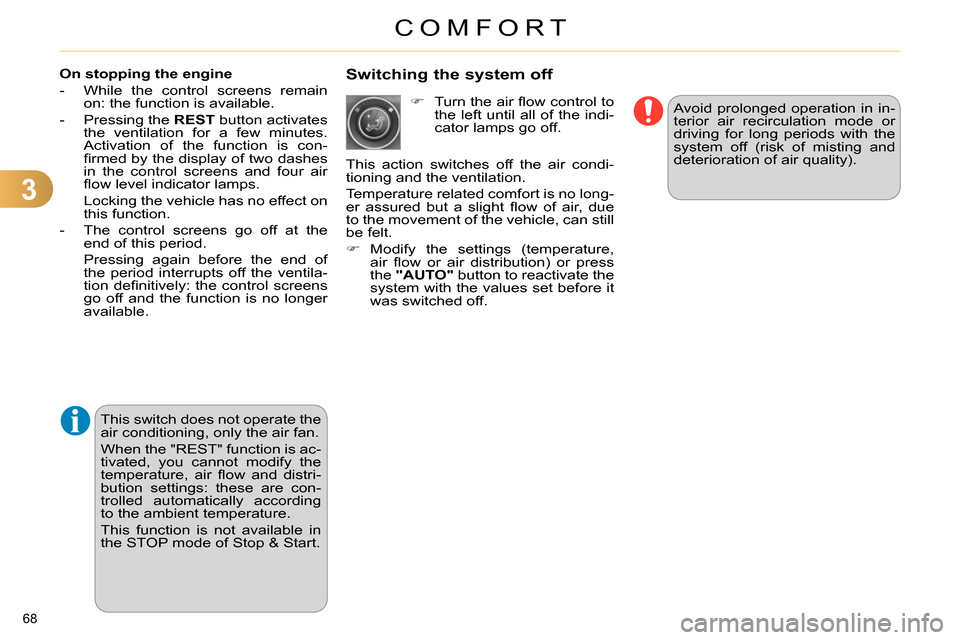

Switching the system off

Avoid prolonged operation in in-
terior air recirculation mode or
driving for long periods with the
system off (risk of misting and
deterioration of air quality).
On stopping the engine



- While the control screens remain
on: the function is available.

- Pressing the REST
button activates
the ventilation for a few minutes.
Activation of the function is con-
fi rmed by the display of two dashes
in the control screens and four air
fl ow level indicator lamps.
Locking the vehicle has no effect on
this function.

- The control screens go off at the
end of this period.
Pressing again before the end of
the period interrupts off the ventila-
tion defi nitively: the control screens
go off and the function is no longer
available.


Turn the air fl ow control to
the left until all of the indi-
cator lamps go off.
This action switches off the air condi-
tioning and the ventilation.
Temperature related comfort is no long-
er assured but a slight fl ow of air, due
to the movement of the vehicle, can still
be felt.



Modify the settings (temperature,
air fl ow or air distribution) or press
the "AUTO"
button to reactivate the
system with the values set before it
was switched off.
This switch does not operate the
air conditioning, only the air fan.
When the "REST" function is ac-
tivated, you cannot modify the
temperature, air fl ow and distri-
bution settings: these are con-
trolled automatically according
to the ambient temperature.
This function is not available in
the STOP mode of Stop & Start.
