2013.5 Citroen C4 RHD display

05
246
TRAFFIC INFORMATION


Access to the "TRAFFIC INFORMATION" menu


List of TMC messages in order
of distance from the vehicle.

Go from the list to the menu (left/right).
" Traffi c information
"

" Geographic fi lter
"
" Select TMC station
"
(automatic, manual)
" Display/Do not display
messages
"
or
Press " TRAFFIC
".

05
247
TRAFFIC INFORMATION










Configure the filtering and display of TMC messages


TMC (Traffi c Message Channel) messages contain information on traffi c and weather conditions, received in real time and transmitted to the
driver in the form of audible announcements and symbols on the navigation map.
The navigation system can then suggest an alternative route to avoid a traffi c problem.

Press the TRAFFIC
button to display the
" Traffi c information
" menu.

Select the " Geographic fi lter
" function
and confi rm.
The system offers a choice of:


- " Retain all the messages
",
or

- " Retain the messages
"


●
" Around the vehicle
", (confi rm
the mileage to modify and select
the distance),

●
" On the route
".



Confi rm " OK
" to save the modifi cations.


We recommend:


- a fi lter on the route and

- a fi lter around the vehicle of:


- 12 miles (20 km) in urban areas,

- 30 miles (50 km) on motorways.

05
248
TRAFFIC INFORMATION







Principal TMC symbols


Red and yellow triangle: traffi c information, for example:
Black and blue triangle: general information, for example:
Weather reports
Modifi ed signage
Risk of explosion Traffi c reports
Narrow carriageway
Road closed Wind
Slippery surface
Demonstration Fog
Accident
Danger Parking
Delay
No entry Snow / ice
Roadworks
Traffi c jam








Receiving TA messages


The TA (Traffi c Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of a
radio station transmitting this type of message. When a traffi c report
is transmitted, the current audio source (Radio, CD, USB, …) is
interrupted automatically to play the TA message. Normal playback
of the audio source resumes at the end of the transmission of the
message.

Press RADIO
to display the " FM / AM
band
" menu.

Select " Guidance options
" then
confi rm.

Activate or deactivate " TA
" then confi rm.

The volume setting for TA messages can be adjusted only during the
transmission of this type of alert.

Activate or deactivate the function at any time by pressing
the button.
During a message, press the button to interrupt it.

06
249
USING THE TELEPHONE


Access to the "TELEPHONE" menu


" Telephone
"

" Dial
"
" Directory of contacts
"

"Contacts management
"
" Phone functions
"
" Bluetooth functions
"
" Hang up
"

Go from the list to the menu (left/right).
or

List of recent calls sent and
received with the telephone
connected to the system.
Press PHONE
.

To make a call, select a number in the list and confi rm " OK
"
to start the call.

Connecting a different telephone deletes the list of
recent calls. No telephone connected.
Telephone connected.
Incoming call.
Outgoing call.
Synchronisation
of address book in
progress.
Telephone call in
progress.
In the top bar of the permanent
display

06
250















Pairing a Bluetooth telephone
First connection
For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the audio unit must be
carried out with the vehicle stationary
.

In the Bluetooth menu of your telephone, select
the name of the system from the list of devices
detected.

Press this button.

Select " Bluetooth functions
" and
confi rm.

Select " Peripherals search
" and
confi rm.
The list of peripheral devices detected
is displayed. Wait until the " Connect
"
button is available.

USING THE TELEPHONE

You can check the compatibility of your telephone at
www.citroen.co.uk (services).

Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (telephone
confi guration).
Quick procedure from the telephone

Enter a minimum 4 fi gure code in the telephone and
confi rm.

Enter the same code in the system,
select " OK
" and confi rm.
Procedure from the system

06
252
USING THE TELEPHONE

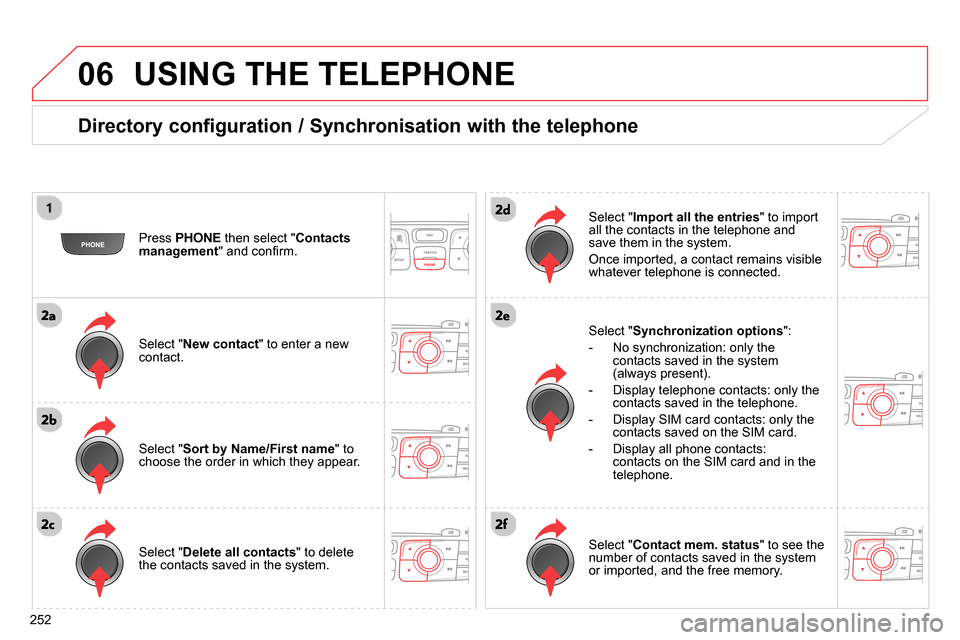

Directory configuration / Synchronisation with the telephone


Press PHONE
then select " Contacts
management
" and confi rm.

Select " New contact
" to enter a new
contact.

Select " Delete all contacts
" to delete
the contacts saved in the system.
Select " Import all the entries
" to import
all the contacts in the telephone and
save them in the system.
Once imported, a contact remains visible
whatever telephone is connected.

Select " Synchronization options
":


- No synchronization: only the
contacts saved in the system
(always present).

- Display telephone contacts: only the
contacts saved in the telephone.

- Display SIM card contacts: only the
contacts saved on the SIM card.

- Display all phone contacts:
contacts on the SIM card and in the
telephone.


Select " Contact mem. status
" to see the
number of contacts saved in the system
or imported, and the free memory.

Select " Sort by Name/First name
" to
choose the order in which they appear.

06
255
USING THE TELEPHONE



Calling a recently entered number

Press TEL
, select " Call list
" and
confi rm,

Select the desired number and confi rm.

To erase the calls log, press PHONE
twice, select " Phone
functions
" and confi rm then select " Delete calls log
" and
confi rm.


Ending a call


Press PHONE
then select " OK
" to end
the call.

Or make a long press on TEL
at the
steering mounted controls.

Or make two short presses on TEL
at
the steering mounted controls.

Or press the MODE
button, as many
times as necessary, until the telephone
screen is displayed. press PHONE
to display the calls log. or
Press " OK
" to display the contextual
menu then select " Hang up
" and
confi rm.

It is always possible to start a call directly from the telephone;
park the vehicle as a safety measure.

06
256
USING THE TELEPHONE


Receiving a call


An incoming call is announced by a ring and a superimposed display
on the screen.


"Ye s
" to accept the call is selected by
default.
Press " OK
" to accept the call.
Select " No
" and confi rm to reject the
call.

A short press on TEL
accepts an
incoming call.
A long press on TEL
rejects an incoming
call.
