EBU17420
TABLE OF CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 1-1
SAFETY INFORMATION .............................. 2-1
DESCRIPTION .............................................. 3-1Left view ...................................................... 3-1
Right view.................................................... 3-1
Controls and instruments ............................ 3-2
INSTRUMENT AND CONTROL
FUNCTIONS .................................................. 4-1 Main switch ................................................ 4-1
Indicator light and warning lights ................ 4-2
Handlebar switches .................................... 4-3
Throttle lever .............................................. 4-4
Speed limiter .............................................. 4-5
Clutch lever ................................................ 4-5
Brake lever ................................................. 4-6
Brake pedal ................................................ 4-6
Parking brake lever .................................... 4-7
Shift pedal .................................................. 4-8
Fuel tank cap .............................................. 4-8
Fuel ............................................................ 4-9 Seat ..........................................................4-10
Adjusting the front shock absorber
assemblies ..............................................4-11
Adjusting the rear shock absorber assembly .................................................4-16
Handlebar position ....................................4-24
PRE-OPERATION CHECKS ..........................5-1 Fuel .............................................................5-4
Engine oil ....................................................5-4
Coolant .......................................................5-4
Front and rear brakes .................................5-4
Throttle lever ...............................................5-5
Drive chain ..................................................5-5
Tires ............................................................5-5
Chassis fasteners .......................................5-7
Instruments, lights and switches .................5-7
OPERATION...................................................6-1 Starting the engine ......................................6-1
Shifting ........................................................6-2
Engine break-in ...........................................6-4
Parking ........................................................6-4
Parking on a slope ......................................6-5U18P66E0.book Page 1 Monday, May 16, 2011 4:23 PM
4-2
4
EBU29382Indicator light and warning lights EBU17860Neutral indicator light“”
This indicator light comes on when the transmis-
sion is in the neutral position.
EBU29921Coolant temperature warning light “”
This warning light comes on when the engine over-
heats. When this occurs during operation, stop the
engine as soon as it is safe to do so and allow it to
cool down for about 10 minutes.
The electrical circuit of the warning light can be
checked by turning the key to “” (on). The warn-
ing light should come on for a few seconds, and
then go off.
If the warning light does not come on initially when
the key is turned to “” (on), or if the warning light
remains on, have a Yamaha dealer check the elec-
trical circuit.NOTICEECB00010The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage to
the engine.
1. Fuel level warning light “”
2. Engine trouble warning light “”
3. Coolant temperature warning light “”
4. Neutral indicator light “N”
12 3 4
U18P66E0.book Page 2 Monday, May 16, 2011 4:23 PM
4-3
4
EBU29931Fuel level warning light“”
This warning light comes on when the fuel level
drops below approximately 3.4 L (0.90 US gal,
0.75 Imp.gal). When this occurs, refuel as soon as
possible.
The electrical circuit of the warning light can be
checked by setting the engine stop switch to “”
and turning the key to “” (on). The warning light
should come on for a few seconds, and then go off.
If the warning light does not come on initially when
the key is turned to “” (on), or if the warning light
remains on, have a Yamaha dealer check the elec-
trical circuit.EBU29942Engine trouble warning light “”
This warning light comes on or flashes when an
electrical circuit monitoring the engine is not work-
ing correctly. When this occurs, have a Yamaha
dealer check the self-diagnosis system.
The electrical circuit of the warning light can be
checked by turning the key to “” (on). The warn-
ing light should come on for a few seconds, and
then go off. If the warning light does not come on initially when
the key is turned to
“” (on), or if the warning light
remains on, have a Yamaha dealer check the elec-
trical circuit.
EBU18061Handlebar switches EBU18080Engine stop switch “/”
Set this switch to “” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch1. Light switch “/ /OFF”
2. Engine stop switch “/”
3. Start switch “”
1
23
U18P66E0.book Page 3 Monday, May 16, 2011 4:23 PM
4-9
4
EBU18814Fuel Make sure there is sufficient gasoline in the tank.
WARNING
EWB02521Gasoline and gasoline vapors are extremely
flammable. To avoid fires and explosions and
to reduce the risk of injury when refueling, fol-
low these instructions.1. Before refueling, turn off the engine and besure that no one is sitting on the vehicle. Nev-
er refuel while smoking, or while in the vicinity of sparks, open flames, or other sources of ig-
nition such as the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the pump nozzle into the fuel
tank filler hole. Stop filling when the fuel reach-
es the bottom of the filler tube. Because fuel
expands when it heats up, heat from the en-
gine or the sun can cause fuel to spill out of
the fuel tank.1. Fuel tank cap
1
1. Maximum fuel level
2. Fuel tank filler tube
2
1
U18P66E0.book Page 9 Monday, May 16, 2011 4:23 PM
6-1
6
EBU19881
OPERATION
EBU19901Read the Owner’s Manual carefully before riding
the ATV. If there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWB00631Read the Owner ’s Manual carefully to become
familiar with all controls in order to help pre-
vent any loss of control, which could cause an
accident or injury.EBU29952Starting the engine NOTICEECB00150See the “Engine break-in ” section on page 6-4
prior to operating the engine for the first time.1. Set the parking brake.
2. Turn the key to “” (on) and the engine stop
switch to “”.
The following warning lights should come on
for a few seconds, then go off.
Coolant temperature warning lightFuel level warning lightEngine trouble warning light
NOTICEECB00824If a warning light does not go off, see page 4-2
for the corresponding warning light circuit
check. To avoid possible damage, do not oper-
ate the ATV if a warning light stays on.3. Shift the transmission into neutral. The neutral indicator light should come on, if it does not
come on, have a Yamaha dealer check the
electrical circuit.TIPThis model is equipped with an ignition circuit cut-
off system. The engine can be started under the
following conditions.The transmission is in neutral.The clutch is disengaged with the transmission
in gear. However, it is recommended to shift into
neutral before starting the engine.
U18P66E0.book Page 1 Monday, May 16, 2011 4:23 PM
7-12
7
trol.
[EWB02631]
NOTICE: Do not shift gears without
releasing the throttle. Damage to the engine or
drive train may occur.
[ECB01071]
Use this same procedure as you move into the
higher gears. Be sure to coordinate the use of the
throttle and shift pedal properly.
Avoid higher speeds until you are thoroughly famil-
iar with the operation of your ATV.
When slowing down or stopping, release the throt-
tle and apply the brakes smoothly and evenly. As
you slow down, shift to a lower gear. Be sure that
the engine has sufficiently slowed before engaging
a lower gear. Improper use of the brakes or shifting
can cause the tires to lose traction, reducing con-
trol and increasing the possibility of an accident.
TURNING YOUR ATV
WARNING
EWB01771Always follow proper procedures for turning
as described in this Owner ’s Manual. Practice
turning at low speeds before attempting to turn
at faster speeds. Do not turn at speeds too fast
for your skills or the conditions. ATV could go
out of control, causing a collision or overturn.
To achieve maximum traction on unpaved surfac-
es, the two rear wheels turn together at the same
speed. Therefore, unless the wheel on the inside
of the turn is allowed to slip or lose some traction,
the ATV will resist turning. A special turning tech-
nique must be used to allow the ATV to make turns
quickly and easily. It is essential that this skill be
learned first at low speed.
As you approach a curve, slow down and begin to
turn the handlebars in the desired direction. As you
do so, put your weight on the footrest to the outside
of the turn (opposite your desired direction) and
lean your upper body into the turn. Use the throttle
to maintain an even speed through the turn. This
maneuver will let the wheel on the inside of the turn
slip slightly, allowing the ATV to make the turn
properly.
U18P66E0.book Page 12 Monday, May 16, 2011 4:23 PM
7-18
7
CROSSING A SLOPE
WARNING
EWB01632Improperly crossing hills or turning on hills
could cause loss of control or cause the ATV to
overturn.Always follow proper procedures as de-
scribed in the Owner
’s Manual.Avoid hills with excessively slippery or loose
surfaces.Avoid crossing the side of a steep hill.Shift your weight to the uphill side of the
ATV.Never attempt to turn the ATV around on any
hill until you have mastered the turning tech-
nique as described in the Owner ’s Manual on
level ground. Be very careful when turning
on any hill.Traversing a sloping surface on your ATV requires
you to properly position your weight to maintain
proper balance. Be sure that you have learned the
basic riding skills on flat ground before attempting
to cross a sloping surface. Avoid slopes with slip-
pery surfaces or rough terrain that may upset your
balance. As you travel across a slope, lean your body in the
uphill direction. It may be necessary to correct the
steering when riding on loose surfaces by pointing
the front wheels slightly uphill. When riding on
slopes, be sure not to make sharp turns either up
or down hill.
If your ATV does begin to tip over, gradually steer
in the downhill direction if there are no obstacles in
your path. As you regain proper balance, gradually
steer again in the direction you wish to travel.U18P66E0.book Page 18 Monday, May 16, 2011 4:23 PM

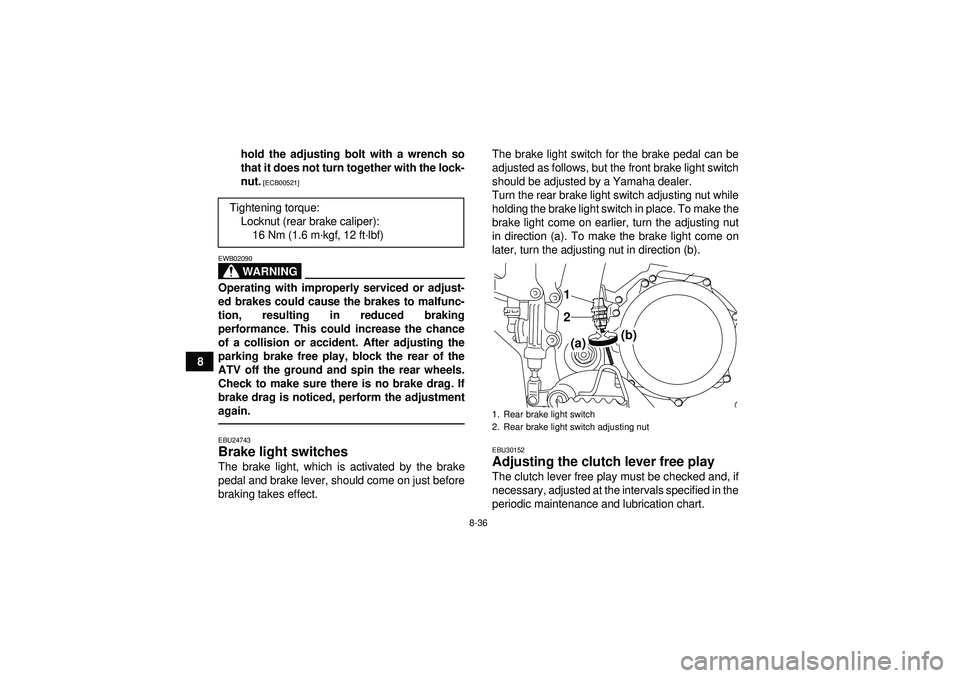

8-36
8hold the adjusting bolt with a wrench so
that it does not turn together with the lock-
nut.
[ECB00521]
WARNING
EWB02090Operating with improperly serviced or adjust-
ed brakes could cause the brakes to malfunc-
tion, resulting in reduced braking
performance. This could increase the chance
of a collision or accident. After adjusting the
parking brake free play, block the rear of the
ATV off the ground and spin the rear wheels.
Check to make sure there is no brake drag. If
brake drag is noticed, perform the adjustment
again.EBU24743Brake light switches The brake light, which is activated by the brake
pedal and brake lever, should come on just before
braking takes effect. The brake light switch for the brake pedal can be
adjusted as follows, but the front brake light switch
should be adjusted by a Yamaha dealer.
Turn the rear brake light switch adjusting nut while
holding the brake light switch in place. To make the
brake light come on earlier, turn the adjusting nut
in direction (a). To make the brake light come on
later, turn the adjusting nut in direction (b).
EBU30152Adjusting the clutch lever free play The clutch lever free play must be checked and, if
necessary, adjusted at the intervals specified in the
periodic maintenance and lubrication chart.
Tightening torque:
Locknut (rear brake caliper):16 Nm (1.6 m ·kgf, 12 ft· lbf)1. Rear brake light switch
2. Rear brake light switch adjusting nut
1
2(a) (b)
U18P66E0.book Page 36 Monday, May 16, 2011 4:23 PM
