TABLE OF CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 1-1
SAFETY INFORMATION .............................. 2-1
DESCRIPTION .............................................. 3-1Left view ...................................................... 3-1
Right view.................................................... 3-1
Controls and instruments ............................ 3-2
INSTRUMENT AND CONTROL
FUNCTIONS .................................................. 4-1 Main switch ................................................ 4-1
Indicator light and warning light .................. 4-2
Handlebar switches .................................... 4-3
Throttle lever .............................................. 4-3
Speed limiter .............................................. 4-4
Clutch lever ................................................ 4-5
Brake lever ................................................. 4-5
Brake pedal ................................................ 4-6
Parking brake lever .................................... 4-6
Shift pedal .................................................. 4-7
Fuel tank cap .............................................. 4-8
Fuel ............................................................ 4-8 Fuel cock ..................................................4-10
Starter (choke) ..........................................4-11
Seat ..........................................................4-12
Adjusting the front shock absorber
assemblies ..............................................4-13
Adjusting the rear shock absorber assembly .................................................4-14
PRE-OPERATION CHECKS ..........................5-1 Fuel .............................................................5-4
Engine oil ....................................................5-4
Coolant .......................................................5-4
Front and rear brakes .................................5-4
Throttle lever ...............................................5-5
Drive chain ..................................................5-5
Tires ............................................................5-5
Chassis fasteners .......................................5-7
Instruments, lights and switches .................5-7
OPERATION...................................................6-1 Starting a cold engine .................................6-1
Starting a warm engine ...............................6-3
Shifting ........................................................6-3
Engine break-in ...........................................6-5U1PD60E0.book Page 1 Monday, June 13, 2011 2:57 PM

Parking ....................................................... 6-5
Parking on a slope ..................................... 6-6
Accessories and loading ............................ 6-7
RIDING YOUR ATV ...................................... 7-1 GETTING TO KNOW YOUR ATV............... 7-2
RIDE WITH CARE AND GOOD JUDGMENT .............................................. 7-2
BE CAREFUL WHERE YOU RIDE ............. 7-9
TURNING YOUR ATV .............................. 7-12
CLIMBING UPHILL ................................... 7-13
RIDING DOWNHILL.................................. 7-16
CROSSING A SLOPE............................... 7-18
CROSSING THROUGH SHALLOW WATER ................................................... 7-19
RIDING OVER ROUGH TERRAIN ........... 7-20
SLIDING AND SKIDDING ......................... 7-21
WHAT TO DO IF... .................................... 7-22
WHAT TO DO... ........................................ 7-22
PERIODIC MAINTENANCE AND
ADJUSTMENT ............................................... 8-1 Owner’s manual and tool kit ....................... 8-2
Periodic maintenance chart for the emission control system ........................... 8-3
General maintenance and lubrication chart ......................................................... 8-5 Removing and installing the panel ..............8-9
Checking the spark plug ...........................8-10
Engine oil and oil filter element .................8-14
Coolant .....................................................8-20
Cleaning the air filter element ...................8-24
Cleaning the spark arrester ......................8-28
Adjusting the carburetor ............................8-30
Checking the engine idling speed .............8-30
Adjusting the throttle lever free play .........8-31
Valve clearance ........................................8-31
Brakes .......................................................8-32
Checking the front and rear brake pads ...8-32
Checking the brake fluid level ...................8-33
Changing the brake fluid ...........................8-36
Checking the front brake lever free play ...8-36
Checking the brake pedal height ..............8-36
Adjusting the parking brake free play .......8-37
Brake light switches ..................................8-38
Adjusting the clutch lever free play ...........8-39
Drive chain slack .......................................8-41
Lubricating the drive chain ........................8-43
Checking and lubricating the cables .........8-43
Checking and lubricating the brake and
clutch levers ............................................8-44
Checking the shift pedal ...........................8-45
Checking and lubricating the brake pedal .......................................................8-45
U1PD60E0.book Page 2 Monday, June 13, 2011 2:57 PM

Checking the wheel hub bearings ............ 8-45
Lubricating the swingarm pivots ............... 8-46
Lubricating the upper and lower arm pivots ...................................................... 8-46
Lubricating the steering shaft ................... 8-47
Battery ...................................................... 8-48
Replacing the fuse ................................... 8-50
Replacing a headlight bulb ....................... 8-51
Adjusting a headlight beam ...................... 8-53
Replacing the tail/brake light bulb ............ 8-53
Removing a wheel .................................... 8-54
Installing a wheel ...................................... 8-55
Troubleshooting ....................................... 8-55
Troubleshooting charts ............................. 8-57
CLEANING AND STORAGE .......................... 9-1 Cleaning ..................................................... 9-1
Storage ....................................................... 9-2
SPECIFICATIONS ...................................... 10-1
CONSUMER INFORMATION ...................... 11-1 Identification numbers .............................. 11-1
U1PD60E0.book Page 3 Monday, June 13, 2011 2:57 PM

3-1
3
EBU17680
DESCRIPTION
EBU17690Left view
EBU17700Right view
1. Headlights
2. Fuel cock
3. Starter (choke)
4. Fuse
5. Tail/brake light
6. Coolant reservoir
7. Shift pedal
8. Engine oil tank
123 45
6
7
8
1. Spark arrester
2. Seat
3. Fuel tank cap
4. Radiator cap
5. Oil filter element
6. Brake pedal1
23
4
5
6
U1PD60E0.book Page 1 Monday, June 13, 2011 2:57 PM

3-2
3
EBU17712Controls and instrumentsTIPThe ATV you have purchased may differ slightly
from the figures shown in this manual.1. Clutch lever
2. Handlebar switches
3. Parking brake
4. Main switch
5. Throttle lever
6. Brake lever
1
2
3
4
5
6
U1PD60E0.book Page 2 Monday, June 13, 2011 2:57 PM

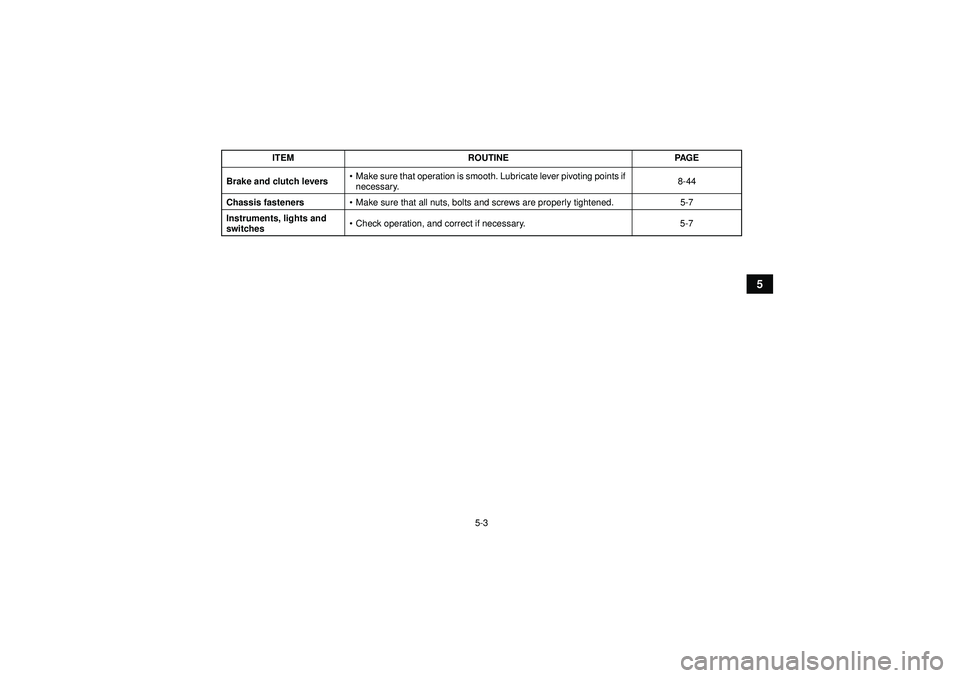

5-3
5
Brake and clutch levers
Make sure that operation is smooth. Lubricate lever pivoting points if
necessary. 8-44
Chassis fasteners Make sure that all nuts, bolts and screws are properly tightened. 5-7
Instruments, lights and
switches
Check operation, and correct if necessary. 5-7
ITEM ROUTINE PAGE
U1PD60E0.book Page 3 Monday, June 13, 2011 2:57 PM

6-1
6
EBU19881
OPERATION
EBU19901Read the Owner’s Manual carefully before riding
the ATV. If there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWB00631Read the Owner ’s Manual carefully to become
familiar with all controls in order to help pre-
vent any loss of control, which could cause an
accident or injury.EBU20184Starting a cold engine NOTICEECB00150See the “Engine break-in ” section on page 6-5
prior to operating the engine for the first time.1. Set the parking brake.
2. Turn the fuel cock to “ON ”.
3. Turn the key to “ON ” and the engine stop
switch to “”. 4. Shift the transmission into neutral. The neutral
indicator light should come on. If the indicator
light does not come on, have a Yamaha deal-
er check the electrical circuit.
TIPThis model is equipped with an ignition circuit cut-
off system. The engine can be started under the
following conditions.
The transmission is in neutral.
The clutch is disengaged with the transmission
in gear. However, it is recommended to shift into
neutral before starting the engine.5. Use the starter (choke) in reference to the fig-ure:
Position (1):
Cold engine start with ambient temperature
below 5 ° C (40 °F).
Position (2):
Cold engine start with ambient temperature
between 0 ° C (30 °F) and 30 ° C (90 °F).
Position (3):
Cold engine start with ambient temperature
above 25 °C (80 °F).
U1PD60E0.book Page 1 Monday, June 13, 2011 2:57 PM

6-3
6

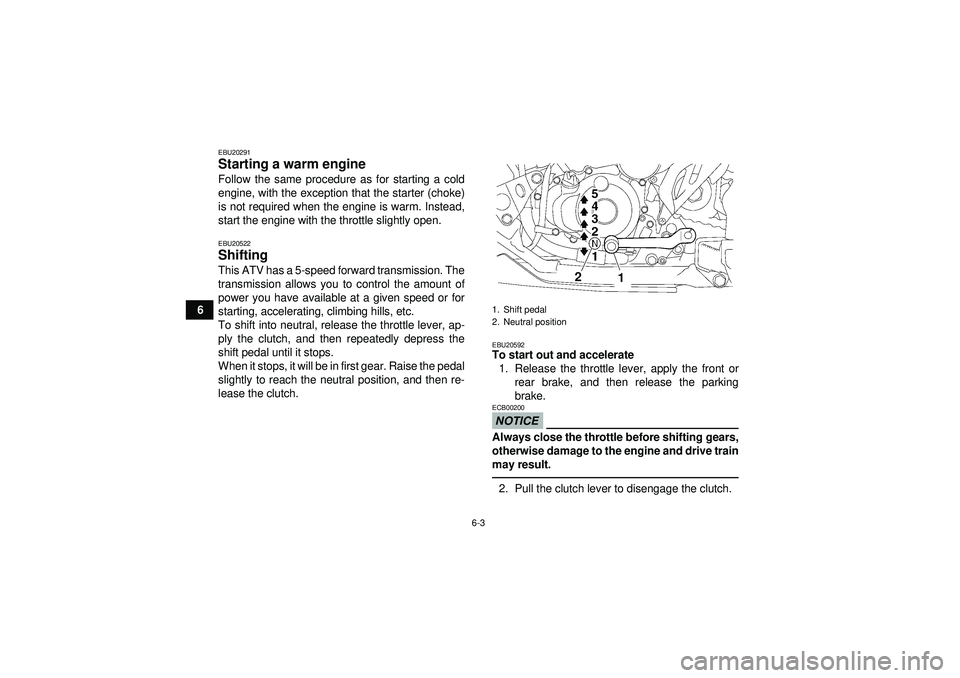

EBU20291Starting a warm engine Follow the same procedure as for starting a cold
engine, with the exception that the starter (choke)
is not required when the engine is warm. Instead,
start the engine with the throttle slightly open.EBU20522Shifting This ATV has a 5-speed forward transmission. The
transmission allows you to control the amount of
power you have available at a given speed or for
starting, accelerating, climbing hills, etc.
To shift into neutral, release the throttle lever, ap-
ply the clutch, and then repeatedly depress the
shift pedal until it stops.
When it stops, it will be in first gear. Raise the pedal
slightly to reach the neutral position, and then re-
lease the clutch.
EBU20592To start out and accelerate1. Release the throttle lever, apply the front or rear brake, and then release the parking
brake.NOTICEECB00200Always close the throttle before shifting gears,
otherwise damage to the engine and drive train
may result.2. Pull the clutch lever to disengage the clutch.1. Shift pedal
2. Neutral position
1
2
U1PD60E0.book Page 3 Monday, June 13, 2011 2:57 PM
