2012 YAMAHA YFM350R-W torque

4-17
4
TIP
A special wrench can be obtained at a Yamaha
dealer to make this adjustment.
The spring preload setting is determined by
measuring distance A, shown in the illustration.
The shorter distance A is, the higher the spring
preload; the longer distance A is, the lower the
spring preload. With each complete turn of the
adjusting nut, distance A is changed by 1.5 mm
(0.06 in).
3. Tighten the locknut to the specified torque.
NOTICE: Always tighten the locknut
against the adjusting nut, and then tighten
it to the specified torque.
[ECB00081]
1. Special wrench
Spring preload setting:
Minimum (soft):
Distance A = 233.5 mm (9.19 in)
Standard:
Distance A = 228.5 mm (9.00 in)
Maximum (hard):
Distance A = 218.5 mm (8.60 in)1. Distance A
1
U10P70E0.book Page 17 Thursday, July 21, 2011 8:51 AM

4-18
4
WARNING
EWB00450This shock absorber assembly contains highly
pressurized nitrogen gas. If the shock absorb-
er assembly is damaged, it could explode
causing injury or property damage. Shock ab-
sorber cylinder damage could also result in
poor handling which could cause an accident.
Do not tamper with or attempt to open the
cylinder assembly.
Do not subject the shock absorber assembly
to an open flame or other high heat.
Do not deform or damage the cylinder in any
way.
Do not dispose of a damaged or worn out
shock absorber assembly yourself. Take the
shock absorber assembly to a Yamaha deal-
er for any service.Tightening torque:
Locknut:
42 Nm (4.2 m·kgf, 30 ft·lbf)
U10P70E0.book Page 18 Thursday, July 21, 2011 8:51 AM

8-2
8
EBU21691Owner’s manual and tool kit Be sure to put this owner’s manual and the low-
pressure tire gauge in the plastic bag and always
carry them along with the owner’s tool kit under the
seat.
The service information included in this manual
and the tools provided in the owner’s tool kit are in-
tended to assist you in the performance of preven-
tive maintenance and minor repairs. However,additional tools such as a torque wrench may be
necessary to perform certain maintenance work
correctly.
TIPIf you do not have the tools or experience required
for a particular job, have a Yamaha dealer perform
it for you.
1. Owner’s manual
2. Owner’s tool kit
3. Low-pressure tire gaugeU10P70E0.book Page 2 Thursday, July 21, 2011 8:51 AM

8-10
8
TIPIf the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-
stead, have a Yamaha dealer check the ATV.2. Check the spark plug for electrode erosion
and excessive carbon or other deposits, and
replace it if necessary.
3. Measure the spark plug gap with a wire thick-
ness gauge and, if necessary, adjust the gap
to specification.
To install the spark plug
1. Clean the surface of the spark plug gasket
and its mating surface, and then wipe off any
grime from the spark plug threads.
2. Install the spark plug with the spark plug
wrench, and then tighten it to the specified
torque. Specified spark plug:
NGK/DR8EA
1. Spark plug gapSpark plug gap:
0.6–0.7 mm (0.024–0.028 in)
U10P70E0.book Page 10 Thursday, July 21, 2011 8:51 AM

8-11
8

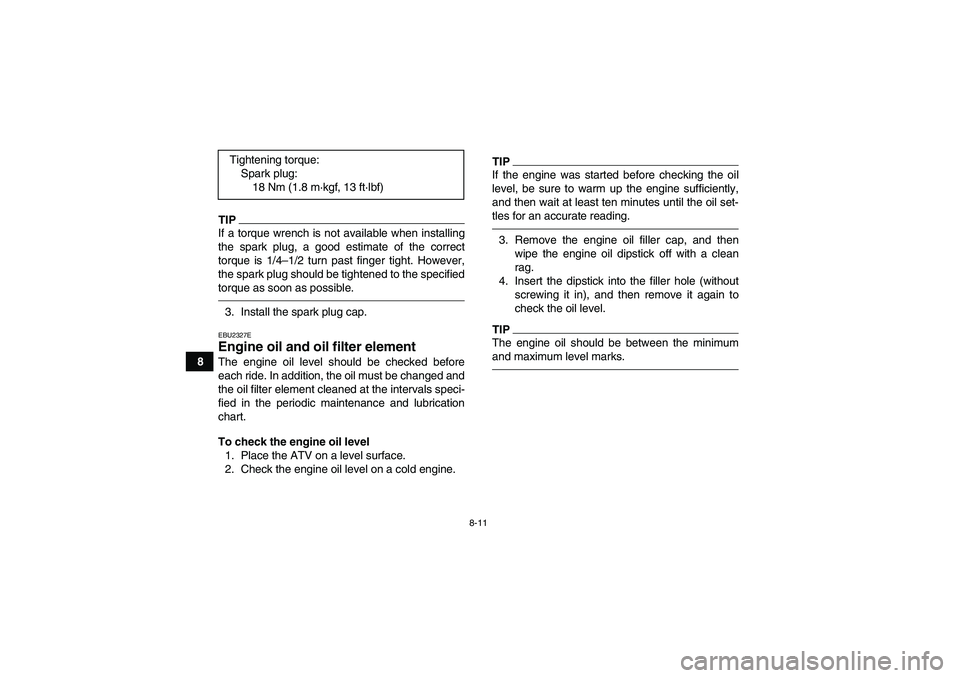

TIPIf a torque wrench is not available when installing
the spark plug, a good estimate of the correct
torque is 1/4–1/2 turn past finger tight. However,
the spark plug should be tightened to the specified
torque as soon as possible.3. Install the spark plug cap.EBU2327EEngine oil and oil filter element The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter element cleaned at the intervals speci-
fied in the periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Check the engine oil level on a cold engine.
TIPIf the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least ten minutes until the oil set-
tles for an accurate reading.3. Remove the engine oil filler cap, and then
wipe the engine oil dipstick off with a clean
rag.
4. Insert the dipstick into the filler hole (without
screwing it in), and then remove it again to
check the oil level.TIPThe engine oil should be between the minimum
and maximum level marks.
Tightening torque:
Spark plug:
18 Nm (1.8 m·kgf, 13 ft·lbf)
U10P70E0.book Page 11 Thursday, July 21, 2011 8:51 AM

8-13
8
TIPSkip steps 5–9 if the oil filter element is not being
cleaned.5. Remove the oil filter element cover by remov-
ing the bolts, and then remove the oil filter el-
ement and the O-ring.6. Clean the oil strainer and oil filter element with
solvent.
7. Install the oil filter element and a new O-ring.
TIPMake sure that the O-ring is properly seated.8. Apply a thin coat of clean engine oil to the O-
ring.
9. Install the oil filter element cover by installing
the bolts, and then tighten them to the speci-
fied torque.
1. Engine oil drain bolt
2. O-ring
3. Compression spring
4. Oil strainer
1. Oil filter element cover
2. Bolt
3. Oil filter element
4. O-ring
U10P70E0.book Page 13 Thursday, July 21, 2011 8:51 AM

8-14
8 10. Apply a thin coat of clean engine oil to a new
O-ring.
11. Install the oil strainer, the compression spring,
the new O-ring and the engine oil drain bolt.
Tighten the engine oil drain bolt to the speci-
fied torque. NOTICE: Before installing theengine oil drain bolt, be sure to install the
O-ring, compression spring and oil strain-
er.
[ECB00321]
12. Refill with the specified amount of the recom-
mended engine oil, and then install and tight-
en the engine oil filler cap.TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down.
Tightening torque:
Oil filter element cover bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)1. Engine oil drain bolt
2. O-ring
3. Compression spring
4. Oil strainer
Tightening torque:
Engine oil drain bolt:
32 Nm (3.2 m·kgf, 23 ft·lbf)
Recommended oil:
See page 10-1.
Oil quantity:
Without oil filter element replacement:
2.50 L (2.64 US qt, 2.20 Imp.qt)
With oil filter element replacement:
2.60 L (2.75 US qt, 2.29 Imp.qt)
U10P70E0.book Page 14 Thursday, July 21, 2011 8:51 AM

8-19
84. Insert the tailpipe into the muffler and align the
bolt holes.
5. Install the bolt and tighten it to the specified
torque.
6. Remove the purging bolt and the gasket.7. Start the engine and rev it up approximately
twenty times while momentarily creating ex-
haust system back pressure by blocking the
end of the muffler with a shop towel.
8. Stop the engine and allow the exhaust pipe to
cool.
9. Check the gasket for damage, and replace it if
necessary.
10. Install the gasket and the purging bolt, and
then tighten the bolt to the specified torque.
1. Tailpipe
2. Spark arresterTightening torque:
Tailpipe bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1. Purging bolt
2. Gasket
