2012 YAMAHA YFM350R-W engine

4-3
4
EBU18061Handlebar switches
EBU18080Engine stop switch“/”
Set this switch to“” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to“”.EBU18101Start switch“”
Push this switch to crank the engine with the start-
er. See the starting instructions on page 6-1 prior
to starting the engine.
1. Light switch“//”
2. Hazard switch“”
3. Turn signal switch“/”
4. Horn switch“”
5. Start switch“”
1. Engine stop switch“/”
U10P70E0.book Page 3 Thursday, July 21, 2011 8:51 AM

4-4
4
EBU28063Light switch“//”
Set the switch to“” to turn on the high beam.
Set this switch to“” to turn on the low beam.
Set the switch to“” to turn off the headlight.NOTICEECB00033Do not use the headlight with the engine turned
off for an extended period of time, otherwise
the battery may discharge to the point that the
starter motor will not operate properly. If this
should happen, remove the battery and re-
charge it. (See page 8-38.)EBU27990Turn signal switch“/”
To signal a right-hand turn, push this switch
to“”. To signal a left-hand turn, push this switch
to“”. When released, the switch returns to the
center position. To cancel the turn signal lights,
push the switch in after it has returned to the center
position.EBU18170Horn switch“”
Press the switch to sound the horn.
EBU28001Hazard switch“”
With the key in the “ON” position, use this switch to
turn on the hazard lights (simultaneous flashing of
all turn signal lights).
The hazard lights are used in case of an emergen-
cy or to warn other drivers when your vehicle is
stopped where it might be a traffic hazard.NOTICEECB00860Do not use the hazard lights for an extended
length of time with the engine not running, oth-
erwise the battery may discharge.EBU18282Throttle lever Once the engine is running, pushing the throttle le-
ver will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the throttle lever is re-
leased.
U10P70E0.book Page 4 Thursday, July 21, 2011 8:51 AM

4-5
4
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
EBU18323Speed limiter Your ATV is equipped with an adjustable speed
limiter. The speed limiter keeps the throttle from
fully opening, even when the throttle lever is
pushed to the maximum.
1. Loosen the locknut.
2. To increase the maximum engine power avail-
able and the maximum speed of the ATV, turn
the adjusting screw in direction (a). To de-
crease the maximum engine power available
and the maximum speed of the ATV, turn the
adjusting screw in direction (b). Do not turnthe adjusting screw out more than 12 mm
(0.47 in) or the throttle cable could be dam-
aged. Always make sure the throttle lever free
play is adjusted to 2.0–4.0 mm (0.08–0.16 in).
(See page 8-21.) WARNING! Improper ad-
justment of the speed limiter and throttle
could cause throttle cable damage or im-
proper throttle operation. You could lose
control, resulting in an accident.
[EWB00241]
3. Tighten the locknut.
1. Throttle lever
1. Locknut
2. Adjusting screw
3. No more than 12 mm (0.47 in)
U10P70E0.book Page 5 Thursday, July 21, 2011 8:51 AM

4-7

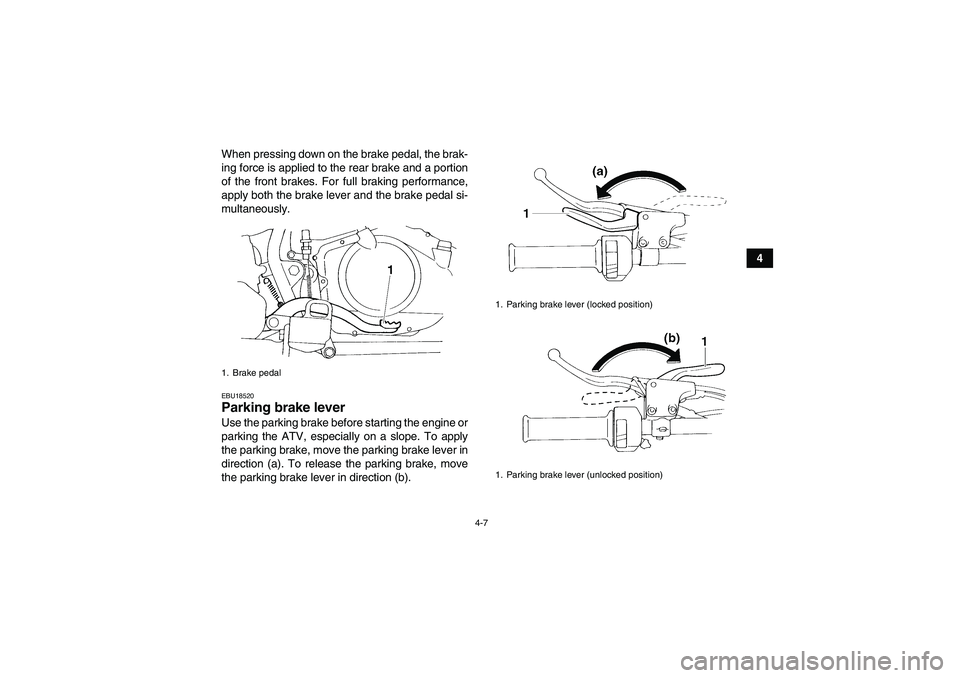

4 When pressing down on the brake pedal, the brak-
ing force is applied to the rear brake and a portion
of the front brakes. For full braking performance,
apply both the brake lever and the brake pedal si-
multaneously.
EBU18520Parking brake lever Use the parking brake before starting the engine or
parking the ATV, especially on a slope. To apply
the parking brake, move the parking brake lever in
direction (a). To release the parking brake, move
the parking brake lever in direction (b).1. Brake pedal
1. Parking brake lever (locked position)
1. Parking brake lever (unlocked position)
U10P70E0.book Page 7 Thursday, July 21, 2011 8:51 AM

4-8
4
WARNING
EWB00220
Always set the parking brake before starting
the engine. The ATV could start moving un-
expectedly if the parking brake is not ap-
plied. This could cause loss of control or a
collision.
Always be sure you have released the park-
ing brake before you begin to ride. The brake
could overheat if you ride the ATV without re-
leasing the parking brake. You could lose
braking performance which could cause an
accident. You could also wear out the brakes
prematurely.EBU18530Shift pedal This ATV is equipped with a constant-mesh 6-
speed transmission. The shift pedal is located on
the left side of the engine and is used in combina-
tion with the clutch when shifting.
EBU18571Drive select lever The drive select lever is used for driving the ATV
either forward or in reverse. See the “Operating the
drive select lever and driving in reverse” section on
page 6-3 for the drive select lever operation.1. Shift pedal
U10P70E0.book Page 8 Thursday, July 21, 2011 8:51 AM

4-9
4
EBU18720Fuel tank cap Remove the fuel tank cap by turning it counter-
clockwise.
EBU28942Fuel Make sure there is sufficient gasoline in the tank.
WARNING
EWB02521Gasoline and gasoline vapors are extremely
flammable. To avoid fires and explosions and
to reduce the risk of injury when refueling, fol-
low these instructions.1. Before refueling, turn off the engine and be
sure that no one is sitting on the vehicle. Nev-
er refuel while smoking, or while in the vicinity
1. Drive select lever
1. Fuel tank cap
U10P70E0.book Page 9 Thursday, July 21, 2011 8:51 AM

4-11
4
NOTICEECB00070Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and piston
rings, as well as to the exhaust system.Your Yamaha engine has been designed to use
regular unleaded gasoline with a research octane
number of 91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand. Use of un-
leaded fuel will extend spark plug life and reduce
maintenance costs.EBU18820Fuel cock The fuel cock supplies fuel from the tank to the car-
buretor while also filtering it.
The fuel cock lever positions are explained as fol-
lows and shown in the illustrations.OFF
With the fuel cock lever in this position, fuel will not
flow. Always turn the fuel cock lever to this position
when the engine is not running.
1. Arrow mark pointing to “OFF”
U10P70E0.book Page 11 Thursday, July 21, 2011 8:51 AM

4-12
4ON
With the fuel cock lever in this position, fuel flows
to the carburetor. Turn the fuel cock lever to this
position when starting the engine and riding.RES
This indicates reserve. With the fuel cock lever in
this position, the fuel reserve is made available.
Turn the fuel cock lever to this position if you run
out of fuel while riding. When this occurs, refuel as
soon as possible and be sure to turn the fuel cock
lever back to “ON”!
EBU18850Starter (choke)“” Starting a cold engine requires a richer air-fuel mix-
ture, which is supplied by the starter (choke).
Move the starter (choke) in direction (a) to turn on
the starter (choke).
1. Arrow mark pointing to “ON”
1. Arrow mark pointing to “RES”
