2-1
2
EBU17431

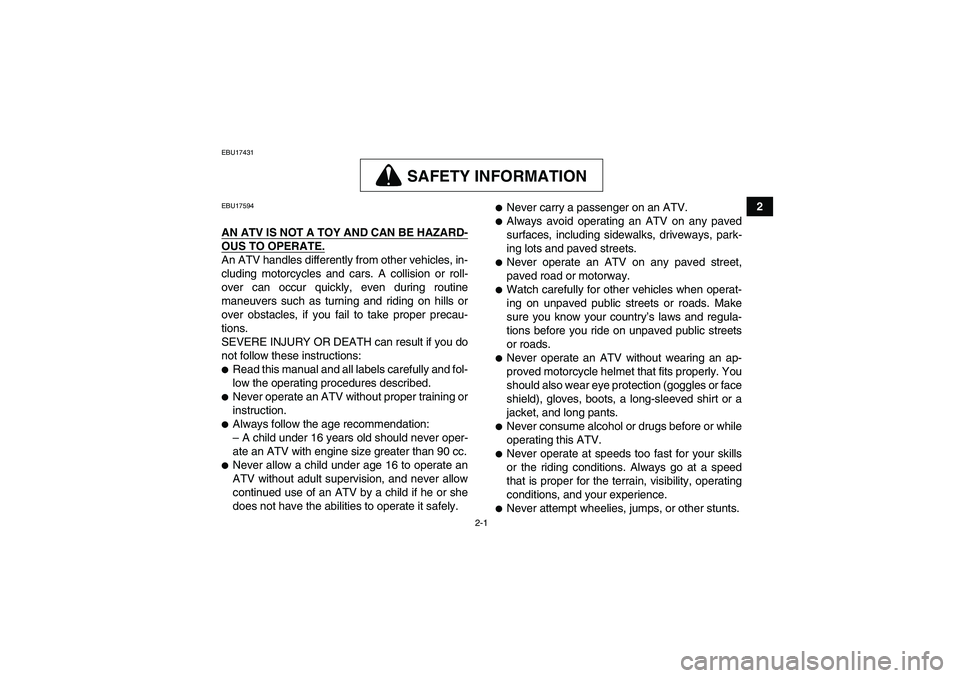

SAFETY INFORMATION
EBU17594AN ATV IS NOT A TOY AND CAN BE HAZARD-OUS TO OPERATE.An ATV handles differently from other vehicles, in-
cluding motorcycles and cars. A collision or roll-
over can occur quickly, even during routine
maneuvers such as turning and riding on hills or
over obstacles, if you fail to take proper precau-
tions.
SEVERE INJURY OR DEATH can result if you do
not follow these instructions:Read this manual and all labels carefully and fol-
low the operating procedures described.Never operate an ATV without proper training or
instruction.Always follow the age recommendation:
– A child under 16 years old should never oper-
ate an ATV with engine size greater than 90 cc.Never allow a child under age 16 to operate an
ATV without adult supervision, and never allow
continued use of an ATV by a child if he or she
does not have the abilities to operate it safely.
Never carry a passenger on an ATV.Always avoid operating an ATV on any paved
surfaces, including sidewalks, driveways, park-
ing lots and paved streets.Never operate an ATV on any paved street,
paved road or motorway.Watch carefully for other vehicles when operat-
ing on unpaved public streets or roads. Make
sure you know your country’s laws and regula-
tions before you ride on unpaved public streets
or roads.Never operate an ATV without wearing an ap-
proved motorcycle helmet that fits properly. You
should also wear eye protection (goggles or face
shield), gloves, boots, a long-sleeved shirt or a
jacket, and long pants.Never consume alcohol or drugs before or while
operating this ATV.Never operate at speeds too fast for your skills
or the riding conditions. Always go at a speed
that is proper for the terrain, visibility, operating
conditions, and your experience.Never attempt wheelies, jumps, or other stunts.
U33B71E0.book Page 1 Wednesday, August 10, 2011 9:01 AM
10-3
10
Size:
AT21 x 7-10
Manufacturer/model:
MAXXIS/C9207Rear tire:Type:
Tubeless
Size:
AT20 x 10-9
Manufacturer/model:
MAXXIS/M976Loading:Maximum loading limit:
100.0 kg (220 lb)
(Total weight of rider, cargo, accessories, and tongue)Tire air pressure (measured on cold tires):Recommended:
Front:
27.5 kPa (0.275 kgf/cm², 4.0 psi)
Rear:
27.5 kPa (0.275 kgf/cm², 4.0 psi)
Minimum:
Front:
24.5 kPa (0.245 kgf/cm², 3.6 psi)
Rear:
24.5 kPa (0.245 kgf/cm², 3.6 psi)Front wheel:Wheel type:
Panel wheel
Rim size:
10 x 5.5AT
Rear wheel:Wheel type:
Panel wheel
Rim size:
9 x 8.5ATFront brake:Type:
Disc brake
Operation:
Right hand operation
Specified brake fluid:
DOT 4Rear brake:Type:
Disc brake
Operation:
Right foot operation
Specified brake fluid:
DOT 4Front suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
190 mm (7.5 in)Rear suspension:Type:
Swingarm
Spring/shock absorber type:
Coil spring/gas-oil damper
U33B71E0.book Page 3 Wednesday, August 10, 2011 9:01 AM
