INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU59110
Engine trou ble warnin g lig ht “ ”
This warning light comes on or flashes
if a problem is detected in the electrical
circuit monitoring the engine. If this oc-
curs, have a Yamaha dealer check the
self-diagnosis system. (See page 3-11
for an explanation of the self-diagnosis
device.)
The electrical circuit of the warning
light can be checked by turning the key
to “ON”. The warning light should
come on for a few seconds, and then
go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.TIPThe engine trouble warning light will
come on while the start switch is
pushed, but this does not indicate a
malfunction.
EAU51781
ABS warnin g li ght “ ” (for ABS
mo dels)
In normal operation, the ABS warning
light comes on when the key is turned
to “ON”, and goes off after traveling at
a speed of 10 km/h (6 mi/h) or higher.
If the ABS warning light:  does not come on when the key is
turned to “ON”
 comes on or flashes while riding
 does not go off after traveling at a
speed of 10 km/h (6 mi/h) or high-
er
The ABS may not work correctly. If any
of the above occurs, have a Yamaha
dealer check the system as soon as
possible. (See page 3-14 for an expla-
nation of the ABS.)
WARNING
EWA16041
If the ABS warnin g li ght does not g o
off after travelin g at a speed of 10
km/h (6 mi/h) or hi gher, or if the
warnin g li ght comes on or flashes
while ri din g, the brake system re-
verts to conventional brakin g. If ei-
ther of the ab ove occurs, or if the
warnin g li ght does not come on at all, use extra caution to avoi
d possi-
b le wheel lock durin g emer gency
b rakin g. Have a Yamaha d ealer
check the brake system an d electri-
cal circuits as soon as possi ble.
TIPIf the start switch is pushed while the
engine is running, the ABS warning
light will come on, but this is not a mal-
function.
EAU38626
Immo bilizer system in dicator li ght
When the key is turned to “OFF” and
30 seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”. The indicator light should
come on for a few seconds, and then
go off.
ABS
U1CWE4E0.book Page 7 Wednesday, August 6, 2014 2:59 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
If the indicator light does not come on
initially when the key is turned to “ON”,
or if the indicator light remains on, have
a Yamaha dealer check the electrical
circuit.
The self-diagnosis device also detects
problems in the immobilizer system
circuits. (See page 3-11 for an expla-
nation of the self-diagnosis device.)
EAU46767
Multi-function meter unit
WARNING
EWA12423
Be sure to stop the vehicle
before
makin g any settin g chan ges to the
multi-function meter unit. Chan gin g
settin gs while ri din g can distract the
operator an d increase the risk of an
acci dent.
The multi-function meter unit is
equipped with the following:
 a speedometer
 a tachometer
 an odometer
 two tripmeters (which show the
distance traveled since they were
last set to zero)
 a fuel reserve tripmeter (which
shows the distance traveled since
the left segment of the fuel meter
started flashing)
 a clock
 a fuel meter
 a coolant temperature display
 a self-diagnosis deviceTIPBe sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons.
 For the UK only: To switch the
speedometer and odometer/trip-
meter displays between kilome-
ters and miles, press the
“SELECT” button for at least one
second.
1. Fuel meter
2. Coolant temperature display
3. Speedometer
4. Tachometer
5. Odometer/tripmeter/fuel reserve tripmeter
6. “SELECT” button
7. “RESET” button
8. Clock
ABS
1
8
2
3
4
7
6
5
U1CWE4E0.book Page 8 Wednesday, August 6, 2014 2:59 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
EAU1234H
Handle bar switchesLeft Ri
ght
EAU12351
Pass switch “ ”
Press this switch to flash the headlight.
EAU12401
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12461
Turn si gnal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the cen- ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
EAU12661
En
gine stop switch “ / ”
Set this switch to “ ” before starting
the engine. Set this switch to “ ” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12713
Start switch “ ”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU44712
The engine trouble warning light and
ABS warning light (ABS model only)
may come on when the key is turned to
“ON” and the start switch is pushed,
but this does not indicate a malfunc-
tion.
1. Pass switch “ ”
2. Dimmer switch “ / ”
3. Turn signal switch “ / ”
4. Horn switch “ ”
5. Hazard switch “ ”
1. Engine stop switch “ / ”
2. Start switch “ ”
U1CWE4E0.book Page 12 Wednesday, August 6, 2014 2:59 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-24
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.
YES NO YES NO YES NO
The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.The sidestand switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.• The vehicle must be placed on the center-
stand during this inspection.• If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
”.
U1CWE4E0.book Page 24 Wednesday, August 6, 2014 2:59 PM

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15952
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10272
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which coul d cause an acci dent
or injury.
EAU47152
TIPThis model is equipped with:  a lean angle sensor to stop the en-
gine in case of a turnover. In this
case, the display will indicate error
code 30, but this is not a malfunc-
tion. Turn the key to “OFF” and
then to “ON” to clear the error
code. Failing to do so will prevent
the engine from starting even
though the engine will crank when
pushing the start switch.
 an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. In this case,
the display will indicate error code
70, but this is not a malfunction.
Push the start switch to clear the
error code and to restart the en-
gine.
EAU51792
Startin g the en gineIn order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
 The transmission is in the neutral
position.
 The transmission is in gear with
the clutch lever pulled and the
sidestand up.
See page 3-23 for more informa-
tion.
1. Turn the key to “ON” and make sure that the engine stop switch is
set to “ ”.
The following warning lights and
indicator light should come on for
a few seconds, then go off. Oil level warning light
 Coolant temperature warning
light
 Engine trouble warning light
 Immobilizer system indicator
lightNOTICE
ECA17671
If the a bove warnin g li ghts or ind ica-
tor li ght do not come on initially
when the key is turned to “ON”, or if
U1CWE4E0.book Page 1 Wednesday, August 6, 2014 2:59 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-46

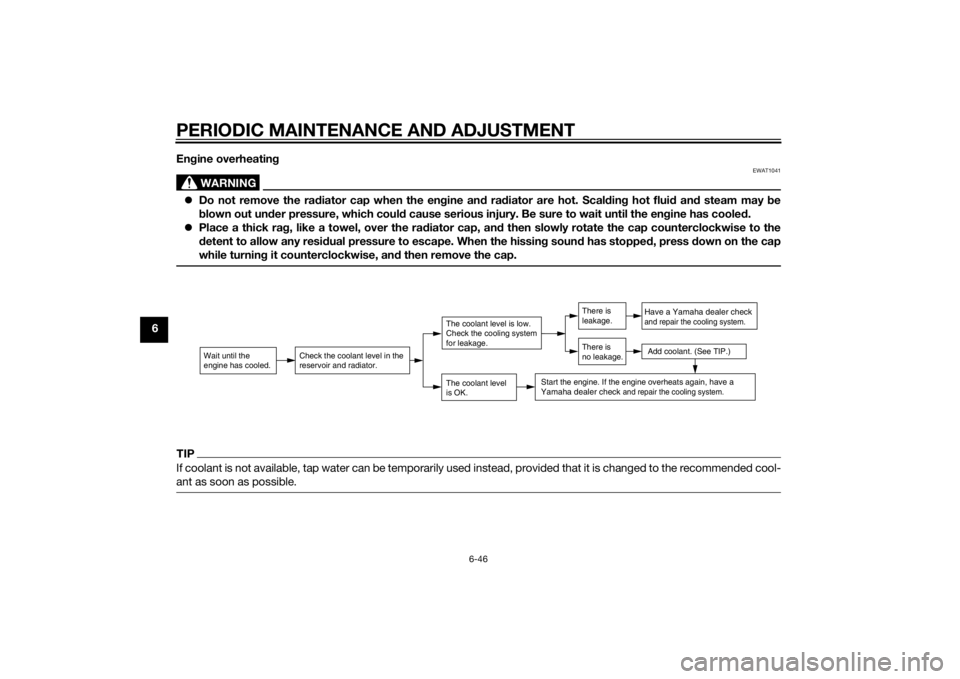

6En
gine overheatin g
WARNING
EWAT1041
Do not remove the ra diator cap when the en gine an d ra diator are hot. Scal din g hot flui d an d steam may be
b lown out un der pressure, which coul d cause serious injury. Be sure to wait until the en gine has coole d.
 Place a thick ra g, like a towel, over the ra diator cap, an d then slowly rotate the cap counterclockwise to the
d etent to allow any resi dual pressure to escape. When the hissin g soun d has stoppe d, press d own on the cap
while turnin g it counterclockwise, an d then remove the cap.TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended cool-
ant as soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U1CWE4E0.book Page 46 Wednesday, August 6, 2014 2:59 PM

10-1
10
INDEX
AABS (for ABS models) .......................... 3-14
ABS warning light (for ABS models) ....... 3-7
Air filter element, replacing ................... 6-18
Auxiliary light bulb ................................ 6-38BBattery .................................................. 6-34
Brake and clutch levers, checking and lubricating........................................... 6-31
Brake and shift pedals, checking and lubricating........................................... 6-30
Brake fluid, changing............................ 6-27
Brake fluid level, checking.................... 6-26
Brake lever............................................ 3-14
Brake lever free play, checking ............ 6-24
Brake light switches ............................. 6-25
Brake pedal .......................................... 3-14CCables, checking and lubricating ......... 6-30
Care ........................................................ 7-1
Catalytic converter ............................... 3-18
Centerstand and sidestand, checking and lubricating ................................... 6-32
Clutch lever........................................... 3-13
Clutch lever free play, adjusting ........... 6-23
Coolant ................................................. 6-15
Coolant temperature warning light ......... 3-4
Cowlings and panels, removing and installing ............................................... 6-8DDimmer switch...................................... 3-12
Drive chain, cleaning and lubricating ... 6-29
Drive chain slack .................................. 6-28
EEngine break-in ...................................... 5-3
Engine idling speed.............................. 6-19
Engine oil and oil filter cartridge........... 6-12
Engine serial number ............................. 9-1
Engine stop switch............................... 3-12
Engine trouble warning light .................. 3-7FFront and rear brake pads, checking ... 6-25
Front fork, checking ............................. 6-33
Fuel ...................................................... 3-16
Fuel consumption, tips for reducing ...... 5-3
Fuel tank breather hose and overflow hose ................................................... 3-17
Fuel tank cap........................................ 3-15
Fuses, replacing ................................... 6-35HHandlebar position, adjusting .............. 3-20
Handlebar switches ............................. 3-12
Hazard switch ...................................... 3-13
Headlight bulb, replacing ..................... 6-37
Helmet holder....................................... 3-19
High beam indicator light ....................... 3-4
Horn switch .......................................... 3-12IIdentification numbers ........................... 9-1
Ignition circuit cut-off system .............. 3-23
Immobilizer system ................................ 3-1
Immobilizer system indicator light ......... 3-7
Indicator lights and warning lights ......... 3-4LLicense plate light bulb, replacing ....... 6-40MMain switch/steering lock ...................... 3-2 Maintenance and lubrication, periodic ... 6-4
Maintenance, emission control
system .................................................. 6-3
Matte color, caution................................ 7-1
Model label ............................................. 9-1
Multi-function meter unit ........................ 3-8
NNeutral indicator light ............................. 3-4OOil level warning light .............................. 3-4PParking.................................................... 5-4
Part locations.......................................... 2-1
Pass switch........................................... 3-12RRear view mirrors .................................. 3-21SSafety information................................... 1-1
Seat....................................................... 3-18
Shifting.................................................... 5-2
Shift pedal............................................. 3-13
Shock absorber assembly, adjusting ... 3-21
Sidestand.............................................. 3-22
Spark plugs, checking .......................... 6-11
Specifications ......................................... 8-1
Starting the engine ................................. 5-1
Start switch ........................................... 3-12
Steering, checking ................................ 6-33
Storage ................................................... 7-4
Storage compartment........................... 3-20
Swingarm pivots, lubricating ................ 6-32TTail/brake light bulb, replacing ............. 6-39
U1CWE4E0.book Page 1 Wednesday, August 6, 2014 2:59 PM
