Equipment operation
41
To open the bow storage compartment:
Pull the hood latch up, and then lift up the rear
of the hood.To close the bow storage compartment:Push the rear of the hood down to securely
lock it in place.
To drain water from the bow storage compart-
ment:
(1) Remove the drain plug on the bottom of
the storage compartment to drain the wa-
ter into the engine compartment.
(2) Securely install the drain plug in its origi-
nal position.
EJU41550Glove compartment
The glove compartment is located in front of
the seat.
The glove compartment is removable.
1Hood latch
1Bow storage compartment
Bow storage compartment:
Capacity:
50.0 L (13.2 US gal, 11.0 Imp.gal)
Load limit:
5.0 kg (11 lb)
1
1
1Drain plug
1
UF2N72E0.book Page 41 Monday, July 4, 2011 1:10 PM

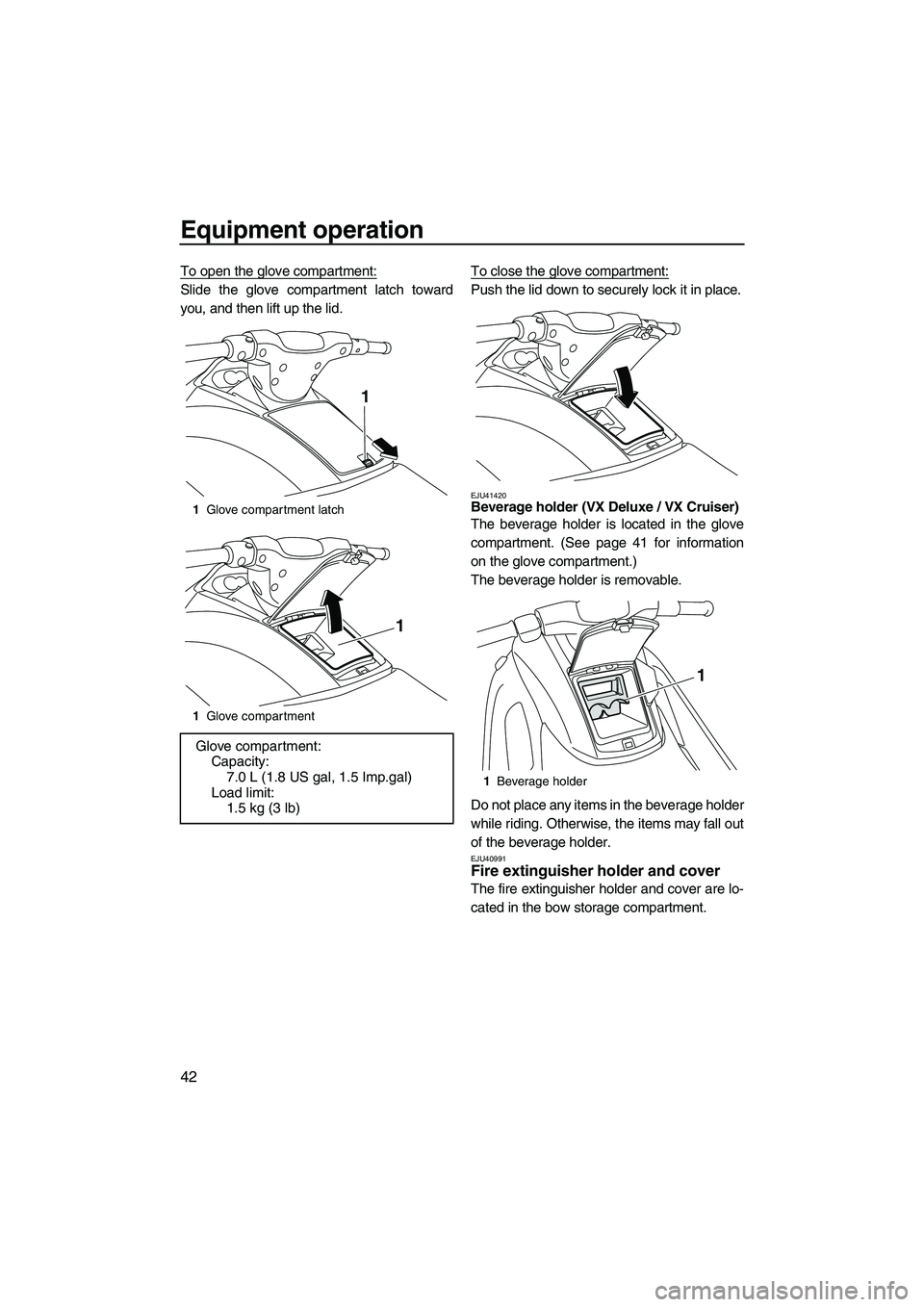

Equipment operation
42
To open the glove compartment:
Slide the glove compartment latch toward
you, and then lift up the lid.To close the glove compartment:Push the lid down to securely lock it in place.
EJU41420Beverage holder (VX Deluxe / VX Cruiser)
The beverage holder is located in the glove
compartment. (See page 41 for information
on the glove compartment.)
The beverage holder is removable.
Do not place any items in the beverage holder
while riding. Otherwise, the items may fall out
of the beverage holder.
EJU40991Fire extinguisher holder and cover
The fire extinguisher holder and cover are lo-
cated in the bow storage compartment.
1Glove compartment latch
1Glove compartment
Glove compartment:
Capacity:
7.0 L (1.8 US gal, 1.5 Imp.gal)
Load limit:
1.5 kg (3 lb)
1
1
1Beverage holder
1
UF2N72E0.book Page 42 Monday, July 4, 2011 1:10 PM
Specifications
80
EJU34542
Specifications
Watercraft capacity:
Maximum people on board:
3 person
Maximum load capacity:
240 kg (530 lb)
Dimensions:
Length:
VX Sport 3220 mm (126.8 in)
VX Deluxe 3220 mm (126.8 in)
VX Cruiser 3270 mm (128.7 in)
Width:
1170 mm (46.1 in)
Height:
1160 mm (45.7 in)
Dry weight:
VX Sport 334 kg (736 lb)
VX Deluxe 337 kg (743 lb)
VX Cruiser 340 kg (750 lb)
Performance:
Maximum output (according to ISO 8665/SAE
J1228):
75.0 kW@8000 r/min
Maximum fuel consumption:
25.7 L/h (6.8 US gal/h, 5.7 Imp.gal/h)
Cruising range at full throttle:
2.33 hour
Trolling speed:
1650 ±50 r/min
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Number of cylinders:
4
Engine displacement:
1052 cm³
Bore & stroke:
76.0 × 58.0 mm (2.99 × 2.28 in)
Compression ratio:
11.4 : 1
Valve clearance-intake (cold):
0.11–0.20 mm (0.0043–0.0079 in)
Valve clearance-exhaust (cold):
0.25–0.34 mm (0.0098–0.0134 in)
Lubrication system:
Dry sump
Cooling system:
WaterStarting system:
Electric
Ignition system:
T.C.I.
Spark plug:
CR9EB
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Battery capacity:
12 V, 19 Ah
Charging system:
Flywheel magneto
Drive unit:
Propulsion system:
Jet pump
Jet pump type:
Axial flow, single stage
Impeller rotation:
Counterclockwise
Jet thrust nozzle angle:
24.0+24.0 °
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Minimum octane rating (PON):
86
Minimum octane rating (RON):
90
Recommended engine oil type SAE:
SAE 10W-30, 10W-40, 20W-40, 20W-50
Recommended engine oil grade API:
API SE,SF,SG,SH,SJ,SL
Fuel tank total capacity:
60 L (15.9 US gal, 13.2 Imp.gal)
Engine oil quantity with oil filter replacement:
2.2 L (2.33 US qt, 1.94 Imp.qt)
Engine oil quantity without oil filter replacement:
2.0 L (2.11 US qt, 1.76 Imp.qt)
Engine oil total quantity:
4.3 L (4.55 US qt, 3.78 Imp.qt)
UF2N72E0.book Page 80 Monday, July 4, 2011 1:10 PM
