2012 YAMAHA TMAX stop start

INSTRUMENT AND CONTROL FUNCTIONS
3-4
234
5
6
7
8
9
If the indicator light does not come on
initially when the key is turned to “ON”,
or if the indicator light remains on, have
a Yamaha dealer check the electrical
circuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
The self-diagnosis device also detects
problems in the immobilizer system cir-
cuits. (See page 3-11 for an explana-
tion of the self-diagnosis device.)
EAU11601
Speedometer The speedometer shows the riding
speed.
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir-
cuit.
EAU11872
Tachometer The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.NOTICE
ECA10031
Do not operate the engine in the ta-
chometer red zone.Red zone: 8250 r/min and above
1. Speedometer1
1. Tachometer red zone
2. Tachometer
2
1
59C-9-E0.book 4 ページ ２０１１年９月１１日　日曜日　午前９時２７分

INSTRUMENT AND CONTROL FUNCTIONS
3-8
234
5
6
7
8
9
Oil change indicator “Oil”
This indicator flashes at the initial 1000
km (600 mi), then at 5000 km (3000 mi)
and every 5000 km (3000 mi) thereafter
to indicate that the engine oil should be
changed.
After changing the engine oil, reset the
oil change indicator. To reset the oil
change indicator, select it by pushing
the left set button until “Oil Trip” is dis-
played, and then push the left set but-
ton at least one second. When pushing
the left set button, “Oil Trip” starts flash-
ing. While “Oil Trip” is flashing, push the
left set button for at least three sec-
onds.
If the engine oil is changed before the oil change indicator “Oil” flashes (i.e.
before the periodic oil change interval
has been reached), the indicator “Oil”
must be reset after the oil change for
the next periodic oil change to be indi-
cated at the correct time.
The electrical circuit of the indicator can
be checked according to the following
procedure.
1. Set the engine stop switch to “ ” and turn the key to “ON”.
2. Check that the oil change indicator comes on for a few seconds and
then goes off.
3. If the oil change indicator does not come on, have a Yamaha dealer
check the electr ical circuit. V-belt replacement indicator
“V-Belt”
This indicator flashes every 20000 km
(12500 mi) when the V-belt needs to be
replaced.
After changing the V-belt, reset the
V-belt replacement indicator. To reset
the V-belt replacement indicator, select
it by pushing the left set button until
“V-Belt Trip” is displayed, and then
push the left set button at least one sec-
ond. When pushing the left set button,
“V-Belt Trip” starts flashing. While
“V-Belt Trip” is flashing, push the left set
button for at least three seconds.
If the V-belt is changed before the
V-belt replacement indicator “V-Belt”
1. Oil change indicator “Oil”1
1. V-belt replacement indicator “V-Belt”1
59C-9-E0.book 8 ページ ２０１１年９月１１日　日曜日　午前９時２７分

INSTRUMENT AND CONTROL FUNCTIONS
3-12
234
5
6
7
8
9
EAU12331
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU1234A
Handlebar switches LeftRight
EAU12360
Pass switch “PASS”
Press this switch to flash the headlight.
EAU12400
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When re-
leased, the switch returns to the center
1. Pass switch “PASS”
2. Dimmer switch “ / ”
3. Turn signal switch “ / ”
4. Horn switch “ ”
1
2
3
4
1. Engine stop switch “ / ”
2. Hazard switch “ ”
3. Start switch “ ”
1
2
3
59C-9-E0.book 12 ページ ２０１１年９月１１日　日曜日　午前９時２７分

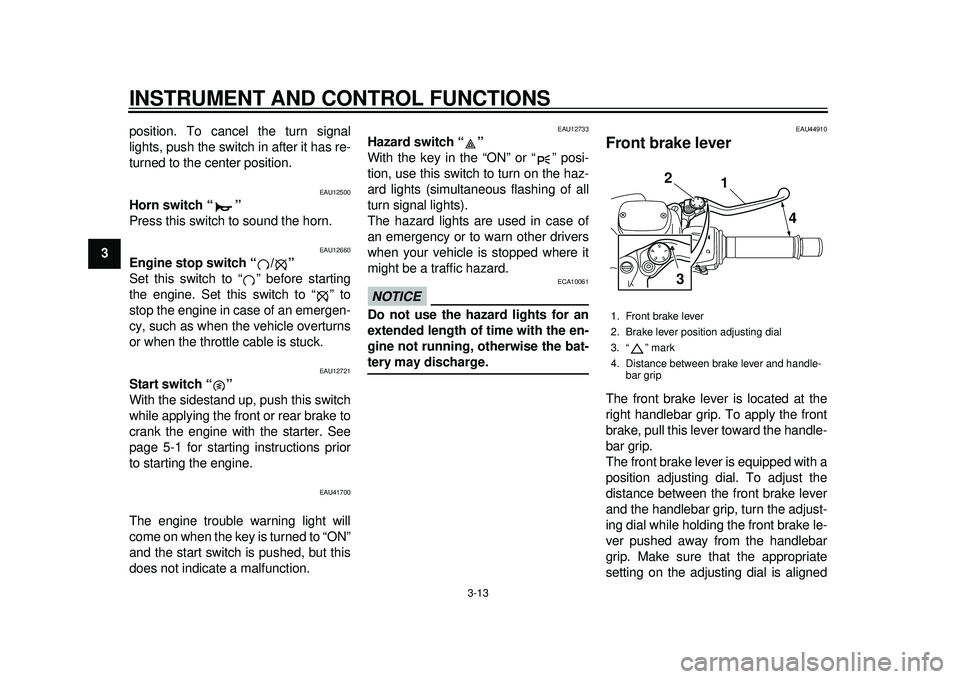

INSTRUMENT AND CONTROL FUNCTIONS
3-13
1
23
4
5
6
7
8
9position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “ ”
Press this switch to sound the horn.
EAU12660
Engine stop switch “ / ”
Set this switch to “ ” before starting
the engine. Set this switch to “ ” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12721
Start switch “ ”
With the sidestand up, push this switch
while applying the front or rear brake to
crank the engine with the starter. See
page 5-1 for starting instructions prior
to starting the engine.
EAU41700
The engine trouble warning light will
come on when the key is turned to “ON”
and the start switch is pushed, but this
does not indicate a malfunction.
EAU12733
Hazard switch “ ”
With the key in the “ON” or “ ” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.NOTICE
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-tery may discharge.
EAU44910
Front brake lever The front brake lever is located at the
right handlebar grip. To apply the front
brake, pull this lever toward the handle-
bar grip.
The front brake lever is equipped with a
position adjusting dial. To adjust the
distance between the front brake lever
and the handlebar grip, turn the adjust-
ing dial while holding the front brake le-
ver pushed away from the handlebar
grip. Make sure that the appropriate
setting on the adjusting dial is aligned1. Front brake lever
2. Brake lever position adjusting dial
3. “ ” mark
4. Distance between brake lever and handle-
bar grip
1
4
2
3
59C-9-E0.book 13 ページ ２０１１年９月１１日　日曜日　午前９時２７分

INSTRUMENT AND CONTROL FUNCTIONS
3-26
234
5
6
7
8
9
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
With the engine still off:
6. Move the sidestand up.
7. Keep the front or rear brake applied.
8. Push the start switch.
Does the engine start?
With the engine still running:
9. Move the sidestand down.
Does the engine stall?
The system is OK. The scooter can be ridden.The sidestand switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
The brake switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO NO YES
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
59C-9-E0.book 26 ページ ２０１１年９月１１日　日曜日　午前９時２７分

5-1
1
2
3
45
6
7
8
9
OPERATION AND IMPORTANT RIDING POINTS
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accidentor injury.
EAU48710
TIPThis model is equipped with:
a lean angle sensor to stop the en-
gine in case of a turnover. In this
case, the multi-function display in-
dicates error code 30, but this is
not a malfunction. Turn the key to
“OFF” and then to “ON” to clear the
error code. Failing to do so will pre-
vent the engine from starting even
though the engine will crank when
pushing the start switch.

an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. If the engine
stops, simply push the start switchto restart the engine.
EAU34465
Starting the engine NOTICE
ECA10250
See page 5-4 for engine break-in in-
structions prior to operating the ve-hicle for the first time.
In order for the ignition circuit cut-off
system to enable starting, the side-
stand must be up.
See page 3-25 for more information.1. Turn the key to “ON” and make sure that the engine stop switch is
set to “ ”.
The following warning light, indica-
tor light and indicators should
come on for a few seconds, then
go off.

Engine trouble warning light

Immobilizer system indicator
light

V-belt replacement indicator

Oil change indicator
NOTICE
ECA15024
If a warning light, indicator light or
indicator does not go off, see pages
3-3, 3-5, 3-8 or 3-11 for the corre-
sponding warning light, indicator
59C-9-E0.book 1 ページ ２０１１年９月１１日　日曜日　午前９時２７分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-37
1
2
3
4
56
7
8
9Engine overheating
WARNING
EWAT1040

Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.

Place a thick rag, like a towel, over the radiator cap, and then slowly rotate the cap counterclockwise to the de-
tent to allow any residual pressure to escape. When the hissing sound has stopped, press down on the capwhile turning it counterclockwise, and then remove the cap.
TIPIf coolant is not available, tap water can be temporarily us
ed instead, provided that it is changed to the recommended coolantas soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
59C-9-E0.book 37 ページ ２０１１年９月１１日　日曜日　午前９時２７分

INDEX
AAcceleration and deceleration ................... 5-2
Air filter element, replacing ...................... 6-15
Anti-theft alarm (optional) ........................ 3-12
Auxiliary light bulb, replacing ................... 6-34BBattery ..................................................... 6-28
Brake fluid, changing ............................... 6-24
Brake fluid level, checking ....................... 6-23
Brake lever, front ..................................... 3-13
Brake lever, rear ...................................... 3-14
Brake levers, lubricating .......................... 6-25
Braking ...................................................... 5-3CCables, checking and lubricating ............. 6-24
Care ........................................................... 7-1
Catalytic converter ................................... 3-18
Centerstand and sidestand, checking and lubricating ....................................... 6-26
Coolant .................................................... 6-14DDimmer switch ......................................... 3-12
Drive belt slack ........................................ 6-24EEngine break-in ......................................... 5-4
Engine idling speed ................................. 6-16
Engine oil and oil filter cartridge .............. 6-11
Engine stop switch................................... 3-13
Engine trouble warning light ...................... 3-3FFront and rear brake lever free play, checking ................................................ 6-20
Front and rear brake pads, checking ....... 6-22
Front fork, checking ................................. 6-26 Fuel ......................................................... 3-16
Fuel consumption, tips for reducing .......... 5-3
Fuel tank cap........................................... 3-15
Fuses, replacing ...................................... 6-30
HHandlebar switches ................................. 3-12
Hazard switch.......................................... 3-13
Headlight bulb, replacing......................... 6-31
Helmet holder .......................................... 3-20
High beam indicator light ........................... 3-3
Horn switch ............................................. 3-13IIdentification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-25
Immobilizer system ................................... 3-1
Immobilizer system indicator light ............. 3-3
Indicator lights and warning light ............... 3-3LLicense plate light bulb, replacing ........... 6-33MMain switch/steering lock .......................... 3-2
Maintenance and lubricatio
n, periodic....... 6-4
Maintenance, emission control system ..... 6-3
Matte color, caution ................................... 7-1
Model label ................................................ 9-1
Multi-function display................................. 3-5PPanels, removing and installing ................ 6-8
Parking ...................................................... 5-4
Part locations ............................................ 2-1
Pass switch ............................................. 3-12RRear brake lock cable, adjusting ............. 6-21
Rear brake lock, checking ....................... 6-21 Rear brake lock lever ............................... 3-15
Rear view mirrors..................................... 3-24
Rider backrest, adjusting .........................3-19
SSafe-riding points .......................................1-5
Safety information ......................................1-1
Seat ......................................................... 3-18
Shock absorber assembly .......................3-24
Sidestand .................................................3-25
Spark plugs, checking ..............................6-10
Specifications.............................................8-1
Speedometer .............................................3-4
Starting off .................................................5-2
Starting the engine.....................................5-1
Start switch ..............................................3-13
Steering, checking ................................... 6-27
Storage ......................................................7-3
Storage compartments ............................3-20TTachometer................................................3-4
Tail/brake light ......................................... 6-32
Throttle grip and cable, checking and
lubricating ..............................................6-25
Throttle grip free play, checking............... 6-17
Tires ......................................................... 6-17
Tool kit .......................................................6-2
Troubleshooting ....................................... 6-34
Troubleshooting charts ............................6-36
Turn signal indicator lights .........................3-3
Turn signal light bulb (front), replacing ....6-32
Turn signal switch .................................... 3-12VValve clearance ....................................... 6-17
Vehicle identificat ion number .....................9-1
59C-9-E0.book 2 ページ ２０１１年９月１１日　日曜日　午前９時２７分
