2012 YAMAHA TMAX display

TABLE OF CONTENTSSAFETY INFORMATION .................. 1-1
Further safe-riding points ................ 1-5
DESCRIPTION .................................. 2-1
Left view .......................................... 2-1
Right view ........................................ 2-2
Controls and instrument s................. 2-3
INSTRUMENT AND CONTROL
FUNCTIONS ....................................... 3-1
Immobilizer system .... ..................... 3-1
Main switch/steering lock ................ 3-2
Indicator lights and warning light .... 3-3
Speedometer .................................. 3-4
Tachometer .................................... 3-4
Multi-function display ...................... 3-5
Anti-theft alarm (opti onal) ............. 3-12
Handlebar switches ...................... 3-12
Front brake lever .......................... 3-13
Rear brake lever ........................... 3-14
Rear brake lock lever .................... 3-15
Fuel tank cap ................................ 3-15
Fuel ............................................... 3-16
Catalytic converter ........................ 3-18
Seat .............................................. 3-18
Adjusting the rider backrest .......... 3-19
Helmet holder ............................... 3-20
Storage compartments ................. 3-20
Windshield .................................... 3-22
Rear view mirrors ......................... 3-24
Shock absorber assembly ............ 3-24 Sidestand ..................................... 3-25
Ignition circuit cut-o
ff system ........ 3-25
FOR YOUR SAFETY –
PRE-OPERATION CHECKS ............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS ................................. 5-1
Starting the engine ......................... 5-1
Starting off ...................................... 5-2
Acceleration and deceleration ........ 5-2
Braking ........................................... 5-3
Tips for reducing fuel consumption ............................... 5-3
Engine break-in .............................. 5-4
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT ................................... 6-1
Owner’s tool kit ............................... 6-2
Periodic maintenance chart for the emission contro l system ....... 6-3
General maintenance and
lubrication chart .......................... 6-4
Removing and installing panels ..... 6-8
Checking the spark plugs ............. 6-10
Engine oil and oil filter cartridge ... 6-11
Coolant ......................................... 6-14
Replacing the air filter element ..... 6-15
Adjusting the engine idling speed ........................................ 6-16 Checking the throttle grip free
play ............................................ 6-17
Valve clearance ............................ 6-17
Tires .............................................. 6-17
Cast wheels .................................. 6-19
Checking the front and rear brake lever free play .................. 6-20
Adjusting the rear brake lock
cable .......................................... 6-21
Checking the rear brake lock ........ 6-21
Checking the front and rear
brake pads ................................. 6-22
Checking the brake fluid level ....... 6-23
Changing the brake fluid ............... 6-24
Drive belt slack ............................. 6-24
Checking and lubricating the cables ........................................ 6-24
Checking and lubricating the throttle grip and cable ................ 6-25
Lubricating the front and rear
brake levers ............................... 6-25
Checking and lubricating the centerstand and sidestand ........ 6-26
Checking the front fork .................. 6-26
Checking the steering ................... 6-27
Checking the wheel bearings ........ 6-27
Battery .......................................... 6-28
Replacing the fuses ...................... 6-30
Replacing the headlight bulb ........ 6-31
Tail/brake light .............................. 6-3259C-9-E0.book 1 ページ ２０１１年９月１１日　日曜日　午前９時２７分

DESCRIPTION
2-3
23
4
5
6
7
8
9
EAU10430

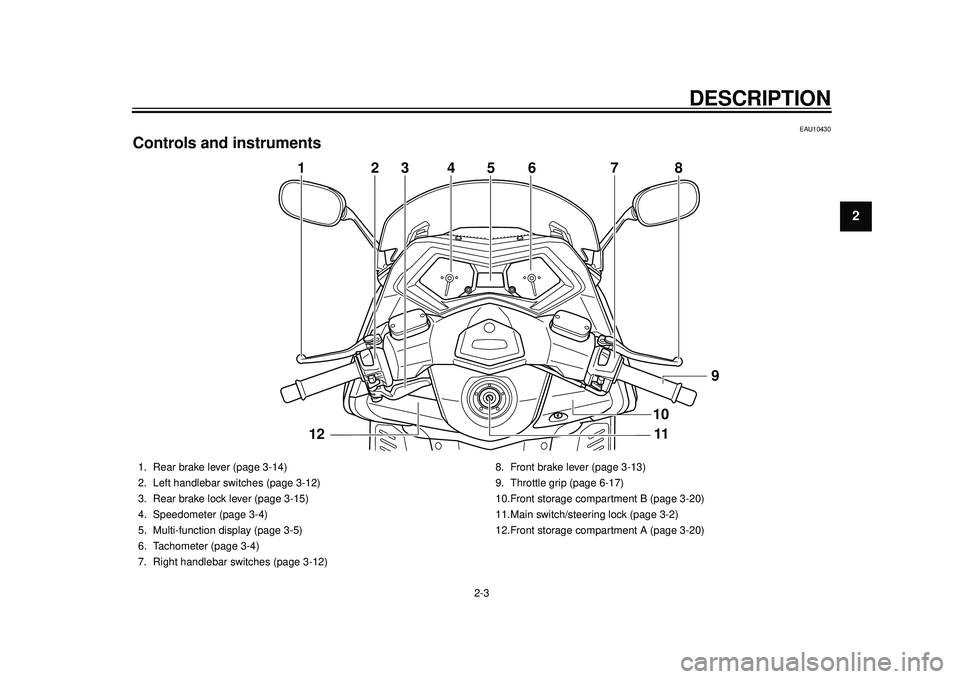

Controls and instruments
4
2
3
6
7
8
1
11
9
5
10
12
1. Rear brake lever (page 3-14)
2. Left handlebar switches (page 3-12)
3. Rear brake lock lever (page 3-15)
4. Speedometer (page 3-4)
5. Multi-function display (page 3-5)
6. Tachometer (page 3-4)
7. Right handlebar switches (page 3-12)8. Front brake lever (page 3-13)
9. Throttle grip (page 6-17)
10.Front storage compartment B (page 3-20)
11.Main switch/steering lock (page 3-2)
12.Front storage compartment A (page 3-20)
59C-9-E0.book 3 ページ ２０１１年９月１１日　日曜日　午前９時２７分

INSTRUMENT AND CONTROL FUNCTIONS
3-5
1
23
4
5
6
7
8
9
EAU52241

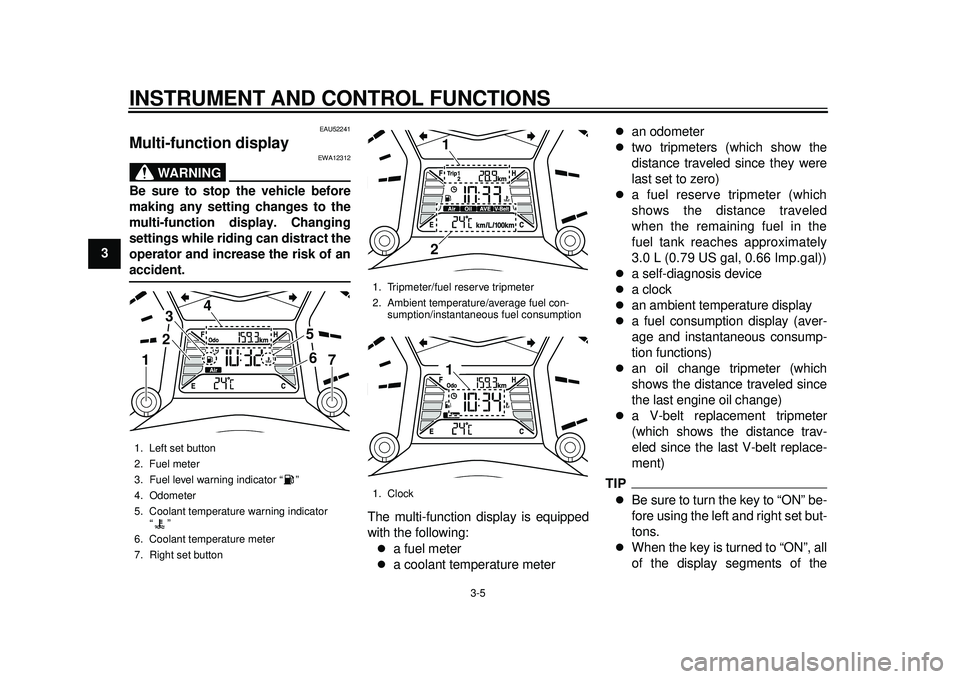

Multi-function display
WARNING
EWA12312
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of anaccident.The multi-function display is equipped
with the following:

a fuel meter

a coolant temperature meter

an odometer

two tripmeters (which show the
distance traveled since they were
last set to zero)

a fuel reserve tripmeter (which
shows the distance traveled
when the remaining fuel in the
fuel tank reaches approximately
3.0 L (0.79 US gal, 0.66 Imp.gal))

a self-diagnosis device

a clock

an ambient temperature display

a fuel consumption display (aver-
age and instantaneous consump-
tion functions)

an oil change tripmeter (which
shows the distance traveled since
the last engine oil change)

a V-belt replacement tripmeter
(which shows the distance trav-
eled since the last V-belt replace-
ment)
TIP
Be sure to turn the key to “ON” be-
fore using the left and right set but-
tons.

When the key is turned to “ON”, all
of the display segments of the
1. Left set button
2. Fuel meter
3. Fuel level warning indicator “ ”
4. Odometer
5. Coolant temperature warning indicator “”
6. Coolant temperature meter
7. Right set button
23
4
56
11
7
1. Tripmeter/fuel reserve tripmeter
2. Ambient temperature/average fuel con- sumption/instantaneous fuel consumption
1. Clock
211
59C-9-E0.book 5 ページ ２０１１年９月１１日　日曜日　午前９時２７分

INSTRUMENT AND CONTROL FUNCTIONS
3-6
234
5
6
7
8
9
multi-function display will appear
one after the other and then disap-
pear, in order to test the electrical
circuits.
Clock
To set the clock:
1. Push the left set button and right set button together for at least two
seconds.
2. When the hour digits start flashing, push the right set button to set the
hours.
3. Push the left set button, and the minute digits will start flashing.
4. Push the right set button to set the minutes.
5. Push the left set button and then release it to start the clock.
Odometer and tripmeter modes
Pushing the left set button switches the
display between the odometer mode
and the tripmeter modes in the follow-
ing order:
Odo  Trip 1  Trip 2  V-Belt Trip 
Oil Trip  Odo
When approximately 3.0 L (0.79 US gal,
0.66 Imp.gal) of fuel remains in the fuel
tank, the display will automatically
change to the fuel reserve tripmeter
mode “Trip F” and start counting the dis-
tance traveled from that point. In that
case, pushing the left set button switch-
es the display between the various trip-
meter and odometer modes in the
following order:
Odo  Trip 1  Trip 2  Trip F 1. Clock
1
1. Odometer/tripmeters/fuel reserve tripme-
ter
1. Oil change tripmeter
1
1
1. V-belt replacement tripmeter1
59C-9-E0.book 6 ページ ２０１１年９月１１日　日曜日　午前９時２７分

INSTRUMENT AND CONTROL FUNCTIONS
3-7
1
23
4
5
6
7
8
9V-Belt Trip
 Oil Trip  Odo
To reset a tripmeter, select it by push-
ing the left set button until “Trip F”, “Trip
1” or “Trip 2” is displayed. While “Trip
F”, “Trip 1” or “Trip 2” is displayed, push
the right set button for at least one sec-
ond. If you do not reset the fuel reserve
tripmeter manually, it will reset itself au-
tomatically and the display will return to
the prior mode after refueling and trav-
eling 5 km (3 mi).
TIPThe display cannot be changed back to
“Trip F” after pushing the right set but-ton. Fuel meter
With the key in the “ON” position, the
fuel meter indicates the amount of fuel
in the fuel tank. The display segments
of the fuel meter disappear towards “E”
(Empty) as the fuel level decreases.
When the fuel level reaches the bottom
segment near “E”, the fuel level warn-
ing indicator, “F”, “E”, and the bottom
segment will flash. Refuel as soon as
possible.
Coolant temperature meter
With the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. The
coolant temperature varies with chang-
es in the weather and engine load. If
the top segment, “H”, “C”, and coolanttemperature warning indicator flash,
stop the vehicle and let the engine cool.
(See page 6-37.)
NOTICE
ECA10021
Do not continue to operate the en-gine if it is overheating.
1. Fuel reserve tripmeter
1
59C-9-E0.book 7 ページ ２０１１年９月１１日　日曜日　午前９時２７分

INSTRUMENT AND CONTROL FUNCTIONS
3-8
234
5
6
7
8
9
Oil change indicator “Oil”
This indicator flashes at the initial 1000
km (600 mi), then at 5000 km (3000 mi)
and every 5000 km (3000 mi) thereafter
to indicate that the engine oil should be
changed.
After changing the engine oil, reset the
oil change indicator. To reset the oil
change indicator, select it by pushing
the left set button until “Oil Trip” is dis-
played, and then push the left set but-
ton at least one second. When pushing
the left set button, “Oil Trip” starts flash-
ing. While “Oil Trip” is flashing, push the
left set button for at least three sec-
onds.
If the engine oil is changed before the oil change indicator “Oil” flashes (i.e.
before the periodic oil change interval
has been reached), the indicator “Oil”
must be reset after the oil change for
the next periodic oil change to be indi-
cated at the correct time.
The electrical circuit of the indicator can
be checked according to the following
procedure.
1. Set the engine stop switch to “ ” and turn the key to “ON”.
2. Check that the oil change indicator comes on for a few seconds and
then goes off.
3. If the oil change indicator does not come on, have a Yamaha dealer
check the electr ical circuit. V-belt replacement indicator
“V-Belt”
This indicator flashes every 20000 km
(12500 mi) when the V-belt needs to be
replaced.
After changing the V-belt, reset the
V-belt replacement indicator. To reset
the V-belt replacement indicator, select
it by pushing the left set button until
“V-Belt Trip” is displayed, and then
push the left set button at least one sec-
ond. When pushing the left set button,
“V-Belt Trip” starts flashing. While
“V-Belt Trip” is flashing, push the left set
button for at least three seconds.
If the V-belt is changed before the
V-belt replacement indicator “V-Belt”
1. Oil change indicator “Oil”1
1. V-belt replacement indicator “V-Belt”1
59C-9-E0.book 8 ページ ２０１１年９月１１日　日曜日　午前９時２７分

INSTRUMENT AND CONTROL FUNCTIONS
3-9
1
23
4
5
6
7
8
9flashes (i.e. before the periodic V-belt
change interval has been reached), the
indicator “V-Belt” must be reset after
the V-belt change for the next periodic
V-belt change to be indicated at the
correct time.
The electrical circuit of the indicator can
be checked according to the following
procedure.
1. Turn the key to “ON” and make sure that the engine stop switch is
set to “ ”.
2. Check that the V-belt replacement indicator comes on for a few sec-
onds and then goes off.
3. If the V-belt replacement indicator does not come on, have a Yamaha
dealer check the el ectrical circuit.Ambient temperature display, aver-
age fuel consumption, and instan-
taneous fuel consumption modes
Push the right set button to switch the
display between the ambient tempera-
ture display “Air”, the average fuel con-
sumption mode “AVE_ _._ km/L” or
“AVE_ _._ L/100 km”, and the instanta-
neous fuel consumption mode “km/L”
or “L/100 km” in the following order:
Air
 AVE_ _._ km/L or AVE_ _._ L/
100 km  km/L or L/100 km  Air
For the UK only:
Push the right set button to switch the
display between the ambient tempera- ture display “Air”, the average fuel con-
sumption mode “AVE_ _._ MPG” and
the instantaneous fuel consumption
mode “MPG” in the following order:
Air
 AVE_ _._ MPG  MPG  Air
Ambient temperature display
This display shows the ambient tem-
perature from –9 C to 40 C in 1  C in-
crements.
For the UK only:
15 F to 104 F in 1 F increments.
The temperature displayed may vary
1. Ambient temperature/average fuel con- sumption/instantaneous fuel consumption
1
1. Ambient temperature display1
59C-9-E0.book 9 ページ ２０１１年９月１１日　日曜日　午前９時２７分

INSTRUMENT AND CONTROL FUNCTIONS
3-10
234
5
6
7
8
9
from the ambient temperature. Pushing
the right set button switches the ambi-
ent temperature display to the average
fuel consumption and instantaneous
fuel consumption modes.
Average fuel consumption mode
The average fuel consumption display
can be set to either “AVE_ _._ km/L” or
“AVE_ _._ L/100 km” (except for the
UK).
For the UK only:
The average fuel consumption is dis-
played “AVE_ _._ MPG”.
This display shows the average fuel consumption since it was last reset.

When the display is set to “AVE_
_._ km/L”, the average distance
that can be traveled on 1.0 L of fuel
is shown.

When the display is set to “AVE_
_._ L/100 km”, the average
amount of fuel necessary to travel
100 km is shown.

For the UK only: When the display
is set to “AVE_ _._ MPG”, the av-
erage distance that can be trav-
eled on 1.0 Imp.gal of fuel is
shown.
To switch between the average fuel
consumption displays, push the left set
button for one second when one of the
displays is shown (except for the UK).
To reset the average fuel consumption
display, select it by pushing the right set
button, and then push the right set but-
ton for at least one second.
TIPAfter resetting an average fuel con-
sumption display, “_ _._” is shown for
that display until the vehicle has trav-eled 1 km (0.6 mi). Instantaneous fuel consumption mode
The instantaneous fuel consumption
display can be set to either “km/L” or “L/
100 km” (except for the UK).
For the UK only:
The instantaneous fuel consumption is
displayed “MPG”.
When the display is set to “km/L”,
the distance that can be traveled
on 1.0 L of fuel under the current
riding conditions is shown.

When the display is set to “L/100
km”, the amount of fuel necessary
to travel 100 km under the current
riding conditions is shown.
1. Average fuel consumption display
1
1. Instantaneous fuel consumption display
1
59C-9-E0.book 10 ページ ２０１１年９月１１日　日曜日　午前９時２７分
