2012 YAMAHA GRIZZLY 550 engine coolant

8-32
8
8. Check the differential gear case for oil leak-
age. If oil is leaking, check for the cause.
EBU23470Coolant The coolant level should be checked before each
ride. In addition, the coolant must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.EBU27126To check the coolant level1. Place the ATV on a level surface.TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture.2. Check the coolant level in the coolant reser- voir.TIPThe coolant should be between the minimum and
maximum level marks.
3. If the coolant is at or below the minimum levelmark, remove panel D to access the coolant
reservoir. (See page 8-10.)
4. Remove the coolant reservoir cap, add cool- ant or distilled water to the maximum level
mark, install the reservoir cap, and then install
the panel. NOTICE: If coolant is not avail-
able, use distilled water or soft tap water
instead. Do not use hard water or salt wa-
ter since they are harmful to the engine. If
water has been used instead of coolant, re-
place it with coolant as soon as possible,
otherwise the cooling system will not be1. Maximum level mark
2. Minimum level mark
U1HS60E0.book Page 32 Tuesday, April 26, 2011 7:53 PM

8-33
8protected against frost and corrosion. If
water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible,
otherwise the effectiveness of the coolant
will be reduced.
[ECB01011]
TIP
The radiator fan is automatically switched on or
off according to the coolant temperature in the
radiator.
If the engine overheats, see page 8-68 for fur-
ther instructions.EBU27766To change the coolant
WARNING
EWB01890Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap.1. Place the ATV on a level surface.
2. Remove panel D. (See page 8-10.)
3. Remove the footboard by removing the bolts
and nuts.
1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level markCoolant reservoir capacity (up to the maxi-
mum level mark):0.24 L (0.25 US qt, 0.21 Imp.qt)
U1HS60E0.book Page 33 Tuesday, April 26, 2011 7:53 PM

8-34
8
4. Place a container under the engine, and then
remove the coolant drain bolt and its gasket.
(Use a trough or a similar object as shown to
prevent coolant from spilling on the engine
guard.)
5. Remove panel B. (See page 8-10.)
1. Footboard
2. Bolt and nut
3. Bolt
3
2
2
3
1
1. Coolant drain bolt
2. Gasket
1. Trough
12
1
U1HS60E0.book Page 34 Tuesday, April 26, 2011 7:53 PM

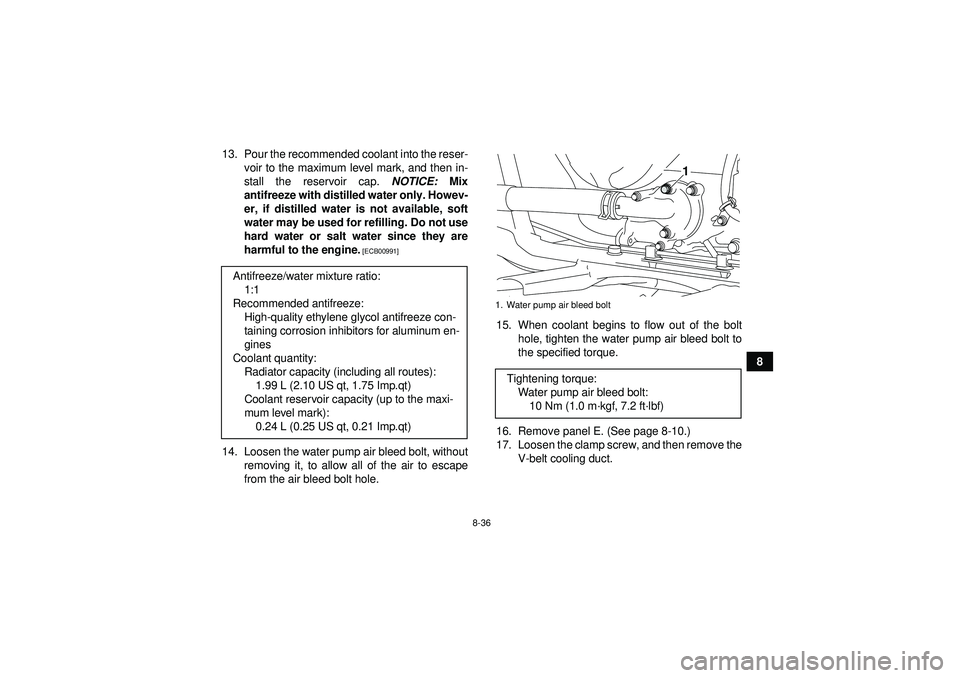

8-36
8
13. Pour the recommended coolant into the reser-
voir to the maximum level mark, and then in-
stall the reservoir cap. NOTICE: Mix
antifreeze with distilled water only. Howev-
er, if distilled water is not available, soft
water may be used for refilling. Do not use
hard water or salt water since they are
harmful to the engine.
[ECB00991]
14. Loosen the water pump air bleed bolt, without removing it, to allow all of the air to escape
from the air bleed bolt hole. 15. When coolant begins to flow out of the bolt
hole, tighten the water pump air bleed bolt to
the specified torque.
16. Remove panel E. (See page 8-10.)
17. Loosen the clamp screw, and then remove the V-belt cooling duct.
Antifreeze/water mixture ratio:
1:1
Recommended antifreeze: High-quality ethylene glycol antifreeze con-
taining corrosion inhibitors for aluminum en-
gines
Coolant quantity: Radiator capacity (including all routes):1.99 L (2.10 US qt, 1.75 Imp.qt)
Coolant reservoir capacity (up to the maxi-
mum level mark): 0.24 L (0.25 US qt, 0.21 Imp.qt)
1. Water pump air bleed boltTightening torque: Water pump air bleed bolt:10 Nm (1.0 m ·kgf, 7.2 ft· lbf)
1
U1HS60E0.book Page 36 Tuesday, April 26, 2011 7:53 PM

8-37
818. Loosen the cylinder head air bleed bolt, with-
out removing it, to allow all of the air to escape
from the air bleed bolt hole. 19. When coolant begins to flow out of the bolt
hole, tighten the cylinder head air bleed bolt to
the specified torque.
20. Start the engine and let it idle for ten minutes.
21. Rev the engine five times.
22. Pour the recommended coolant into the radia- tor until it is full.
1. V-belt cooling duct
2. Clamp screw
1. Cylinder head air bleed boltTightening torque:Cylinder head air bleed bolt:10 Nm (1.0 m ·kgf, 7.2 ft ·lbf)
U1HS60E0.book Page 37 Tuesday, April 26, 2011 7:53 PM

8-38
8
23. Stop the engine and allow it to cool. If the cool-
ant level has dropped after the engine has
cooled, add sufficient coolant until it reaches
the top of the radiator, and then install the ra-
diator cap.
24. Start the engine, and then check for coolant leakage.
TIPIf any leakage is found, have a Yamaha dealer
check the cooling system.25. Install the V-belt cooling duct, and then tightenthe clamp screw.
26. Install the footboard by installing the bolts and nuts, and then tighten them to the specified
torques.
27. Install the panels.
1. Footboard nut
2. Footboard bolt A
3. Footboard bolt BTightening torques:Footboard nut:4.0 Nm (0.40 m· kgf, 2.9 ft·lbf)
Footboard bolt A: 4.0 Nm (0.40 m· kgf, 2.9 ft·lbf)
Footboard bolt B: 7 Nm (0.7 m ·kgf, 5.1 ft ·lbf)
3
1
2
1
U1HS60E0.book Page 38 Tuesday, April 26, 2011 7:53 PM

8-68
8
Engine overheating
WARNING
EWB02290Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap.TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the rec-
ommended coolant as soon as possible.Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer check
and repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
U1HS60E0.book Page 68 Tuesday, April 26, 2011 7:53 PM

10-2
10
Type:SAE 5W-30, 10W-30, 10W-40, 15W-40, 20W-40 or 20W-
50
Recommended engine oil grade: API service SG type or higher, JASO standard MA
Engine oil quantity: Without oil filter cartridge replacement:
2.00 L (2.11 US qt, 1.76 Imp.qt)
With oil filter cartridge replacement: 2.10 L (2.22 US qt, 1.85 Imp.qt)Final gear oil:Type:
SAE 80 API GL-4 Hypoid gear oil
Quantity: 0.20 L (0.21 US qt, 0.18 Imp.qt)
Differential gear oil:Type:SAE 80 API GL-4 Hypoid gear oil
Quantity:
0.22 L (0.23 US qt, 0.19 Imp.qt)Cooling system:Coolant reservoir capacity (up to the maximum level mark):0.24 L (0.25 US qt, 0.21 Imp.qt)
Radiator capacity (including all routes):
1.99 L (2.10 US qt, 1.75 Imp.qt)Air filter:Air filter element:Wet elementFuel:Recommended fuel:YFM550FAB Unleaded gasoline only
YFM550FADB Unleaded gasoline only
YFM5FGPB Regular unleaded gasoline only
YFM5FGPHB Regular unleaded gasoline only
Fuel tank capacity: 20.0 L (5.28 US gal, 4.40 Imp.gal)
Fuel reserve amount:
4.5 L (1.19 US gal, 0.99 Imp.gal)Fuel injection:Throttle body:ID mark: 28P7 10Spark plug (s):Manufacturer/model:
NGK/LMAR6A-9
0 10 30 50 70 90 110 130 ˚F
–20 –10 0 10 20 30 40 50 ˚CSAE 5W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
U1HS60E0.book Page 2 Tuesday, April 26, 2011 7:53 PM
