EBU17420
TABLE OF CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 1-1
SAFETY INFORMATION .............................. 2-1
DESCRIPTION .............................................. 3-1
Left view ...................................................... 3-1
Right view.................................................... 3-1
Controls and instruments ............................ 3-2
INSTRUMENT AND CONTROL
FUNCTIONS .................................................. 4-1
Main switch ................................................ 4-1
Indicator lights ............................................ 4-2
Handlebar switches .................................... 4-2
Throttle lever .............................................. 4-3
Speed limiter .............................................. 4-4
Front brake lever ........................................ 4-4
Rear brake lever ......................................... 4-5
Parking brake ............................................. 4-5
Drive select lever ........................................ 4-6
Fuel tank cap .............................................. 4-7
Fuel ............................................................ 4-7
Fuel cock .................................................... 4-8Starter (choke) ..........................................4-10
Seat ..........................................................4-10
Front carrier ..............................................4-11
Rear carrier ...............................................4-11
PRE-OPERATION CHECKS ..........................5-1
Fuel .............................................................5-3
Engine oil ....................................................5-3
Transmission oil ..........................................5-3
Front and rear brakes .................................5-3
Throttle lever ...............................................5-3
Drive chain ..................................................5-3
Tires ............................................................5-3
Chassis fasteners .......................................5-6
Instruments, lights and switches .................5-6
Battery ........................................................5-6
OPERATION...................................................6-1
Starting a cold engine .................................6-1
Starting a warm engine ...............................6-2
Operating the drive select lever and
driving in reverse ......................................6-3
Engine break-in ...........................................6-4
Parking ........................................................6-5U1PY60E0.book Page 1 Friday, March 11, 2011 9:30 AM

Parking on a slope ..................................... 6-5
Accessories and loading ............................ 6-6
RIDING YOUR ATV ...................................... 7-1
GETTING TO KNOW YOUR ATV............... 7-2
RIDE WITH CARE AND GOOD
JUDGMENT .............................................. 7-2
BE CAREFUL WHERE YOU RIDE ............. 7-9
TURNING YOUR ATV .............................. 7-12
CLIMBING UPHILL ................................... 7-14
RIDING DOWNHILL.................................. 7-16
CROSSING A SLOPE............................... 7-17
CROSSING THROUGH SHALLOW
WATER ................................................... 7-18
RIDING OVER ROUGH TERRAIN ........... 7-20
SLIDING AND SKIDDING ......................... 7-20
WHAT TO DO IF... .................................... 7-22
WHAT TO DO... ........................................ 7-22
PERIODIC MAINTENANCE AND
ADJUSTMENT ............................................... 8-1
Owner’s manual and tool kit ....................... 8-2
Periodic maintenance chart for
the emission control system ..................... 8-3
General maintenance and lubrication
chart ......................................................... 8-5
Checking the spark plug ............................. 8-9Engine oil ..................................................8-11
Transmission oil ........................................8-14
Cleaning the engine and V-belt case air
filter elements .........................................8-17
Cleaning the spark arrester ......................8-23
V-belt case drain screw ............................8-24
Adjusting the carburetor ............................8-25
Adjusting the engine idling speed .............8-25
Adjusting the throttle lever free play .........8-26
Valve clearance ........................................8-27
Brakes .......................................................8-27
Checking the front and rear brake
shoes ......................................................8-27
Adjusting the front brake lever free play ...8-28
Adjusting the rear brake lever free play ....8-32
Drive chain slack .......................................8-34
Lubricating the drive chain ........................8-36
Checking and lubricating the cables .........8-37
Checking and lubricating the front and
rear brake levers .....................................8-38
Checking the wheel hub bearings .............8-38
Lubricating the lower arm pivots ...............8-39
Lubricating the front knuckle pivots ..........8-40
Lubricating the steering shaft ....................8-40
Battery ......................................................8-41
Replacing the fuse ....................................8-44
Replacing a headlight bulb .......................8-44
U1PY60E0.book Page 2 Friday, March 11, 2011 9:30 AM

4-3
4
EBU18101Start switch“”
Push this switch to crank the engine with the start-
er. See the starting instructions on page 6-1 prior
to starting the engine.EBU18154Light switch“//OFF”
Set this switch to“” to turn on the low beams
and the taillight. Set the switch to“” to turn on
the high beams and the taillight. Set the switch to
“OFF” to turn off all the lights.NOTICEECB00043Do not use the headlights with the engine
turned off for an extended period of time, oth-
erwise the battery may discharge to the point
that the starter motor will not operate properly.
If this should happen, remove the battery and
recharge it. (See page 8-41.)EBU18170Horn switch“”
Press the switch to sound the horn.
EBU18282Throttle lever Once the engine is running, pushing the throttle le-
ver will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the throttle lever is re-
leased.
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.1. Throttle lever
1
U1PY60E0.book Page 3 Friday, March 11, 2011 9:30 AM

6-1
6
EBU19881
OPERATION
EBU19901Read the Owner’s Manual carefully before riding
the ATV. If there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWB00631Read the Owner’s Manual carefully to become
familiar with all controls in order to help pre-
vent any loss of control, which could cause an
accident or injury.EBU29722Starting a cold engine NOTICEECB00150See the “Engine break-in” section on page 6-4
prior to operating the engine for the first time.1. Set the parking brake.
2. Turn the fuel cock to “ON”.
3. Turn the key to “ON” and the engine stop
switch to“”.4. Shift the drive select lever into the neutral po-
sition. The neutral indicator light should come
on. If the indicator light does not come on,
have a Yamaha dealer check the electrical cir-
cuit.
TIPThe engine can be started only when the drive se-
lect lever is in the neutral position.5. Use the starter (choke) in reference to the fig-
ure:
Position (1):
Cold engine start with ambient temperature
below 5 °C (40 °F).
Position (2):
Cold engine start with ambient temperature
between 0 °C (30 °F) and 30 °C (90 °F).
Position (3):
Cold engine start with ambient temperature
above 25 °C (80 °F).
U1PY60E0.book Page 1 Friday, March 11, 2011 9:30 AM

6-4
6 1. Bring the ATV to a complete stop.
2. Apply the parking brake.
3. Shift from neutral to reverse and vice versa by
moving the drive select lever along the shift
guide.
TIPWhen in reverse, the reverse indicator light should
come on. If the indicator light does not come on,
have a Yamaha dealer check the electrical circuit.4. Check behind for people or obstacles, and
then release the parking brake.
5. Open the throttle lever gradually and continue
to watch to the rear while backing.TIPIf the drive select lever is shifted into reverse while
the engine is running, the engine will stop unless
the rear brake lever or parking brake is applied.EBU20682Engine break-in TIP
For ATVs equipped with an odometer or an hour
meter, follow the figures given in km (mi) or the
figures given in hours.

For ATVs not equipped with an odometer or
hour meter, follow the figures given in hours.There is never a more important period in the life of
your engine than the first 320 km (200 mi) or 20
hours of riding. For this reason, you should read
the following material carefully.
Since the engine is brand new, do not put an ex-
cessive load on it for the first 320 km (200 mi) or 20
hours. The various parts in the engine wear and
polish themselves to the correct operating clear-
ances. During this period, prolonged full-throttle
operation or any condition that might result in en-
gine overheating must be avoided.
0–160 km (0–100 mi) or 0–10 hours
Avoid prolonged operation above 1/2 throttle. Vary
the speed of the ATV regularly. Do not operate it at
one set throttle position.
160–320 km (100–200 mi) or 10–20 hours
Avoid prolonged operation above 3/4 throttle. Rev
the engine freely, but do not use full throttle at any
time.
320 km (200 mi) or 20 hours and beyond
The ATV can now be operated normally.
U1PY60E0.book Page 4 Friday, March 11, 2011 9:30 AM

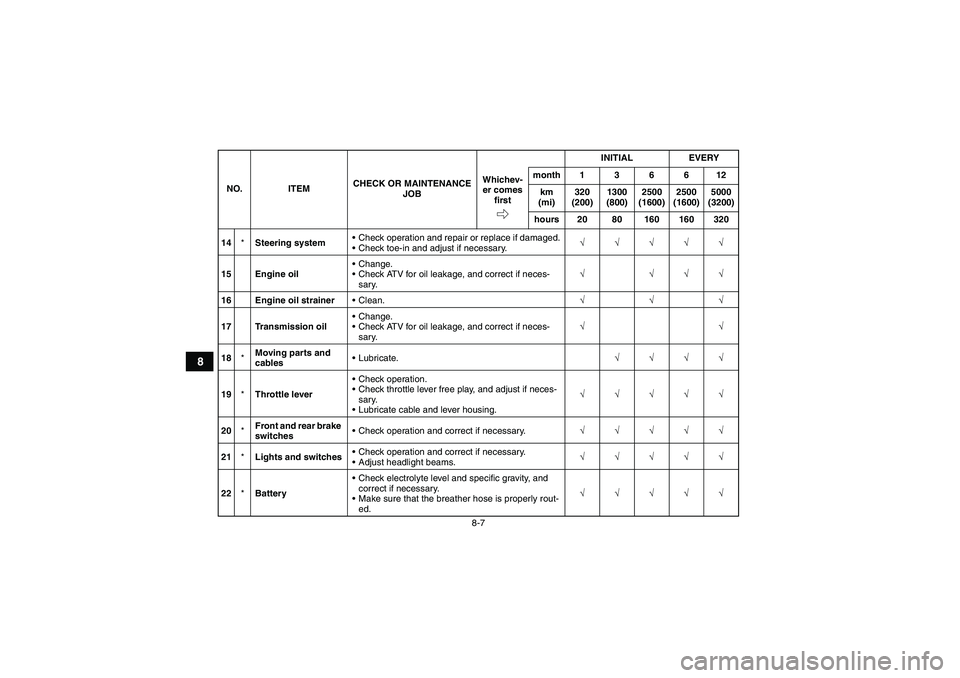

8-7
8
14*Steering systemCheck operation and repair or replace if damaged.
Check toe-in and adjust if necessary.√√√√√
15 Engine oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√ √√√
16 Engine oil strainerClean.√√√
17 Transmission oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√√
18*Moving parts and
cablesLubricate.√√√√
19*Throttle leverCheck operation.
Check throttle lever free play, and adjust if neces-
sary.
Lubricate cable and lever housing.√√√√√
20*Front and rear brake
switchesCheck operation and correct if necessary.√√√√√
21*Lights and switchesCheck operation and correct if necessary.
Adjust headlight beams.√√√√√
22*BatteryCheck electrolyte level and specific gravity, and
correct if necessary.
Make sure that the breather hose is properly rout-
ed.√√√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320U1PY60E0.book Page 7 Friday, March 11, 2011 9:30 AM

8-9
8
EBU23213Checking the spark plug The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.
To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).1. Spark plug cap
1
1. Spark plug wrench
1
U1PY60E0.book Page 9 Friday, March 11, 2011 9:30 AM

INDEX
AAccessories and loading ................................................ 6-6
Air filter elements, engine and V-belt filter cleaning ..... 8-17BBattery ................................................................... 5-6, 8-41
Brake lever free play, adjusting the front ..................... 8-28
Brake lever free play (rear), adjusting .......................... 8-32
Brake lever, front ............................................................ 4-4
Brake lever, rear ............................................................ 4-5
Brake levers, checking and lubricating ........................ 8-38
Brakes .......................................................................... 8-27
Brakes, front and rear .................................................... 5-3
Brake shoes, checking the front and rear .................... 8-27CCables, checking and lubricating ................................. 8-37
Carburetor, adjusting ................................................... 8-25
Carrier, front ................................................................. 4-11
Carrier, rear .................................................................. 4-11
Chassis fasteners .......................................................... 5-6
Cleaning ......................................................................... 9-1DDrive chain ..................................................................... 5-3
Drive chain, lubricating ................................................. 8-36
Drive chain slack .......................................................... 8-34
Drive select lever ........................................................... 4-6
Drive select lever and driving in reverse ........................ 6-3EEngine break-in .............................................................. 6-4Engine, cold start ........................................................... 6-1
Engine idling speed ..................................................... 8-25
Engine oil .............................................................. 5-3, 8-11
Engine, starting a warm ................................................. 6-2
Engine stop switch ......................................................... 4-2
FFront knuckle pivots, lubricating .................................. 8-40
Fuel ......................................................................... 4-7, 5-3
Fuel cock ....................................................................... 4-8
Fuel tank cap ................................................................. 4-7
Fuse, replacing ............................................................ 8-44HHandlebar switches ....................................................... 4-2
Headlight beam, adjusting ........................................... 8-46
Headlight bulb, replacing ............................................. 8-44
Horn switch .................................................................... 4-3IIdentification numbers .................................................. 11-1
Indicator lights ................................................................ 4-2
Instruments, lights and switches .................................... 5-6LLabel locations ............................................................... 1-1
Light switch .................................................................... 4-3MMain switch .................................................................... 4-1
Maintenance and lubrication chart ................................. 8-5
Maintenance chart, emission control system ................. 8-3
Model label .................................................................. 11-2
U1PY60E0.book Page 1 Friday, March 11, 2011 9:30 AM
