2012 YAMAHA FZS ESP

Important manual information
EJU37543
Declaration of Conformity for Personal Watercraft (PWC)
with the requirements of Directive 94/25/EC, as amended by Directive 2003/44/EC
Name of Engine Manufacturer:YAMAHA MOTOR CO., LTD.
Name / Title:H. Yamaji / President of YAMAHA MOTOR EUROPE N.V. Address:2500 Shingai, Iwata, Shizuoka 438-8501, Japan
Name of Authorised Representative:YAMAHA MOTOR EUROPE N.V.
Address:Koolhovenlaan 101, 1119 NC Schiphole-Rijk, The Netherlands
Name of Notified Body for exhaust and noise emission assessment:Luxcontrol SA
Address:1. avenue des Terres Rouges BP 349, Esch-sur-Alzette, L-4004. Luxembourg
Name of Notified Body for exhaust and noise emission assessment:SNCH
GX1800A-L / FZS0882
0499 ID Number:
ID Number:
Address:11, route de Luxembourg BP 32, Sandweiler, L-5230. Luxembourg
US-YAMA1001 I 112 Conformity assessment module used:
for construction:
for exhaust emissions:
for noise emissions:
DESCRIPTION OF CRAFT
DESCRIPTION OF ENGINEA
A
Craft model Identification Number, starting from :
Model name / Commercial name :C Design Category :Other Community Directives applied
Directive 2004/108/EC relating to electromagnetic compatibility (EMC).CISPR 12
Directive 2006/42/EC relating to Machinery.Standards
EN 61000-6-2
D
Aa
AaB+C
B+CB+D
B+DB+E
B+EB+F
B+FG
G
GH
H
H
Engine Type:
PWC engineCombustion cycle:
4 stroke
Fuel Type:
Petrol
ESSENTIAL REQUIREMENTS
IDENTIFICATION OF ENGINE COVERED BY THIS DECLARATION OF CONFORMITY
Name of engine model
6ANName / ID number of Notified Body
Luxcontrol SA / 0882 EC Type–examination certificate number
LC*2003/44*10026
(identification of the person empowered to sign on behalf of the engine manufacturer or his authorised representative)
Signature and title:(or an equivalent marking)Date and place of issue:1st / August / 2011, Schiphol-Rijk, The Netherlands
Essential requirementsstandardsother normative
document / methodtechnical filePlease specify in more detail
(* = mandatory standard)
I.A design and construction EN ISO 13590
I.B exhaust emission*EN ISO 8178-1
I.C noise emission*EN ISO 14509
*
*
This declaration of conformity is issued under the sole responsibility of the PWC manufacturer. I declare on behalf of the PWC
manufacturer that the craft model and engine(s) mentioned above complies (comply) with all applicable essential
requirements in the way specified and is (are) in conformity with the type(s) for which above mentioned EC type-examination
certificate(s) has (have) been issued.
ID Number:
ID Number:
UF2C73E0.book Page 1 Monday, June 13, 2011 8:52 AM

Table of contents
General and important labels ........... 1
Identification numbers .................... 1
Primary Identification (PRI-ID)
number ........................................... 1
Craft Identification Number (CIN) ...... 1
Engine serial number ........................ 1
Manufactured date label .................... 2
Model information ........................... 2
Builder’s plate .................................... 2
Important labels .............................. 4
Warning labels ................................... 5
Other labels ....................................... 9
Safety information ........................... 11
Limitations on who may operate
the watercraft ............................ 11
Cruising limitations ....................... 12
Operation requirements ............... 13
Recommended equipment ........... 15
Hazard information ....................... 16
Watercraft characteristics ............. 16
Water-skiing ................................. 18
Safe boating rules ........................ 19
Enjoy your watercraft
responsibly ................................ 20
Description....................................... 21
Watercraft glossary ...................... 21
Location of main components ...... 22
Control function operation ............. 26
Watercraft control functions ......... 26
Remote control transmitter .............. 26
Yamaha Security System ................ 27
Engine stop switch .......................... 28
Engine shut-off switch ..................... 28
Start switch ...................................... 28
Throttle lever ................................... 29
Steering system ............................... 29
Telescopic steering system ............. 30
Cooling water pilot outlets ............... 30
Water separator ............................... 31
Watercraft operation ....................... 32
Watercraft operation functions ..... 32
Reverse system ............................... 32
Quick Shift Trim System
(Q.S.T.S.) ..................................... 33
Watercraft operation modes ......... 34
Low RPM Mode ............................... 34
Instrument operation ...................... 36
Dual analog meter unit ................. 36
Speedometer ................................... 36
Tachometer ..................................... 36
Information display .......................... 37
Equipment operation ...................... 41
Equipment .................................... 41
Seats ............................................... 41
Handgrips ........................................ 42
Reboarding grip ............................... 42
Reboarding step .............................. 42
Bow eye ........................................... 43
Stern eyes ....................................... 43
Cleat ................................................ 43
Storage compartments .................... 44
Fire extinguisher holder and
cover ............................................ 47
Operation and handling
requirements ................................... 49
Fuel requirements ........................ 49
Fuel ................................................. 49
Engine oil requirements ............... 51
Engine oil ......................................... 51
Draining the bilge water ............... 52
Draining the bilge water on land ...... 52
Draining the bilge water on water .... 53
Transporting on a trailer ............... 54
First-time operation ........................ 55
Engine break-in ............................ 55
Pre-operation checks ..................... 56
Pre-operation checklist .................... 56
UF2C73E0.book Page 1 Monday, June 13, 2011 8:52 AM

General and important labels
3
TIP:
The significant wave height is the mean
height of the highest one-third of the waves,
which approximately corresponds to the wave
height estimated by an experienced observer.
However, some waves will be double this
height.
UF2C73E0.book Page 3 Monday, June 13, 2011 8:52 AM

Safety information
15
tercraft to avoid accidental starting or unau-
thorized use by children or others.

Scan carefully for swimmers and stay away
from swimming areas. Swimmers are hard
to see and you could accidentally hit some-
one in the water.

Avoid being hit by another boat. You should
always take the responsibility to watch for
traffic; other boaters may not be watching
for you. If they do not see you, or if you ma-
neuver more quickly than other boaters ex-
pect, you risk a collision.

Maintain a safe distance from other boats
and watercraft, and also watch for ski ropes
or fishing lines. Obey the “Safe boating
rules” and be sure to check behind you be-
fore making a turn. (See “Safe boating
rules” on page 19.)
EJU30840
Recommended equipment
The following items should be carried on
board your watercraft:

Sound-signaling device
You should carry a whistle or other sound-
signaling device that can be used to signal
other boats.

Visual distress signals
It is recommended that a pyrotechnic de-
vice, which is approved by the appropriate
authorities, be stored in a waterproof con-
tainer on your watercraft. A mirror can also
be used as an emergency signal. Contact a
Yamaha dealer for more information.

Watch
A watch is helpful so you will know how long
you have been operating the watercraft.

Towline
A towline can be used to tow a disabled wa-
tercraft in an emergency.
UF2C73E0.book Page 15 Monday, June 13, 2011 8:52 AM

Safety information
16
EJU36850
Hazard information

Never start the engine or let it run for any
length of time in an enclosed area. Exhaust
fumes contain carbon monoxide, a color-
less, odorless gas that may cause loss of
consciousness and death within a short
time. Always operate the watercraft in an
open area.

Do not touch the hot muffler or engine dur-
ing or immediately after engine operation;
they can cause serious burns.
EJU30920
Watercraft characteristics

Jet thrust turns the watercraft. Releasing
the throttle lever completely produces only
minimum thrust. If you are traveling at
speeds above trolling, you will have rapidly
decreasing ability to steer without throttle.
This model is equipped with the Yamaha
Engine Management System (YEMS) that
includes an off-throttle steering (OTS) sys-
tem. It will activate at planing speeds should
you attempt to steer the watercraft after re-
leasing the throttle lever. The OTS system
assists in turning by continuing to supply
some thrust while the watercraft is deceler-
ating, but you can turn more sharply if you
apply throttle while turning the handlebars.
The OTS system does not function below
planing speeds or when the engine is off.
Once the engine slows down, the watercraft
will no longer turn in response to handlebar
input until you apply throttle again or you
reach trolling speed.
Practice turning in an open area without ob-
stacles until you have a good feel for this
maneuver.

This watercraft is water-jet propelled. The
jet pump is directly connected to the engine.
This means that jet thrust will produce some
movement whenever the engine is running.
There is no “neutral” position. You are in ei-
ther “forward” or “reverse”, depending upon
the shift lever position.

Do not use the reverse function to slow
down or stop the watercraft as it could
cause you to lose control, be ejected, or im-
pact the handlebars.
This could increase the risk of back/spinal
injury (paralysis), facial injuries, and broken
legs, ankles, and other bones. You could
also damage the shift mechanism.
UF2C73E0.book Page 16 Monday, June 13, 2011 8:52 AM

Safety information
18
EJU30953

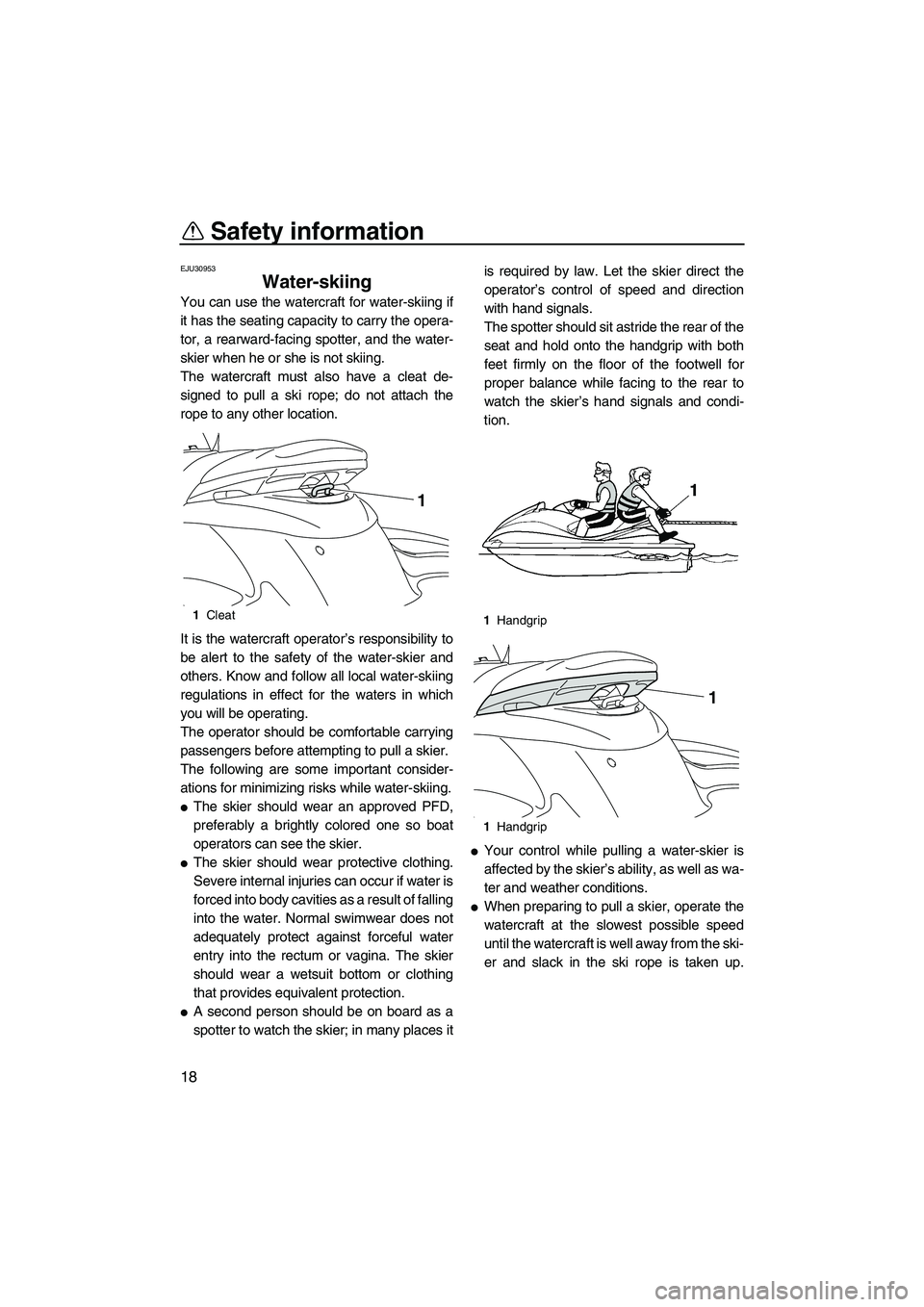

Water-skiing
You can use the watercraft for water-skiing if
it has the seating capacity to carry the opera-
tor, a rearward-facing spotter, and the water-
skier when he or she is not skiing.
The watercraft must also have a cleat de-
signed to pull a ski rope; do not attach the
rope to any other location.
It is the watercraft operator’s responsibility to
be alert to the safety of the water-skier and
others. Know and follow all local water-skiing
regulations in effect for the waters in which
you will be operating.
The operator should be comfortable carrying
passengers before attempting to pull a skier.
The following are some important consider-
ations for minimizing risks while water-skiing.

The skier should wear an approved PFD,
preferably a brightly colored one so boat
operators can see the skier.

The skier should wear protective clothing.
Severe internal injuries can occur if water is
forced into body cavities as a result of falling
into the water. Normal swimwear does not
adequately protect against forceful water
entry into the rectum or vagina. The skier
should wear a wetsuit bottom or clothing
that provides equivalent protection.

A second person should be on board as a
spotter to watch the skier; in many places itis required by law. Let the skier direct the
operator’s control of speed and direction
with hand signals.
The spotter should sit astride the rear of the
seat and hold onto the handgrip with both
feet firmly on the floor of the footwell for
proper balance while facing to the rear to
watch the skier’s hand signals and condi-
tion.

Your control while pulling a water-skier is
affected by the skier’s ability, as well as wa-
ter and weather conditions.

When preparing to pull a skier, operate the
watercraft at the slowest possible speed
until the watercraft is well away from the ski-
er and slack in the ski rope is taken up.
1Cleat
1
1Handgrip
1Handgrip
1
UF2C73E0.book Page 18 Monday, June 13, 2011 8:52 AM

Safety information
20
EJU30991
Enjoy your watercraft
responsibly
You share the areas you enjoy when riding
your watercraft with others and with nature.
So your enjoyment includes a responsibility to
treat these other people, and the lands, wa-
ters, and wildlife with respect and courtesy.
Whenever and wherever you ride, think of
yourself as the guest of those around you. Re-
member, for example, that the sound of your
watercraft may be music to you, but it could be
just noise to others. And the exciting splash of
your wake can make waves others won’t en-
joy.
Avoid riding close to shoreline homes and wa-
terfowl nesting areas or other wildlife areas,
and keep a respectful distance from fisher-
men, other boats, swimmers, and populated
beaches. When travel in areas like these is
unavoidable, ride slowly and obey all laws.
Proper maintenance is necessary to ensure
that the exhaust emission and sound levels of
your watercraft will continue to be within regu-
lated limits. You have the responsibility to
make sure that the recommended mainte-
nance in this owner’s/operator’s manual is
carried out.
Remember, pollution can be harmful to the
environment. Do not refuel or add oil where a
spill could cause damage to nature. Remove
your watercraft from the water and move it
away from the shoreline before refueling. Dis-
pose of water and any fuel and oil residue in
the engine compartment according to local
regulations. And keep your surroundings
pleasant for the people and wildlife that share
the waterways: don’t litter.
When you ride responsibly, with respect and
courtesy for others, you help ensure that ourwaterways stay open for the enjoyment of a
variety of recreational opportunities.
UF2C73E0.book Page 20 Monday, June 13, 2011 8:52 AM

Control function operation
30
in response to handlebar input until you apply
throttle again or you reach trolling speed.
EJU37341Telescopic steering system
The position of the handlebars can be adjust-
ed up or down by operating the lock lever.
The handlebars can be adjusted to three po-
sitions.
To adjust the handlebar position:
(1) Pull the lock lever up to disengage the
handlebar lock, and then move the han-
dlebars up or down to the desired posi-
tion. WARNING! Never pull the lock
lever during operation, otherwise the
handlebars may suddenly change po-
sition, which may lead to an accident.
[EWJ01270]
(2) Make sure that the lock lever returns to its
original position and that the handlebars
are securely locked in place.
EJU41800Cooling water pilot outlets
When the engine is running, some of the cool-
ing water that is circulated in the engine is dis-
charged from the cooling water pilot outlets.
There are cooling water pilot outlets on the
port (left) and starboard (right) sides of the
watercraft. To check for proper operation of
the cooling system, make sure that water is
being discharged from the port (left) pilot out-
let. If water is not being discharged from the
outlet, stop the engine and check the jet in-
take for clogging. (See page 92 for informa-
tion on the jet intake.)
TIP:

It will take about 60 seconds for the water to
reach the outlets after the engine is started.
1Lock lever
1
1Cooling water pilot outlet (port [left] side)
1
UF2C73E0.book Page 30 Monday, June 13, 2011 8:52 AM
