Fuses
08
319 Replacing fuses
There are relay/fuse boxes located in the
engine compartment, the passenger compart-
ment, and the trunk.
If an electrical component fails to function, this
may be due to a blown fuse. The easiest way
to see if a fuse is blown is to remove it.
To do so:
1. Pull the fuse straight out. If a fuse is difficult
to remove, a special fuse removal tool is
located on the inside of the engine com-
partment fuse box cover.
2. From the side, examine the curved metal
wire in the fuse to see if it is intact.
If the wire is broken, insert a new fuse of the
same color and amperage (written on the fuse).
If fuses burn out repeatedly, have the electrical
system inspected by a trained and qualified
Volvo service technician.
WARNING
Never use metal objects or fuses with higher
amperage than those stated on the follow-
ing pages. Doing so could seriously damage
or overload the vehicle's electrical system.
Location of the fuse boxes
Engine compartment
Under the glove compartment
Under the glove compartment
Trunk
Not in use
08 Maintenance and specifications
Fuses
08
* Option/accessory, for more information, see Introduction.323 Under the glove compartment

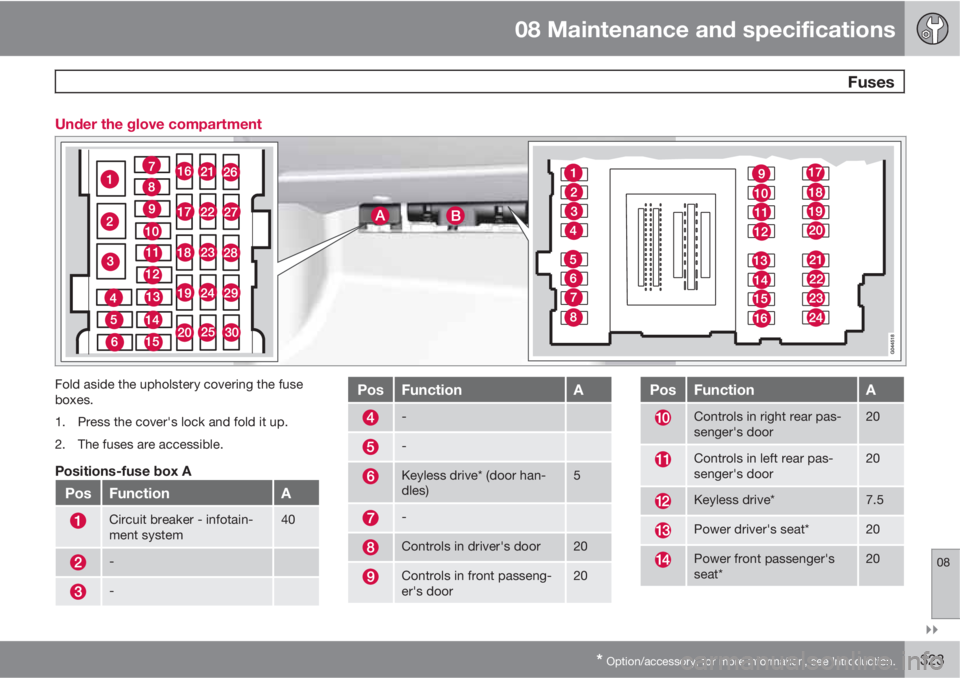

Fold aside the upholstery covering the fuse
boxes.
1. Press the cover's lock and fold it up.
2. The fuses are accessible.
Positions-fuse box A
PosFunctionA
Circuit breaker - infotain-
ment system40
-
-
PosFunctionA
-
-
Keyless drive* (door han-
dles)5
-
Controls in driver's door20
Controls in front passeng-
er's door20
PosFunctionA
Controls in right rear pas-
senger's door20
Controls in left rear pas-
senger's door20
Keyless drive*7.5
Power driver's seat*20
Power front passenger's
seat*20
