2012 VOLVO S60 navigation

05 Infotainment
Getting started
05
208* Option/accessory, for more information, see Introduction.

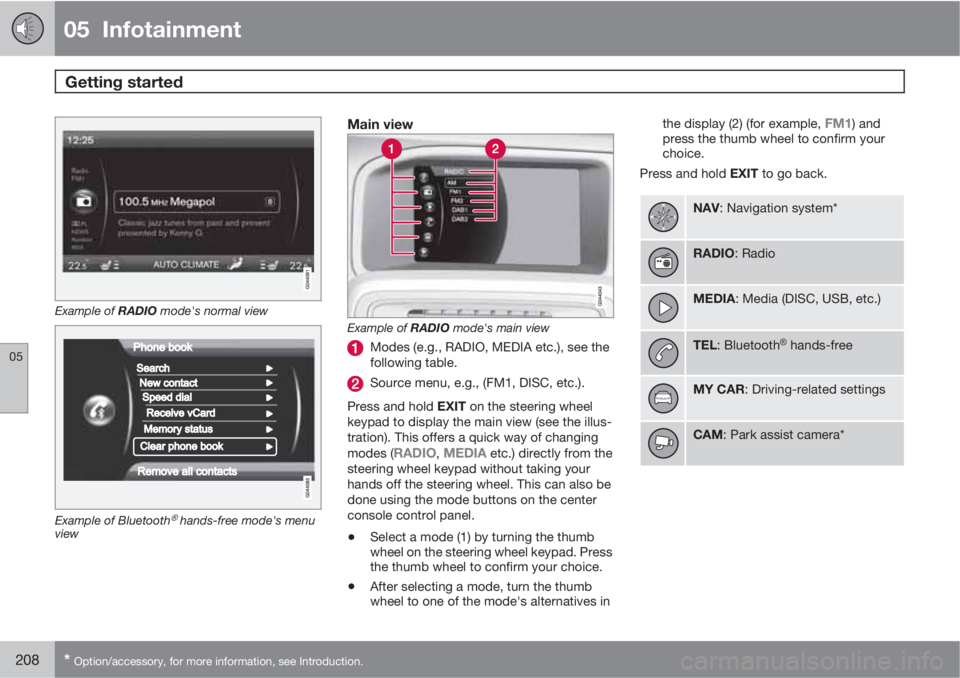

Example of RADIO mode's normal view
Example of BluetoothŸ hands-free mode's menu
view
Main view
Example of RADIO mode's main view
Modes (e.g., RADIO, MEDIA etc.), see the
following table.
Source menu, e.g., (FM1, DISC, etc.).
Press and hold EXIT on the steering wheel
keypad to display the main view (see the illus-
tration). This offers a quick way of changing
modes (
RADIO, MEDIA etc.) directly from the
steering wheel keypad without taking your
hands off the steering wheel. This can also be
done using the mode buttons on the center
console control panel.
•Select a mode (1) by turning the thumb
wheel on the steering wheel keypad. Press
the thumb wheel to confirm your choice.
•After selecting a mode, turn the thumb
wheel to one of the mode's alternatives inthe display (2) (for example,
FM1) and
press the thumb wheel to confirm your
choice.
Press and hold EXIT to go back.
NAV: Navigation system*
RADIO: Radio
MEDIA: Media (DISC, USB, etc.)
TEL: BluetoothŸ hands-free
MY CAR: Driving-related settings
CAM: Park assist camera*

05 Infotainment
Getting started
05
209 Steering wheel keypad
Standard steering wheel keypad
Left/right arrow keys: A short press moves
between preset radio stations or tracks on
a disc. Press and hold to search within
tracks or to tune to the next/previous
strong radio station.
Volume
EXIT: Go higher in the menu system, inter-
rupt the current function, reject an incom-
ing phone call or erase any characters
entered in the display. Press and hold to go
to the highest level in the current menu.
From the highest level in the current menu,
press and hold to go to the infotainment
system's main menu view (see page 208).
Thumb wheel, used to scroll in the menus
shown on the display. Press the thumb
wheel to e.g., confirm a menu selection or
to answer an incoming call on a Bluetooth-
connected cell phone.
Mute
Steering wheel keypad with voice control button2
Left/right arrow keys: A short press moves
between preset radio stations or tracks on
a disc. Press and hold to search within
tracks or to tune to the next/previous
strong radio station.
Volume
EXIT: Go higher in the menu system, inter-
rupt the current function, reject an incom-
ing phone call or erase any charactersentered in the display. A long press takes
you to the main menu view (see
page 208).
Thumb wheel, used to scroll in the menus
shown on the display. Press the thumb
wheel to e.g., confirm a menu selection or
to answer an incoming call on a Bluetooth-
connected cell phone.
Voice control (for operating BluetoothŸ-
connected cell phones and the optional
navigation system)
2Models equipped with the optional navigation system only

05 Infotainment
BluetoothŸŸ media
05

229 Streaming audio
IntroductionThe vehicle's media player is equipped with
BluetoothŸ and can play streaming audio files
from a BluetoothŸ device such as a cell phone
or personal digital assistant (PDA). Navigation
and control of the device can be done through
the vehicle's center console control panel or
the steering wheel keypad. On certain external
devices, it is also possible to change tracks
from the device.
In order to listen streaming audio, the vehicle's
media player must first be put in
Bluetoothmode. To do so, Press MEDIA several times
until Bluetooth is displayed. Release the but-
ton and wait several seconds or press OK/
MENU.
Choices can be made in the
Bluetooth menus
from the center console control panel or the
steering wheel keypad. See page 244 for addi-
tional information about navigating the various
menus.
NOTE
Any Bluetooth media players used must
support Audio/Video Remote Control Pro-
file (AVRCP) and Advanced Audio Distribu-
tion Profile (A2DP). The player must use
AVRCP version 1.3 and A2DP 1.2. If older
versions of these standards are used, cer-
tain features (e.g., scan or random) may not
function.
Not all cell phones or media players are fully
compatible with the vehicle's Bluetooth sys-
tem. A list of compatible devices is available
at you Volvo retailer or at www.volvo-
cars.us.
The vehicle's media player can only play audio
files through the BluetoothŸ function.
Overview
Center console control panel
VOL: Volume control
MEDIA button
TUNE: Turn to navigate among menu alter-
natives and folders shown in the display.
OK/MENU: Press to confirm your selec-
tion or access the menus.
EXIT: Press to go back in the menu struc-
ture or cancel a function.
Left/right arrow keys: Short press: change
tracks. Long press: fast forward/reverse
within a track. The arrow keys on the steer-
ing wheel keypad can be used in the same
way.
MEDIA menu selections can be made from the
center console or the steering wheel keypad.

05 Infotainment
Cell phone voice control
05
240
Introduction
The infotainment system's voice control fea-
ture1 enables the driver to voice-activate cer-
tain functions in a BluetoothŸ-connected cell
phone or the navigation system.
NOTE
•The information in this section applies
to using voice commands to operate a
Bluetooth
Ÿ-connected cell phone.
See also the section "BluetoothŸ
hands-free connection" beginning on
page 232 for detailed information about
using a cell phone with the vehicle's
infotainment system.
•The navigation system has a separate
user's guide containing information
about voice commands for operating
that system.
Voice commands offer convenience and help
avoid distractions so that you can concentrate
on driving and focus your attention on road and
traffic conditions.
WARNING
As the driver, you have full responsibility for
operating the vehicle safely and adhering to
all applicable traffic regulations.
The voice control feature provides access to a
number of functions in the BluetoothŸ hands-
free and navigation systems while allowing you
to keep your hands on the steering wheel. Input
is in dialogue form using spoken commands
from the user and verbal prompts from the sys-
tem. Voice control uses the same microphone
as the Bluetooth
Ÿ hands-free system (see the
illustration on page 232) and system prompts
are provided through the infotainment sys-
tem's front speakers.
Getting started
Voice control button on the steering wheel
Activating the systemBefore any phone voice commands can be
used, a BluetoothŸ-enabled cell phone must
be paired with the infotainment system. If a
phone command is given, the system will
inform you If there is no cell phone paired. See
page 233 for information on pairing a cell
phone.
Press the voice control button (1 in the illustra-
tion) to activate the system and initiate a com-
mand dialogue. The system will display com-
monly used commands on the screen when the
button has been pressed.
1Available in vehicles equipped with the optional Volvo Navigation System only
