301 2-3. Operating the lights and wipers
2
When driving
YARIS_F (including HV)_WE_52C79E
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features P. 682)
NOTICE
To prevent battery discharge (except hybrid vehicle)
Do not leave the lights on longer than necessary when the engine is not run-
ning.
To prevent 12-volt battery discharge (hybrid vehicle)
Do not leave the lights on longer than necessary when the hybrid system is
off.
Hybrid vehicle
Vehicles without an electronic key:
The engine switch is turned to the “ON”
position.
Vehicles with an electronic key:
The “POWER” switch is turned to ON
mode.
The light switch is turned on.
The light switch is pulled toward you
and then released.

305 2-3. Operating the lights and wipers
2
When driving
YARIS_F (including HV)_WE_52C79E

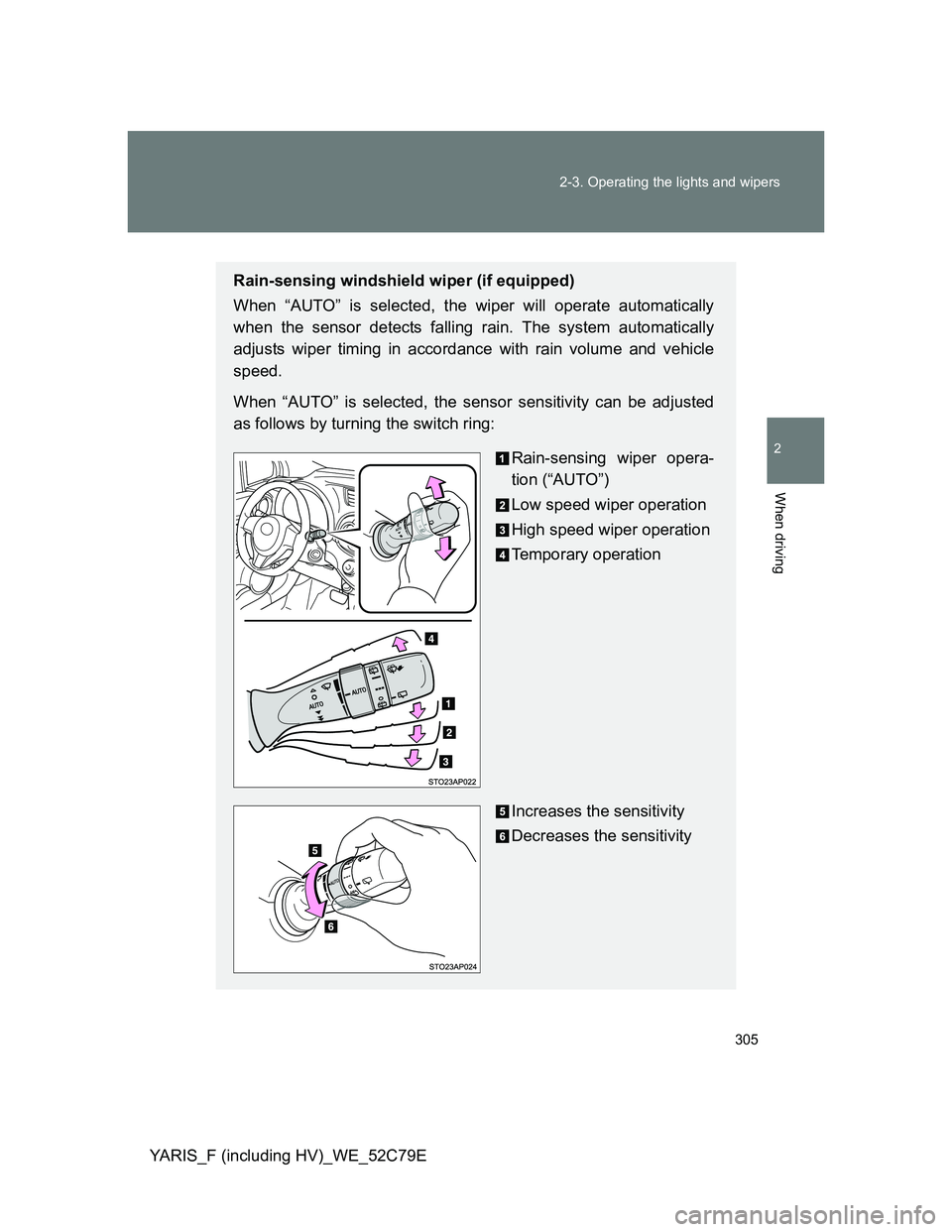

Rain-sensing windshield wiper (if equipped)
When “AUTO” is selected, the wiper will operate automatically
when the sensor detects falling rain. The system automatically
adjusts wiper timing in accordance with rain volume and vehicle
speed.
When “AUTO” is selected, the sensor sensitivity can be adjusted
as follows by turning the switch ring:
Rain-sensing wiper opera-
tion (“AUTO”)
Low speed wiper operation
High speed wiper operation
Temporary operation
Increases the sensitivity
Decreases the sensitivity

306 2-3. Operating the lights and wipers
YARIS_F (including HV)_WE_52C79E
The windshield wiper and washer can be operated when
Except hybrid vehicle
Vehicles without a smart entry & start system:
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system:
The “ENGINE START STOP” switch is in IGNITION ON mode.
Hybrid vehicle
Vehicles without an electronic key:
The engine switch is in the “ON” position.
Vehicles with an electronic key:
The “POWER” switch is in ON mode.
Raindrop sensor (vehicles with a rain-sensing windshield wiper)
Washer/wiper dual opera-
tion
The wiper will automatically
operate a couple of times after
the washer squirts.
(After operating several times,
the wiper operate one more
time after a short delay to pre-
vent dripping.)
The raindrop sensor judges the amount
of raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc.
are present on the windshield.

307 2-3. Operating the lights and wipers
2
When driving
YARIS_F (including HV)_WE_52C79E
Vehicles without a smart entry & start system
If the wiper switch is turned to the “AUTO” position while the engine
switch is in the “ON” position, the wiper will operate once to show that
“AUTO” mode is activated.
When the sensor sensitivity ring is turned toward high while in “AUTO”
mode, the wiper will operate once to indicate that the sensor sensitivity is
enhanced.
If the temperature of the raindrop sensor is 90C (194F) or higher, or
-15C (5F) or lower, automatic operation may not occur. In this case,
operate the wiper in any mode other than “AUTO”.
Vehicles with a smart entry & start system or a push-button start sys-
tem
Except hybrid vehicle: If the wiper switch is turned to the “AUTO” position
while the “ENGINE START STOP” switch is in IGNITION ON mode, the
wiper will operate once to show that “AUTO” mode is activated.
Hybrid vehicle: If the wiper switch is turned to the “AUTO” position while
the “POWER” switch is in ON mode, the wiper will operate once to show
that “AUTO” mode is activated.
When the sensor sensitivity ring is turned toward high while in “AUTO”
mode, the wiper will operate once to indicate that the sensor sensitivity is
enhanced.
If the temperature of the raindrop sensor is 90C (194F) or higher, or
-15C (5F) or lower, automatic operation may not occur. In this case,
operate the wiper in any mode other than “AUTO”.
If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.

308 2-3. Operating the lights and wipers
YARIS_F (including HV)_WE_52C79E

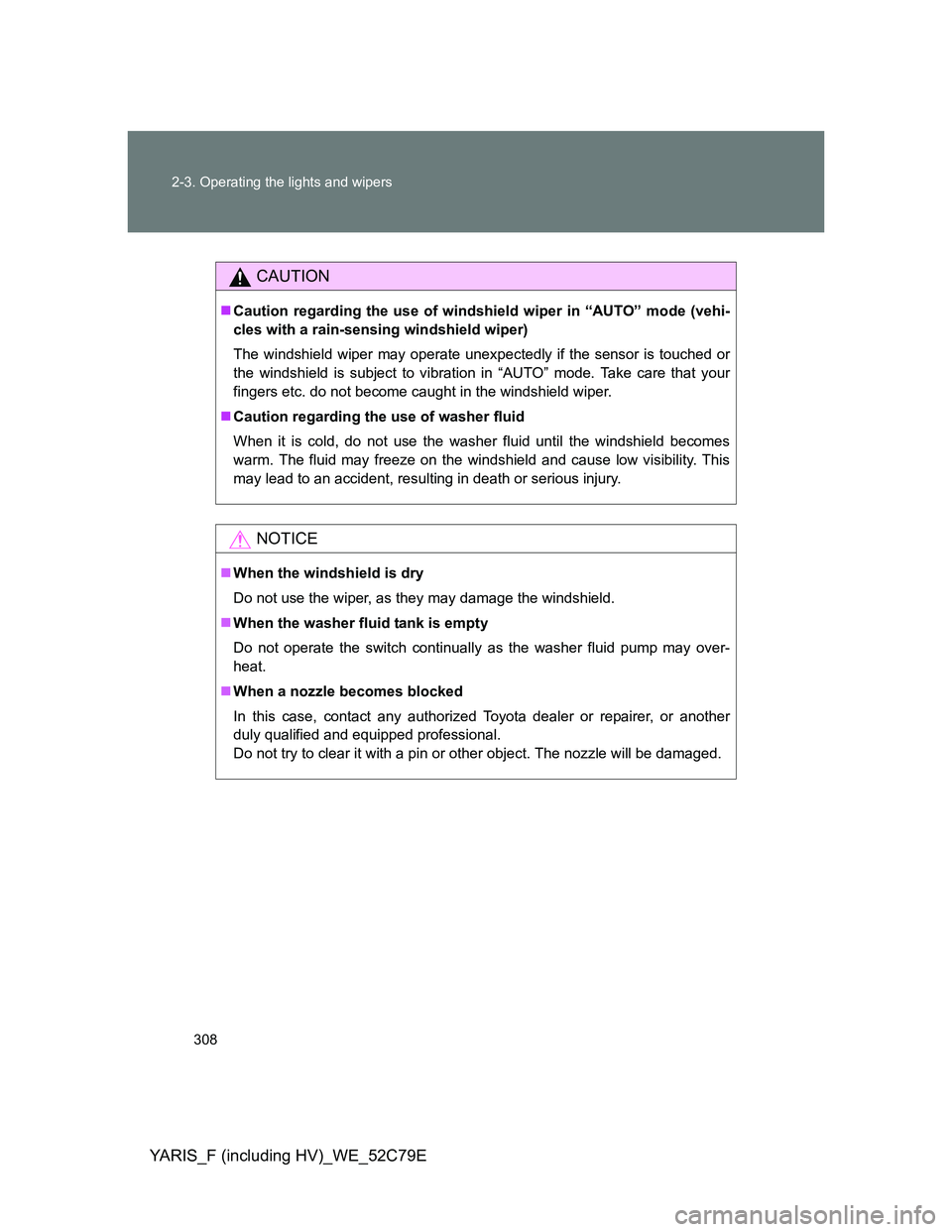

CAUTION
Caution regarding the use of windshield wiper in “AUTO” mode (vehi-
cles with a rain-sensing windshield wiper)
The windshield wiper may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in “AUTO” mode. Take care that your
fingers etc. do not become caught in the windshield wiper.
Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
When the windshield is dry
Do not use the wiper, as they may damage the windshield.
When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
When a nozzle becomes blocked
In this case, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

448 4-1. Maintenance and care
YARIS_F (including HV)_WE_52C79E
CAUTION
When cleaning the windshield (vehicles with a rain-sensing windshield
wiper)
When the upper part of the windshield where the raindrop sensor is
located is touched by hand
When a wet rag or similar is held close to the raindrop sensor
If something bumps against the windshield
If you directly touch the raindrop sensor body or if something bumps into
the raindrop sensor
When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components etc. to catch fire.
Precautions regarding the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has cooled
sufficiently, as touching a hot exhaust pipe can cause burns.
Set the wiper switch to off.
If the wiper switch is in “AUTO”, the wiper
may operate unexpectedly in the follow-
ing situations, and may result in hands
being caught or other serious injuries and
cause damage to the wiper blades.Off

525 4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_F (including HV)_WE_52C79EUnder the instrument panel
FuseAmpereCircuit
1 TAIL NO.2 10 A
Front position lights, tail lights,
license plate lights, front fog lights,
rear fog light, multiport fuel injection
system/sequential multiport fuel
injection system, gauge and meters
2 PANEL 5 AGauge and meters, instrument
panel lights, switch illumination
3 DOOR R/R 20 A Power windows
4 DOOR P 20 A Power windows
5 ECU-IG NO.1 5 AElectric cooling fan, rear window
defogger, electric power steering,
main body ECU, windshield wipers,
VSC
6 ECU-IG NO.2 5 A ABS, VSC, Stop & Start system
7A/C 7.5 AAir conditioning system, power
heater, rear window defogger, out-
side rear view mirror defoggers
8 GAUGE 10 ABack-up lights, shift lock control
system, rear seat belt reminder
lights, auto anti-glare inside rear
view mirror, multidrive, audio sys-
tem, multiport fuel injection system/
sequential multiport fuel injection
system, rain sensor

531 4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_F (including HV)_WE_52C79EUnder the instrument panel
FuseAmpereCircuit
1 TAIL NO.2 10 A
Front position lights, tail lights,
license plate lights
2 PANEL 5 AInstrument panel lights, manual
headlight leveling dial, gauge and
meters
3 DOOR R/R 20 A Power window
4 DOOR P 20 A Power window
5 ECU-IG NO.1 5 ARear window defogger, main body
ECU, brake system, vehicle stabil-
ity control system, shift lock control
system, audio system, windshield
wipers
6 ECU-IG NO.2 5 A Electric power steering system
7 A/C 7.5 A Air conditioning system
8 GAUGE 10 ABack-up lights, shift lock control
system, rear seat belt reminder
lights, auto anti-glare inside rear
view mirror, hybrid transmission,
audio system, multiport fuel injec-
tion system/sequential multiport
fuel injection system, rain sensor
9 WASHER 15 A Windshield wipers and washer
10 WIPER 20 A Windshield wipers and washer
11 WIPER RR 15 A Rear window wiper
