2012 TOYOTA VERSO seat adjustment

154 1-7. Safety information
VERSO_WE_OM64524E
Installing child restraints using a seat belt
Rear-facing Baby seat/child seat
Second seats
Adjust the seat as far back as
possible.
Fold the seatback while pulling
the seatback angle adjustment
lever. Return the seatback and
secure it at the 1st lock position
(most upright position). (P. 7 9 )
Third seats (vehicles with third seats)
Adjust the second seat forward
so that it does not interfere with
the child restraint system.
Fold the seatback while pulling
the seatback angle adjustment
strap. Return the seatback and
secure it at the 1st lock position
(most upright position). (P. 8 0 )
Place the child seat on the rear
seat facing the rear of the vehi-
cle.

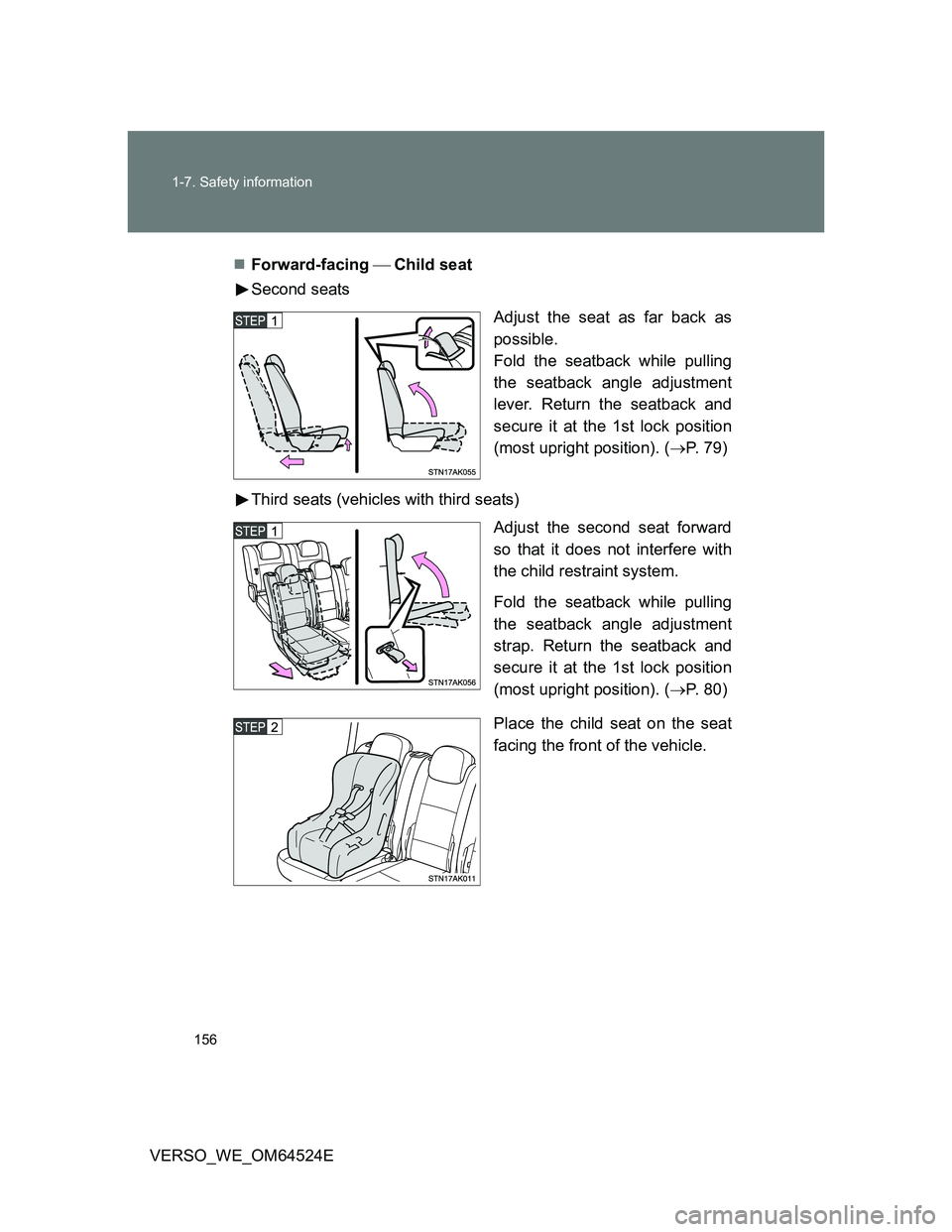

156 1-7. Safety information
VERSO_WE_OM64524EForward-facing Child seat
Second seats
Adjust the seat as far back as
possible.
Fold the seatback while pulling
the seatback angle adjustment
lever. Return the seatback and
secure it at the 1st lock position
(most upright position). (P. 7 9 )
Third seats (vehicles with third seats)
Adjust the second seat forward
so that it does not interfere with
the child restraint system.
Fold the seatback while pulling
the seatback angle adjustment
strap. Return the seatback and
secure it at the 1st lock position
(most upright position). (P. 8 0 )
Place the child seat on the seat
facing the front of the vehicle.

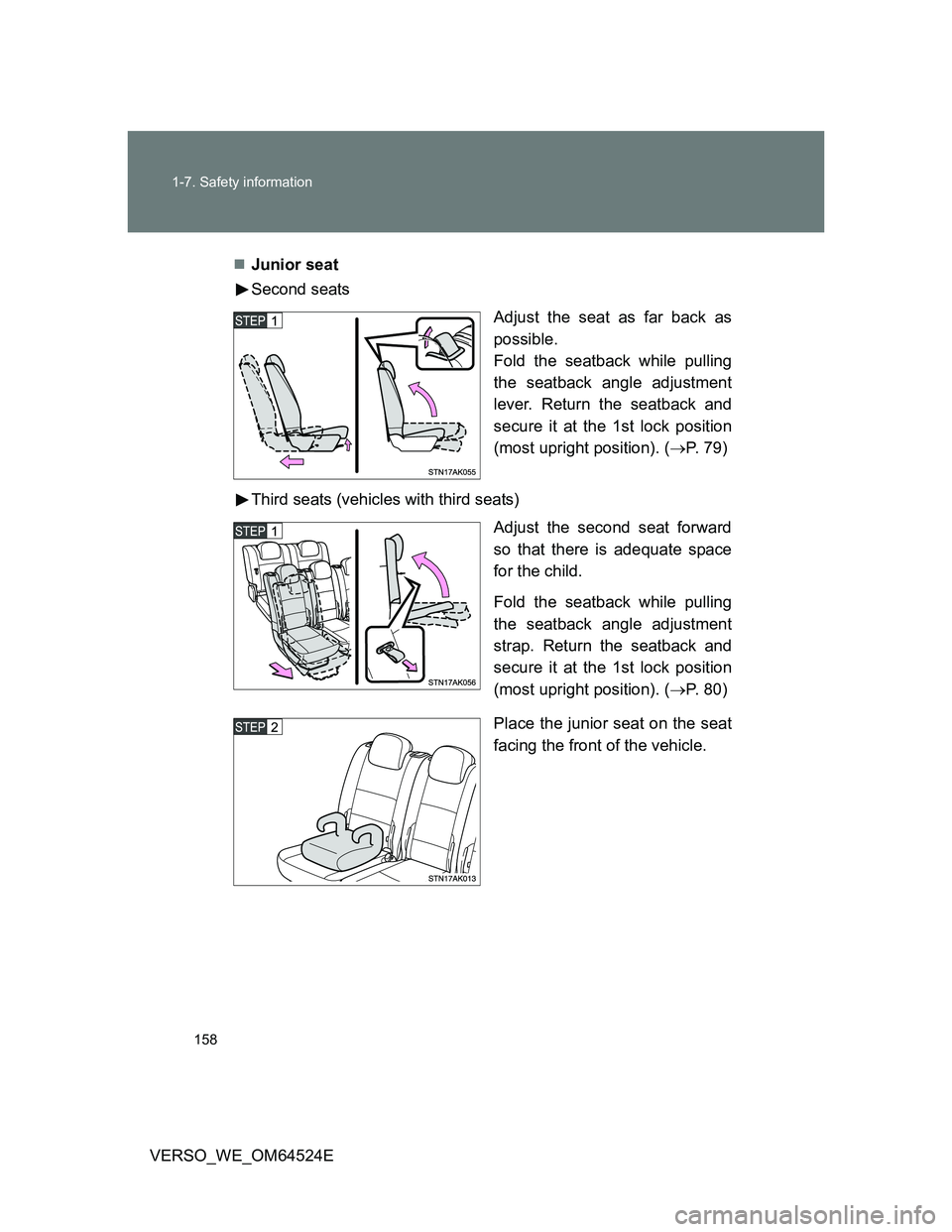

158 1-7. Safety information
VERSO_WE_OM64524EJunior seat
Second seats
Adjust the seat as far back as
possible.
Fold the seatback while pulling
the seatback angle adjustment
lever. Return the seatback and
secure it at the 1st lock position
(most upright position). (P. 7 9 )
Third seats (vehicles with third seats)
Adjust the second seat forward
so that there is adequate space
for the child.
Fold the seatback while pulling
the seatback angle adjustment
strap. Return the seatback and
secure it at the 1st lock position
(most upright position). (P. 8 0 )
Place the junior seat on the seat
facing the front of the vehicle.

578 Alphabetical index
VERSO_WE_OM64524E
Engine
Accessory mode ................... 190
Compartment ........................ 405
Engine switch ................ 186, 190
Hood ..................................... 401
How to start the
engine ......................... 186, 190
Identification number............. 544
If the engine will not start ...... 519
If you run out of fuel and
the engine stalls.................. 535
Ignition switch ............... 186, 190
Overheating .......................... 532
Engine compartment cover .... 407
Engine coolant
Capacity ................................ 555
Checking ............................... 413
Preparing and checking
before winter ....................... 278
Engine coolant temperature
indicator (Blue) ...................... 224
Engine coolant temperature
warning light (Red) ................ 475
Engine immobilizer system .... 112
Engine oil
Capacity ................................ 549
Checking ............................... 408
Preparing and checking
before winter ....................... 278
Engine oil maintenance
data ......................................... 411
Engine switch................... 186, 190
Engine switch lights ................ 349
EPS............................................ 267Floor mat .................................. 377
Fluid
Washer ................................. 418
Fog lights
Replacing light bulbs............. 450
Switch ................................... 244
Wattage ................................ 563
Foot light .................................. 349
Front fog lights
Replacing light bulbs............. 450
Switch ................................... 244
Wattage ................................ 563
Front passenger’s seat belt
reminder light ........................ 478
Front position lights
Replacing light bulbs............. 450
Switch ................................... 239
Wattage ................................ 563
Front seats
Adjustment .............................. 77
Front turn signal lights
Replacing light bulbs............. 450
Switch ................................... 213
Wattage ................................ 563
Fuel
Capacity ................................ 547
Fuel gauge ............................ 217
Fuel pump shut off system.... 474
Gas station information ......... 588
If you run out of fuel and
the engine stalls ................. 535
Information ............................ 564
Refueling............................... 105
Type ...................................... 547
Fuel door .................................. 105
Fuel filler door.......................... 105
Fuel filter .................................. 419
Fuel pump shut off system ..... 474
Fuses ........................................ 436F

581 Alphabetical index
VERSO_WE_OM64524E
Odometer .................................. 217
Oil
Engine oil .............................. 408
Opener
Fuel filler door ....................... 105
Hood ..................................... 401
Outer foot lights
Outer foot lights..................... 349
Outer foot lights
precautions ......................... 101
Outside rear view mirrors
Adjusting and folding............. 100
Outside temperature
display .................................... 227
Overhead console.................... 355
Overheating, Engine ................ 532
Panoramic roof shade ............. 373
Parking brake ........................... 214
Personal lights
Switch ................................... 351
Wattage................................. 563
Personal/interior lights
Switch ........................... 350, 351
Wattage................................. 563
Power heater ............................ 304
Power outlet ............................. 366
Power windows ........................ 102Radiator .................................... 415
Radio......................................... 314
Rear fog lights
Replacing light bulbs............. 450
Switch ................................... 244
Wattage ................................ 563
Rear seat
Adjustment .............................. 79
Folding the seats .................... 82
Rear side sunshade................. 376
Rear turn signal lights
Replacing light bulbs............. 450
Wattage ................................ 563
Rear window defogger ............ 306
Rear window wiper and
washer .................................... 251
Replacing
Key battery............................ 432
Fuses .................................... 436
Light bulbs ............................ 450
Tires .............................. 490, 506
Roof luggage carrier ............... 275O
P
R

582 Alphabetical index
VERSO_WE_OM64524E
Seatback table.......................... 371
Seat belts
Adjusting the seat belt............. 88
Child restraint system
installation........................... 153
Cleaning and maintaining
the seat belts ...................... 393
Emergency Locking
Retractor ............................... 92
How to wear your seat belt ..... 88
How your child should wear
the seat belt .......................... 93
Pregnant women, proper seat
belt use ................................. 92
Rear seat belt reminder
light ..................................... 231
Reminder light ....................... 477
Seat belt pretensioners ........... 92
Seat heaters ............................. 368
Seats
Adjustment ........................ 77, 79
Adjustment precautions .... 78, 85
Child seats/child restraint
system installation .............. 153
Cleaning ................................ 392
Front seat adjustment ............. 77
Head restraint ......................... 86
Properly sitting in the seat..... 131
Rear seat adjustment .............. 79
Seat heaters.......................... 368
Service reminder
indicators .............................. 222Shift lever
Automatic transmission......... 202
Manual transmission ............. 209
Multidrive .............................. 196
If the shift lever cannot
be shifted from “P” .............. 522
Shift lock system ..................... 522
Side airbags ............................. 133
Side mirror
Adjusting and folding ............ 100
Side turn signal lights
Replacing light bulbs............. 450
Wattage ................................ 563
Smart entry & start system
Antenna location ..................... 43
Entry function .......................... 41
Starting the engine................ 190
Spare tire
Inflation pressure .................. 560
Storage location .................... 490
Spark plug ................................ 556
Specifications .......................... 542
Speed limiter ............................ 256
Speedometer ............................ 217
Steering wheel
Adjustment .............................. 96
Audio switches ...................... 346
Column lock release ..... 188, 193
Storage feature ........................ 352
Storage precautions ................ 276
Stuck
If your vehicle becomes
stuck ................................... 536
Sun visors ................................ 361S
