380
4-3. Do-it-yourself maintenance
URBAN CRUISER_EE (OM52C21E)

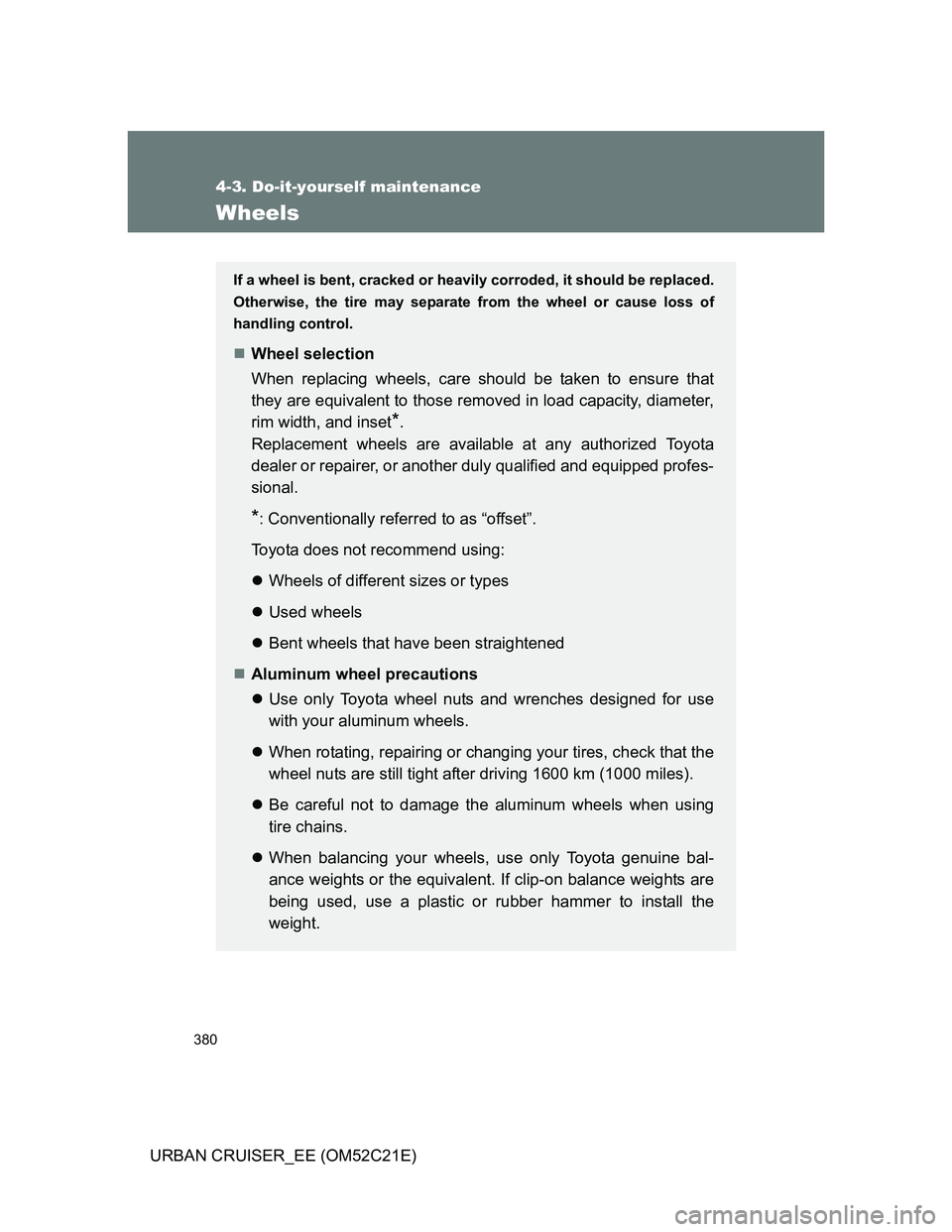

Wheels
If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause loss of
handling control.
Wheel selection
When replacing wheels, care should be taken to ensure that
they are equivalent to those removed in load capacity, diameter,
rim width, and inset
*.
Replacement wheels are available at any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
*: Conventionally referred to as “offset”.
Toyota does not recommend using:
Wheels of different sizes or types
Used wheels
Bent wheels that have been straightened
Aluminum wheel precautions
Use only Toyota wheel nuts and wrenches designed for use
with your aluminum wheels.
When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1600 km (1000 miles).
Be careful not to damage the aluminum wheels when using
tire chains.
When balancing your wheels, use only Toyota genuine bal-
ance weights or the equivalent. If clip-on balance weights are
being used, use a plastic or rubber hammer to install the
weight.
494
URBAN CRUISER_EE (OM52C21E)
6-1. Specifications

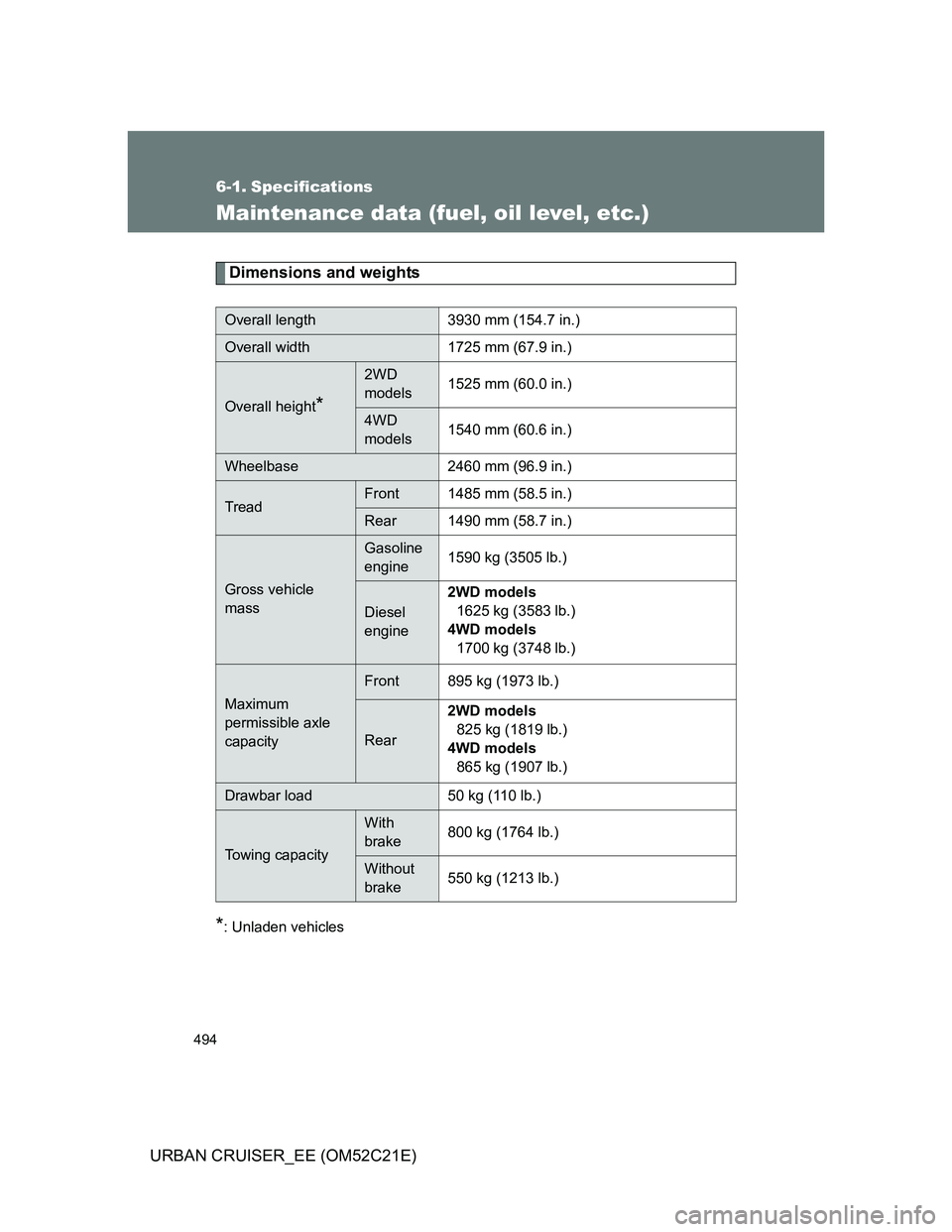

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*: Unladen vehicles
Overall length 3930 mm (154.7 in.)
Overall width 1725 mm (67.9 in.)
Overall height*
2WD
models1525 mm (60.0 in.)
4WD
models1540 mm (60.6 in.)
Wheelbase 2460 mm (96.9 in.)
TreadFront 1485 mm (58.5 in.)
Rear 1490 mm (58.7 in.)
Gross vehicle
mass
Gasoline
engine1590 kg (3505 lb.)
Diesel
engine2WD models
1625 kg (3583 lb.)
4WD models
1700 kg (3748 lb.)
Maximum
permissible axle
capacity
Front 895 kg (1973 lb.)
Rear2WD models
825 kg (1819 lb.)
4WD models
865 kg (1907 lb.)
Drawbar load 50 kg (110 lb.)
Towing capacity
With
brake800 kg (1764 lb.)
Without
brake550 kg (1213 lb.)
