2-4. Using other driving systems
2
When driving
Rear view monitor system (vehicles with auto anti-glare inside rear view mirror)
The rear view monitor system assists the driver by displaying an
image of the area behind the vehicle. The image is displayed in
reverse on the screen. This reversed im age is a similar image to the
one on the inside rear view mirror.
The rear view image is dis-
played on the inside rear view
mirror.
The screen turns off in the fol-
lowing situations:
• The shift lever is shifted out of R.
• The back door is opened.
• The screen remains on for approximately 5 minutes.

184 2-4. Using other driving systems
■The rear view monitor system can be operated when
Vehicles without smart key system
The shift lever is in R, the back door is fully closed and the engine switch is
in the “ON” position.
Vehicles with smart key system
The shift lever is in R, the back door is fully closed and the “ENGINE START
STOP” switch is in IGNITION ON mode.
■ Changing display modes
The rear view monitor display mode can be changed while the screen is on.
●To temporarily disable the rear view monitor system
Push the “AUTO” button.
The indicator will turn amber.
Vehicles without smart key system
The system will be re-enabled once the
engine switch is turned OFF and then
turned to the “ON” position.
Vehicles with smart key system
The system will be re-enabled once the
“ENGINE START STOP” switch is
turned OFF and then turned to IGNI-
TION ON mode.

186 2-4. Using other driving systems

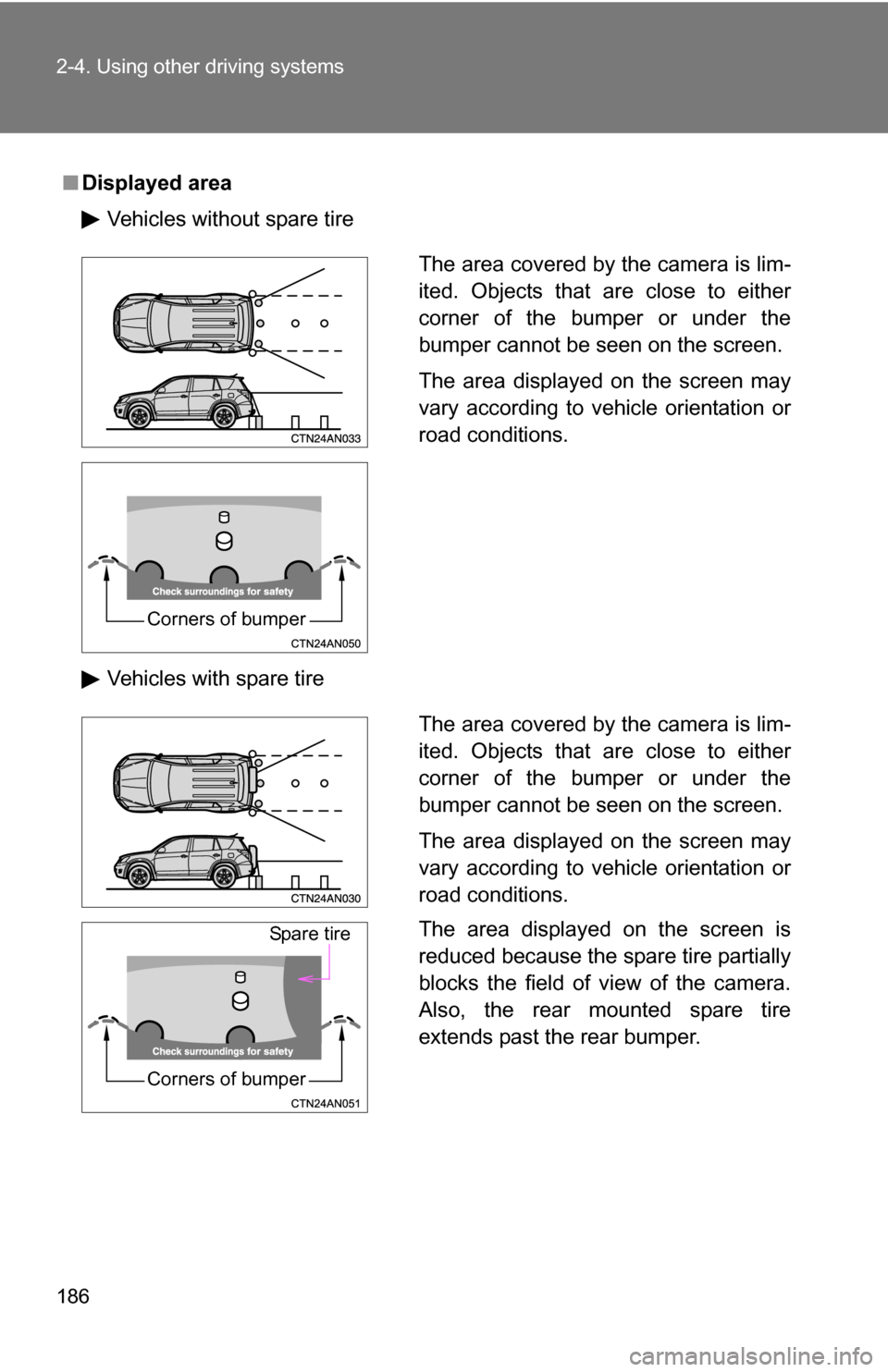

■Displayed area
Vehicles without spare tire
Vehicles with spare tire
The area covered by the camera is lim-
ited. Objects that are close to either
corner of the bumper or under the
bumper cannot be seen on the screen.
The area displayed on the screen may
vary according to vehicle orientation or
road conditions.
Corners of bumper
The area covered by the camera is lim-
ited. Objects that are close to either
corner of the bumper or under the
bumper cannot be seen on the screen.
The area displayed on the screen may
vary according to vehicle orientation or
road conditions.
The area displayed on the screen is
reduced because the spare tire partially
blocks the field of view of the camera.
Also, the rear mounted spare tire
extends past the rear bumper.
Spare tire
Corners of bumper

190 2-4. Using other driving systems
CAUTION
■Conditions which may affect the rear view monitor system
● If the back of the vehicle has been hit, the camera’s position and mounting
angle may have changed. Have the vehicle inspected by your Toyota
dealer.
● When the outside temperature is low, the displayed image may become
faint or dark, and moving images will be distorted, or not entirely visible.
● Rapid temperature changes, such as when hot water is poured on the
vehicle in cold weather, may cause the system to function abnormally.
● If the camera lens is dirty, it cannot transmit a clear image. Rinse with
water and wipe with a soft cloth. If the camera lens is extremely dirty, wash
with a mild cleanser and rinse.
● When replacing tires, please consult your Toyota dealer. If you replace the
tires, the area displayed on the screen may change.
NOTICE
■To prevent damage to the camera
●As the camera has a water proof construction, do not detach, disassemble
or modify it. This may cause incorrect operation.
● When washing the vehicle, do not apply intensive bursts of water to the
camera or camera area. Doing so may result in camera malfunctions.
● Take care so that organic solvent, car wax, window cleaner or glass coat
does not adhere to the camera. If this happens, wipe it off as soon as pos-
sible.

240
3-1. Using the air conditioning system and defogger
Automatic air conditioning system
Using the automatic modePress .
The air conditioning system begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Press “” on to increase the temperature and “ ” to
decrease the temperature.
Air outlets and fan speed for the driver and passenger seats may be
set separately depending on the temperature setting.
Airflow and outlets are automatica lly adjusted according to the tem-
perature setting.
Fan speed Air conditioning
on/off switch
Changes the air outlets used
Off
Driver's side
temperature control
Automatic mode
Windshield defogger
Outside air or
recirculated air modeAir flow display
Micro dust and pollen filter Passenger’s side
temperature control
STEP 1
STEP 2
: If equipped

241
3-1. Using the air conditioning system
and defogger
3
Interior features
Adjusting the settings
■ Adjusting the temperature setting
Press “ ” on to increase the temperature and “ ” to
decrease the temperature.
The air conditioning system switc hes between individual and simulta-
neous modes each time is pressed.
Simultaneous mode (the indicator on is off): Only (driver’s
side) can be used to adjust the temperature for all seats.
Individual mode (the indicator on is on): The temperature for the
driver and passenger seats can be adjusted separately. Operating the
passenger's side temperature control starts individual mode.
■ Adjusting the fan speed
Press “ ” (increase) or “ ” (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.

242 3-1. Using the air conditioning system and defogger
■Changing the air outlets
Press the desired button, , , or .
The air flow shown on the display indicates the following.
Air flows to the upper body.
Air flows to the upper body and
feet.
: Vehicles with third seats Air flows mainly to the feet.
: Vehicles with third seats

254
3-2. Using the audio system
Using the radio
Setting station presets (excluding XM® Satellite Radio)
Search for desired stations by turning or pressing “
”
or “ ” on .
Press and hold the button (from to ) the station is
to be set to until you hear a beep.
Seeking the
frequency Station selector
AM
·SAT/FM mode buttons
Scanning for receivable stations
Changing the
channel
Power Volume Adjusting the frequency
(AM, FM mode) or
channel (SAT mode)
Displaying
radio text
messages
STEP 1
STEP 2
