4-3. Do-it-yourself maintenance
Engine compar tment
Fuse boxes (P. 400)
Engine oil filler cap ( P. 366)
Engine coolant radiator cap
Power control unit
coolant reservoir ( P. 369)
Brake fluid reservoir ( P. 371)
Engine coolant reservoir ( P. 369)Engine/power control unit
coolant radiator ( P. 371)
Electric cooling fan
Condenser ( P. 371)
Engine oil level dipstick ( P. 365)
Washer fluid tank ( P. 374)

400
4-3. Do-it-yourself maintenance
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without a smart key system
Turn the engine switch off.
Vehicles with a smart key system
Turn the “POWER” switch off.
Open the fuse box cover.
Engine compartment (type A fuse box) Push the tab in and lift the lid
off.
Engine compartment (type B fuse box) Push the tab in and lift the lid
off.STEP1
STEP2

402 4-3. Do-it-yourself maintenance
Check if the fuse is blown.
Ty p e A Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e CNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
STEP5

403
4-3. Do-it-yourself maintenance
4
Maintenance and care

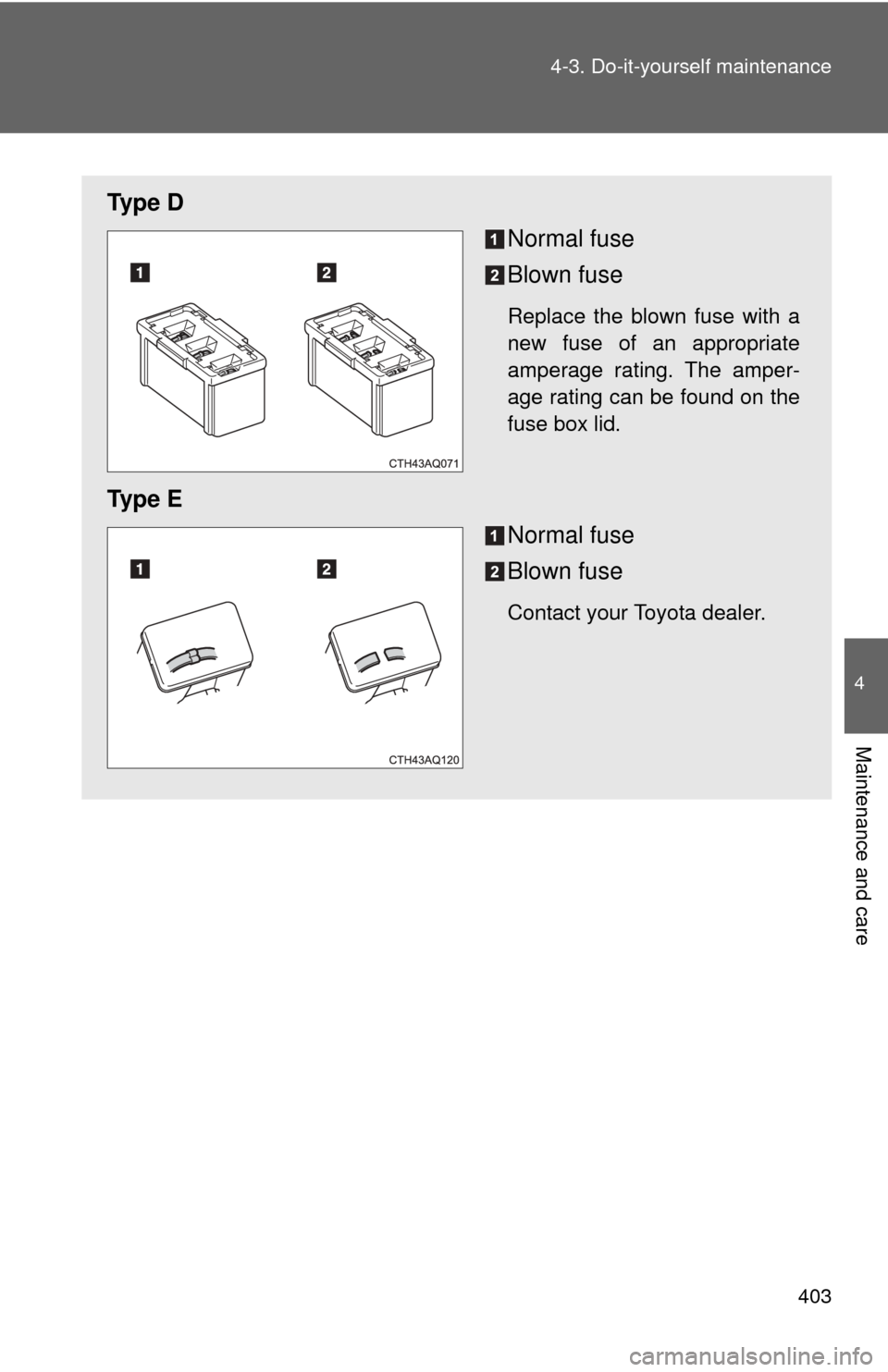

Ty p e D
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e ENormal fuse
Blown fuse
Contact your Toyota dealer.

404 4-3. Do-it-yourself maintenance
Fuse layout and amperage ratingsEngine compartment (type A fuse box)
FuseAmpereCircuit
1 EFI-MAIN 20 A Multiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.2
2 HORN 10 A Horn
3 IG2 30 A IG2 NO.2, METER, IGN
4 SPARE 7.5 A Spare fuse
5 SPARE 15 A Spare fuse
6 SPARE 30 A Spare fuse
7 EFI NO.2 10 A Multiport fuel injection system/
sequential multiport fuel injection
system
8 H-LP RH-LO 10 A Right-hand headlight (low beam)
9 H-LP LH-LO 10 A Left-hand headlight (low beam),
gauge and meters
10 H-LP RH-HI 10 A Right-hand headlight (high beam)
11 H-LP LH-HI 10 A Left-hand headlight (high beam),
gauge and meters

407
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compartment (type B fuse box)
FuseAmpereCircuit
1 DC/DC 100 A Hybrid system
2 ABS MTR NO.2 30 A Brake system
3 HTR 40 A Air conditioning system
4 EPS 50 A Electric power steering system

410 4-3. Do-it-yourself maintenance
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuses or fuse boxes.
■ Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.
