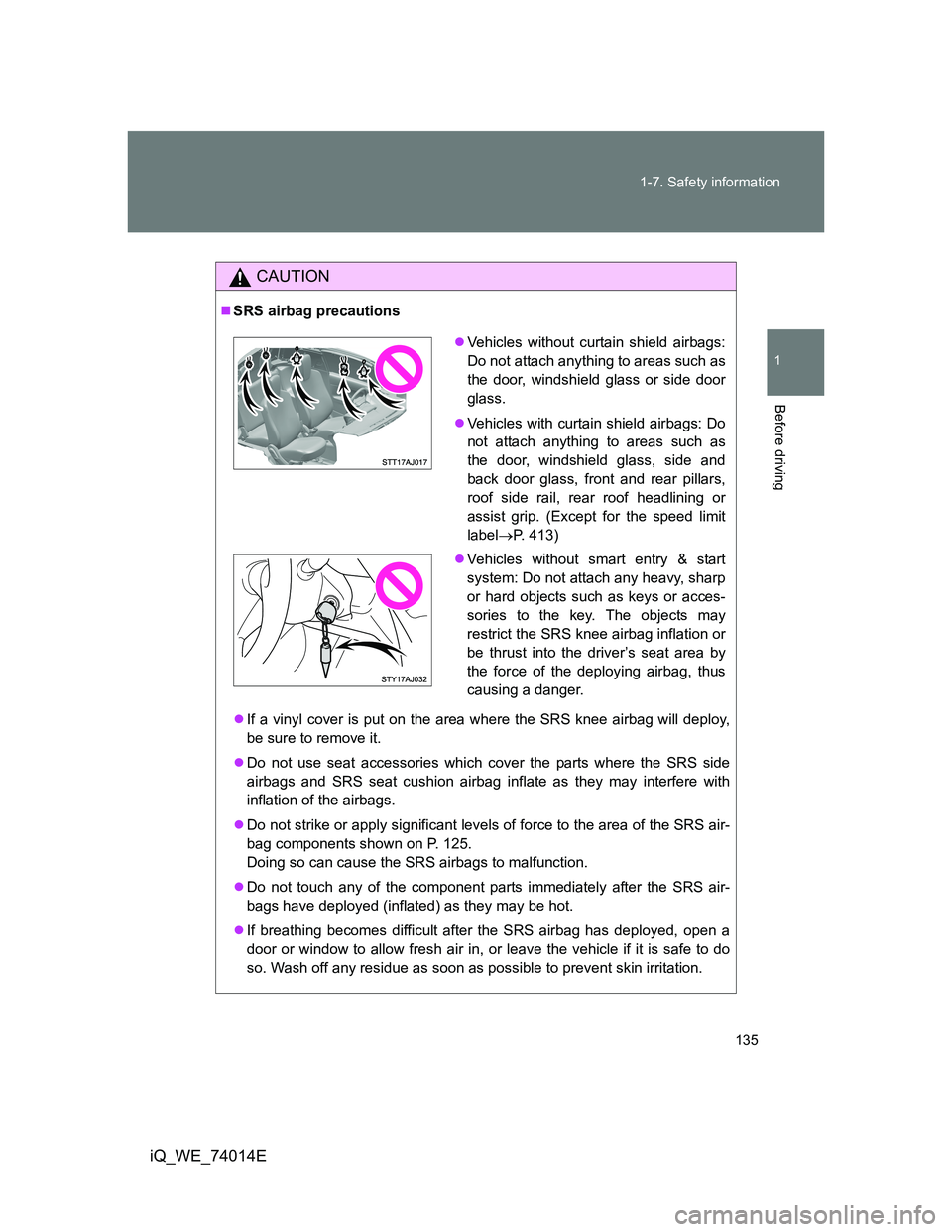

135 1-7. Safety information
1
Before driving
iQ_WE_74014E
CAUTION
SRS airbag precautions
If a vinyl cover is put on the area where the SRS knee airbag will deploy,
be sure to remove it.
Do not use seat accessories which cover the parts where the SRS side
airbags and SRS seat cushion airbag inflate as they may interfere with
inflation of the airbags.
Do not strike or apply significant levels of force to the area of the SRS air-
bag components shown on P. 125.
Doing so can cause the SRS airbags to malfunction.
Do not touch any of the component parts immediately after the SRS air-
bags have deployed (inflated) as they may be hot.
If breathing becomes difficult after the SRS airbag has deployed, open a
door or window to allow fresh air in, or leave the vehicle if it is safe to do
so. Wash off any residue as soon as possible to prevent skin irritation.
Vehicles without curtain shield airbags:
Do not attach anything to areas such as
the door, windshield glass or side door
glass.
Vehicles with curtain shield airbags: Do
not attach anything to areas such as
the door, windshield glass, side and
back door glass, front and rear pillars,
roof side rail, rear roof headlining or
assist grip. (Except for the speed limit
labelP. 413)
Vehicles without smart entry & start
system: Do not attach any heavy, sharp
or hard objects such as keys or acces-
sories to the key. The objects may
restrict the SRS knee airbag inflation or
be thrust into the driver’s seat area by
the force of the deploying airbag, thus
causing a danger.

139 1-7. Safety information
1
Before driving
iQ_WE_74014E
Child restraint system suitability for various seating positions
Provided information in the table shows your child restraint system
suitability for various seating positions.
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint system approved
for the use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint
system approved for the use in this mass group.
X: Not suitable seat position for children in this mass group.
*: Adjust the front seatback to the most upright position. Move the
front seat to the rear most position. If the passenger seat is
equipped with a vertical height adjuster, it must be placed in the
upper most position.
Front passenger seatRear seat
(vehicles with
rear seat)
Airbag manual on-off switch
ON
OFF
0
Up to 10 kg (22 lb.)
(0 - 9 months)X
Never putU
*U
0
+
Up to 13 kg (28 lb.)
(0 - 2 years)X
Never putU*U
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)Front facing 
UF
*
U*U
Rear facing 
X
Never put
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)UF
*U*U
Mass groupsSeating position

143 1-7. Safety information
1
Before driving

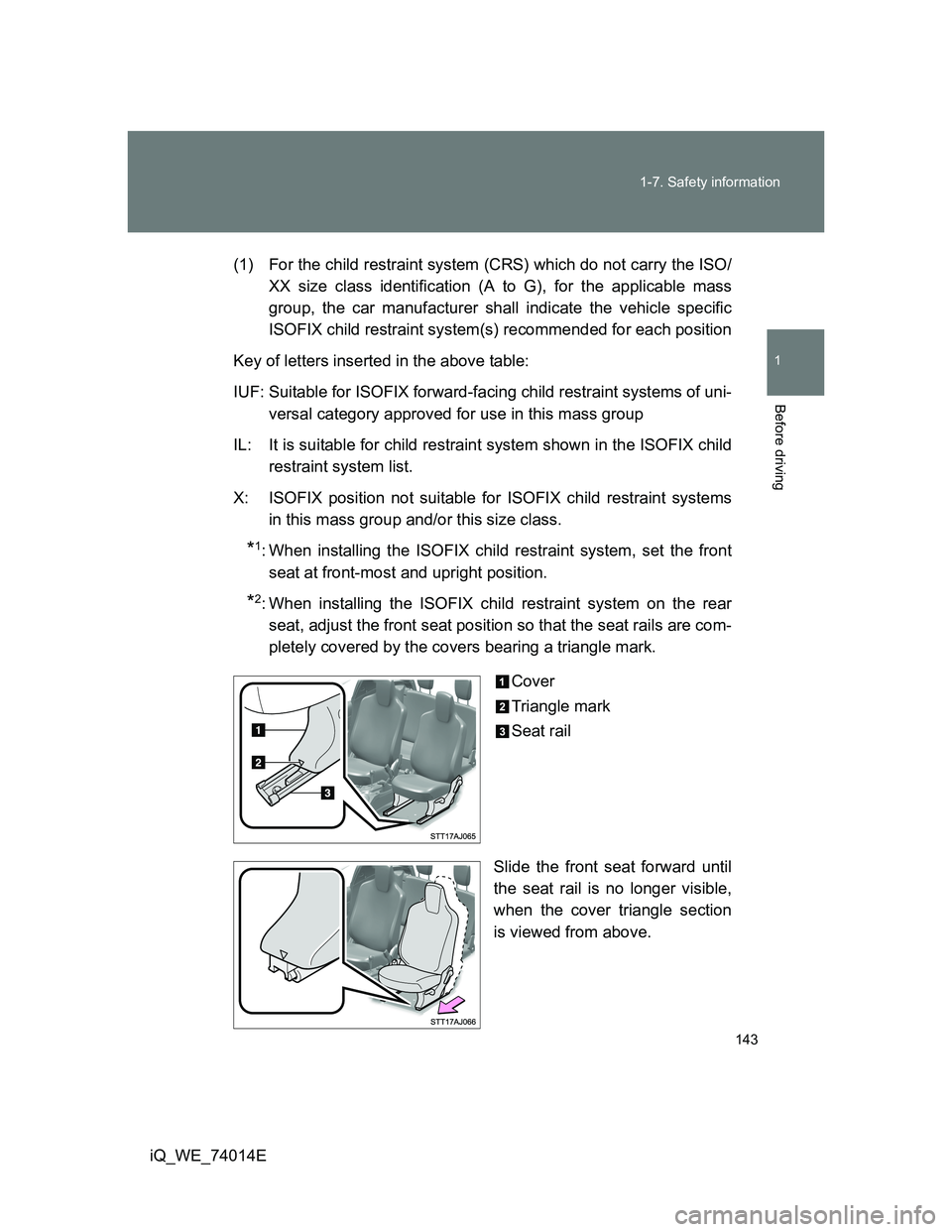

iQ_WE_74014E(1) For the child restraint system (CRS) which do not carry the ISO/
XX size class identification (A to G), for the applicable mass
group, the car manufacturer shall indicate the vehicle specific
ISOFIX child restraint system(s) recommended for each position
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of uni-
versal category approved for use in this mass group
IL: It is suitable for child restraint system shown in the ISOFIX child
restraint system list.
X: ISOFIX position not suitable for ISOFIX child restraint systems
in this mass group and/or this size class.
*1: When installing the ISOFIX child restraint system, set the front
seat at front-most and upright position.
*2: When installing the ISOFIX child restraint system on the rear
seat, adjust the front seat position so that the seat rails are com-
pletely covered by the covers bearing a triangle mark.
Cover
Triangle mark
Seat rail
Slide the front seat forward until
the seat rail is no longer visible,
when the cover triangle section
is viewed from above.

160 1-7. Safety information
iQ_WE_74014E
Deactivating the front passenger airbag and seat cushion airbag
Insert the key into the cylinder
and rotate to the OFF position.
The OFF indicator turns on.
Without smart entry & start sys-
tem: Only when the engine switch
is in the ON position.
With smart entry & start system:
Only when the “ENGINE START
STOP” switch is in ON mode.
Airbag manual on-off switch

165 2-1. Driving procedures
2
When driving
iQ_WE_74014E
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift
the shift lever to N. (P. 189)
Parking the vehicle
Multidrive
With the shift lever in D, depress the brake pedal.
Set the parking brake. (P. 194)
Shift the shift lever to P. (P. 185)
When parking on a hill, if necessary, block the wheels.
Vehicles without smart entry & start system: Turn the
engine switch off to stop the engine.
Vehicles with smart entry & start system: Turn the “ENGINE
START STOP” switch off and stop the engine.
Lock the door, making sure that you have the key on your
person.
Manual transmission
With the clutch pedal fully depressed, depress the brake
pedal.
Set the parking brake. (P. 194)
Shift the shift lever to N. (P. 189)
When parking on a hill, shift the shift lever to 1 or R. If necessary,
block the wheels.
Vehicles without smart entry & start system: Turn the
engine switch off to stop the engine.
Vehicles with smart entry & start system: Turn the “ENGINE
START STOP” switch off to stop the engine.
Lock the door, making sure that you have the key on your
person.

176
2-1. Driving procedures
iQ_WE_74014E
Engine (ignition) switch (vehicles without smart entr y & start system)
Engine switch
LOCK
The steering wheel is locked
and the key can be removed.
(Vehicles with a Multidrive: The
key can be removed only when
the shift lever is in P.)
ACC
Some electrical components
such as the audio system can
be used.
ON
All electrical components can
be used.
START
For starting the engine.
Starting the engine
Multidrive
Check that the parking brake is set.
Check that the shift lever is set in P.
Sit in the driver’s seat and firmly depress the brake pedal.
Turn the engine switch to the START position and start the
engine.
Manual transmission
Check that the parking brake is set.
Check that the shift lever is set in N.
Firmly depress the brake pedal and clutch pedal.
Turn the engine switch to the START position and start the
engine.

177 2-1. Driving procedures
2
When driving
iQ_WE_74014E
Turning the key from ACC to LOCK
Steering lock release
If the engine does not start
The engine immobilizer system may not have been deactivated. (P. 108)
Key reminder function
A buzzer sounds if the driver’s door is opened while the engine switch is in
the ACC or LOCK position, to remind you to remove the key.
CAUTION
When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
Caution while driving
Do not turn the engine switch to the LOCK position.
If in an emergency, you must turn the engine off while the vehicle is moving,
turn the engine switch only to the ACC position.
Shift the shift lever to P (Multid-
rive) or N (manual transmission).
(P. 185189)
Push in the key and turn to the
LOCK position.
When starting the engine, the engine
switch may seem stuck in the LOCK posi-
tion. To free it, turn the key while turning
the steering wheel slightly in either direc-
tion.

179
2-1. Driving procedures
2
When driving
iQ_WE_74014E
Engine (ignition) switch (vehicles with smart entr y & start system)
Performing the following operations when carrying the electronic
key on your person starts the engine or changes “ENGINE START
STOP” switch modes.
Starting the engine
Multidrive
Check that the parking brake is set.
Check that the shift lever is set in P.
Sit in the driver’s seat and firmly depress the brake pedal.
The “ENGINE START STOP” switch indicator turns green. If the
indicator does not turn green, the engine cannot be started.
Press the “ENGINE START
STOP” switch.
The engine can be started
from any “ENGINE START
STOP” switch mode.
The engine will crank until it
starts or for up to 30 seconds,
whichever is less. If you press
and hold the “ENGINE START
STOP” switch, the engine will
keep cranking for about 30
seconds maximum.
Continue depressing the brake
pedal until the engine is com-
pletely started.
