221 2-3. Operating the lights and wipers
2
When driving
iQ_WE_74014E
Vehicles without smart entry & start system:
If the wiper switch is turned to AUTO position while the engine switch is in
the ON position, the wiper will operate once to show that AUTO mode is
activated.
Vehicles with smart entry & start system:
If the wiper switch is turned to AUTO position while the “ENGINE START
STOP” switch is in IGNITION ON mode, the wiper will operate once to
show that AUTO mode is activated.
If the temperature of the raindrop sensor is 90°C (194°F) or higher, or
-10°C (14°F) or lower, automatic operation may not occur. In this case,
operate the wipers in any mode other than “AUTO”.
If no windshield washer fluid sprays
Check that the washer nozzles are not blocked and that there is washer fluid
in the windshield washer fluid reservoir.
CAUTION
Caution regarding the use of windshield wipers in AUTO mode
(vehicles with rain-sensing windshield wipers)
The windshield wipers may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in AUTO mode. Take care that your fin-
gers or anything else does not become caught in the windshield wipers.
NOTICE
When the windshield is dry
Do not use the wipers, as they may damage the windshield.
When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
When a nozzle becomes blocked
Do not try to clear it with a pin or other object. The nozzle will be damaged.

4Maintenance and care
305
iQ_WE_74014E
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ......... 306
Cleaning and protecting
the vehicle interior .......... 310
4-2. Maintenance
Maintenance
requirements................... 313
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ..................... 316
Hood ................................. 319
Positioning a floor jack ...... 321
Replacing the tire .............. 324
Engine compartment......... 334
Tires .................................. 347
Tire inflation pressure ....... 350
Wheels .............................. 352
Air conditioning filter ......... 354
Key battery........................ 357
Checking and replacing
fuses ............................... 361
Light bulbs ........................ 373

5
401 5-2. Steps to take in an emergency
When trouble arises
iQ_WE_74014E
*3: Rear passenger’s seat belt reminders:
The rear passenger’s seat belt reminder sounds to alert the rear passenger
that his or her seat belt is not fastened. The buzzer sounds for 30 seconds
after the vehicle has reached a speed of at least 20 km/h (12 mph). Then, if
the seat belt is still unfastened, the buzzer will sound in a different tone for
90 more seconds.
*4: Left-hand drive vehicles with audio system
*5: Right-hand drive vehicles with audio system
*6: Vehicles without audio system
Follow the correction procedures. (vehicles with smart entry & start system)
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection
procedure
OnceSmart entry & start
system warning light
Indicates that the elec-
tronic key is not pres-
ent when the “ENGINE
START STOP” switch
is pressed.Confirm the
location of the
electronic key.
Once 3 timesSmart entry & start
system warning light
Indicates that a door
other than the driver’s
door has been opened
and closed with the
“ENGINE START
STOP” switch in any
mode other than OFF
and the electronic key
outside of the detec-
tion area.Confirm the
location of the
electronic key.

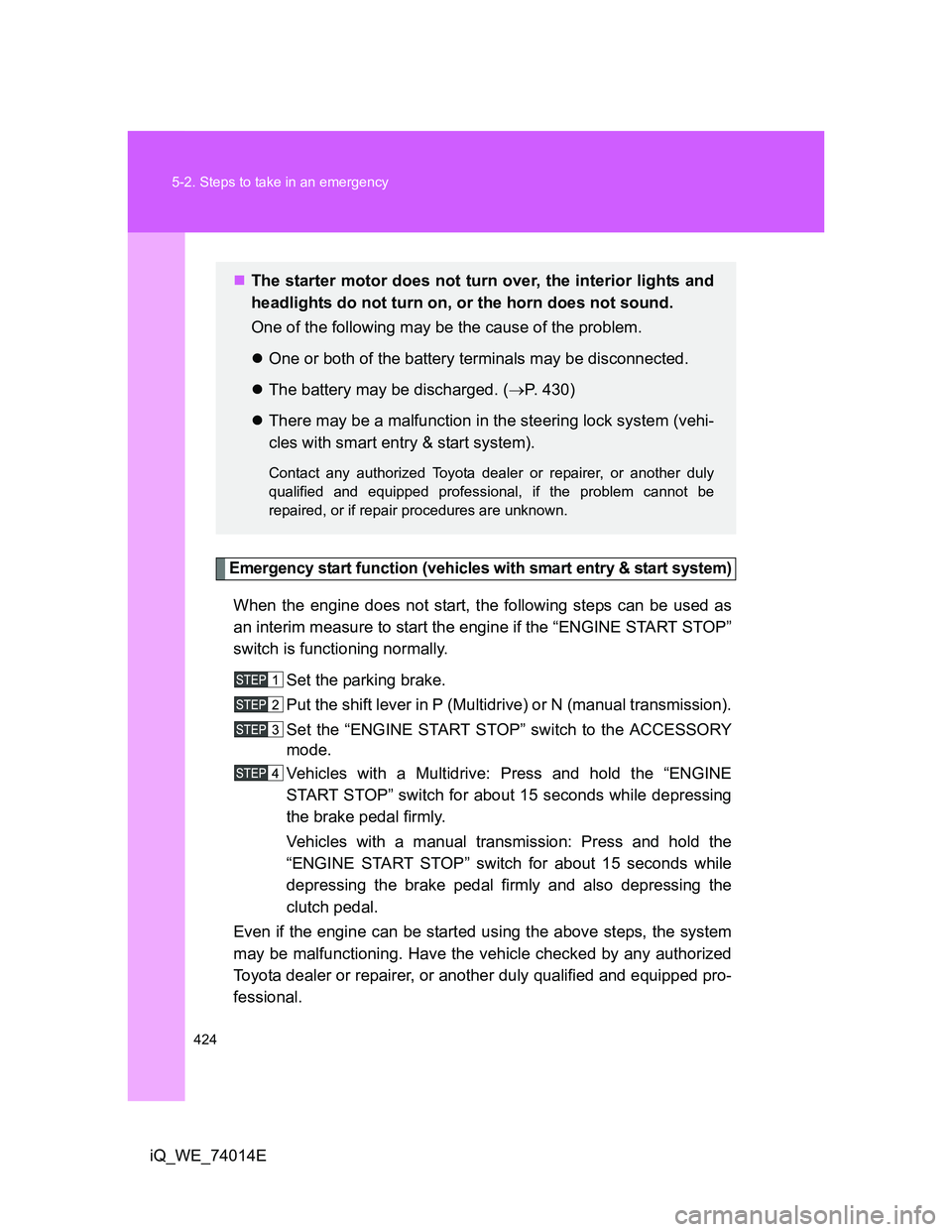

424 5-2. Steps to take in an emergency
iQ_WE_74014E
Emergency start function (vehicles with smart entry & start system)
When the engine does not start, the following steps can be used as
an interim measure to start the engine if the “ENGINE START STOP”
switch is functioning normally.
Set the parking brake.
Put the shift lever in P (Multidrive) or N (manual transmission).
Set the “ENGINE START STOP” switch to the ACCESSORY
mode.
Vehicles with a Multidrive: Press and hold the “ENGINE
START STOP” switch for about 15 seconds while depressing
the brake pedal firmly.
Vehicles with a manual transmission: Press and hold the
“ENGINE START STOP” switch for about 15 seconds while
depressing the brake pedal firmly and also depressing the
clutch pedal.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle checked by any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem.
One or both of the battery terminals may be disconnected.
The battery may be discharged. (P. 430)
There may be a malfunction in the steering lock system (vehi-
cles with smart entry & start system).
Contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional, if the problem cannot be
repaired, or if repair procedures are unknown.

432 5-2. Steps to take in an emergency
iQ_WE_74014E
Starting the engine when the battery is discharged (vehicles with a
Multidrive)
The engine cannot be started by push-starting.
Avoiding a discharged battery
Turn off the headlights and the audio system while the engine is turned
off.
Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic, etc.
When the vehicle battery is removed or discharged
Any data stored in the computer will be erased. When the vehicle battery
is discharged, have the vehicle checked at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
Vehicles with alarm: Make sure that the key is not inside the vehicle
when recharging or replacing the battery. The key may be locked in the
vehicle if the alarm is activated. (P. 120)
Reminders when the vehicle battery is discharged (vehicles with smart
entry & start system)
When the doors are attempted to be unlocked via the smart entry & start
system just after the vehicle battery has been discharged, it may fail. If
the doors cannot be unlocked, unlock the doors using a wireless remote
controller or a mechanical key.
The first engine start after the battery has been discharged may fail.
However, the engine should start after the second attempt, so it is not a
malfunction.
Once the engine starts, have the vehicle checked at any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional, as soon as possible.

465 Alphabetical index
iQ_WE_74014E
Eco driving indicator
light ......................... 167, 201, 209
Electric power steering ........... 224
Emergency flashers
Switch ................................... 386
Emergency, in case of
If the electronic key does not
operate properly ................. 427
If the engine will not start ...... 423
If the shift lever cannot be
shifted from P ..................... 425
If the vehicle battery
is discharged ...................... 430
If the warning buzzer
sounds ................................ 397
If the warning light turns
on........................................ 397
If you have a flat tire ............. 405
If you lose your keys ............. 426
If you think something is
wrong .................................. 395
If your vehicle becomes
stuck ................................... 438
If your vehicle has to
be stopped in an
emergency .......................... 440
If your vehicle needs to be
towed .................................. 388
If your vehicle overheats ....... 435
Emergency tire puncture
repair kit ................................. 405
Engine
Compartment ........................ 334
Engine switch ................ 176, 179
Hood ..................................... 319
How to start the
engine ......................... 176, 179
Identification number............. 445
If the engine will not start ...... 423
Ignition switch .............. 176, 179
Overheating .......................... 435Engine coolant
Capacity ................................ 452
Checking ............................... 340
Preparing and checking
before winter....................... 231
Engine immobilizer system .... 108
Engine oil
Capacity ................................ 449
Checking ............................... 336
Preparing and checking
before winter....................... 231
Engine switch .................. 176, 179
EPS ........................................... 224
First-aid kit holder ................... 301
Floor mat .................................. 299
Fluid
Washer ................................. 346
Fog lights
Replacing light bulbs............. 373
Switch ................................... 216
Wattage ................................ 456
Front fog lights
Replacing light bulbs............. 373
Switch ................................... 216
Wattage ................................ 456
Front passenger’s seat belt
reminder light ........................ 399
Front position lights
Replacing light bulbs............. 373
Switch ................................... 211
Wattage ................................ 456
Front seats
Adjustment .............................. 79E
F

469 Alphabetical index
iQ_WE_74014E
Switch
Airbag manual on-off
switch.................................. 159
Emergency flasher switch ..... 386
Engine switch ................ 176, 179
Fog light switch ..................... 216
Hazard light switch ................ 386
Ignition switch ............... 176, 179
Light switches ....................... 211
Outside rear view mirror
switch.................................... 95
Power door lock switch ........... 73
Power window switch ............ 100
Rear window wiper and
washer switch ..................... 222
VSC OFF switch ................... 225
Window lock switch ............... 100
Wiper and washer
switch.......................... 218, 222
Tachometer .............................. 197
Tail lights
Replacing light bulbs ............. 374
Switch ................................... 211
Wattage................................. 456
Theft deterrent system
Alarm..................................... 119
Engine immobilizer system ... 108
Tire inflation pressure ............. 350
Tires
Chains ................................... 233
Checking ............................... 347
If you have a flat tire.............. 405
Inflation pressure .......... 350, 455
Rotating tires ......................... 347
Size ....................................... 455
Snow tires ............................. 231
Tools ......................................... 324
Towing
Emergency towing ................ 389
Trailer towing ........................ 235Traction control ....................... 224
TRC ........................................... 224
Trip information ....................... 205
Trip meter ................................. 206
Turn signal lights
Lever ..................................... 193
Replacing light bulbs............. 373
Wattage ................................ 456
Vanity mirrors .......................... 294
Vehicle identification
number ................................... 445
Vehicle stability control .......... 224
VSC ........................................... 224
Warning buzzers
Brake system ........................ 397
Seat belt reminder ................ 399
Warning lights
ABS....................................... 398
Airbag system ....................... 398
Anti-lock brake system.......... 398
Brake assist system .............. 398
Brake system ........................ 397
Charging system ................... 398
Electric power steering ......... 398
Engine oil pressure ............... 398
High engine coolant
temperature ........................ 398
Low fuel level ........................ 399
Malfunction indicator lamp .... 398
Open door ............................. 399
Pretensioners........................ 398
Seat belt reminder light ......... 399
Slip indicator ......................... 398
Smart entry & start system ... 401
SRS airbags.......................... 398
VSC OFF .............................. 398
Warning reflector holder ......... 301
T
V
W
