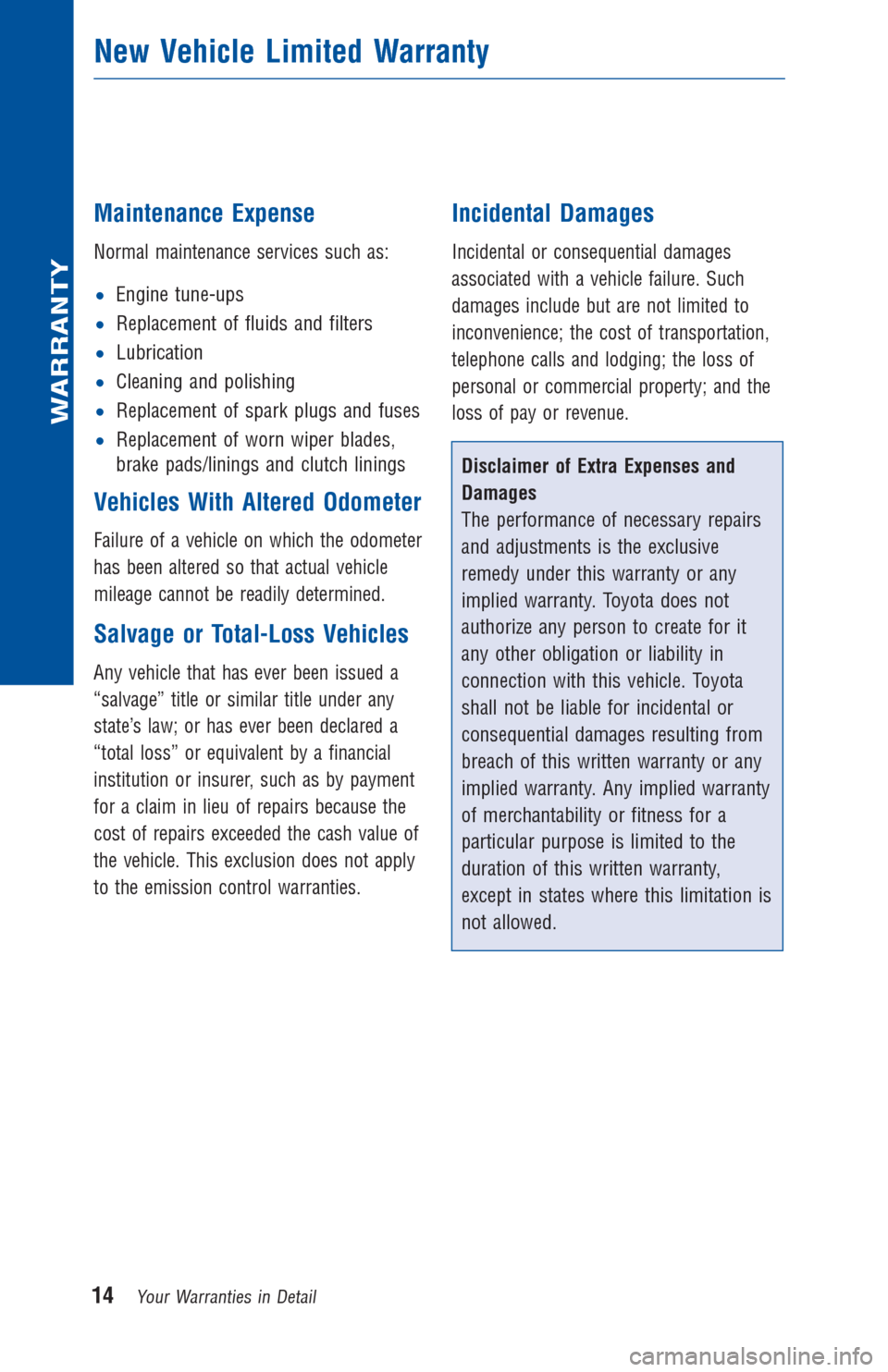

Maintenance Expense
Normal maintenance services such as:
•Engine tune-ups
• Replacement of fluids and filters
• Lubrication
• Cleaning and polishing
• Replacement of spark plugs and fuses
• Replacement of worn wiper blades,
brake pads/linings and clutch linings
Vehicles With Altered Odometer
Failure of a vehicle on which the odometer
has been altered so that actual vehicle
mileage cannot be readily determined.
Salvage or Total-Loss Vehicles
Any vehicle that has ever been issued a
“salvage” title or similar title under any
state’s law; or has ever been declared a
“total loss” or equivalent by a financial
institution or insurer, such as by payment
for a claim in lieu of repairs because the
cost of repairs exceeded the cash value of
the vehicle. This exclusion does not apply
to the emission control warranties.
Incidental Damages
Incidental or consequential damages
associated with a vehicle failure. Such
damages include but are not limited to
inconvenience; the cost of transportation,
telephone calls and lodging; the loss of
personal or commercial property; and the
loss of pay or revenue.
Disclaimer of Extra Expenses and
Damages
The performance of necessary repairs
and adjustments is the exclusive
remedy under this warranty or any
implied warranty. Toyota does not
authorize any person to create for it
any other obligation or liability in
connection with this vehicle. Toyota
shall not be liable for incidental or
consequential damages resulting from
breach of this written warranty or any
implied warranty. Any implied warranty
of merchantability or fitness for a
particular purpose is limited to the
duration of this written warranty,
except in states where this limitation is
not allowed.
New Vehicle Limited Warranty
WARRANTY
14Your Warranties in Detail

Exhaust Gas Recirculation
(EGR) System
•EGR gas temperature sensor
• EGR valve
• Associated parts
Ignition System
•Distributor and internal parts
• Ignition coil and ignitor
• Ignition wires
• Spark plugs*
Positive Crankcase Ventilation
(PCV) System
•Oil filler cap
• PCV valve or orifice
Other Parts Used in Above
Systems
•Data link connector (8/80)
• Hoses, clamps, fittings, tubing and
mounting hardware
• Malfunction indicator light and bulb
(8/80)
• Pulleys, belts and idlers
• Sealing gaskets and devices
• Sensors, solenoids, switches and
valves
MAINTENANCE
You are responsible for performance of
the required maintenance indicated in the
Owner’s Manualand this booklet. Toyota
will not deny a warranty claim solely
because you do not have records to show
that you maintained your vehicle. However,
any failure or noncompliance caused by
lack of maintenance is not covered by this
warranty.
When maintenance and repairs are paid
for by you, these services may be
performed by you or by any automotive
service provider you choose. Toyota will
not deny a warranty claim solely
because you used a service provider
other than a Toyota dealership for
maintenance and repairs. However, any
failure or noncompliance caused by
improper maintenance or repairs is not
covered by this warranty.
* Warranted until first required maintenance under terms of the California Emission Control Warranty.
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
Federal Emission Control Warranty
WARRANTY
18Your Warranties in Detail

120,000 miles or 144 months
Check installation of driver’s floor matInspect and adjust all fluid levelsReplace cabin air filterReplace engine air filterReplace engine oil and oil filter1
Replace spark plugs3
Rotate tires
Inspect the following:
__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brakepads/discs
4
__ Drive belts
__ Drive shaft boots
__ Engine coolant
5
__ Exhaust pipes and mountings __ Front differential oil
__ Fuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
__ Fuel tank cap gasket
__ Radiator and condenser
__ Steering gear box
__ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Maintenance services of spark plugs are required under the terms of the Emission Control Warranty. For 2GR-FE
engines, it is imperative to use the Denso-manufactured spark plug FK20HR11 or equivalent, which enables full
engine performance. For vehicles corresponding to PZEV for California, Maine, Massachusetts, New York, and
Vermont, replacement interval is 150,000 miles.
4Inspect thickness measurement and disc runout.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
Maintenance Log
MAINTENANCE
Maintenance Log51

Engine Oil and Oil Filter
Replace the oil filter and drain and refill
the engine oil at specified intervals. For
recommended oil grade and viscosity,
refer to the
Owner’s Manual.
NOTE:Your vehicle is certified with
Genuine Toyota 0W20 motor oil. For
VEHICLES CERTIFIED FOR 0W20 motor
oil, the oil change interval is 10,000 miles
or 12 months IF 0W20 MOTOR OIL IS
BEING USED. If 0W20 is not available,
5W20 mineral oil may be used. However,
it must be replaced at A 5,000 miles or
6 month INTERVAL with 0W20 motor oil.
For customers who primarily drive their
vehicle under any of the listed Special
Operating Conditions, the motor oil and
filter should be replaced at 5,000 miles or
6 months, REGARDLESS OF THE OIL
USED (OR CERTIFICATION OF THE
VEHICLE).
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler
and hangers for cracks, deterioration and
damage. Start the engine and listen
carefully for any exhaust gas leakage.
Tighten connections or replace parts as
necessary.
Fuel Lines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts as
necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration
and damage and replace if necessary.
Nuts and Bolts on Chassis and
Body
Re-tighten the seat-mounting bolts and
front/rear suspension member retaining
bolts to specified torque.
Radiator and Condenser
Inspect for debris, corrosion and signs of
damage. Have any problem repaired
immediately by a qualified technician.
Spark Plugs
Replace at specified intervals. Install new
plugs of the same type as originally
equipped. A qualified technician should
perform this operation.
Steering Gear Box
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualified technician.
Explanation of Maintenance Items
54Maintenance Log
MAINTENANCE
