277
4-3. Do-it-yourself maintenance
4
Maintenance and care
AYGO_WE_99E96E

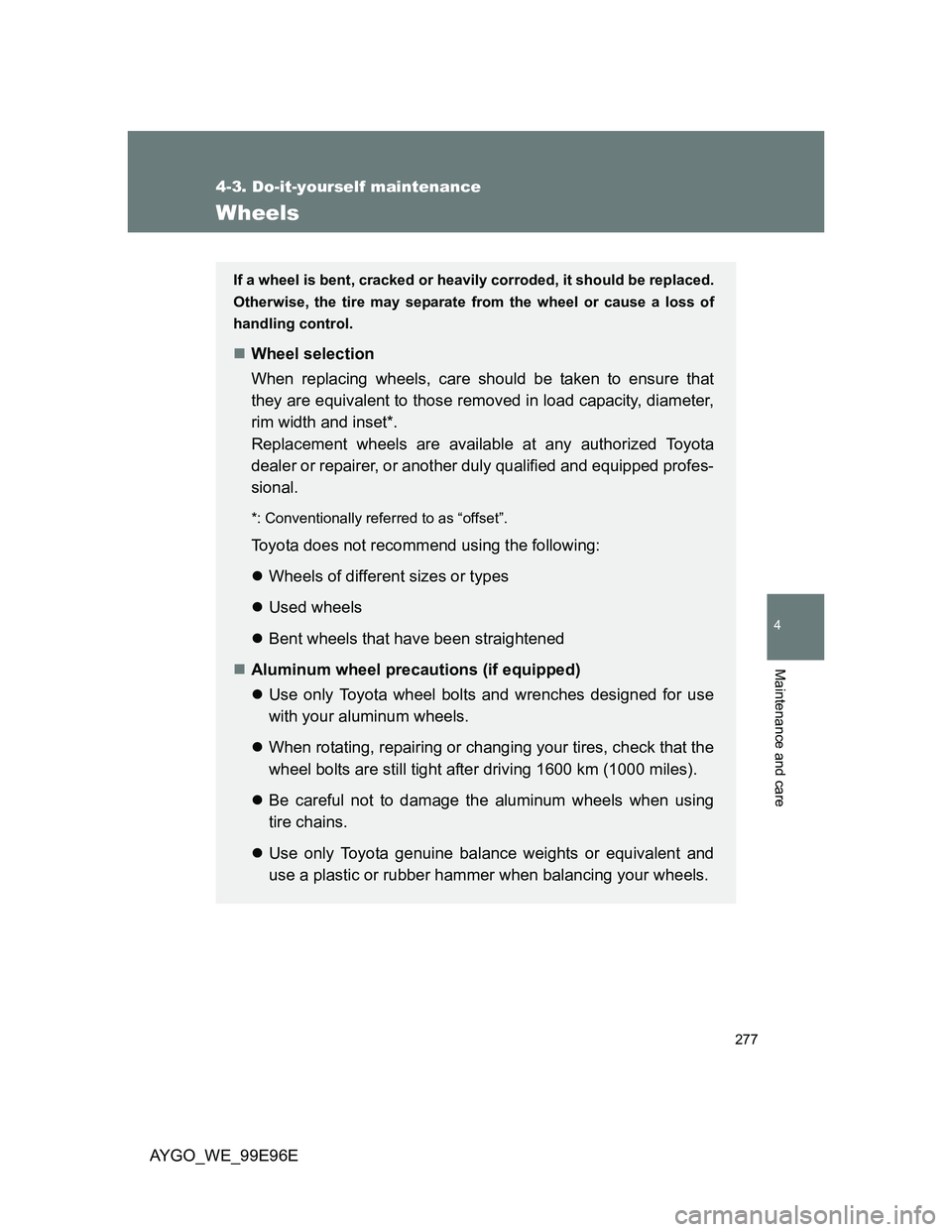

Wheels
If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause a loss of
handling control.
Wheel selection
When replacing wheels, care should be taken to ensure that
they are equivalent to those removed in load capacity, diameter,
rim width and inset*.
Replacement wheels are available at any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
*: Conventionally referred to as “offset”.
Toyota does not recommend using the following:
Wheels of different sizes or types
Used wheels
Bent wheels that have been straightened
Aluminum wheel precautions (if equipped)
Use only Toyota wheel bolts and wrenches designed for use
with your aluminum wheels.
When rotating, repairing or changing your tires, check that the
wheel bolts are still tight after driving 1600 km (1000 miles).
Be careful not to damage the aluminum wheels when using
tire chains.
Use only Toyota genuine balance weights or equivalent and
use a plastic or rubber hammer when balancing your wheels.
344
AYGO_WE_99E96E
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*1: Unladen vehicles
*2: 3-door models
*3: 5-door models
Vehicle identification
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
Overall length 3430 mm (135.0 in.)
Overall width 1615 mm (63.6 in.)
Overall height*11465 mm (57.7 in.)
Wheelbase 2340 mm (92.1 in.)
TreadFront 1420 mm (55.9 in.)
Rear 1410 mm (55.5 in.)
Gross vehicle mass1180 kg (2601 lb.)*2
1190 kg (2623 lb.)*3
Maximum permissi-
ble axle capacityFront 695 kg (1532 lb.)
Rear 695 kg (1532 lb.)
