2-2. Instrument cluster
Gauges and meters
The units used on the speedometer may differ depending on the
target region.Engine coolant temperature gauge
Displays the engine coolant temperature.
Tachometer
Displays the engine speed in revolutions per minute.
Shift position indicator
Displays the shift position
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Low fuel level warning light
P. 482
Odometer/trip meter and trip meter reset button
P. 170

170 2-2. Instrument cluster
Odometer and trip meter display buttonVehicles with smart key system
Pressing this button switches am ong odometer and trip meter when
the “ENGINE START STOP” switch is IGNITION ON mode.
Vehicles without smart key system
Pressing this button switches am ong odometer and trip meter when
the engine switch is in the “ON” position.
Odometer
Trip meter A
Trip meter B
Pushing and holding the button
will reset the trip meter.
Odometer/Trip meter displayOdometer
Displays the total distance the vehicle has been driven.
Trip meter
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
Multi-informat ion display
P. 175

175
2-2. Instrument cluster
2
When driving
Multi-information display
Switching the displayItems displayed can be switched
by pressing the “DISP” button.
The multi-information display presen ts the driver with a variety of
driving-related data including the current outside air temperature.
●Outside temperature dis-
play
● Trip information
Displays driving range, fuel
consumption and other cruis-
ing related information

176 2-2. Instrument cluster

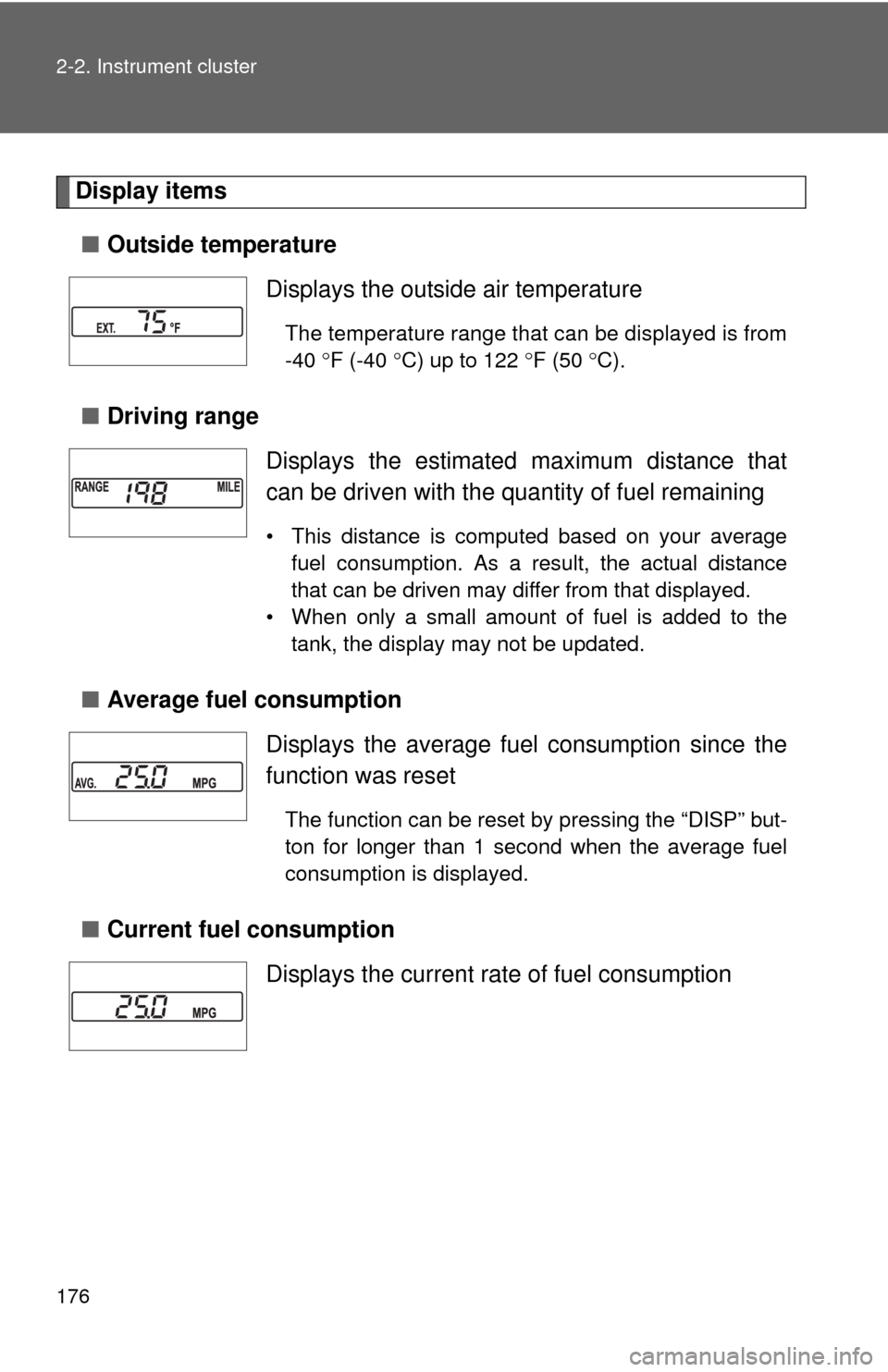

Display items■ Outside temperature
■ Driving range
■ Average fuel consumption
■ Current fuel consumption Displays the outside air temperature
The temperature range that can be displayed is from
-40 
F (-40 C) up to 122 F (50 C).
Displays the estimated maximum distance that
can be driven with the quantity of fuel remaining
• This distance is computed based on your average
fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
Displays the average fuel consumption since the
function was reset
The function can be reset by pressing the “DISP” but-
ton for longer than 1 second when the average fuel
consumption is displayed.
Displays the current rate of fuel consumption

177
2-2. Instrument cluster
2
When driving
■
Average vehicle speed
Displays the average ve hicle speed since the
engine was started or the function was reset
The function can be reset by pressing the “DISP” but-
ton for longer than 1 second when the average vehi-
cle speed is displayed.
■ Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
● When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
■ When disconnecting and reco nnecting battery terminals
The following information data will be reset:
● Average fuel consumption
● Driving range
● Average vehicle speed
NOTICE
■The multi-information disp lay at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
