6017-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
Indicates a malfunction in the smart entry & start
system (if equipped)
A buzzer also sounds.
Indicates that the speed limiter system is mal-
functioning. (if equipped)
A buzzer also sounds.
Indicates a malfunction in the P position control
system. (hybrid model)
• In this situation, there is a possibility that the
parking lock mechanism will not work.
When parking, park the vehicle on a flat sur-
face and apply the parking brake securely.
Also, it may not be possible to turn the power
switch off. If this happens, applying the park-
ing brake will enable the switch to be turned
off.
• A buzzer also sounds.
Indicates a malfunction in the Toyota parking
assist-sensor (if equipped)
• The malfunctioning assist-sensor is flashing.
• A buzzer also sounds.
Warning messageDetails
(Flashes)

7208-2. Customization
UK_AURIS/AURIS_HV_EE (OM12E33E)Definition of symbols: O = Available, — = Not available
ItemFunctionDefault
settingCustom-
ized setting
Alarm*1
(P. 103)Sensitivity adjustment of
the intrusion sensor when
the window is open
StandardLow—O
Smart entry
& start
system
*1
(P. 151)
and
wireless
remote
control
(P. 191)
“Lock/unlock feedback
lights” (Enable/disable the
operation of the emer-
gency flashers when the
vehicle is locked or
unlocked)
OnOff—O
“Auto relock timer” (Adjust
the time elapsed before
the automatic door lock
function is activated if a
door is not opened after
being unlocked)
30
seconds
60
seconds
—O
120
seconds
Open door reminder
buzzer (When locking the
vehicle)
OnOff—O
Smart entry
& start
system
*1
(P. 151)
“Entry and start system”
(Smart entry & start sys-
tem can be disabled)
OnOffOO
Number of consecutive
door lock operations2 times
As many
as
desired
—O
Push-
button start
(P. 176)
Push-button startOnOff—O
Wireless
remote
control
(P. 191)
Wireless remote controlOnOff—O
Back door unlocking oper-
ationOne short
press
Press and
hold (short)
—OPush twice
Press and
hold (long)
Off
12

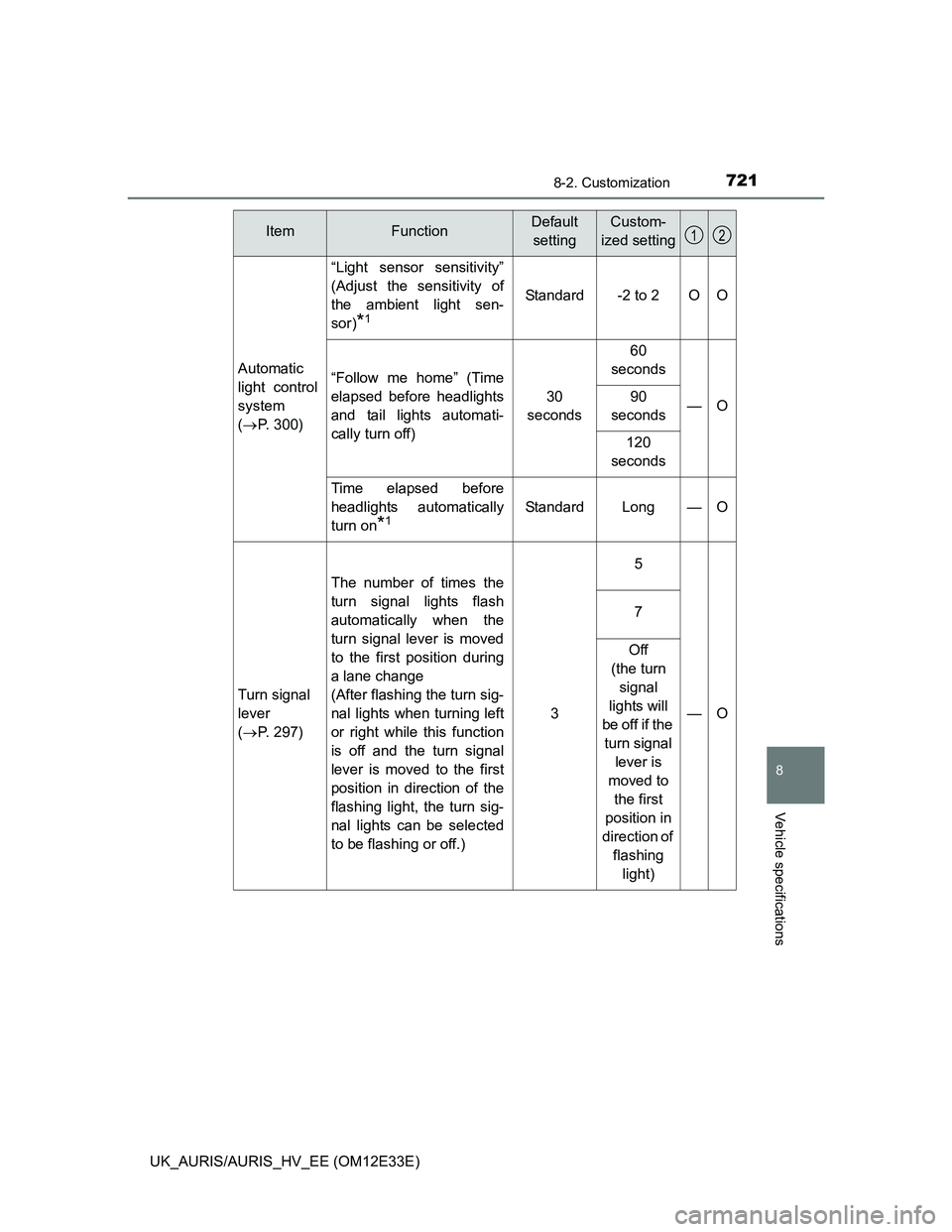

7218-2. Customization
UK_AURIS/AURIS_HV_EE (OM12E33E)
8
Vehicle specifications
Automatic
light control
system
(P. 300)
“Light sensor sensitivity”
(Adjust the sensitivity of
the ambient light sen-
sor)
*1
Standard-2 to 2OO
“Follow me home” (Time
elapsed before headlights
and tail lights automati-
cally turn off)
30
seconds
60
seconds
—O90
seconds
120
seconds
Time elapsed before
headlights automatically
turn on
*1StandardLong—O
Turn signal
lever
(P. 297)
The number of times the
turn signal lights flash
automatically when the
turn signal lever is moved
to the first position during
a lane change
(After flashing the turn sig-
nal lights when turning left
or right while this function
is off and the turn signal
lever is moved to the first
position in direction of the
flashing light, the turn sig-
nal lights can be selected
to be flashing or off.)
3
5
—O
7
Off
(the turn
signal
lights will
be off if the
turn signal
lever is
moved to
the first
position in
direction of
flashing
light)
ItemFunctionDefault
settingCustom-
ized setting12

731What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12E33E)

Did anyone inside the vehicle open a door or anything move inside
the vehicle
* during setting the alarm?
The sensor detects them and the alarm sounds. (P. 103)
*: If the vehicle is equipped with intrusion sensor.
Vehicles without a smart entry & start system (except hybrid model):
To stop the alarm, turn the engine switch to the “ON” position or start
the engine.
Vehicles with a smart entry & start system (except hybrid model):
To stop the alarm, turn the engine switch to IGNITION ON mode or
start the engine.
Hybrid model:
To stop the alarm, turn the power switch to ON mode or start the
hybrid system.
Is the electronic key left inside the vehicle?
Vehicles with a multi-information display: Check the message on
the multi-information display. (P. 599)
When a warning light turns on, refer to P. 585.
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart entry & start system)
A warning light turns on
(vehicles with a drive monitor display)

738Alphabetical index
UK_AURIS/AURIS_HV_EE (OM12E33E)
Hands-free system
(for cellular phone)*
Head restraints......................... 212
Headlights ................................ 300
Adaptive Front-lighting
System (AFS) ..................... 303
Automatic High Beam
system ................................ 306
Discharge headlights
precautions ......................... 570
Follow me home system ....... 302
Light switch ........................... 300
Replacing light bulbs ............. 555
Wattage................................. 716
Heaters
Heater system ....................... 374
Outside rear view mirrors ...... 398
Seat heaters.......................... 465
Hill-start assist control ............ 362
Hood.......................................... 488
Open ..................................... 488
Hooks
Cargo hooks.......................... 451
Coat hooks ............................ 469
Retaining hooks (floor mat) ..... 38
Horn .......................................... 299
Hybrid battery
(traction battery) ...................... 84
Hybrid battery
(traction battery) air vents ...... 85Hybrid system ............................ 80
Emergency shut off system .... 85
Energy monitor/
consumption screen ........... 142
EV drive mode ...................... 274
High voltage components ....... 84
Hybrid System Indicator........ 136
Hybrid system precautions ..... 84
Hybrid vehicle driving tips ..... 366
If the hybrid system
will not start ........................ 670
Overheating .......................... 687
Power (ignition) switch .......... 268
Starting the hybrid system .... 268
Hybrid System Indicator ......... 136
Hybrid transmission ................ 289
Identification ............................ 699
Engine................................... 700
Vehicle .................................. 699
Ignition switch
(engine switch) .............. 254, 258
Ignition switch
(power switch) ....................... 268
Illuminated entry system ........ 444
Immobilizer system ............. 91, 99
Indicators ................................. 119
Initialization
Power windows ..................... 222
Inside rear view mirror ............ 215
Intercooler ................................ 507
Interior lights............................ 441
Intrusion sensor ...................... 107
ISOFIX rigid anchors ................. 68
H
I

741Alphabetical index
UK_AURIS/AURIS_HV_EE (OM12E33E)
Paddle shift switches ...... 278, 283
Panoramic roof shade ............. 471
Parking assist sensors............ 330
Parking brake ........................... 298
Operation .............................. 298
Parking brake engaged
warning buzzer ................... 603
Parking brake engaged
warning message ............... 603
Personal lights ......................... 442
Power outlets ........................... 463
Power steering ......................... 356
Warning light ......................... 588
Power switch ............................ 268
Power windows ........................ 220
Jam protection function ......... 221
Operation .............................. 220
Window lock switch ............... 220Radiator .................................... 507
Radio......................................... 404
Rear fog light ........................... 310
Replacing light bulb .............. 555
Switch ................................... 310
Rear personal lights ................ 443
Rear seat
Folding down ........................ 210
Rear turn signal lights............. 297
Replacing light bulbs............. 555
Turn signal lever ................... 297
Wattage ................................ 716
Rear view mirror
Inside rear view mirror .......... 215
Outside rear view mirrors...... 217
Rear view monitor system*
Rear window defogger ............ 398
Rear window wiper .................. 316
Refueling .................................. 318
Capacity ................................ 703
Fuel types ............................. 703
Opening the fuel tank cap ..... 320
Replacing
Electronic key battery ........... 529
Fuses .................................... 532
Light bulbs ............................ 555
Tires ...................................... 626
PR
*: Refer to ““touch screen” Owner’s manual”

742Alphabetical index
UK_AURIS/AURIS_HV_EE (OM12E33E)
Seat belt reminder light ........... 590
Seat belts .................................... 42
Adjusting the seat belt............. 43
Child restraint system
installation............................. 69
Cleaning and maintaining
the seat belt ........................ 479
Emergency Locking Retractor
(ELR) .................................... 43
How to wear your seat belt ..... 40
How your child should wear
the seat belt .......................... 43
Pregnant women, proper
seat belt use ......................... 44
Reminder light and buzzer .... 590
Seat belt pretensioners ........... 43
SRS warning light ................. 588
Seat heaters ............................. 465
Seats ......................................... 208
Adjustment ............................ 208
Adjustment precautions ........ 209
Child seats/child restraint
system installation................ 68
Cleaning ................................ 478
Head restraints...................... 212
Properly sitting in the seat....... 40
Seat heaters.......................... 465
Sensor
Automatic headlight
system ................................ 304
Automatic High Beam
system ................................ 309
Inside rear view mirror .......... 216
Intrusion sensor .................... 107
Toyota parking
assist-sensor ...................... 330
Rain-sensing windshield
wipers ................................. 313Shift lever ......... 276, 281, 286, 289
Hybrid transmission .............. 289
If the shift lever cannot
be shifted ............................ 669
Manual transmission ............. 286
If the shift lever cannot
be shifted from P ................ 668
Multidrive .............................. 276
Multi-mode manual
transmission ....................... 281
Shift lock system ............. 668, 669
Side airbags ............................... 46
Side mirrors ............................. 217
Adjusting and folding ............ 217
Side turn signal lights ............. 297
Replacing light bulbs............. 555
Turn signal lever ................... 297
Simple IPA ................................ 336
Smart entry & start system ..... 151
Antenna location ................... 153
Entry functions ...................... 151
Starting the engine................ 258
Starting the hybrid system .... 268
Warning message ................. 601
Snow tires ................................ 371
Spare tire .................................. 626
Inflation pressure .................. 715
Storage location .................... 627
Spark plug ................................ 710
S

743Alphabetical index
UK_AURIS/AURIS_HV_EE (OM12E33E)
Specifications .......................... 696
Speech command system*
Speed limiter ............................ 327
Speedometer .................... 122, 126
Sport mode ............................... 277
Steering lock
Column lock release ..... 256, 265
Steering lock system
warning message ............... 611
Steering wheel ......................... 214
Adjustment ............................ 214
Audio switches ...................... 438
Stop & Start cancel switch...... 351
Stop & Start system................. 350
Stop & Start system
operation time........................ 124
Stop & Start system total
operation time........................ 124
Stop lights
Emergency brake signal ....... 357
Replacing light bulbs ............. 555
Storage feature ........................ 445
Stuck
If the vehicle becomes
stuck ................................... 692
Sun visors ................................ 458
Sunshade
Panoramic roof...................... 471Switches
AFS OFF switch.................... 303
Airbag manual on-off
switch ................................... 56
Audio remote control
switches.............................. 438
Cruise control switch............. 322
“DISP” button ........ 123, 127, 129
Door lock switches ................ 200
Emergency flashers switch ... 572
Engine switch................ 254, 258
“ES” switch............................ 282
Fog light switch ..................... 310
Ignition switch ............... 254, 258
Toyota parking assist-sensor
switch ................................. 330
Light switches ....................... 300
Outside rear view mirror
switches.............................. 217
Paddle shift switches .... 278, 282
Power door lock switch ......... 200
Power switch......................... 268
Power window switches ........ 220
“SPORT” switch .................... 277
Stop & Start cancel switch .... 350
Rear window and outside
rear view mirror defoggers
switch ................................. 398
Seat heater switches ............ 465
Talk switch*
Telephone switches*
VSC OFF switch ................... 358
Window lock switch............... 220
Windshield wiper and
washer switch ..................... 312
*: Refer to ““touch screen” Owner’s manual”
