1041-3. Theft deterrent system
UK_AURIS/AURIS_HV_EE (OM12E33E)
Do one of the following to deactivate or stop the alarm:
Unlock the doors using the entry function (if equipped) or wireless
remote control.
Except hybrid model: Start the engine. (The alarm will be deacti-
vated or stopped after a few seconds.)
Hybrid model: Start the hybrid system. (The alarm will be deacti-
vated or stopped after a few seconds.)
System maintenance
The vehicle has a maintenance-free type alarm system.
Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
Nobody is in the vehicle.
The windows are closed before the alarm is set.
No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm

1192. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12E33E)
2
Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
(P. 297)*1
(Green)
Smart entry & start sys-
tem indicator (P. 258)
Headlight high beam
indicator
(P. 300)
*1Speed limiter indicator
(P. 327)
*1Front fog light indicator
(P. 310)*1, 2, 3Automatic High Beam
indicator (P. 306)
Rear fog light indicator
(P. 310)
*1, 2, 3“AFS OFF” indicator
(P. 303)
*1, 2Gear Shift Indicator
(P. 283)*1“SPORT” indicator
(P. 277)
*1
(Green)
Cruise control indicator
(P. 322)*1, 2
Stop & Start indicator
(P. 350)
Engine preheating indi-
cator (diesel engine)
(P. 254, 258)
*1, 2Stop & Start cancel indi-
cator (P. 350)
*2VSC OFF indicator
(P. 358)*1Cruise control “SET”
indicator (P. 322)
*1, 2, 3, 4 Slip indicator
(P. 357, 362)*1, 2, 3 “TRC OFF” indicator
(P. 358)
*1Shift position and gear
position indicators
(P. 276, 281)Power mode indicator
(hybrid model)
(P. 292)

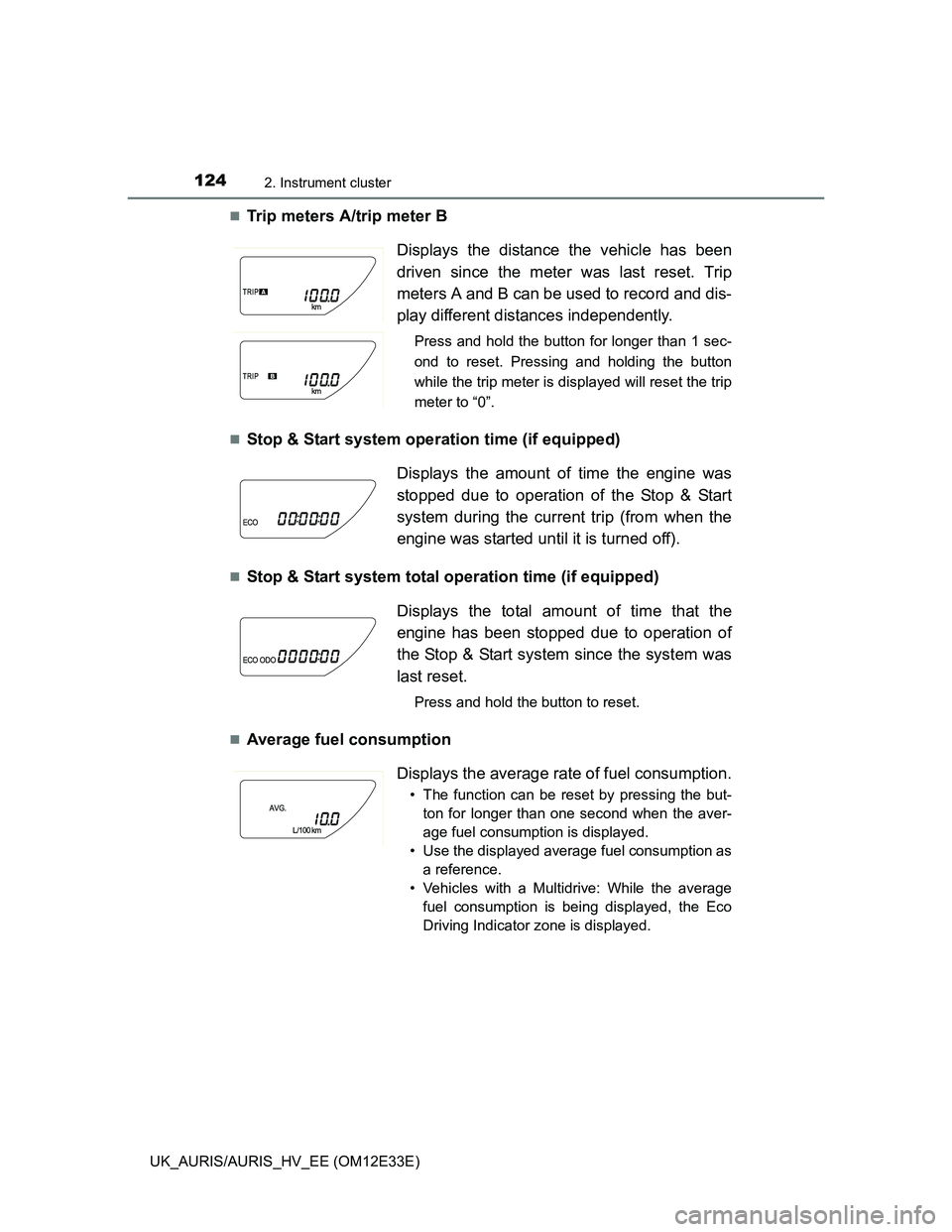

1242. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12E33E)
Trip meters A/trip meter B
Stop & Start system operation time (if equipped)
Stop & Start system total operation time (if equipped)
Average fuel consumption Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and dis-
play different distances independently.
Press and hold the button for longer than 1 sec-
ond to reset. Pressing and holding the button
while the trip meter is displayed will reset the trip
meter to “0”.
Displays the amount of time the engine was
stopped due to operation of the Stop & Start
system during the current trip (from when the
engine was started until it is turned off).
Displays the total amount of time that the
engine has been stopped due to operation of
the Stop & Start system since the system was
last reset.
Press and hold the button to reset.
Displays the average rate of fuel consumption.
• The function can be reset by pressing the but-
ton for longer than one second when the aver-
age fuel consumption is displayed.
• Use the displayed average fuel consumption as
a reference.
• Vehicles with a Multidrive: While the average
fuel consumption is being displayed, the Eco
Driving Indicator zone is displayed.

1302. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12E33E)
Displays the odometer, trip meter and other cruising related informa-
tion. The display can be switched by pressing the display change but-
ton.
Odometer
Trip meters A/trip meter B
Stop & Start system operation time (if equipped)
Stop & Start system total operation time (if equipped)
Trip information
Displays the total distance the vehicle has
been driven.
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and dis-
play different distances independently.
Press and hold the button for longer than 1 sec-
ond to reset.
Displays the amount of time the engine was
stopped due to operation of the Stop & Start
system during the current trip (from when the
engine was started until it is turned off).
Displays the total amount of time that the
engine has been stopped due to operation of
the Stop & Start system since the system was
last reset.
Press and hold the button for longer than 1 sec-
ond to reset.

1573-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)
3
Operation of each component
Battery-saving function
The battery-saving function will be activated in order to prevent the electronic
key battery and the vehicle battery from being discharged while the vehicle is
not in operation for a long time.
In the following situations, the smart entry & start system may take some
time to unlock the doors.
• The electronic key has been left in an area of approximately 2 m (6 ft.) of
the outside of the vehicle for 10 minutes or longer.
• The smart entry & start system has not been used for 5 days or longer.
If the smart entry & start system has not been used for 14 days or longer,
the doors cannot be unlocked at any doors except the driver’s door. In this
case, take hold of the driver’s door handle, or use the wireless remote con-
trol or the mechanical key, to unlock the doors.
Electronic Key Battery-Saving Function
When battery-saving mode is set, battery
depletion is minimized by stopping the
electronic key from receiving radio waves.
Press twice while pressing and
holding . Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set, the
smart entry & start system cannot be
used. To cancel the function, press any of
the electronic key buttons.

1623-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)Electronic key battery depletion
The standard battery life is 1 to 2 years.
Except hybrid model: If the battery becomes low, an alarm will sound in the
cabin when the engine stops. (P. 594, 611)
Hybrid model: If the battery becomes low, an alarm will sound in the cabin
when the hybrid system stops. (P. 611)
As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. (P. 529)
• The smart entry & start system or the wireless remote control does not
operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
When the electronic key battery is fully depleted
P. 529
Customization
Settings (e. g. smart entry & start system) can be changed.
(Customizable features: P. 719)
If the smart entry & start system has been deactivated in a customized
setting
Locking and unlocking the doors:
Use the wireless remote control or mechanical key. (P. 191, 670)
Except hybrid model: Starting the engine and changing engine switch
modes: P. 671
Hybrid model: Starting the hybrid system and changing power switch
modes: P. 672
Except hybrid model: Stopping the engine: P. 260
Hybrid model: Stopping the hybrid system: P. 269

1763-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)
Push button start
: If equipped
Starting and stopping the hybrid system can be performed sim-
ply by carrying the electronic key on your person, for example in
your pocket. P. 268)
(The driver should always carry the electronic key.)

1803-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12E33E)Electronic key battery depletion
The standard battery life is 1 to 2 years.
If the battery becomes low, an alarm will sound in the cabin when the hybrid
system stops. (P. 6 11 )
As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. (P. 529)
• The push button start or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appliances that produce a magnetic field.
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Glass top ranges
To operate the system properly
Make sure to carry the electronic key when operating the system.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly.
Alarms and warning messages
P. 6 1 1
If the push button start does not operate properly
Starting the hybrid system: P. 268
When the electronic key battery is fully depleted
P. 529
Customization that can be configured at any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
It is possible to deactivate the push button start.
(Customizable features P. 719)
If the push button start has been deactivated in a customized setting
Starting the hybrid system and changing power switch modes: P. 6 7 2
Stopping the hybrid system: P. 269
