Where to go for service?
In order to maintain your vehicle in the highest possible condition, Toyota
recommends that all repairs and service operations be carried out by autho-
rized Toyota dealers or repairers or other duly qualified and equipped profes-
sionals. For repairs and services covered by your warranty, please visit an
authorized Toyota dealer or repairer, who will use genuine Toyota parts in
repairing any difficulties you may encounter. There can also be advantages
in utilizing authorized Toyota dealers or repairers for non-warranty repairs
and services, as members of the Toyota network will be able to expertly
assist you with any difficulties you may encounter.
Your Toyota dealer or repairer, or another duly qualified and equipped
professional service department will perform all of the scheduled
maintenance on your vehicle-reliably and economically due to their
experience with Toyota vehicles.
Does your vehicle need repair?
Be on the alert for changes in performance and sounds, and visual tip-offs
that indicate service is needed. Some important clues are:
Engine missing, stumbling, or pinging
Appreciable loss of power
Strange engine noises
A fluid leak under the vehicle (However, water dripping from the air condi-
tioning after use is normal.)
Change in exhaust sound (This may indicate a dangerous carbon mon-
oxide leak. Drive with the windows open and have the exhaust system
checked immediately.)
Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
Vehicle pulls to one side when driving straight on a level road
Strange noises related to suspension movement
Loss of brake effectiveness, spongy feeling brake pedal, pedal almost
touches the floor, vehicle pulls to one side when braking
Engine coolant temperature continually higher than normal
If you notice any of these clues, take your vehicle to any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional, as
soon as possible. Your vehicle may need adjustment or repair.

374 4-3. Do-it-yourself maintenance
UK_AURIS_HV_EE
Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
Checking the engine oil
Park the vehicle on level ground. After turning off the hybrid
system, wait more than five minutes for the oil to drain back
into the bottom of the engine.
Hold a rag under the end and
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level.
Wipe the dipstick and reinsert it fully.
Low
Full
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6

375 4-3. Do-it-yourself maintenance
4
Maintenance and care
UK_AURIS_HV_EEAdding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selectionP. 495
Oil quantity
(Low  Full)1.5 L (1.6 qt., 1.3 Imp. qt.)
Items Clean funnel
STEP1
STEP2
STEP3

377 4-3. Do-it-yourself maintenance
4
Maintenance and care
UK_AURIS_HV_EE
Engine/power control unit coolant
The coolant level is satisfactory if it is between the “FULL” (full) and
“LOW” (low) lines on the reservoir when the hybrid system is cold.
Engine coolant reservoir
Reservoir cap
Full
Low
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line.
Power control unit coolant reservoir
Reservoir cap
Full
Low
If the level is on or below the “L”
line, add coolant up to the “F” line.
NOTICE
To prevent serious engine damage
Check the oil level on a regular basis.
When replacing the engine oil
Be careful not to spill engine oil on the vehicle components.
Avoid overfilling, as the engine could be damaged.
Check the oil level on the dipstick every time you refill the vehicle.
Be sure the engine oil filler cap is properly tightened.

400
4-3. Do-it-yourself maintenance
UK_AURIS_HV_EE
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the “POWER” switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Instrument panel (left-hand drive vehicles)
Remove the lid.STEP1
STEP2

5
481
5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE

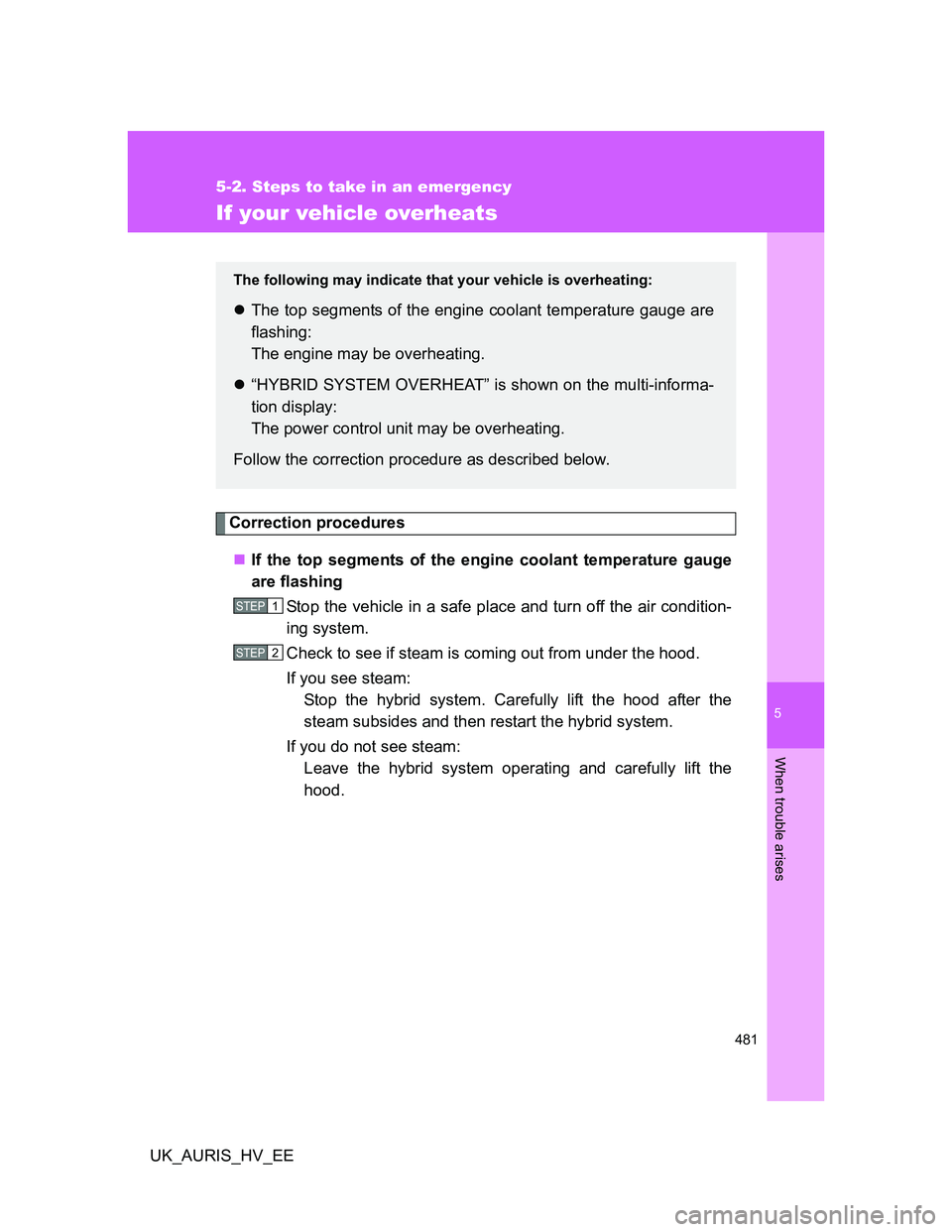

If your vehicle overheats
Correction procedures
If the top segments of the engine coolant temperature gauge
are flashing
Stop the vehicle in a safe place and turn off the air condition-
ing system.
Check to see if steam is coming out from under the hood.
If you see steam:
Stop the hybrid system. Carefully lift the hood after the
steam subsides and then restart the hybrid system.
If you do not see steam:
Leave the hybrid system operating and carefully lift the
hood.
The following may indicate that your vehicle is overheating:
The top segments of the engine coolant temperature gauge are
flashing:
The engine may be overheating.
“HYBRID SYSTEM OVERHEAT” is shown on the multi-informa-
tion display:
The power control unit may be overheating.
Follow the correction procedure as described below.
STEP1
STEP2

482 5-2. Steps to take in an emergency
UK_AURIS_HV_EECheck to see if the cooling fans are operating.
If the fans are operating:
Wait until the high engine coolant temperature warning light
goes off and then stop the hybrid system.
If the fans are not operating:
Stop the hybrid system immediately and call any authorized
Toyota dealer or repairer, or another duly qualified and
equipped professional.
After the hybrid system has
cooled down sufficiently, check
the engine coolant level and
inspect the radiator core (radia-
tor) for any leaks.
If necessary, add engine coolant
up to the “FULL” line.
Water can be used in an emer-
gency measure if engine coolant
is unavailable. (P. 498)
STEP3
STEP4
STEP5
