Page 3 of 32
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
Engine maintenance8Fuel tank door and cap6Hood release 8Indicator symbols4-5Instrument cluster 4Instrument panel2-3
Keyless entry16Smart Key system17
Air Conditioning/Heating18-19Audio 20-21Auto lock/unlock1,29Automatic running boards 19Automatic Transmission 9
Bluetooth®audio23Clock 14Cruise control17Four-wheel drive10Garage door opener (HomeLink®)319iPod®/USB/AUX port21Light control-Instrument panel15Lights1& turn signals16Moonroof114Parking brake 9Power outlets-12V DC23Power outlets-120V AC22Seat adjustments-Front11Seat adjustments-Second row seats11Seat heaters18Seats-Folding down second row seats 12Seats-Head restraints13Seats-Returning third row seats13Seats-Stowing third row seats 13
Telephone controls (Bluetooth®)22Tilt and telescopic steering wheel 10VSC OFF button 15Windows114Window-Back window115
Windshield wipers & washers17
Door locks24Doors-Child safety locks 25Floor mat installation27Seat belts24
Seat belts-Shoulder belt anchor24Spare tire & tools 25Star Safety SystemTM26
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
resize-20114Runner.qxd 10/6/11 12:08 AM Page 1

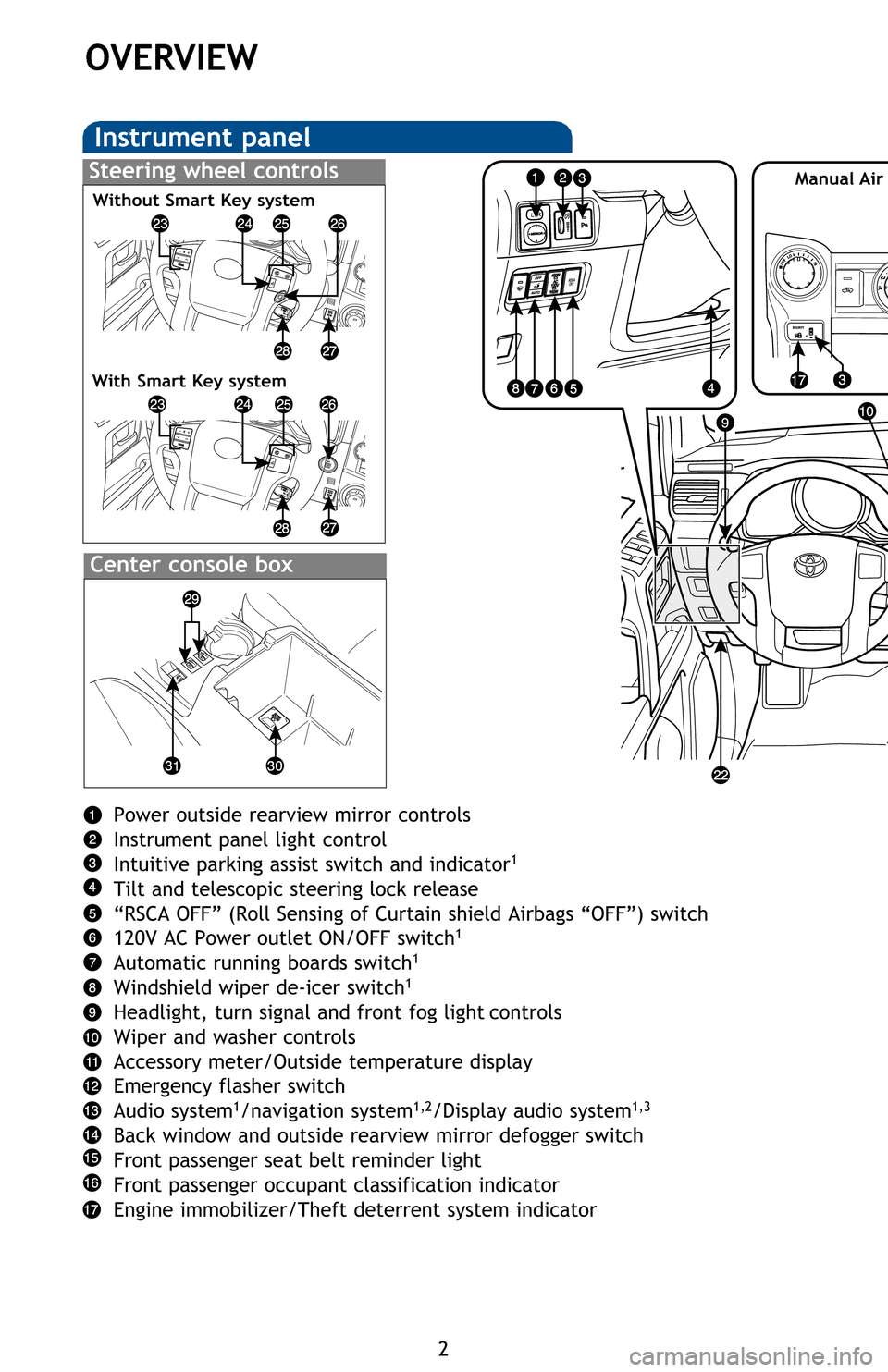

Page 4 of 32
2
Power outside rearview mirror controls
Instrument panel light control
Intuitive parking assist switch and indicator1
Tilt and telescopic steering lock release
“RSCA OFF” (Roll Sensing of Curtain shield Airbags “OFF”) \
switch
120V AC Power outlet ON/OFF switch1
Automatic running boards switch1
Windshield wiper de-icer switch1
Headlight, turn signal and front fog light controls
Wiper and washer controls
Accessory meter/Outside temperature display
Emergency flasher switch
Audio system1/navigation system1,2/Display audio system1,3
Back window and outside rearview mirror defogger switch
Front passenger seat belt reminder light
Front passenger occupant classification indicator
Engine immobilizer/Theft deterrent system indicator
OVERVIEW
Instrument panel
Steering wheel controls
Center console box
Without Smart Key system
With Smart Key system
Manual Air Con
resize-20114Runner.qxd 10/6/11 12:10 AM Page 2
Page 19 of 32
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17
Windshield wipers & washers
Rear
Front
Interval wipe
Slow
Fast
Pull to wash and wipeAdjust frequency*
Wash and wipe
Wipe
Interval wipe
Wash and wipe
NOTE:
Rear wiper and washer operate only when back window is fully closed.
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Single wipe
Cruise control
Refer to the Owner’s Manual for more details.
Turning system ON/OFFFunctions
System ON/OFF
Resume/Increase speed
Set/Decrease speed
Cancel
Ty p e ATy p e B
Interval wipe
Slow
Fast
Pull to wash and wipeAdjust frequency*
Single wipe
Wash and wipe
Wipe
Interval wipe
Wash and wipe
Ty p e
ATy p e B
resize-20114Runner.qxd 10/6/11 1:43 AM Page 17
