(2) Armed mode cancellation requirements
(3) Warning operation requirements
(4) Warning operation
(5) Warning cancellation requirements
(6) Operation when warning is cancelled
Receiving UNLOCK signal from the remote control key or starting the engine. a.
When opening the door in armed mode
When unlocking the door lock switch in armed mode by other than the remote control key
When closing and then opening the door after completion of warning (27 seconds) a.
b.
c.
The theft deterrent horn and hazard warning flasher output is "ON" for 27 seconds at the interval
of 1 second. a.
Cancels warning by using any signal from the remote control key (LOCK, UNLOCK, PANIC,
ESCORT) during warning operation.
Cancels warning after 27 seconds (remaining time) while the ignition key is turned to "ON"
position.
If the ignition switch is turned to ON position when the warning is activated in armed mode,
the warning is cancelled immediately and the warning buzzer stops after 27 seconds
(remaining time). a.
b.
c.
The theft deterrent horn and hazard warning flasher outputs are "OFF". a.

03-57010-06
Item Front view Rear view Internal structure
Rechargeable key
RKSTICS key
DifferenceNoneLabel color,
Specification displayBattery specification
and
transponder function

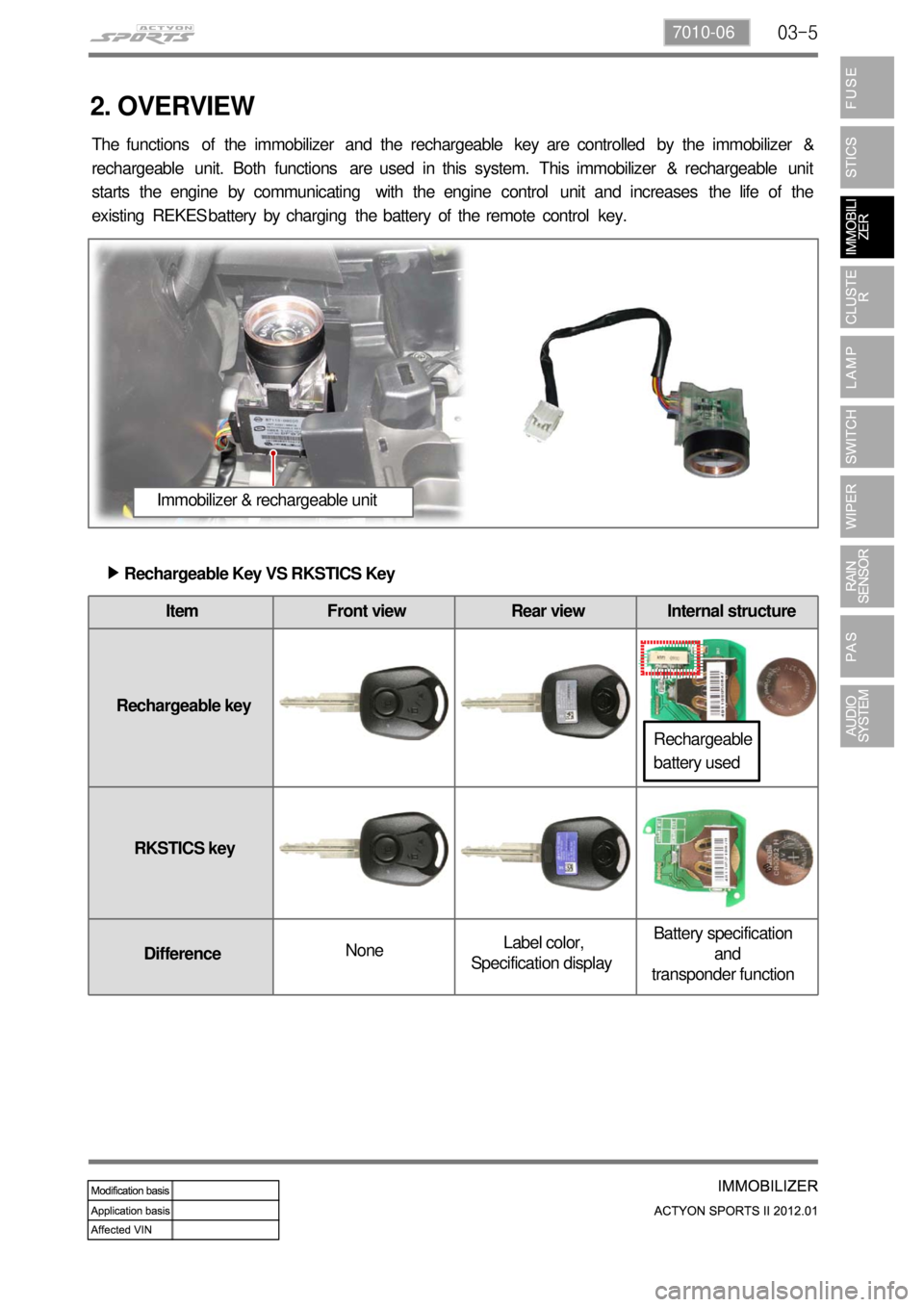

2. OVERVIEW
The functions of the immobilizer and the rechargeable key are controlled by the immobilizer &
rechargeable unit. Both functions are used in this system. This immobilizer & rechargeable unit
starts the engine by communicating with the engine control unit and increases the life of the
existing REKES battery by charging the battery of the remote control key.
Immobilizer & rechargeable unit
Rechargeable Key VS RKSTICS Key ▶
Rechargeable
battery used

03-6

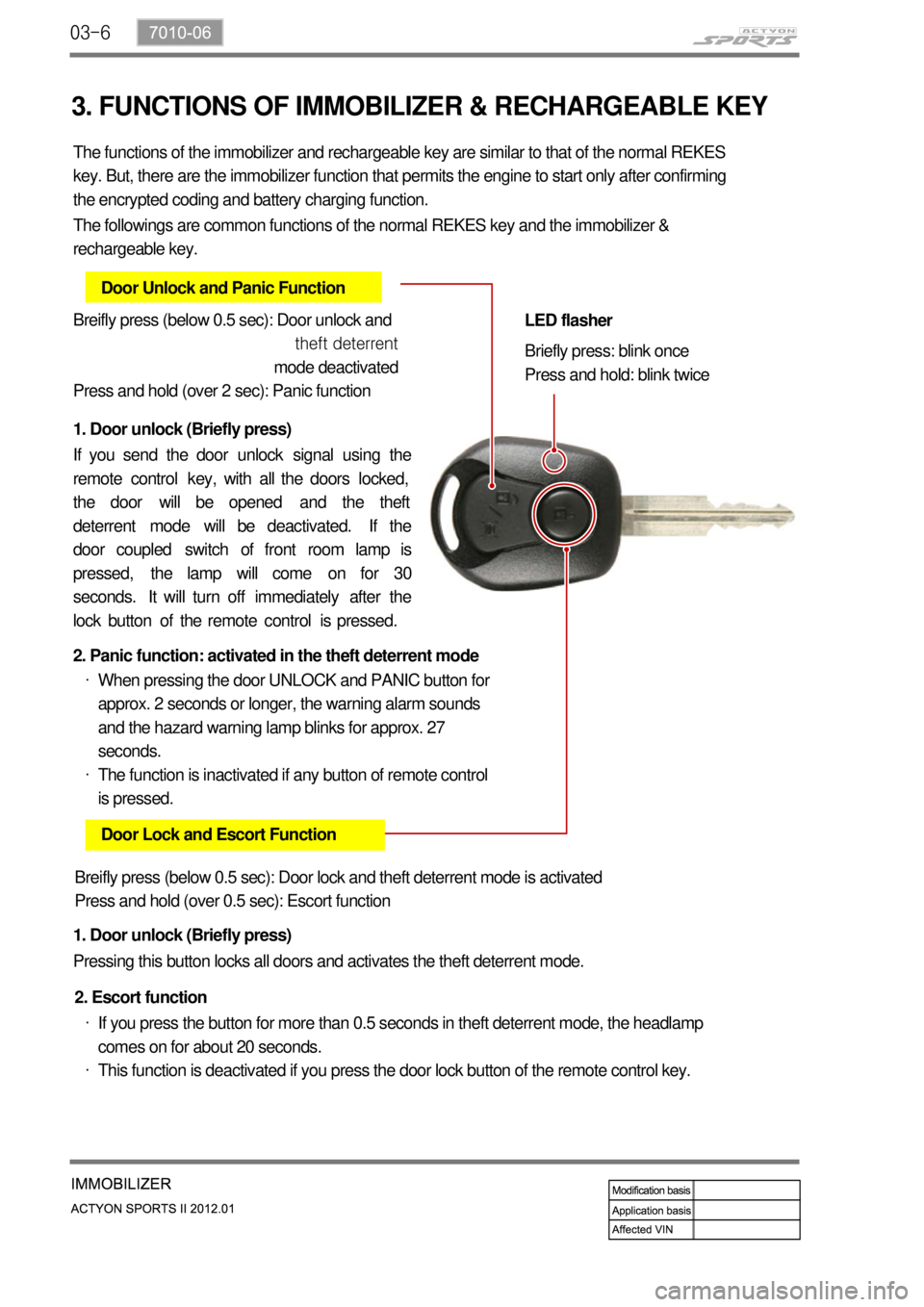

3. FUNCTIONS OF IMMOBILIZER & RECHARGEABLE KEY
The functions of the immobilizer and rechargeable key are similar to that of the normal REKES
key. But, there are the immobilizer function that permits the engine to start only after confirming
the encrypted coding and battery charging function.
The followings are common functions of the normal REKES key and the immobilizer &
rechargeable key.
Door Unlock and Panic Function
Breifly press (below 0.5 sec): Door unlock and
　　　　　　　　　　　　 theft deterrent
mode deactivated
Press and hold (over 2 sec): Panic function
1. Door unlock (Briefly press)
If you send the door unlock signal using the
remote control key, with all the doors locked,
the door will be opened and the theft
deterrent mode will be deactivated. If the
door coupled switch of front room lamp is
pressed, the lamp will come on for 30
seconds. It will turn off immediately after the
lock button of the remote control is pressed.
2. Panic function: activated in the theft deterrent mode
When pressing the door UNLOCK and PANIC button for
approx. 2 seconds or longer, the warning alarm sounds
and the hazard warning lamp blinks for approx. 27
seconds.
The function is inactivated if any button of remote control
is pressed. ·
·
Breifly press (below 0.5 sec): Door lock and theft deterrent mode is activated
Press and hold (over 0.5 sec): Escort function
1. Door unlock (Briefly press)
Pressing this button locks all doors and activates the theft deterrent mode.
2. Escort function
If you press the button for more than 0.5 seconds in theft deterrent mode, the headlamp
comes on for about 20 seconds.
This function is deactivated if you press the door lock button of the remote control key. ·
·LED flasher
Briefly press: blink once
Press and hold: blink twice
Door Lock and Escort Function

03-97010-06
Immobilizer and Warning Lamp ▶
This indicator comes on when the ignition key
is communicating with the engine control unit
(during engine starting) and goes out after
starting the engine.
When turning the ignition key to the "ON"
position, the ECU (engine control unit)
transmits the challenge message to the
immobilizer & rechargeable unit.
(This is to verify whether the key is valid. If the
verification fails, it transmits re-verification
signals 3 times for 2 seconds. If three re-
verifications fail, it stops verification and starts
re-verification after 10 seconds.) (1)
ECUOnly when the two signals are identical, it recognizes the
key as the authorized one and transmits the positive
message to the ECU. (6)
The ECU enable the engine to be started. (7)
Do not drop or shock to the transponder in the key as it may be damaged.
With a damaged transponder, the engine cannot be started.
When you erase the code or register an extra key, please attend on the site.
In any cases, the immobilizer system can not be removed from the vehicle. If you attempt to
remove it and damage the system, starting will be impossible, so never attempt to remove,
damage or modify it.
The remote engine starter cannot be installed to the vehicle equipped with the immobilizer
system. ·
·
·
·
·ON: In communication
Blinks twice at one second intervals: Immobilizer
system fault
Blinks once at 2 second intervals: Immobilizer unit
not coded
The immobilizer indicator does not come
on if the communication time between
immobilizer key and ECU is too short.
Instrument
panel
