1. SPECIFICATION
Unit Description Specification
Cylinder headHeight 142.5 mm
Weight 15.6 kg
Flatness Below 0.05 mm
Spark plug offset 2.5 mm
Thickness of cylinder head gasket (when compressed)
0.7 mm
CamshaftAxial end playIntake 0.1~0.35 mm
Exhaust 0.1~0.35mm
Valve timingIntake valve open BTDC 35/-10
Intake valve close ABDC 14/62
Exhaust valve open BBDC 40/40
Exhaust valve close ATDC 12/12
Journal bearingDiameter 24mm
Width 17 mm
Oil clearance 0.037~0.074 mm
Intake/exhaust
valveLift of intake valve Max. 9.0 mm
Lift of exhaust valve Max. 8.0 mm
Length of intake valve 115.0mm
Length of exhaust valve 114.0mm
Connecting rod End play 0.5~1.5mm

01-6

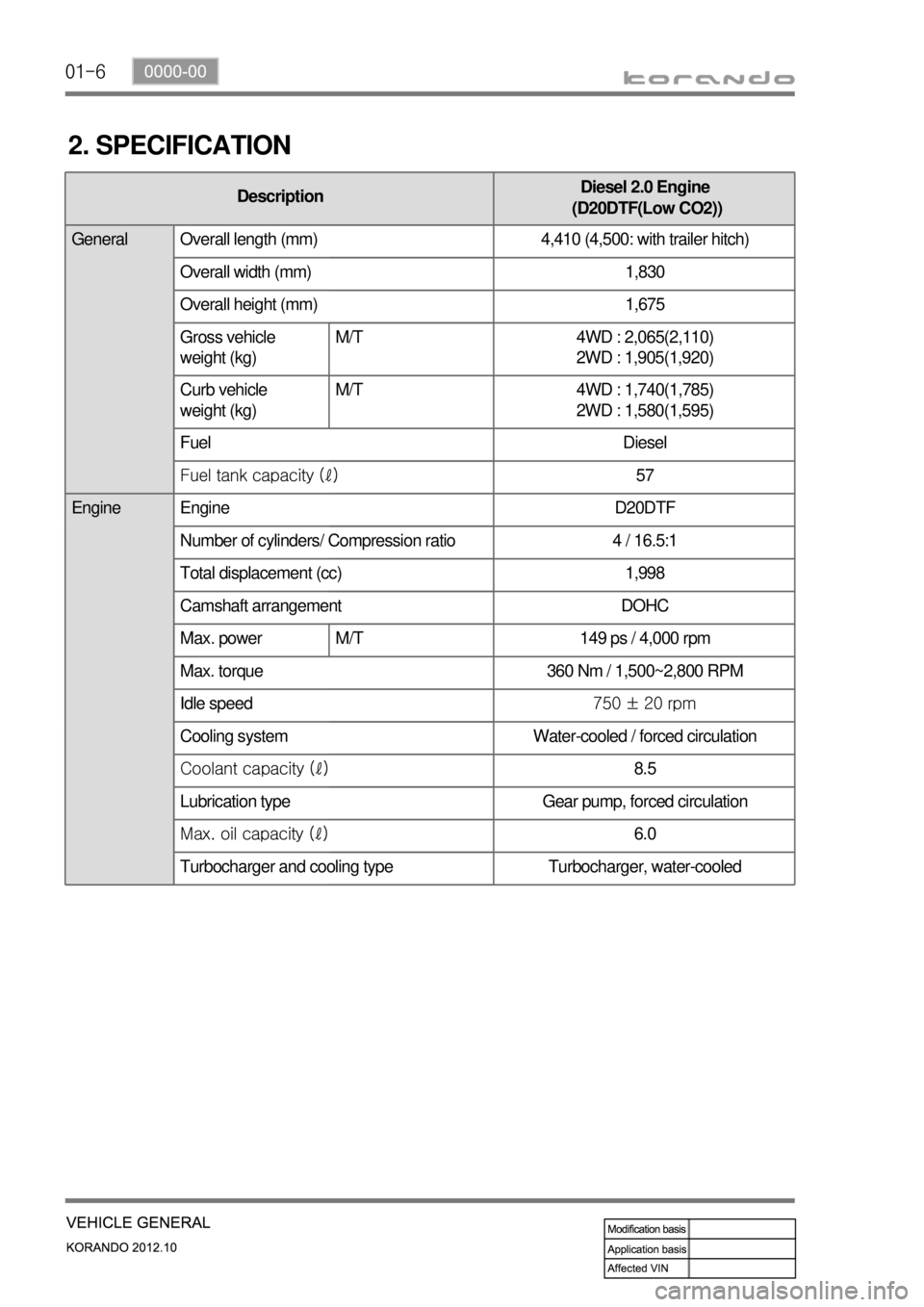

2. SPECIFICATION
DescriptionDiesel 2.0 Engine
(D20DTF(Low CO2))
General Overall length (mm) 4,410 (4,500: with trailer hitch)
Overall width (mm) 1,830
Overall height (mm) 1,675
Gross vehicle
weight (kg)M/T 4WD : 2,065(2,110)
2WD : 1,905(1,920)
Curb vehicle
weight (kg)M/T 4WD : 1,740(1,785)
2WD : 1,580(1,595)
Fuel Diesel
Fuel tank capacity (ℓ)57
Engine Engine D20DTF
Number of cylinders/ Compression ratio 4 / 16.5:1
Total displacement (cc) 1,998
Camshaft arrangement DOHC
Max. power M/T 149 ps / 4,000 rpm
Max. torque 360 Nm / 1,500~2,800 RPM
Idle speed750 ± 20 rpm
Cooling system Water-cooled / forced circulation
Coolant capacity (ℓ)8.5
Lubrication type Gear pump, forced circulation
Max. oil capacity (ℓ)6.0
Turbocharger and cooling type Turbocharger, water-cooled

03-38710-01
1. SPECIFICATION
Pin No. Specification Remark
Rated voltage DC 13.5 V
-
Operating voltageDC 9.0 to 16.0 V
DC 7.0 to 18.0 V (CAN)-
Operating temperature-30 to +80°C-
Storage temperature-40 to +85°C-
TransponderFrequency134.2 KHz ± 4 KHz
-
Operating
temperature-40 to +85°C-
Max. humidity 95%-
High resistant voltage 24 V-
Dark currentBCM without SKM: 7.0 mA or less
BCM with SKM: 4.0 mA or less
All switches OFF, key removed,
all doors LOCK and in sleep
mode
Voltage drop 1.0 V or lessat pin B6 and all pins for
IN/OUT
Frequency characteristics ▶
Pin No. Specification Remark
Receive frequency433.920±0.015 MHz-
Bandwidth15KHz ± 2KHz or less-
Modulation method FSK -
Range 10M or longer (open) -

04-38712-03
1. SPECIFICATIONS
Item Specification
Rated voltage DC 12 V
Operating voltage DC 6.0V ~ 16.0V
DC 6.0V ~ 18.0V(CAN)
Operation temperature -30°C to +80°C
Modulation method FSK
Dark current 5.5 mA + Auto A/P (12 mA)
Maximum humidity 95%
Range 10 m or more (OPEN SITE)
Voltage drop 1.0 V or less
Receive frequency433.920±0.015 MHz(EU)
315,000±0.015 MHz(GER)
Bandwidth15 KHz ± 2 KHz or less

14-54170-00
2) Tire Unit Indication
Aspect ratio (%)
= Nominal section height (H) / Nominal section
width (W)
X 100
3) Tire Inflation Pressure (32 psi)
Proper inflation pressure Excessive inflation pressure Low inflation pressure
The contact area between the
ground and tire faces the tread
layer completely. Thus the driving
force and the braking force are
optimized, and the tire is worn out
evenly resulting in increased life.The contact area between the
ground and tire is not enough,
so the tire is worn out unevenly
and the tire is vulnerability to
outside influence.The contact area between the
ground and tire is excessive, so
a lot of heat is generated and
the tire is worn out unevenly and
abnormally.
Tread widthTread widthTread width
