X

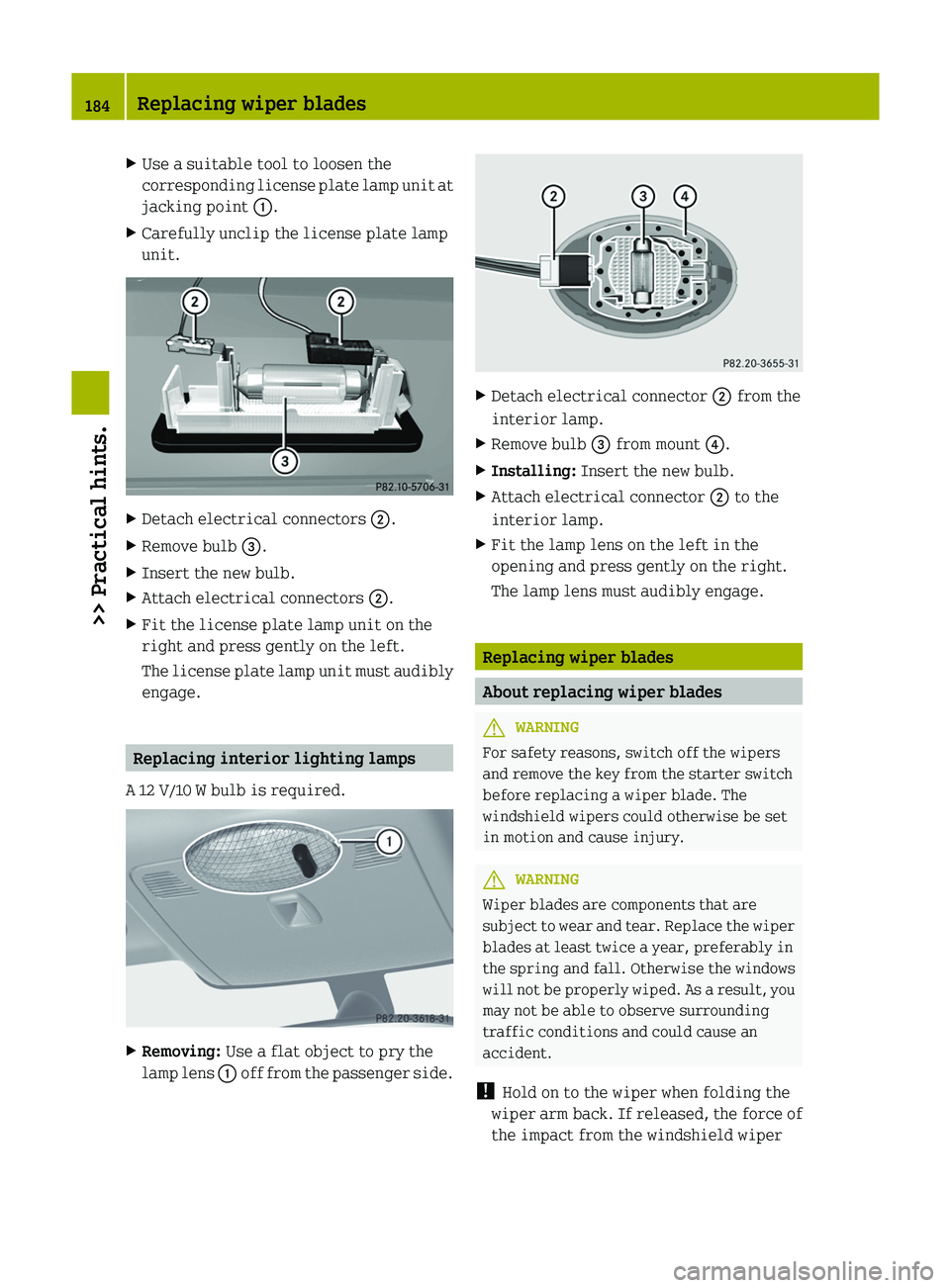

Use a suitable tool to loosen the
corresponding
license plate lamp unit at
jacking point :.
X Carefully unclip the license plate lamp
unit. X
Detach electrical connectors ;.
X Remove bulb =.
X Insert the new bulb.
X Attach electrical connectors ;.
X Fit the license plate lamp unit on the
right and press gently on the left.
The
license plate lamp unit must audibly
engage. Replacing interior lighting lamps
A 12 V/10 W bulb is required. X
Removing: Use a flat object to pry the
lamp
lens : off from the passenger side. X
Detach electrical connector ; from the
interior lamp.
X Remove bulb = from mount ?.
X Installing: Insert the new bulb.
X Attach electrical connector ; to the
interior lamp.
X Fit the lamp lens on the left in the
opening and press gently on the right.
The lamp lens must audibly engage. Replacing wiper blades
About replacing wiper blades
G
WARNING
For safety reasons, switch off the wipers
and remove the key from the starter switch
before replacing a wiper blade. The
windshield wipers could otherwise be set
in motion and cause injury. G
WARNING
Wiper blades are components that are
subject
to wear and tear. Replace the wiper
blades at least twice a year, preferably in
the spring and fall. Otherwise the windows
will not be properly wiped. As a result, you
may not be able to observe surrounding
traffic conditions and could cause an
accident.
! Hold on to the wiper when folding the
wiper arm back. If released, the force of
the impact from the windshield wiper 184
Replacing wiper blades
>> Practical hints.
Wheel change
Preparing the vehicle
X Park the vehicle on a hard, flat surface
when possible.
X Turn on the hazard warning flasher.
X Turn the steering wheel so that the front
wheels
are in a straight-ahead position.
X Engage the parking brake.
X Move the gear selector lever to park
position P.
X Turn off the engine.
X Have any passenger exit the vehicle at a
safe distance from the roadway. Removing the wheel
G
WARNING
When jacking up the vehicle, only use a
suitable jack. Observe the manufacturer’s
safety instructions.
The jack must be designed for jacking up
this vehicle at the jack take-up brackets
built into both sides of the vehicle.
The jack is intended only for lifting the
vehicle
briefly for wheel changes. It is not
suited for performing maintenance work
under the vehicle. To help avoid personal
injury, use the jack only to lift the vehicle
during a wheel change.
Never get beneath the vehicle while it is
supported by the jack. Keep hands and feet
away from the area under the lifted vehicle.
Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.
Always firmly engage the parking brake and
block the wheels with wheel chocks or other
sizeable objects before raising the
vehicle with the jack. Do not release the
parking brake while the vehicle is raised.
Make sure the ground on which the vehicle
is standing and where you place the jack is solid, level and not slippery. If necessary,
use
a large underlay. On slippery surfaces,
such as tiled floors, you should use a non-
slip underlay, for example a rubber mat.
Do not use wooden blocks or similar objects
to support the jack. Otherwise the jack may
not be able to achieve its load-bearing
capacity if it is not at its full height.
The jack must always be vertical when in
use. Always try to use the jack on level
surface. If you do not position the jack
correctly, the vehicle can fall off the jack
and seriously or fatally injure you or
others.
Never start the engine when the vehicle is
raised.
Also observe the notes on the jack.
X Make sure to have a suitable jack 18
,
wheel
wrench 18
and wheel chock 18
.
Contact an authorized smart center for
information on which jack and wheel
wrench are required.
X Prepare the vehicle as described
(Y page 194).
X Make sure the surface is level.
Prevent the vehicle from rolling away by
blocking
wheels with wheel chocks or other
sizeable objects:
X Place one wheel chock or other sizeable
object in front of and another wheel
chock or other sizeable object behind
the wheel that is diagonally opposite to
the wheel being changed.
18 Not included and not available as factory equipment.194
