Attaching the wiper blade
›
Push the windscreen wiper blade until the stop and it locks in place.
› Check that the wiper blade is correctly attached.
› Fold the wiper arm back to the windscreen. ÐRear window
Manual dimming interior mirror
Basic setting
› Pull the lever on the bottom edge of the mirror forward.
Dimming mirror
› Push the lever on the bottom edge of the mirror backwards. ÐAutomatic dimming interior mirror
Fig. 50
Automatic dimming interior mir-
ror
Switching on automatic dimming › Press the button B
» Fig. 50, the indicator light A
lights up.
Switching off automatic dimming
› Press the button B
again, the indicator light A
goes out.
If the automatic dimming is switched on, the mirror dims automatically depend-
ing on the light striking the mirror from the rear. The mirror has no lever on the
bottom edge of the mirror. After the reverse gear is engaged, the mirror always
moves back into the normal position.
Do not attach external navigation devices on to the windscreen or in the vicinity
of the automatic dimming interior mirror » . WARNING
The display lighting on the external navigation device may cause the automat-
ic dimming interior mirror to malfunction – risk of accident. Note
■ Automatic mirror dimming operates only properly if the sun screen for the rear
window in the housing on the boot cover is not in use or the light striking the in-
terior rear-view mirror is not affected by other objects. ■ Do not affix any stickers in front of the light sensor, so that they do not impair
the automatic dimming function or put it out of operation. ■ If the automatic interior mirror dimming is switched off, the exterior mirror dim-
ming is also switched off. Ð Additional rear-view mirror
Fig. 51
Additional interior mirror
The additional interior mirror allows the driver a wider field of view of the rear
seats.
Adjusting the angle › Adjust the mirror in direction of arrow to the desired position. WARNING
Concentrate at all times fully on your driving! As the driver you are fully re-
sponsible for the operation of your vehicle. Use the additional interior mirror
only to such an extent that you are in full control of your vehicle at any time. Ð
63
Lights and visibility

WARNING
■ The belts and the belt locks must be in their original position after folding
back the seat backrests - they must be ready to use.
■ The seat backrests must be securely interlocked in position so that no ob-
jects in the boot can slide into the passenger compartment if there is sudden
braking - risk of injury. ■ Ensure that the rear seat backrests are properly engaged. It is only then that
the three-point seat belt for the middle seat can reliably fulfil its function. CAUTION
Ensure that the seat belts are not damaged when operating the seat backrests.
Under no circumstances must the rear seat belts be jammed by the folded back
seat backrests. ÐFolding the seat cushions forwards (Combi)
Fig. 61
Folding the seat cushion for-
wards
› Pull up the seat cushion in the direction of the arrow 1
» Fig. 61 and fold for-
wards in the direction of the arrow 2
.
Note
To achieve a loading space that is as horizontal as possible, the rear head re-
straints can be removed before folding the seat backrests forwards. Store the re-
moved head restraints in such a way that they are not be damaged or soiled. Ð Rear armrest
Fig. 62
Rear seats: Armrest
› The armrest can be folded down to increase comfort
» Fig. 62.Ð Boot
ä
Introduction
This chapter contains information on the following subjects:
Class
N1 vehicles 73
Fastening elements 74
Folding hooks 74
Fixing nets 74
Fixing floor covering of the boot 75
Luggage net 75
Boot cover 75
Foldable boot cover (Combi) 76
Automatic foldable boot cover (Combi) 76
Please observe the following for the purpose of maintaining good handling char-
acteristics of your vehicle:
› Distribute loads as evenly as possible.
› Place heavy objects as far forward as possible.
› Attach the items of luggage to the lashing eyes or using the fixing
net »
page 74. £
72 Using the system

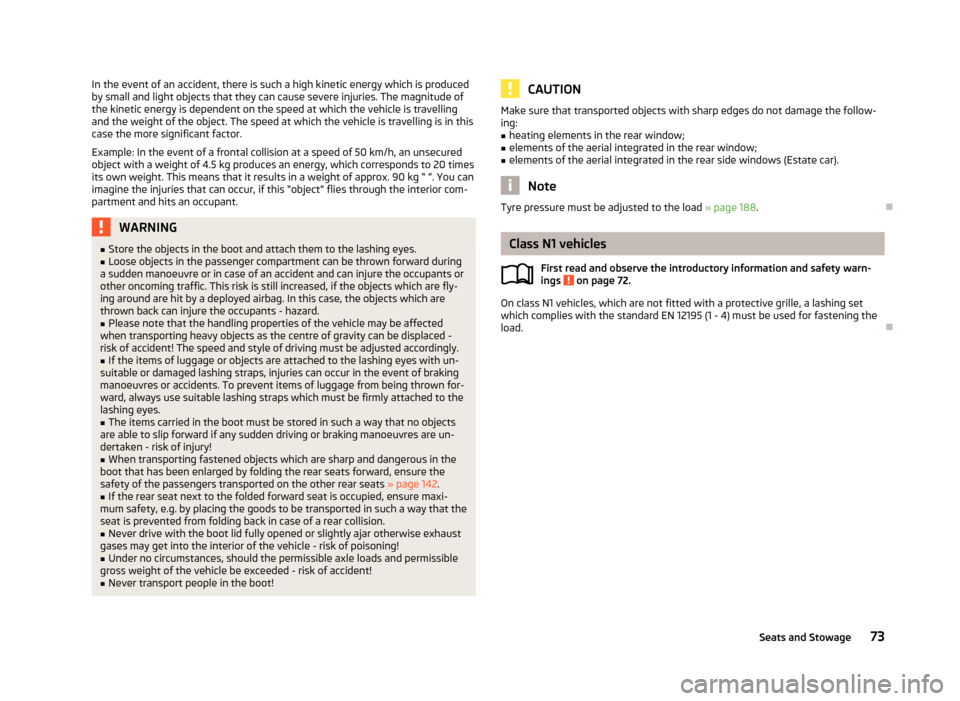

In the event of an accident, there is such a high kinetic energy which is produced
by small and light objects that they can cause severe injuries. The magnitude of
the kinetic energy is dependent on the speed at which the vehicle is travelling
and the weight of the object. The speed at which the vehicle is travelling is in this
case the more significant factor.
Example: In the event of a frontal collision at a speed of 50 km/h, an unsecured
object with a weight of 4.5 kg produces an energy, which corresponds to 20 times
its own weight. This means that it results in a weight of approx. 90 kg
“ ”. You can
imagine the injuries that can occur, if this “object” flies through the interior com-
partment and hits an occupant. WARNING
■ Store the objects in the boot and attach them to the lashing eyes.
■ Loose objects in the passenger compartment can be thrown forward during
a sudden manoeuvre or in case of an accident and can injure the occupants or
other oncoming traffic. This risk is still increased, if the objects which are fly-
ing around are hit by a deployed airbag. In this case, the objects which are
thrown back can injure the occupants - hazard. ■ Please note that the handling properties of the vehicle may be affected
when transporting heavy objects as the centre of gravity can be displaced -
risk of accident! The speed and style of driving must be adjusted accordingly. ■ If the items of luggage or objects are attached to the lashing eyes with un-
suitable or damaged lashing straps, injuries can occur in the event of braking
manoeuvres or accidents. To prevent items of luggage from being thrown for-
ward, always use suitable lashing straps which must be firmly attached to the
lashing eyes. ■ The items carried in the boot must be stored in such a way that no objects
are able to slip forward if any sudden driving or braking manoeuvres are un-
dertaken - risk of injury!
■ When transporting fastened objects which are sharp and dangerous in the
boot that has been enlarged by folding the rear seats forward, ensure the
safety of the passengers transported on the other rear seats »

page 142.
■ If the rear seat next to the folded forward seat is occupied, ensure maxi-
mum safety, e.g. by placing the goods to be transported in such a way that the
seat is prevented from folding back in case of a rear collision.
■ Never drive with the boot lid fully opened or slightly ajar otherwise exhaust
gases may get into the interior of the vehicle - risk of poisoning!
■ Under no circumstances, should the permissible axle loads and permissible
gross weight of the vehicle be exceeded - risk of accident!
■ Never transport people in the boot! CAUTION
Make sure that transported objects with sharp edges do not damage the follow-
ing:
■ heating elements in the rear window;
■ elements of the aerial integrated in the rear window;
■ elements of the aerial integrated in the rear side windows (Estate car). Note
Tyre pressure must be adjusted to the load »
page 188. Ð Class N1 vehicles
First read and observe the introductory information and safety warn-
ings on page 72.
On class N1 vehicles, which are not fitted with a protective grille, a lashing set
which complies with the standard EN
12195 (1 - 4) must be used for fastening the
load. Ð
ä
73
Seats and Stowage

Fastening elements
Fig. 63
Boot: Lashing eyes and fastening elements/Combi lashing eyes and
fastening elements
First read and observe the introductory information and safety warn-
ings on page 72.
The boot provides the following fastening elements
» Fig. 63.
Lashing eyes for fastening items of luggage and fixing nets.
Fastening elements for fastening fixing nets. CAUTION
The maximum permissible load of the lashing eyes is 3.5 kN (350 kg). ÐFolding hooks
Fig. 64
Boot: folding hook/Combi folding hooks
ä A
B First read and observe the introductory information and safety warn-
ings
on page 72.
Folding hooks for attaching small items of luggage, such as bags etc., are provi-
ded on both sides of the boot
» Fig. 64. CAUTION
The maximum permissible load of the hook is 7.5 kg. Ð Fixing nets
Fig. 65
Fixing nets
First read and observe the introductory information and safety warn-
ings on page 72.
Fixing examples for a fixing net as a vertical pocket
» Fig. 65 - , floor fixing net
and horizontal pocket » Fig. 65

-  . WARNING
Do not exceed the maximum permissible load of the fixing nets. Heavy objects
are not secured sufficiently - risk of injury! CAUTION
■ The maximum permissible load of the fixing nets is 1.5
kg.
■ Do not place any sharp objects in the nets - risk of damaging the net. Ð
ä
ä
74 Using the system

Fixing floor covering of the boot
Fig. 66
Boot: fixing the floor covering/fixing the Combi floor covering
First read and observe the introductory information and safety warn-
ings on page 72.
There is a loop or hook (Combi) located on the floor covering of the boot. If you
need to access the spare wheel, for example, the raised floor cover can be attach-
ed to a hook on the boot cover » Fig. 66 -  or to the frame of the boot lid (Com-
bi) » Fig. 66 -  . ÐLuggage net
Fig. 67
Boot: Luggage net
First read and observe the introductory information and safety warn-
ings on page 72.
The luggage net is designed for the transportation of lighter objects.ä
ä WARNING
Only store soft objects in the luggage net (up to a total weight of 1.5 kg).
Heavy objects are not secured sufficiently - risk of injury! CAUTION
No objects with sharp edges should be stored in the luggage net, as they can
damage the luggage net. Ð Boot cover
Fig. 68
Removing the boot cover
First read and observe the introductory information and safety warn-
ings on page 72.
The boot cover can be removed if you wish to transport bulky goods.
›
Unhook the support straps 1
» Fig. 68
.
› Place the cover in the horizontal position.
› Pull the cover out of the holders 2
horizontally towards the rear.
› To reinstall, first of all push the boot cover into the holders 2
and then hook
the support straps 1
on the boot lid.
The removed boot cover can be stowed behind the seat backrest. WARNING
No objects should be placed on the boot cover, the vehicle occupants could be
endangered if there is sudden braking or the vehicle collides with something. £
ä
75
Seats and Stowage

CAUTION
Please ensure that the heating elements for the rear window heater are not dam-
aged as a result of objects placed in this area. Note
Opening the boot lid also lifts up the boot cover. ÐFoldable boot cover (Combi)
Fig. 69
Boot: foldable boot cover/removing foldable boot cover
First read and observe the introductory information and safety warn-
ings on page 72.
Pulling out
›
Pull the foldable boot cover as far as the stop into the secured position 2
» Fig. 69
.
Folding
› Press the cover in the handle area in the direction of the arrow 3
» Fig. 69
,
and the cover automatically rolls up into position 1
. The cover is fully rolled up
by pressing once again.
Removing
› The fully folded boot cover can be removed to transport bulky goods by press-
ing on the side of the cross rod in the direction of the arrow 4
» Fig. 69
and
taking it out by moving it in the direction of the arrow 5
.
ä WARNING
No objects should be placed on the foldable boot cover. Ð Automatic foldable boot cover (Combi)
First read and observe the introductory information and safety warn-
ings on page 72.
The automatic rolling up of the foldable boot cover enables an easier entry into
the boot.
›
Open the boot lid. The foldable boot cover rolls up automatically in the position 1
to » Fig. 69
on page 76.
› The cover rolls up fully by pressing the cover in the handle area in direction of
arrow 3
.
When the boot lid is opened quickly, the automatic rolling up of the foldable boot
cover is blocked for a delay time of approx. 2 seconds.
The function to automatically roll up the foldable boot cover can be activated/de-
activated via the information display in the menu:
■ Settings
■ Autom. blind Ð Variable loading floor in the boot
Introductory information
The variable loading floor makes handling of bulky items of luggage easier. CAUTION
The maximum permissible load of the variable loading floor is 75 kg. Note
The room under the variable loading floor can be used to stow objects. Ð
ä
76 Using the system

Dividing the boot with variable loading floor
Fig. 70
Boot: Dividing the boot with var-
iable loading floor
› Lift up the part with the holder and secure it by sliding it into the grooves
marked with the arrows »
Fig. 70. ÐRemoving the variable loading floor
Fig. 71
Boot: Remove variable loading floor/remove carrier rails
› Unlock the variable loading floor by turning the safety eyes A
» Fig. 71 to the
left by around 90°.
› Fold up and remove the loading floor by moving it in the direction of the arrow.
› Unlock the carrier rails B
by turning the arbour-mounted fixing eyes C
to the
right by approx. 90°. WARNING
Ensure that the carrier rails and variable loading floor are correctly fastened
when installing the variable loading floor. If this is not the case, there is a risk
of injury for the occupants. Ð Extendable variable loading floor with integrated
aluminium strips and fastening elements (Combi) Introductory information
The variable loading floor makes handling of bulky items of luggage easier. CAUTION
The maximum permissible load of the variable loading floor is 75 kg. Note
The space below the variable loading floor can be used for stowing objects, for
example the fastening elements, removed foldable boot cover, etc. Ð Partially pulling out the variable loading floor
Fig. 72
Boot: partially pulling out the variable loading floor £
77
Seats and Stowage

The variable loading floor can be partially pulled out over the rear bumper. The
variable loading floor which is pulled out in such a way is solely used as a seat, for
example for changing shoes. When pulling out the variable loading floor, the front
edge (close to the rear seats) is lifted at the same time. Thus, small objects can no
longer fall into the space between the boot floor and the variable loading floor.
› Grasp the rear part of the variable loading floor by the handle, raise it slightly in
the direction of the arrow 1
» Fig. 72
and pull it out over the bumper in the di-
rection of the arrow 2
until it engages in the opening C
» Fig. 72.
› To push the variable loading floor back into place, grasp the part of the floor by
the handle, raise it slightly in the direction of the arrow 1
and push it forwards
up to the stop. CAUTION
Ensure that the raised front edge of the variable loading floor is not damaged. ÐDividing the boot with variable loading floor
Fig. 73
Dividing the boot
The boot can be divided with the variable loading floor.
› Grasp the rear part of the floor by the handle, raise it in direction of arrow 1
» Fig. 72 on page
77 and insert the rear edge in one of the openingsA
» Fig. 73
.
The variable loading floor is secured in the openings A
against movement.
The variable loading floor can be pulled out a little more before dividing the boot
with the variable loading floor » page 77 . This enlarges the space between the
rear seats and the separation. CAUTION
Ensure that the raised front edge of the variable loading floor is not damaged. Ð Removing and installing the variable loading floor
Fig. 74
Boot: Fold up variable loading floor Fig. 75
Boot: remove variable loading floor
The variable loading floor can be removed and reinstalled, if necessary.
Removing
› Grasp the rear part of the floor by the handle, raise it slightly in the direction of
the arrow 1
» Fig. 74 and pull it out over the bumper in the direction of the
arrow 2
until it engages in the opening C
» Fig. 75.
› Fold up the loading floor by moving it in the direction of the arrow 3
» Fig. 74.
› Press the safety buttons A
» Fig. 75 and remove the floor.
Install
› Fold up the floor and place it on the carrier rails.
› Push the floor forwards until it engages in the openings B
in the carrier
rails » Fig. 75 . £
78 Using the system
