2012 Seat Leon 5D stop start

269
Technical specifications
Petrol engine 1.2 77 kW (105 PS)
Engine specifications Power output in kW (PS) rpm 77 (105)/ 4500-5500
Maximum torque in Nm at rpm 175/ 1400-4000
No. of cylinders/capacity in cm3
4/ 1197
Fuel Super 95 RON a)
a)
Research Octane Number = Anti-detonation rating of the petrol.
Performance ManualStart-Stop Automatic
Maximum speed in km/h (mph) 192 (V) 193 (V) 191 (VI)
Acceleration from 0-80 km/h (0-60
mph) in sec. 6,7
6,6 6,8
Acceleration from 0-100 km/h (0-60
mph) in sec. 10,1
10 10
Weights
ManualStart-Stop Automatic
Gross vehicle weight in kg 1720 1740 1760
Weight in running order (with driver) in kg 1194 1205 1229
Gross front axle weight in kg 910 920 950
Gross rear axle weight in kg 860 870 860
Permitted roof load in kg 75 75 75
Trailer weight
ManualStart-Stop Automatic
Trailer without brakes in kg 590 600 610
Trailer with brakes, gradients up to 8% in kg 1500 1500 1500
Trailer with brakes, gradients up to 12% in kg 1300 1300 1300

Safety FirstOperating instructionsPractical TipsTechnical specifications

270Technical specifications
Petrol engine 1.4 90 kW (122 PS) Start-Stop
Engine specifications
Power output in kW (PS) rpm 90 (122)/ 5000-6000
Maximum torque in Nm at rpm 200/ 1400-4000
No. of cylinders/capacity in cm3
4/ 1395
Fuel Super 95 RON a)
a)
Research Octane Number = Anti-detonation rating of the petrol.
Performance Maximum speed in km/h (mph) 202 (V)
Acceleration from 0-80 km/h (0-60 mph) in sec. 6,2
Acceleration from 0-100 km/h (0-60 mph) in sec. 9,3
Weights
Gross vehicle weight in kg 1760
Weight in running order (with driver) in kg 1224
Gross front axle weight in kg 930
Gross rear axle weight in kg 880
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 610
Trailer with brakes, gradients up to 8% in kg 1700
Trailer with brakes, gradients up to 12% in kg 1400


271
Technical specifications
Petrol engine 1.4 103 kW (140 PS) Start-Stop
Engine specifications Power output in kW (PS) rpm 103 (140)/ 5000
Maximum torque in Nm at rpm 250/ 1500-3500
No. of cylinders/capacity in cm3
4/ 1395
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) With a slight power loss
Performance Maximum speed in km/h (mph) 212 (V&VI)
Acceleration from 0-80 km/h (0-60 mph) in sec. 5,8
Acceleration from 0-100 km/h (0-60 mph) in sec. 8,2
Weights
Gross vehicle weight in kg 1740
Weight in running order (with driver) in kg 1228
Gross front axle weight in kg 910
Gross rear axle weight in kg 880
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 610
Trailer with brakes, gradients up to 8% in kg 1800
Trailer with brakes, gradients up to 12% in kg 1500
Engine oil filling capacity
Approximate engine oil capacity with oil filter change 4.0 litres

Safety FirstOperating instructionsPractical TipsTechnical specifications

272Technical specifications
Petrol engine 1.8 132 kW (180 PS) Start-Stop
Engine specifications
Power output in kW (PS) rpm 132 / 5100-6200
Maximum torque in Nm at rpm 250/ 1250-3900
No. of cylinders/capacity in cm3
4/ 1798
Fuel Super 95 RON a)
a)
Research Octane Number = Anti-detonation rating of the petrol.
Performance ManualAutomatic
Maximum speed in km/h (mph) 225 (V&VI) 225 (VI)
Acceleration from 0-80 km/h (0-60 mph) in sec. 5,5 5,5
Acceleration from 0-100 km/h (0-60 mph) in sec. 7,5 7,5
Weights
Manual Automatic
Gross vehicle weight in kg 1810 1820
Weight in running order (with driver) in kg 1300 1315
Gross front axle weight in kg 980 1000
Gross rear axle weight in kg 880 870
Permitted roof load in kg 75 75
Trailer weight
ManualAutomatic
Trailer without brakes in kg 650 650
Trailer with brakes, gradients up to 8% in kg 1800 1800
Trailer with brakes, gradients up to 12% in kg 1500 1500


274Technical specifications
Diesel engine 1.6 77 kW (105 PS)
Engine specifications
Power output in kW (PS) rpm 77 (105) /3000-4000
Maximum torque in Nm at rpm 250/1500-2750
No. of cylinders/capacity in cm3
4/1598
Fuel Diesel according to standard EN 590, Min. 51 CN
Performance
ManualStart-Stop Automatic
Maximum speed in km/h (mph) 192 (V) 192 (V) 190 (V)
Acceleration from 0-80 km/h (0-60
mph) in sec. 7,3
7,3 7,1
Acceleration from 0-100 km/h (0-60
mph) in sec. 10,7
10,7 10,9
Weights
ManualStart-Stop Automatic
Gross vehicle weight in kg 1810 1820 1830
Weight in running order (with driver) in kg 1274 1286 1303
Gross front axle weight in kg 990 990 1020
Gross rear axle weight in kg 870 850 860
Permitted roof load in kg 75 75 75
Trailer weight
ManualStart-Stop Automatic
Trailer without brakes in kg 630 640 650
Trailer with brakes, gradients up to 8% in kg 1800 1800 1800
Trailer with brakes, gradients up to 12% in kg 1500 1500 1500


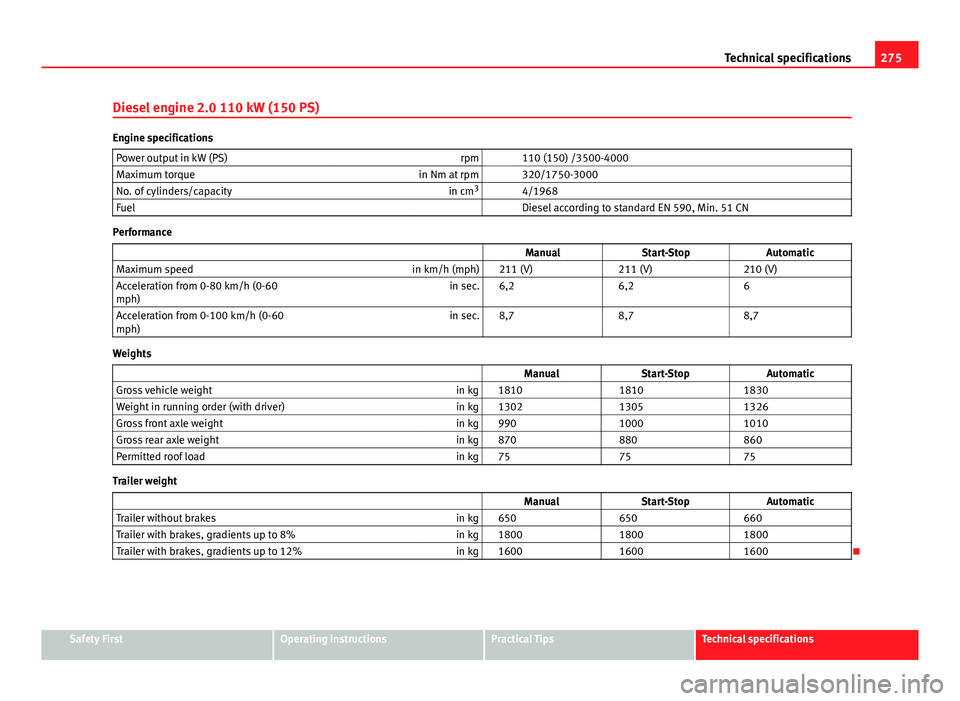

275
Technical specifications
Diesel engine 2.0 110 kW (150 PS)
Engine specifications Power output in kW (PS) rpm 110 (150) /3500-4000
Maximum torque in Nm at rpm 320/1750-3000
No. of cylinders/capacity in cm3
4/1968
Fuel Diesel according to standard EN 590, Min. 51 CN
Performance
ManualStart-Stop Automatic
Maximum speed in km/h (mph) 211 (V) 211 (V) 210 (V)
Acceleration from 0-80 km/h (0-60
mph) in sec. 6,2
6,2 6
Acceleration from 0-100 km/h (0-60
mph) in sec. 8,7
8,7 8,7
Weights
ManualStart-Stop Automatic
Gross vehicle weight in kg 1810 1810 1830
Weight in running order (with driver) in kg 1302 1305 1326
Gross front axle weight in kg 990 1000 1010
Gross rear axle weight in kg 870 880 860
Permitted roof load in kg 75 75 75
Trailer weight
ManualStart-Stop Automatic
Trailer without brakes in kg 650 650 660
Trailer with brakes, gradients up to 8% in kg 1800 1800 1800
Trailer with brakes, gradients up to 12% in kg 1600 1600 1600

