2012 Seat Alhambra key

79
Unlocking and locking
● If the driver's door is unlocked mechanically with the key, only the driv-
er's door is unlocked, the rest of the doors remain locked. Only when the
ignition has been turned on will the other doors be available - but not un-
locked - and the central locking button activated.
● If the vehicle battery is run down or flat then the anti-theft alarm will not
operate correctly. 
Interior monitoring system and anti-tow system*
Fig. 48 On the roof con-
sole: interior monitoring
sensors.
The interior monitoring system triggers the alarm if the vehicle is locked and
movement is detected inside the vehicle. The anti-tow system triggers the
alarm if the vehicle is locked when the system detects the vehicle is being
raised.
Switching on the interior monitoring and the anti-tow systems
Close the storage compartment ⇒ fig. 48 1
on the roof console otherwise
the interior monitoring function (arrow) may not work without restrictions. Use the key to lock the vehicle. If the anti-theft alarm is turned on, the interi-
or monitoring and the anti-tow systems are also activated.
Switching off the interior monitoring and the anti-tow systems
The interior monitoring is switched off by pressing the remote control lock
button

twice.
● Lock all doors and tailgate.
● Use the key to lock the vehicle. The interior monitoring and / or anti-tow-
ing alarm are switched off until the next time the vehicle is locked.
To turn off the interior monitoring and anti-tow systems before unlocking
the vehicle, for example in the following situations:
● When leaving animals inside the vehicle  ⇒ page 74.
● When the vehicle must be loaded.
● When the vehicle is being transported, for example, by ferry.
● When the vehicle must be towed with the axle raised.
Risk of false alarms
The interior monitoring system only operates correctly if the vehicle is com-
pletely closed. Observe legal requirements. The alarm may be accidentally
triggered in the following cases:
● When a window is completely or partially open.
● If the sunglasses storage compartment in the roof console is open.
● When the panorama sliding sunroof is completely or partially open.
● When suspended objects are hung from the interior mirror (air freshen-
er) or there are loose papers in the vehicle.
● If the separation net is fitted and moves (due to heating).
● Due to a vibrating mobile telephone inside the vehicle. 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

80Unlocking and locking
Note
Upon activating the alarm, if any door or the tailgate is open, only the alarm
will be activated. The interior monitoring and anti-tow systems will only be
activated when the doors and tailgate are fully closed. 
Doors Introduction
Additional information and warnings:
● Vehicle key set ⇒ page 71
● Central locking and locking system ⇒ page 74
● Emergency locking and unlocking ⇒ page 318
WARNING
If a door is not correctly closed, it could open unexpectedly when driving
and cause serious injuries.
● Always stop immediately and close the door.
● When closing, ensure that the door has closed correctly. A closed
door should be flush with the corresponding parts of the bodywork.
● Open and close doors only when nobody is in the way of the door.
WARNING
A door held open by its retainer could be blown closed by the wind or
close if the vehicle is on a hill causing injury.
● When opening and closing doors, always use the door handle.
 Warning indicator
lights upPossible causeSolution
At least one vehicle door is
open or not correctly shut.
Stop driving immediately!
Open the corresponding door
and close it immediately.
Several warning and control lamps should light up for a few seconds when
the ignition is switched. This signals that the lamp is working properly. They
will switch off after a few seconds.
If a door is open or incorrectly closed, the indicator  or  on the instru-
ment panel will light.
Depending on the vehicle equipment, a symbol may be displayed on the in-
strument panel screen instead of the warning lamp. The indication is also
visible when the ignition is switched off. The indication disappears around
15 seconds after the vehicle has been locked. 
Sliding doors Introduction
Additional information:
● Vehicle key set ⇒ page 71
● Central locking and locking system ⇒ page 74
● Emergency locking and unlocking ⇒ page 318 

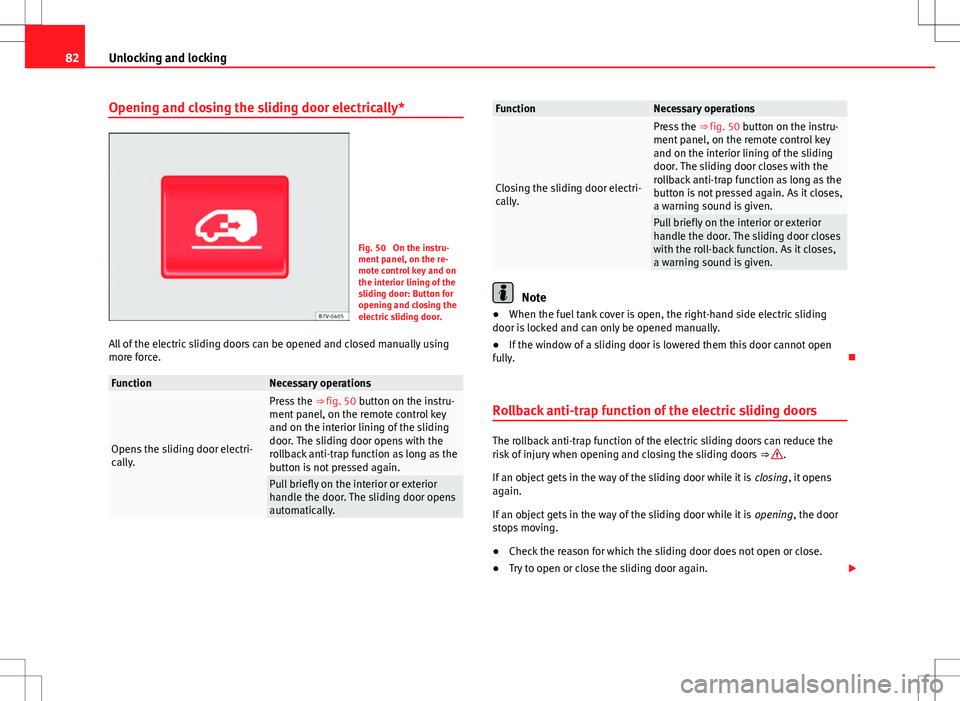

82Unlocking and locking
Opening and closing the sliding door electrically*
Fig. 50 On the instru-
ment panel, on the re-
mote control key and on
the interior lining of the
sliding door: Button for
opening and closing the
electric sliding door.
All of the electric sliding doors can be opened and closed manually using
more force.
FunctionNecessary operations
Opens the sliding door electri-
cally.
Press the ⇒ fig. 50 button on the instru-
ment panel, on the remote control key
and on the interior lining of the sliding
door. The sliding door opens with the
rollback anti-trap function as long as the
button is not pressed again.
Pull briefly on the interior or exterior
handle the door. The sliding door opens
automatically.
FunctionNecessary operations
Closing the sliding door electri-
cally.
Press the ⇒ fig. 50 button on the instru-
ment panel, on the remote control key
and on the interior lining of the sliding
door. The sliding door closes with the
rollback anti-trap function as long as the
button is not pressed again. As it closes,
a warning sound is given.
Pull briefly on the interior or exterior
handle the door. The sliding door closes
with the roll-back function. As it closes,
a warning sound is given.
Note
● When the fuel tank cover is open, the right-hand side electric sliding
door is locked and can only be opened manually.
● If the window of a sliding door is lowered them this door cannot open
fully. 
Rollback anti-trap function of the electric sliding doors
The rollback anti-trap function of the electric sliding doors can reduce the
risk of injury when opening and closing the sliding doors ⇒ .
If an object gets in the way of the sliding door while it is closing, it opens
again.
If an object gets in the way of the sliding door while it is opening, the door
stops moving.
● Check the reason for which the sliding door does not open or close.
● Try to open or close the sliding door again. 

84Unlocking and locking
Tailgate
Introduction
Additional information and warnings:
● Central locking ⇒ page 74
● Transporting ⇒  page 13
● Emergency locking and unlocking ⇒ page 318
WARNING
Careless and unsuitable locking, opening and closing of the tailgate can
cause accidents and serious injury.
● Open and close the tailgate only when nobody is in the way.
● Do not close the tailgate by pushing it down with your hand on the
rear window. The rear window could break and cause injury.
● Ensure the tailgate is locked after closing, otherwise, it may open un-
expectedly while driving. A closed tailgate should be flush with the cor-
responding parts of the bodywork.
● Always keep the tailgate closed while driving to avoid toxic gases en-
tering the passenger compartment.
● Do not open the tailgate when there is a load carrier installed. Like-
wise, the tailgate cannot be opened when a load is attached to it, for ex-
ample bicycles. An open tailgate could close itself if there is an addition-
al weight on it. If necessary, press down on the tailgate and remove the
load.
● Close and lock both the tailgate and all the other doors when you are
not using the vehicle. Ensure that nobody remains inside the vehicle.
● Never allow children to play inside or around the vehicle without su-
pervision, especially if the tailgate is open. Children could enter the lug-
gage compartment, close the tailgate and become trapped. Depending
WARNING (Continued)
on the time of the year, temperatures inside a locked and closed vehicle
can be extremely high or extremely low resulting in serious injuries and
illness or even death, particularly for young children.
● Never leave children or disabled people alone in the vehicle. If the ve-
hicle key or the central locking button is used, they may be locked in the
vehicle.
CAUTION
Before opening the tailgate, ensure that there is sufficient free space to
open and close it, for example if you are towing a trailer or in a garage. 
Warning indicator
lights upPossible causeSolution
The tailgate is open or not
correctly shut. Stop driving immediately!
Open the tailgate and close it
again.
Several warning and control lamps should light up for a few seconds when
the ignition is switched. This signals that the lamp is working properly. They
will switch off after a few seconds.
A warning appears on the instrument panel  if the tailgate is open or not
properly closed.
Depending on the vehicle equipment, a symbol may be displayed on the in-
strument panel screen instead of the warning lamp. The indication is also
visible when the ignition is switched off. The indication disappears around
15 seconds after the vehicle has been locked. 

85
Unlocking and locking
WARNING
If the tailgate is not correctly closed, it could open unexpectedly when
driving and cause serious injuries.
● Always stop immediately and close the tailgate.
● Ensure that the tailgate has been locked into place by the element on
the lock carrier when you close it.

Opening the tailgate
Fig. 52 Detailed view of
the centre console: but-
ton for unlocking the tail-
gate.
Fig. 53 Opening the tail-
gate from the exterior
Before opening the tailgate, always remove any load on its luggage rack
⇒ 
.
Opening with the ignition key
Press the button 
on the vehicle key until the tailgate opens automatical-
ly.
To open using the centre console control
Press the 
button on the centre console ⇒ fig. 52. The tailgate will be au-
tomatically opened.
The button is still operative when the ignition is switched off.
Opening the tailgate with the button
● Unlock the vehicle or open a door.
● Raise the tailgate using the button ⇒  fig. 53 (arrow).
Safety FirstOperating instructionsPractical tipsTechnical Specifications

86Unlocking and locking
WARNING
Unsuitable or careless unlocking and opening of the tailgate could cause
serious injuries.
● If there is a loaded luggage carrier on the tailgate, it could be un-
locked or open but not recognised as such. An unlocked or open tailgate
could open unexpectedly while driving.
Note
At outside temperatures of less than 0 °C (+32 °F), the pressurised gas
struts cannot always automatically lift the tailgate. In this case, open the
tailgate manually. 
Closing the tailgate
Fig. 54 Tailgate open:
hand grip. Closing the tailgate
●
Grab the handgrip inside the tailgate ⇒ fig. 54 (arrow).
● Push the tailgate downwards until it locks into place in the lock.
● Ensure that it is correctly closed by pulling on it firmly.
Locking the tailgate
If you unlock the vehicle without opening any doors or the tailgate, it will
lock again automatically after 30 seconds. This function prevents the vehi-
cle from remaining unlocked if the unlocking button is pressed by mistake.
Locking is only possible when the tailgate is correctly and fully closed.
● The tailgate is also locked by a central locking.
● If the vehicle tailgate is locked or unlocked using the 
button, when it
is closed once more it will lock automatically.
● A closed but not locked tailgate will lock automatically at a speed above
about 9 km/h ( 7 mph).
WARNING
Unsuitable or careless closing and locking of the tailgate could cause se-
rious injuries.
● Never allow children to play inside or around the vehicle without su-
pervision, especially if the tailgate is open. Children could enter the lug-
gage compartment, close the tailgate and become trapped. A locked ve-
hicle can be subjected to extremely high and low temperatures, depend-
ing on the time of year, thus causing serious injuries/illness and even
death.
Note
Before closing the tailgate, make sure that the key has not been left inside
the boot. 

87
Unlocking and locking
Opening the tailgate electronically
Fig. 55 Button with tail-
gate open.
Opening the tailgate
● Press and hold the 
button on the vehicle key until the tailgate opens
automatically.
● ALTERNATIVELY: Press and hold the 
button on the centre console for
approximately 1 second ⇒ fig. 52.
● ALTERNATIVELY: Press the ⇒ fig. 53 tailgate button (arrow).
In case of difficulty or obstruction, automatic opening of the tailgate is inter-
rupted.
Electronically opening the tailgate does not work when a trailer is electrical-
ly connected and hitched to a factory fitted trailer hitch ⇒ page 237.
The tailgate can be opened manually by applying more force. Closing the tailgate
●
Press and hold the 
button on the vehicle key for approximately 1
second.
● ALTERNATIVELY: Press and hold the 
button on the centre console for
approximately 1 second ⇒ fig. 52.
● ALTERNATIVELY: Press the ⇒ fig. 53 tailgate button (arrow).
● Press the button 
on the open tailgate ⇒ 
fig. 55 ⇒ .
● Manually push the tailgate down to close it.
The tailgate will move down to the closed position to close and lock itself
automatically using the power-close feature ⇒ 
.
In case of difficulty or obstruction, automatic closing of the tailgate is inter-
rupted and it will open slightly.
Check why the tailgate could not close.
Attempt to close it once more.
Interrupting the opening and closing process
Tailgate opening and closing can be stopped by pressing one of the 
but-
tons. Each time one of the  buttons is pressed, the tailgate moves to its
initial position.
Then, it can be opened or closed by hand. To do this, apply a little more
force.
Memorising the opening angle
The tailgate must be at least half open to memorise an opening angle.
● Stop automatic opening in the opening position required ⇒ page 87.
● Hold down the button ⇒ fig. 55 with the tailgate open for at least three
seconds. The opening angle is memorised.
Memorisation is confirmed by blinking of the hazard warning lights and a
sound signal. 
Safety FirstOperating instructionsPractical tipsTechnical Specifications

88Unlocking and locking
To be opened completely, the opening angle must be memorised once
more.
● Release the tailgate and open it to the memorised height.
● Push the tailgate all the way up. To do this, apply a little more force.
● Hold down the button ⇒  fig. 55 with the tailgate open for at least three
seconds.
● The opening angle is reset to the original factory setting.
WARNING
Unsuitable or careless closing and locking of the tailgate could cause se-
rious injuries.
● Never allow children to play inside or around the vehicle without su-
pervision, especially if the tailgate is open. Children could enter the lug-
gage compartment, close the tailgate and become trapped. A locked ve-
hicle can be subjected to extremely high and low temperatures, depend-
ing on the time of year, thus causing serious injuries/illness and even
death.
WARNING
It is possible that the tailgate does not open completely or, if it is open,
closes alone if a large amount of snow has built up on it or if a luggage
rack is fitted. In this case, the tailgate must be supported.
CAUTION
● When using a trailer, ensure that there is sufficient space to open and
close the tailgate.
● Before opening the tailgate, any kind of equipment carrier should be re-
moved, for example a bicycle carrier.
CAUTION
In case of repeated short-term use, the system is turned off to avoid over-
heating.
● When it has cooled, it may be used once again. During this time, the
tailgate may be manually opened or closed applying a little more effort.
● If the vehicle battery is disconnected or the fuse blows when the tailgate
is open, the tailgate system must be re-initialised. To do this, close the tail-
gate.
Note
Before closing the tailgate, make sure that the key has not been left inside
the boot. 
Electric windows Introduction
Additional information and warnings:
● SEAT information system
⇒ page 62
● Central locking and locking system
⇒ page 74
WARNING
Careless use of the electric windows can cause serious injury.
● Only operate the electric windows when nobody is in the way.
● Never leave children or disabled people alone in the vehicle if the
doors are to be locked. The windows cannot be opened in case of an
emergency. 
