13B-469
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$160.mif
13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
NOTESOnly refer to the customer complaints after a full check with the diagnostic tool.
NO DIALOGUE WITH ENGINE MANAGEMENT COMPUTER ALP 1
STARTING FAULT OR STARTING IMPOSSIBLE ALP 2
POOR PERFORMANCEALP 4
IRREGULAR ENGINE OPERATION ALP 5
EXTERNAL LEAKS FROM THE FUEL CIRCUIT ALP 6
ROUGH IDLEALP 7
ENGINE STALLINGALP 8
PARTICLE FILTER WARNING LIGHT COMES ON TOO FREQUENTLY ALP 9
DIESEL INJECTION
Fault finding – Customer complaints

13B-475
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V12 MR-372-J84-13B300$170.mif
DIESEL INJECTION
Fault finding – Fault Finding Chart13B

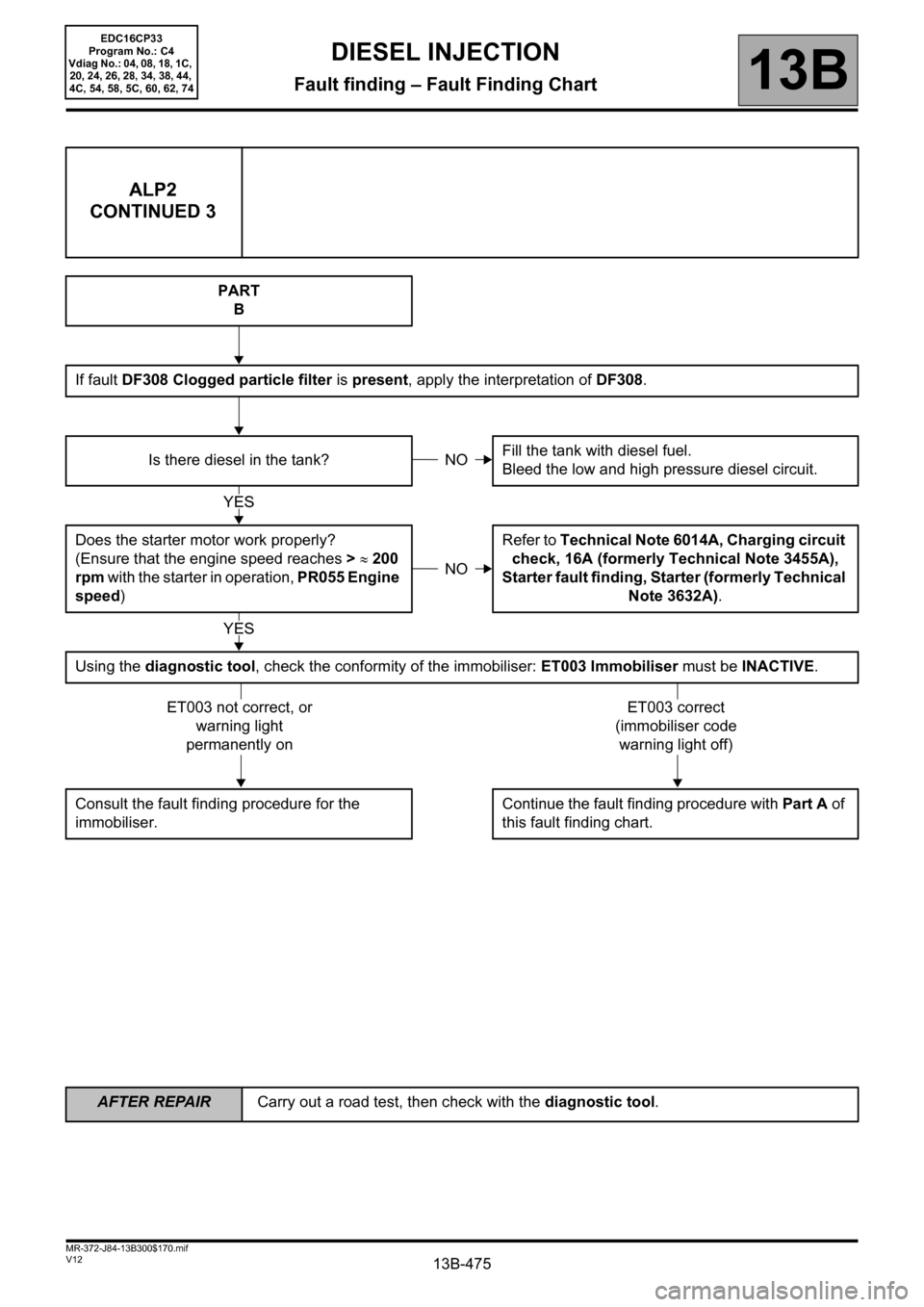

ALP2
CONTINUED 3
PART
B
If fault DF308 Clogged particle filter is present, apply the interpretation of DF308.
Is there diesel in the tank?Fill the tank with diesel fuel.
Bleed the low and high pressure diesel circuit.
Does the starter motor work properly?
(Ensure that the engine speed reaches > ≈ 200
rpm with the starter in operation, PR055 Engine
speed)Refer to Technical Note 6014A, Charging circuit
check, 16A (formerly Technical Note 3455A),
Starter fault finding, Starter (formerly Technical
Note 3632A).
Using the diagnostic tool, check the conformity of the immobiliser: ET003 Immobiliser must be INACTIVE.
Consult the fault finding procedure for the
immobiliser.Continue the fault finding procedure with Part A of
this fault finding chart.
NO
YES
NO
YES
ET003 not correct, or
warning light
permanently onET003 correct
(immobiliser code
warning light off)
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-476
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V12 MR-372-J84-13B300$170.mif
DIESEL INJECTION
Fault finding – Fault Finding Chart13B
ALP4 Poor performance
NOTESBefore analysing this customer complaint, check that there are no faults, and the
conformity (or otherwise) of the parameters and statuses, using the diagnostic tool.
If the customer complaint is not eliminated, perform the following checks.
IMPORTANT:
In the event of the engine overheating above 118°C, the computer deliberately limits the fuel flow (overheating
warning light comes on from 115°C).
– Please observe the cleanliness guidelines and safety advice.
Note:
For the M9R 724 (Vdiag 5C and 58):
The engine is limited to 3000 rpm if the vehicle is stationary or if the vehicle speed is less than 4 mph (7 km/h)
and if the engine is warm.
EDC16CP33_V18_ALP04 / EDC16CP33_V1C_ALP04 / EDC16CP33_V54_ALP04 / EDC16CP33_V20_ALP04 / EDC16CP33_V58_ALP04 /
EDC16CP33_V5C_ALP04 / EDC16CP33_V24_ALP04 / EDC16CP33_V04_ALP04 / EDC16CP33_V08_ALP04 / EDC16CP33_V44_ALP04 /
EDC16CP33_V4C_ALP04 / EDC16CP33_V34_ALP04 / EDC16CP33_V38_ALP04 / EDC16CP33_V74_ALP04 / EDC16CP33_V28_ALP04 /
EDC16CP33_V62_ALP04 / EDC16CP33_V26_ALP04 / EDC16CP33_V60_ALP04
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-478
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V12 MR-372-J84-13B300$170.mif
DIESEL INJECTION
Fault finding – Fault Finding Chart13B
ALP4
CONTINUED 2
Perform the following road test (looking for a loss of power when accelerating under full load):
– in the highest gear ratio, accelerate fully,
– lift your foot off the accelerator pedal completely for at least 2 seconds,
– accelerate fully again,
– release the accelerator pedal completely,
– accelerate slightly.
If the loss of power was not noted during slight acceleration and if there was a loss of engine power during each
acceleration at full load, replace the diesel fuel injector return rail and its overpressure valve (see MR364
(Mégane II ph2), MR370 (Scénic II ph2), MR 395 (Laguna II ph2), 402 (Vel Satis ph2), 405 (Espace IV ph2)
Mechanical, 13B, Diesel injection, Diesel injector fuel return rail: Removal - Refitting).
Check the connection and positioning of the differential pressure sensor (see MR 395 (Laguna II ph2), 402 (Vel
Satis Ph2), 405 (Espace IV ph2), 364 (Mégane II ph2), 370 (Scénic II ph2) Mechanical, 19B, Exhaust, Particle
filter pressure sensor: Removal - Refitting).
Check the conformity of the accelerator pedal position sensor, the brake pedal sensor, the atmospheric pressure
sensor, the exhaust gas recirculation valve, and the damper valve (see Interpretation of statuses and
parameters).
Check the consistency of the signal from the air flowmeter, the engine coolant temperature sensor, the fuel
temperature sensor and the engine speed sensor.
Check the connections, the continuity and the absence of interference resistance of the following components:
– the air flowmeter (apply DF056 Air flow sensor circuit)
– the engine coolant temperature sensor (apply DF001 Coolant temperature sensor circuit)
– the fuel temperature sensor (apply DF098 Fuel temperature sensor circuit)
– the engine speed sensor (apply DF195 Engine speed/camshaft sensor consistency).
A
YES
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74

13B-487
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V12 MR-372-J84-13B300$170.mif
DIESEL INJECTION
Fault finding – Fault Finding Chart13B
ALP9 PARTICLE FILTER WARNING LIGHT COMES ON TOO OFTEN
NOTESBefore dealing with this customer complaint, check that there are no faults except
DF312 Speed request, and the conformity (or otherwise) of the "parameters" and
"statuses" using the diagnostic tool. Deal with the other faults first.
If the customer complaint is not eliminated, perform the following checks.
Have the last 10 regeneration
attempts failed?Are all the regeneration failures
linked to engine cut-off?
See group parameter (ET706
Stored engine status no. 1 to
ET715 Stored engine status no.
10)
(e.g. ET706 STOPPED)Output 1 Is the distance of PR412 Distance of
last successful regeneration less
than all the parameters of group 2?
(PR794 to PR803 Stored
regeneration failure no.1 to no.10)
Is at least one status for group
1 = STATUS4?Check the exhaust pipe for leaks
or blockage. Repair if necessary.
Carry out an After-Sales
regeneration if not already
performed. To do this, see SC017
Particle filter regeneration in
Interpretation of commands.Output 2
YES
YES
NONO
YES
A
NO
B
EDC16CP33_V18_ALP09 / EDC16CP33_V1C_ALP09 / EDC16CP33_V54_ALP09 / EDC16CP33_V20_ALP09 / EDC16CP33_V58_ALP09 /
EDC16CP33_V5C_ALP09 / EDC16CP33_V24_ALP09 / EDC16CP33_V28_ALP09 / EDC16CP33_V62_ALP09 / EDC16CP33_V26_ALP09 /
EDC16CP33_V60_ALP09
EDC16CP33
Program No.: C4
Vdiag No.: 18, 1C, 20, 24,
26, 28, 54, 58, 5C, 60, 62

13B-491
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
V12 MR-372-J84-13B300$170.mif
DIESEL INJECTION
Fault finding – Fault Finding Chart13B
Analysis of output for ALP9.
ALP9
CONTINUED 4
ALP
output no.Output conditions for
ALP9Cause - type of drivingRegeneration
frequencyWhat to tell the
customer?
Output 1The last 10 regeneration
attempts have failed due to
the engine cutting out.Regeneration failures
caused by engine cut-off.No regeneration
frequency analysis.Explain to the customer
the need to wait until the
end of regeneration
(warning light goes out)
before switching off the
engine.
Output 2The last 10 regeneration
attempts have failed but
not because of the engine
cutting out.Unsuitable driving
conditions.No regeneration
frequency analysis.Explain again to the
customer the driving
criteria for when the
warning light comes on.
Output 3After successful
regenerations stored in the
memory, the warning light
did not come on. No
interval can be calculated.Since the last successful
stored regenerations, the
driving conditions have not
allowed the warning light to
come on.Should be normal Vehicle correct
Output 4The interval between a
successful regeneration
and the particle filter
warning light coming on is
correct (above the lowest
possible values). The
system does not have any
irregular components.Unfavourable driving
(urban zone, underspeed,
etc.)Normal Vehicle correct
EDC16CP33
Program No.: C4
Vdiag No.: 18, 1C, 20, 24,
26, 28, 54, 58, 5C, 60, 62

13B-500V12 MR-372-J84-13B300$180.mif
DIESEL INJECTION
Fault finding – Test13B
TEST4
CONTINUEDTurbocharged air inlet circuit check
Check that there is no leak at the exhaust manifold, in particular at the exhaust manifold/turbocharger connection.
Check the exhaust, run Test 1 Exhaust pipe check.
Carry out the necessary repairs.
Visually check the EGR circuit sealing.
Note:
The operational clearance of the EGR exchanger flap shaft leaves slight traces of a black substance due to
inconsequential leakage. Do not replace this part.
– Check the condition of the intercooler:
– clogging,
– leaks (vehicle stationary, stabilise the engine speed between 3500 rpm and 4000 rpm and check that there are
no leaks).
Replace if necessary.
Check that the turbocharging pressure sensor take-off point is not blocked.
Carry out the necessary repairs
END OF TEST.
A
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
