2012 RENAULT SCENIC display

13B-440V12 MR-372-J84-13B300$150.mif
DIESEL INJECTION
Fault finding – Interpretation of commands13B
AC004
CONTINUED
Run command AC004; if a faint whistling noise is heard along with a clicking from the solenoid valve, go to STEP
2, otherwise check the operation of the computer output stage:
Vehicle under + after ignition feed, clear the faults displayed by the diagnostic tool.
With the voltmeter in the direct current position:
With the turbocharging solenoid valve connected, connect the voltmeter earth lead to connection 3MG of
component 1475 and the positive lead to connection 3FB of component 1475. Run command AC004; the
voltmeter must display four successive voltages between 2.2 V and 2.6 V.
If the measurement is not correct, contact the Techline.
2. turbocharger control circuit check
–Apply Test 7 Variable geometry turbocharger control.
– With the engine stopped, make sure that the control rod is in the resting position.
– Start the engine and make sure that the control rod actuates to the upper stop.
(when the engine stops, the control rod should return to the rest position).
If the control rod does not move correctly, carry out the following checks:
1. Check the control vacuum:
– Disconnect the solenoid valve inlet hose and connect it to a pressure gauge.
– Start the engine and run it at a stable idle speed.
If the vacuum does not reach a value between 0.250 bar and 0.550 bar, check the vacuum circuit from the
vacuum pump.
– Stop the engine, reconnect the inlet hose and move onto step no. 2.
2. Check the solenoid valve actuation:
– Disconnect the solenoid valve outlet hose.
– Start the engine and run it at a stable idle speed.
– Place your hand on the solenoid valve and block the outlet union with your thumb.
– If there is no perceptible vibration of the solenoid valve, contact the Techline.
3. Check the solenoid valve actuation:
– Connect the pressure gauge to the solenoid valve outlet union.
– Start the engine and run it at a stable idle speed.
If the vacuum does not reach a value between 0.250 bar and 0.550 bar, replace the solenoid valve.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-441V12 MR-372-J84-13B300$150.mif
DIESEL INJECTION
Fault finding – Interpretation of commands13B
AC012DAMPER VALVE
NOTESCarry out this interpretation:
– after DF645 Damper valve position regulation, DF646 Damper valve position
sensor,
– or after a customer complaint (starting faults, poor performance).
Use the Wiring Diagram Technical Note, Laguna II ph2, Mégane ll, Scénic ll,
Espace IV ph2, Vel Satis ph2.
Measure the resistance between connections 38KQ and 38KP of component 1461.
If the resistance is not between 875 Ω and 1625 Ω replace the damper valve.
Check the continuity and absence of interference resistance of the following connections:
•38KQ between components 120 and 1461,
•38KP between components 120 and 1461.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
With the vehicle ignition on, and the engine stopped:
Make sure the damper flap is open,
If not, clean or replace the damper valve.
Actuate the valve using command AC012 and check the damper valve travel and rest position of the valve.
Check the operation of the computer output stage with a voltmeter in the alternating current position:
Actuate the valve with command AC012.
Connect the voltmeter earth lead to connection 38KS of component 1461 and the positive lead to connection
38KQ of component 1461.
The voltmeter should display three cycles of ON-OFF (12.5 V then return to 0V).
If the measurement is correct, replace the damper valve
If the measurement does not show any operation, contact the Techline.
EDC16CP33_V18_AC012 / EDC16CP33_V1C_AC012 / EDC16CP33_V54_AC012 / EDC16CP33_V20_AC012 / EDC16CP33_V58_AC012 /
EDC16CP33_V5C_AC012 / EDC16CP33_V24_AC012 / EDC16CP33_V04_AC012 / EDC16CP33_V08_AC012 / EDC16CP33_V44_AC012 /
EDC16CP33_V4C_AC012 / EDC16CP33_V34_AC012 / EDC16CP33_V38_AC012 / EDC16CP33_V74_AC012 / EDC16CP33_V28_AC012 /
EDC16CP33_V62_AC012 / EDC16CP33_V26_AC012 / EDC16CP33_V60_AC012
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-450V12 MR-372-J84-13B300$150.mif
DIESEL INJECTION
Fault finding – Interpretation of commands13B
AC103EGR BY-PASS
NOTESCarry out this fault finding procedure when the interpretation of fault DF304 EGR
bypass circuit has not been resolved.
Use the Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV
ph2, Mégane II ph2, Scénic II ph2.
Measure the resistance between connections 3FB and 3TP of component 1301.
If the resistance of the solenoid valve is not between:
•43 Ω and 49 Ω at + 25 °C,
•32 Ω and 37 Ω at - 40 °C, replace the EGR bypass solenoid valve.
Check the continuity and the absence of interference resistance on the following connection:
•3TP between components 120 and 1301.
Check the + 12 V after relay supply to the EGR bypass solenoid valve of the following connection:
•3FB of component 1301.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If you notice no valve movement when running command AC103, ensure that the computer output stage is
functioning:
Vehicle under + after ignition feed, clear the faults displayed by the diagnostic tool.
EDC16CP33_V18_AC103 / EDC16CP33_V1C_AC103 / EDC16CP33_V54_AC103 / EDC16CP33_V20_AC103 / EDC16CP33_V58_AC103 /
EDC16CP33_V5C_AC103 / EDC16CP33_V24_AC103 / EDC16CP33_V04_AC103 / EDC16CP33_V08_AC103 / EDC16CP33_V44_AC103 /
EDC16CP33_V4C_AC103 / EDC16CP33_V34_AC103 / EDC16CP33_V38_AC103 / EDC16CP33_V74_AC103 / EDC16CP33_V28_AC103 /
EDC16CP33_V62_AC103 / EDC16CP33_V26_AC103 / EDC16CP33_V60_AC103
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-451V12 MR-372-J84-13B300$150.mif
DIESEL INJECTION
Fault finding – Interpretation of commands13B
AC103
CONTINUED
With the voltmeter in the direct current position:
With the EGR BYPASS solenoid valve connected, connect the voltmeter earth lead to connection3TP of
component1301 and the positive lead to connection3FB of component1301. Run command AC103, the
voltmeter should display four successive readings which are approximately equal to the 12 V battery voltage.
If the voltmeter indicates no control or a continuous voltage, contact the Techline.
If activation has run correctly, check the control vacuum:
– Disconnect the solenoid valve inlet hose and connect it to a pressure gauge.
– Start the engine and run it at a stable idle speed.
– If the vacuum does not reach a value between 0.250 bar and 0.550 bar, check the vacuum circuit from the
vacuum pump.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-455V12 MR-372-J84-13B300$150.mif
DIESEL INJECTION
Fault finding – Interpretation of commands13B
AC225RAIL PRESSURE REGULATOR
NOTESPerform this fault finding procedure:
– following interpretation of an unresolved fault
– following an inconsistency recorded in the parameters,
– following a customer complaint (starting problems, engine speed instability, injection
noise).
STEP 1
Check the continuity and absence of interference resistance on the following connection:
•3RG between the components 120 and 1198.
Check the + 12 V after relay supply to the rail pressure regulator (DRV) of the following connection:
•3FB of component 1198.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Run command AC225, if you can hear a slight whistling noise and rattling from the pressure regulator, go to step
2, otherwise, check the operation of the computer output stage:
Vehicle under + after ignition feed, clear the faults displayed by the diagnostic tool.
With the voltmeter in the direct current position:
With the rail pressure regulator connected, connect the voltmeter earth lead to connection3RG of
component1198 and the positive lead to connection3FB of component1198. Run command AC225, the
voltmeter should display four successive voltages between 2 V and 2.4 V.
If the measurement is not correct, contact the Techline.
STEP 2
EDC16CP33_V18_AC225 / EDC16CP33_V1C_AC225 / EDC16CP33_V54_AC225 / EDC16CP33_V20_AC225 / EDC16CP33_V58_AC225 /
EDC16CP33_V5C_AC225 / EDC16CP33_V24_AC225 / EDC16CP33_V04_AC225 / EDC16CP33_V08_AC225 / EDC16CP33_V44_AC225 /
EDC16CP33_V4C_AC225 / EDC16CP33_V34_AC225 / EDC16CP33_V38_AC225 / EDC16CP33_V74_AC225 / EDC16CP33_V28_AC225 /
EDC16CP33_V62_AC225 / EDC16CP33_V26_AC225 / EDC16CP33_V60_AC225
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

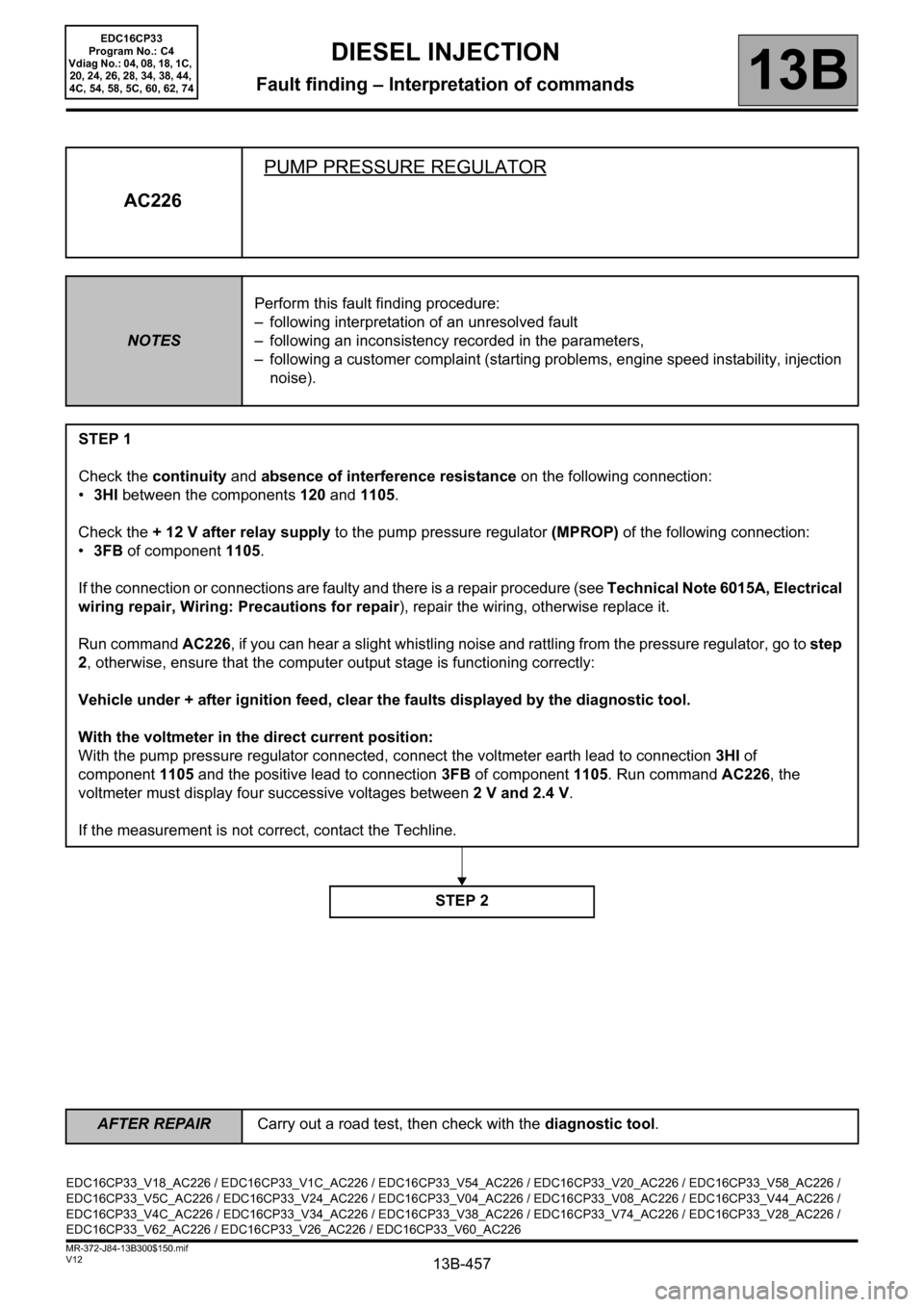

13B-457V12 MR-372-J84-13B300$150.mif
DIESEL INJECTION
Fault finding – Interpretation of commands13B
AC226PUMP PRESSURE REGULATOR
NOTESPerform this fault finding procedure:
– following interpretation of an unresolved fault
– following an inconsistency recorded in the parameters,
– following a customer complaint (starting problems, engine speed instability, injection
noise).
STEP 1
Check the continuity and absence of interference resistance on the following connection:
•3HI between the components 120 and 1105.
Check the + 12 V after relay supply to the pump pressure regulator (MPROP) of the following connection:
•3FB of component 1105.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Run command AC226, if you can hear a slight whistling noise and rattling from the pressure regulator, go to step
2, otherwise, ensure that the computer output stage is functioning correctly:
Vehicle under + after ignition feed, clear the faults displayed by the diagnostic tool.
With the voltmeter in the direct current position:
With the pump pressure regulator connected, connect the voltmeter earth lead to connection3HI of
component1105 and the positive lead to connection3FB of component1105. Run command AC226, the
voltmeter must display four successive voltages between 2 V and 2.4 V.
If the measurement is not correct, contact the Techline.
STEP 2
EDC16CP33_V18_AC226 / EDC16CP33_V1C_AC226 / EDC16CP33_V54_AC226 / EDC16CP33_V20_AC226 / EDC16CP33_V58_AC226 /
EDC16CP33_V5C_AC226 / EDC16CP33_V24_AC226 / EDC16CP33_V04_AC226 / EDC16CP33_V08_AC226 / EDC16CP33_V44_AC226 /
EDC16CP33_V4C_AC226 / EDC16CP33_V34_AC226 / EDC16CP33_V38_AC226 / EDC16CP33_V74_AC226 / EDC16CP33_V28_AC226 /
EDC16CP33_V62_AC226 / EDC16CP33_V26_AC226 / EDC16CP33_V60_AC226
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-459V12 MR-372-J84-13B300$150.mif
DIESEL INJECTION
Fault finding – Interpretation of commands13B
MT001TURBOCHARGING FUNCTION
NOTESPerform this fault finding procedure:
– following the interpretation of a fault concerning the air line which cannot be rectified,
– following an inconsistency found in the parameters concerning the air line
(turbocharging pressure or inlet air flow),
– following a customer complaint (starting faults, engine speed instability, lack of
power).
NOTESThis fault finding mode allows you to check dynamically certain mechanical components
on the engine.
To do this, the engine will run a 4-phase cycle which will enable the entire air line to be
checked: air filter, air flowmeter, duct (hoses), air refrigerant, turbocharging pressure
sensor, turbocharger, inlet manifold, exhaust manifold and exhaust pipe.
This test lasts for approximately 50 seconds.
Interpretation of test results:
The data recorded during this test is displayed in the DATA section.
- Identify any data which is outside the tolerance range and apply the different Monitool fault finding procedures
if necessary.
Introduction:
Engine parameters used during this test:
– PR055 Engine speed
– PR035 Atmospheric pressure
– PR059 Inlet air temperature
– PR064 Coolant temperature
–PR132 Air flow
– PR041 Turbocharging pressure
– PR051 EGR valve position feedback
EDC16CP33_V04_MT001 / EDC16CP33_V44_MT001
EDC16CP33
Program No.: C4
Vdiag No.: 04, 44
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.

13B-466V12 MR-372-J84-13B300$150.mif
DIESEL INJECTION
Fault finding – Interpretation of commands13B
MT001
CONTINUED 7
PHASE 3:
Preliminary test:
Engine speed between: 2480 rpm < X < 2520 rpm
Coolant temperature > 70°C
EGR valve feedback position < 1%
Interpretation:
If, during phase 3, there is no data outside of the maximum and minimum limits for each variable, then the air line
is correct and no component replacement is to be carried out. Check the fuel circuit or deal with present or stored
faults which are displayed on the diagnostic tool.
Note: the interpretation of faults during phase 3 should only be carried out in the following situation:
– The variables measured during phase 1 and 2 are correct, i.e. they are within the minimum and maximum
authorised limits. If this is not the case, apply the different Monitool fault finding procedures which relate to the
different faults revealed during the phase 1 and phase 2. To confirm the repairs or modifications carried out, run
the MT001 monitool test again.
Faults, Values outside the limitsThreshold Fault finding procedure
Air flow < Minimum thresholdMinimum threshold < Turbocharging
pressure < maximum thresholdFault finding procedure Monitool no. 7
Turbocharging pressure < minimum
thresholdFault finding procedure Monitool no. 8
Turbocharging pressure > maximum
thresholdContact Techline
Air flow > maximum thresholdMinimum threshold < Turbocharging
pressure < maximum thresholdContact Techline
Turbocharging pressure < minimum
thresholdContact Techline
Turbocharging pressure > maximum
thresholdContact Techline
Turbocharging pressure
< minimum thresholdMinimum threshold < Air flow < maximum
thresholdContact Techline
Air flow < Minimum thresholdFault finding procedure Monitool no. 8
Air flow > maximum threshold Contact Techline
Turbocharging pressure
> maximum thresholdMinimum threshold < Air flow < maximum
thresholdContact Techline
Air flow < Minimum threshold Contact Techline
Air flow > maximum threshold Contact Techline
EDC16CP33
Program No.: C4
Vdiag No.: 04, 44
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
